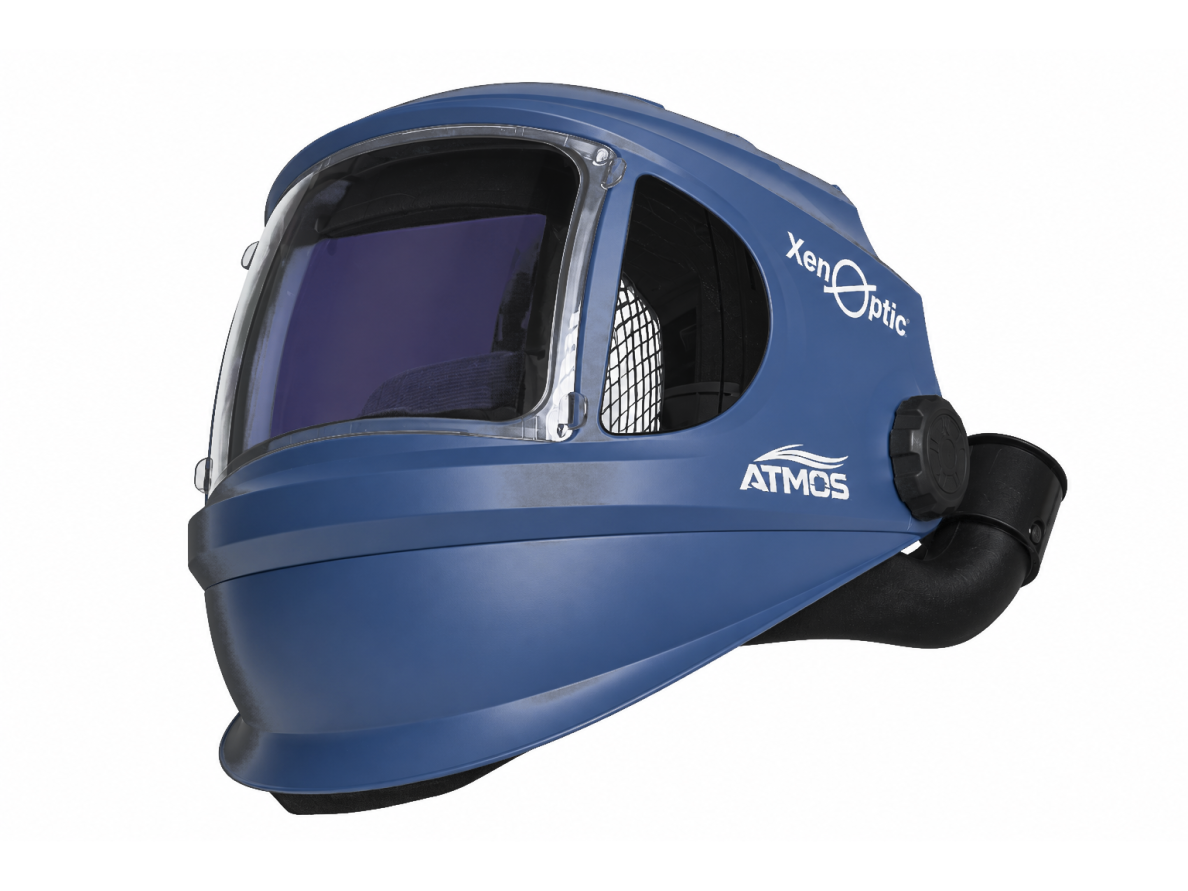

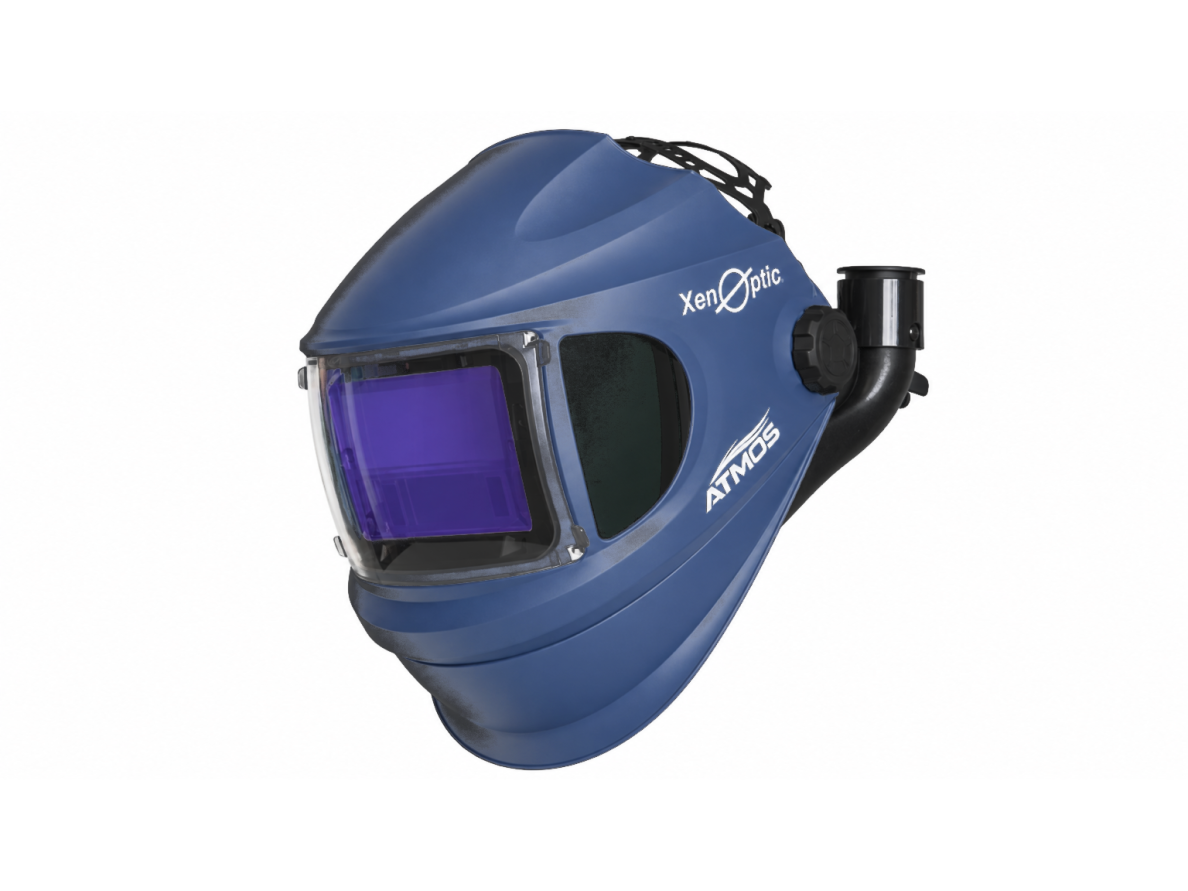

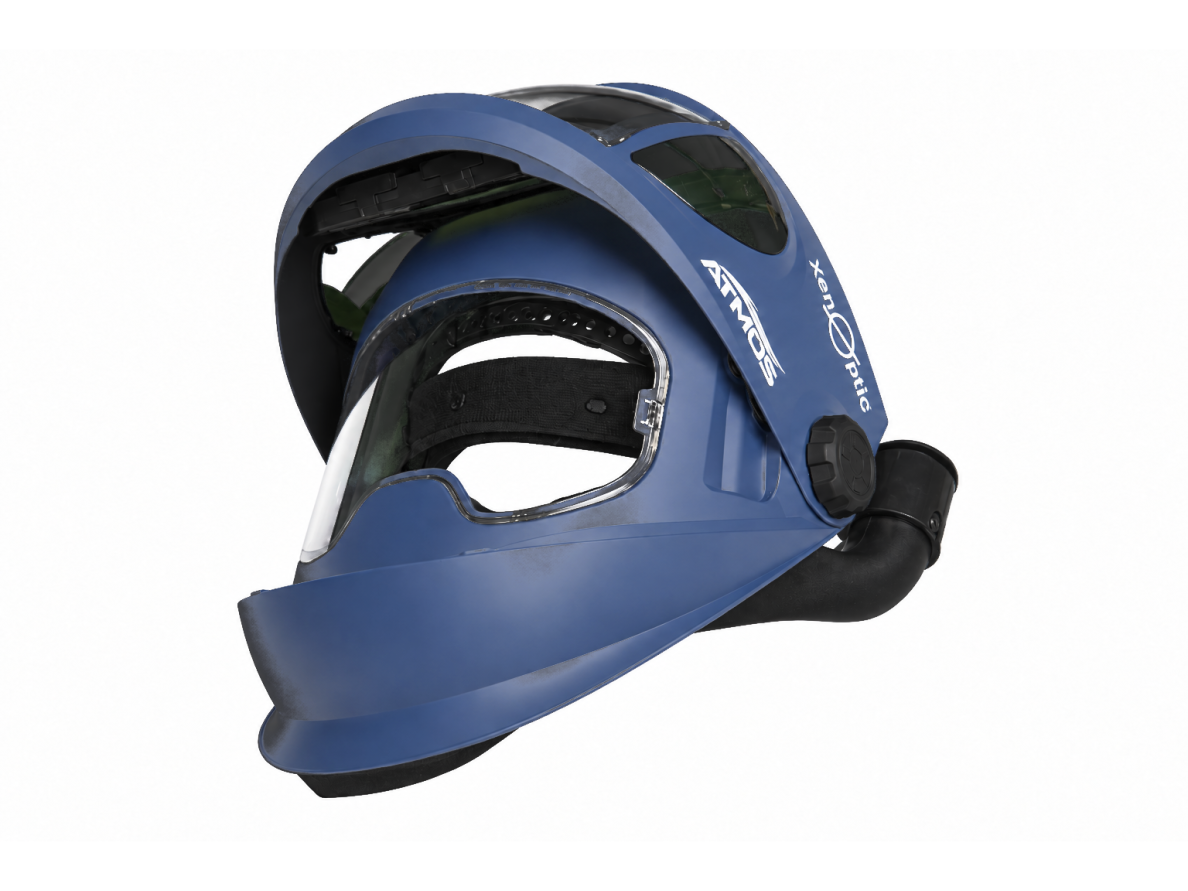

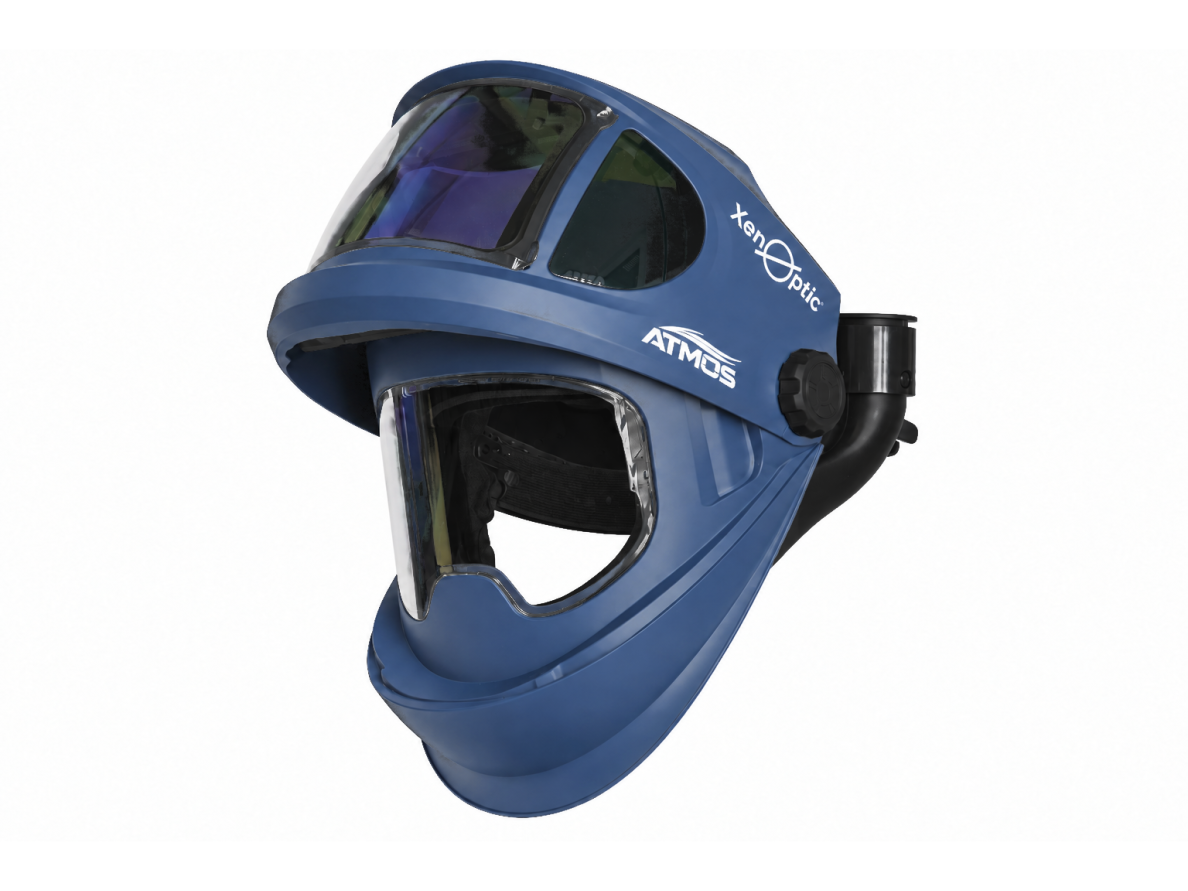

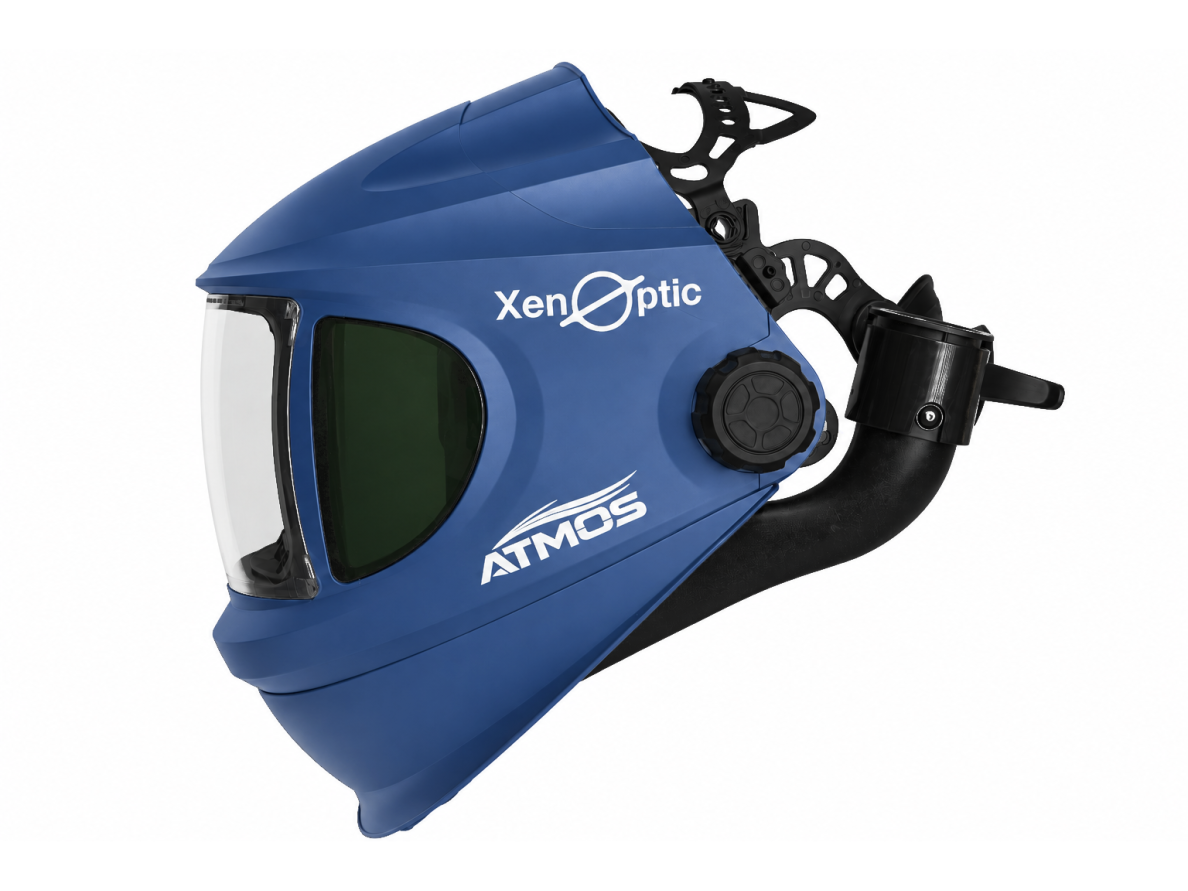

True Color welding helmet XenOptic ATMOS, with ventilation (PAPR)

XenOptic ATMOS – breathe clean air and see clearly

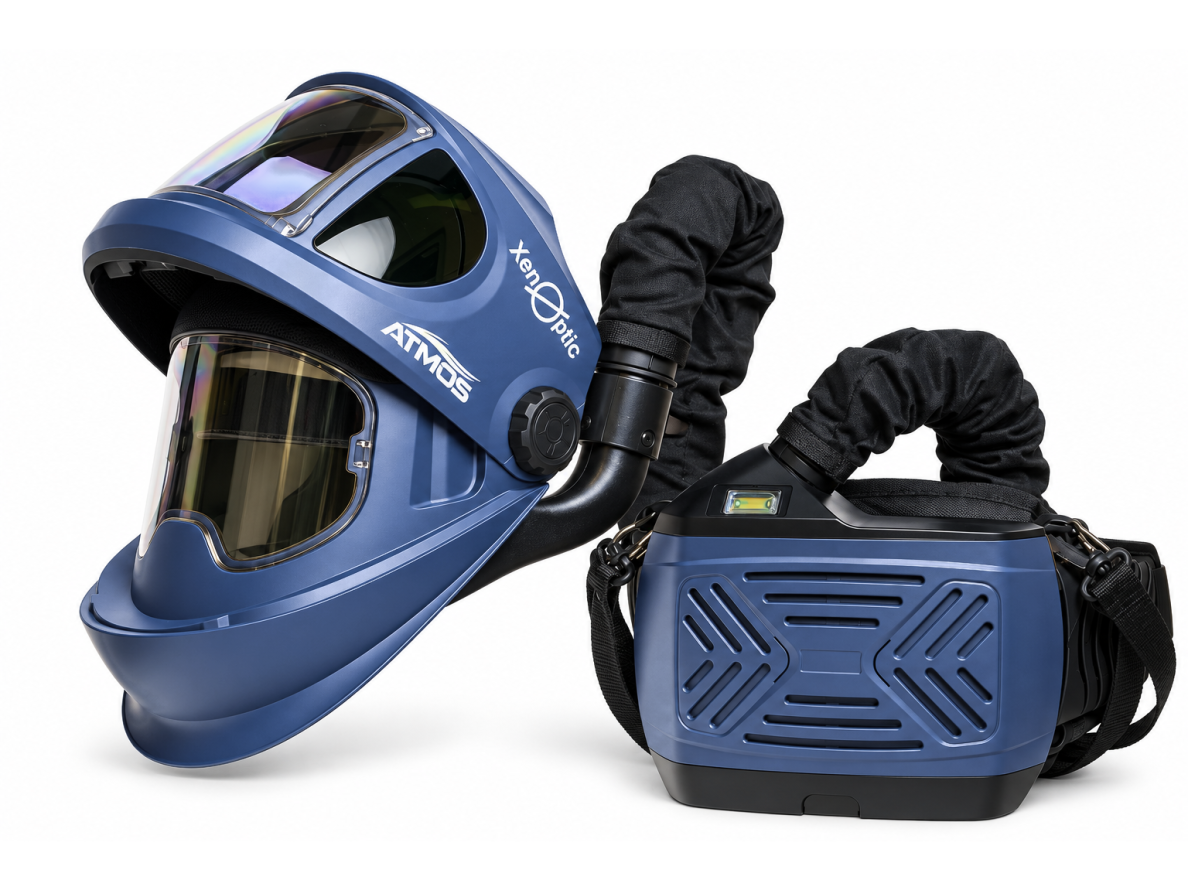

XenOptic ATMOS is not just a welding helmet, but a complete protection system: an auto-darkening filter (ADF) for eye protection and a powered air purifying respirator (turbo) unit for respiratory protection. The system filters welding fumes and fine particles, supplies clean air under the helmet, helping to reduce fatigue and protect your health during long work sessions. The welding helmet features a top 1/1/1/1 optical class and a 4 + 1 ambient light sensor system, which means maximum clarity, safety, and precision.

Turbo unit with adjustable airflow

The fan supplies air at three levels – 170, 190 and 210 l/min – so you can choose according to work intensity. The LCD display shows an alarm, filter status, flow level, current airflow, and battery status. In the event of insufficient airflow or a low battery, an audible and vibration warning activates. Before work, airflow is checked with the included flow meter.

P3 particulate filter

The system uses a P3-class particulate filter (marked TH3) together with a pre-filter and a spark arrestor. This combination protects against non-toxic solid particles and aerosols.

Important: PAPR does not protect against gases and vapours and cannot be used in oxygen-deficient environments (below 19.5%).

Li-ion battery and carrying

Standard battery 14.8 V / 2.6 Ah (38.48 Wh) (optional – high-capacity battery 14.8 V / 7.8 Ah (76.96 Wh)) for longer work. Battery service life – ≥500 charging cycles.

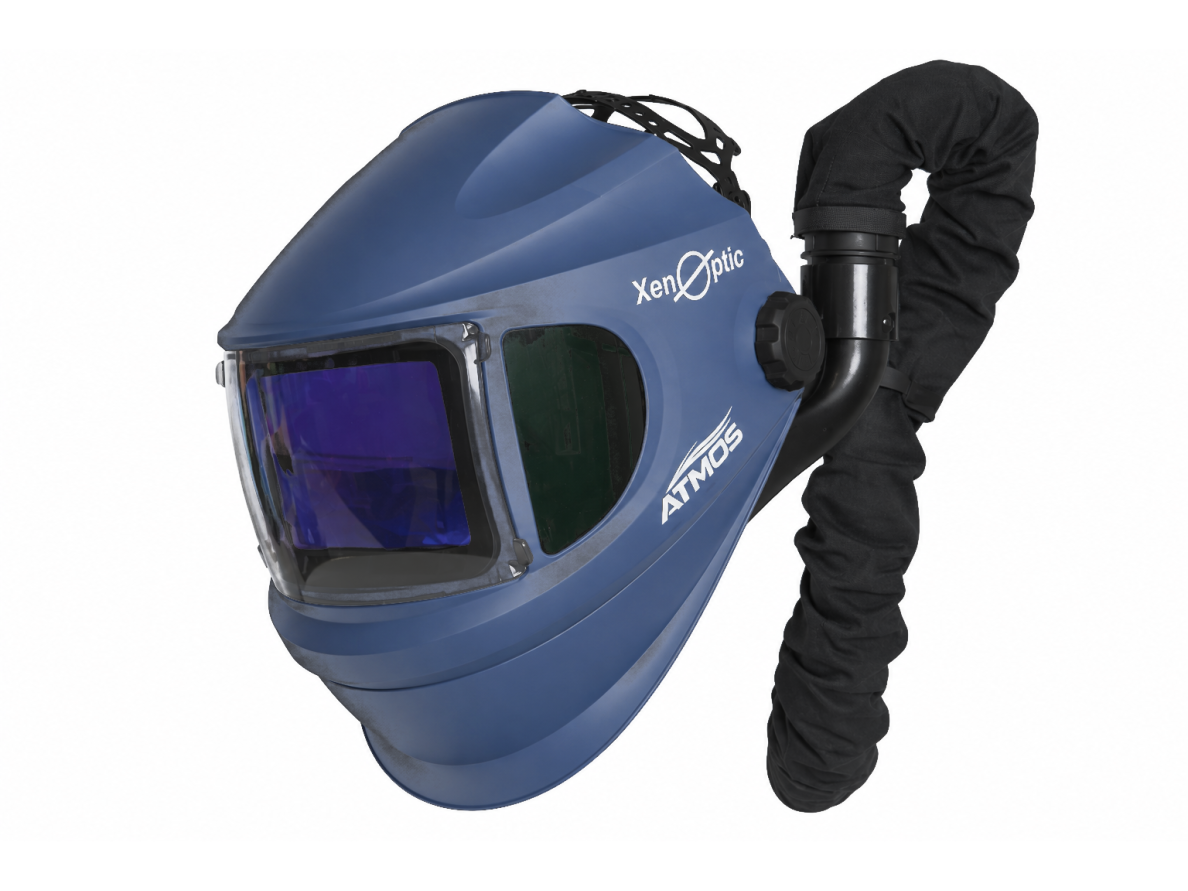

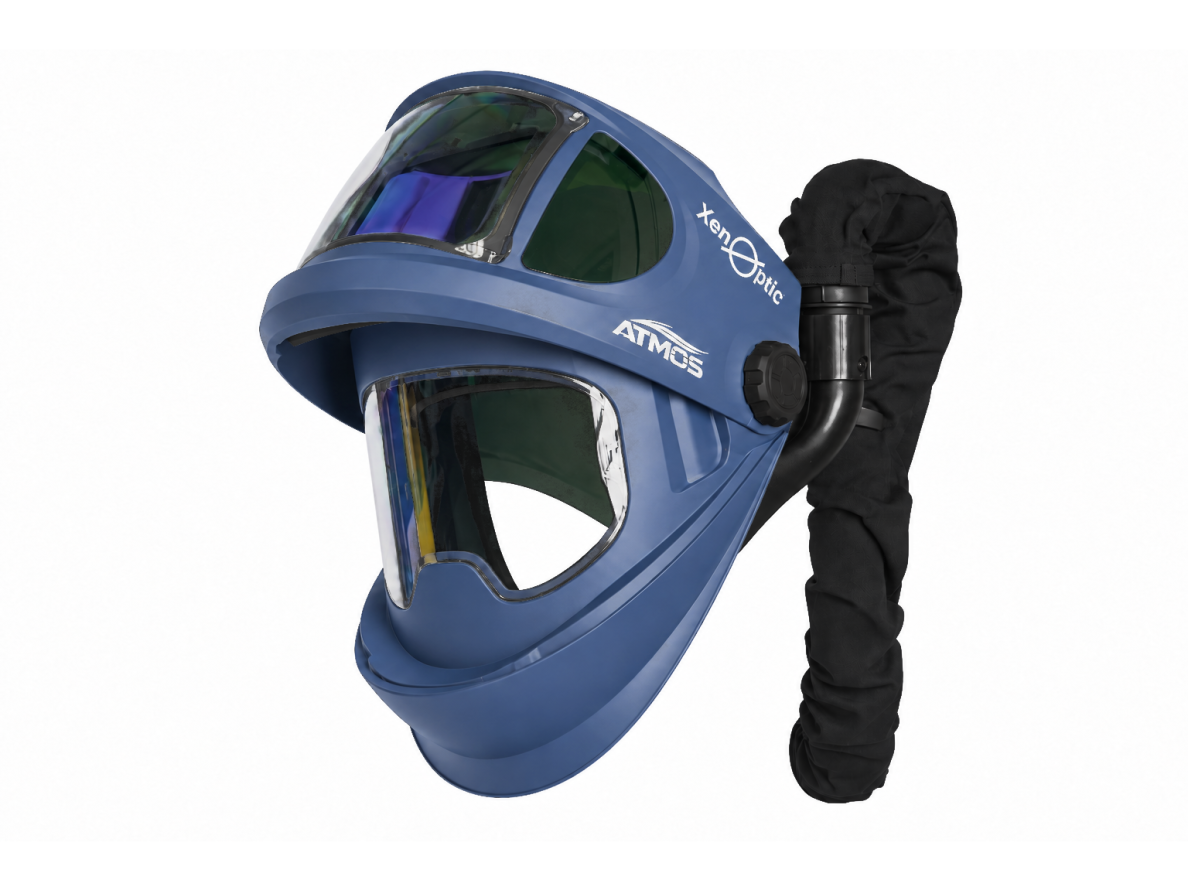

The complete unit is mounted on a belt with shoulder straps; air is supplied through a breathing hose with a quick-disconnect connector.

Auto-darkening filter (ADF)

The filter darkens instantly when the arc is struck and protects the eyes from visible light, UV and IR radiation. It has 4 modes – CUT (cutting), WELD (welding), GRIND (grinding), DARK (fixed shade) – and a separate external GRIND button on the housing for quick switching.

Shade range DIN 4–8 / 9–13 (max DIN 14), adjustable sensitivity (0–9 levels) and delay, automatic or manual (A/M) control, TRS smooth transition mode and memory function.

Certification

The system complies with EN 12941 (TH3), EN ISO 16321, AS/NZS 1716 (PAPR-P3) and PPE Regulation (EU) 2016/425; helmet ADF – EN 166, EN 175, EN 379.

Technical specifications — turbo unit / air supply

Technical specifications — auto-darkening filter (ADF)

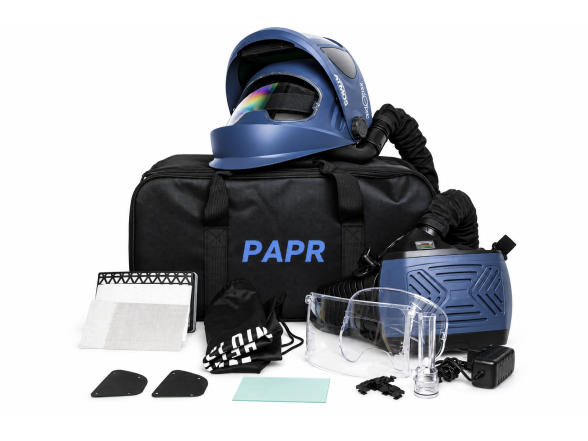

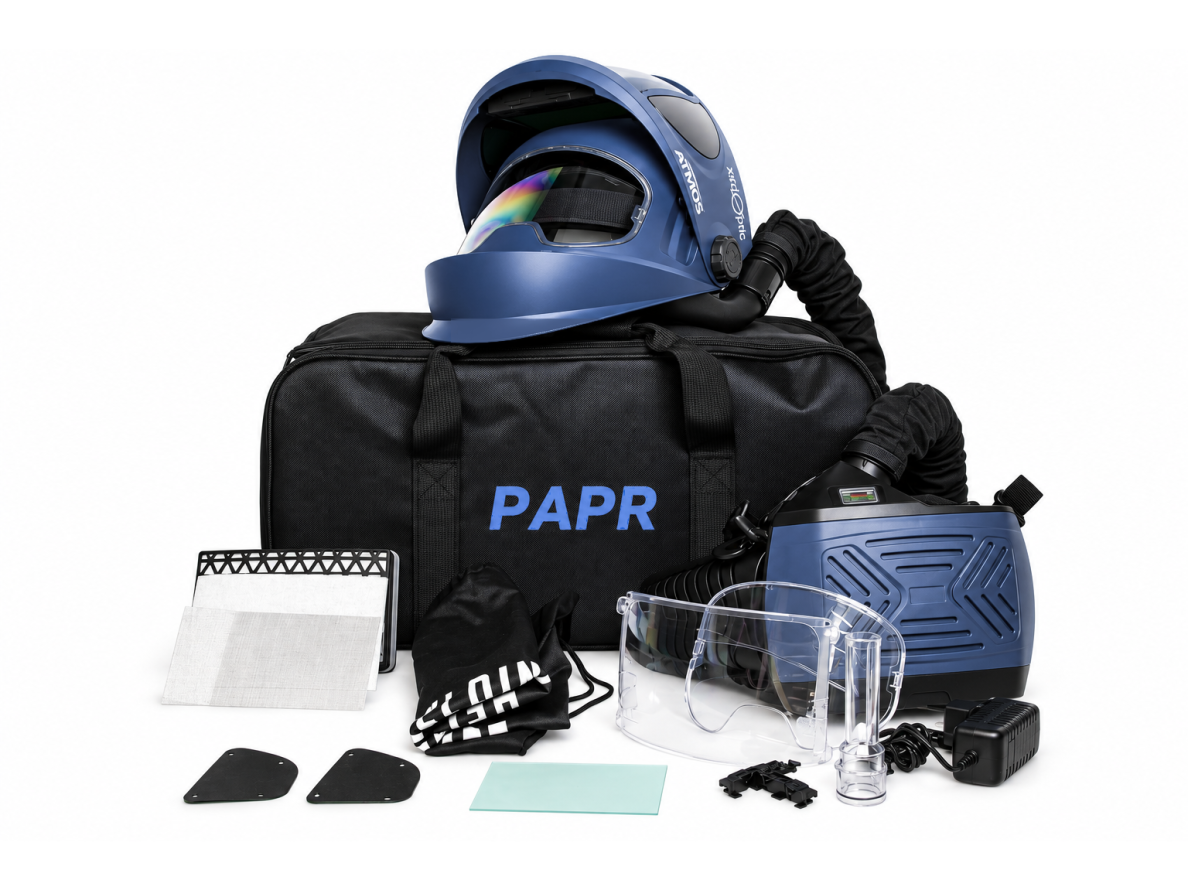

Set includes:

• Auto-darkening welding helmet
• Turbo air unit
• P3 particulate filter (TH3)
• Pre-filter
• Spark arrestor
• Filter cover
• Standard Li-ion battery
• Battery charger (universal)
• Belt with shoulder straps
• Breathing hose with cap
• Airflow meter
• Face seal
• Headgear
• Air ducting
• Instructions

Warranty:

• PAPR unit: 12 months
• PAPR battery: 6 months
• Warranty does not apply to normal wear and tear (filters, seals, etc.)

XenOptic – Beyond ordinary vision.
