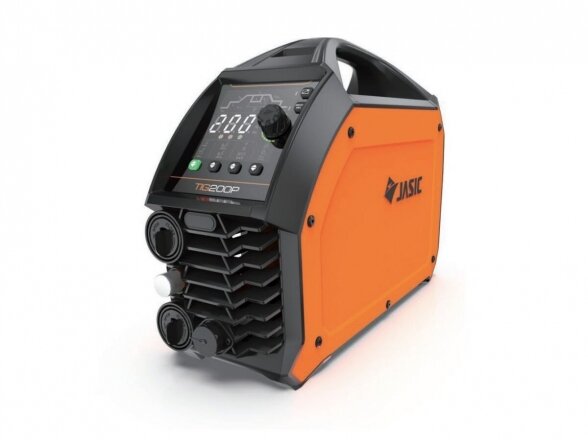

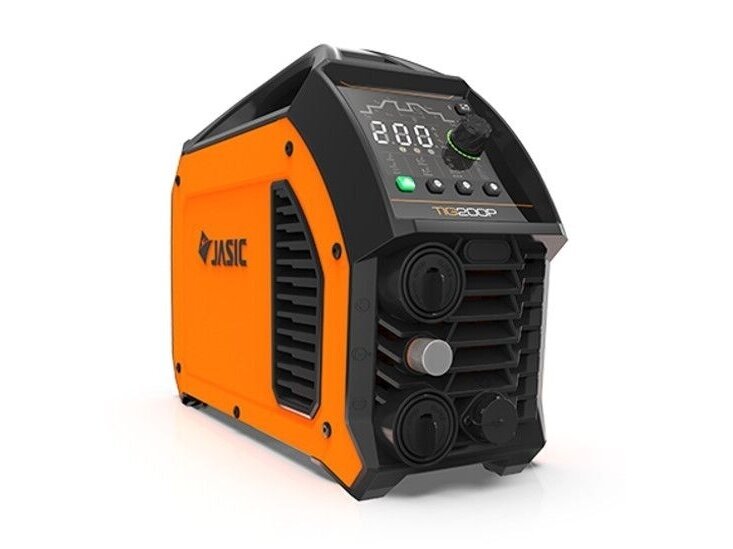

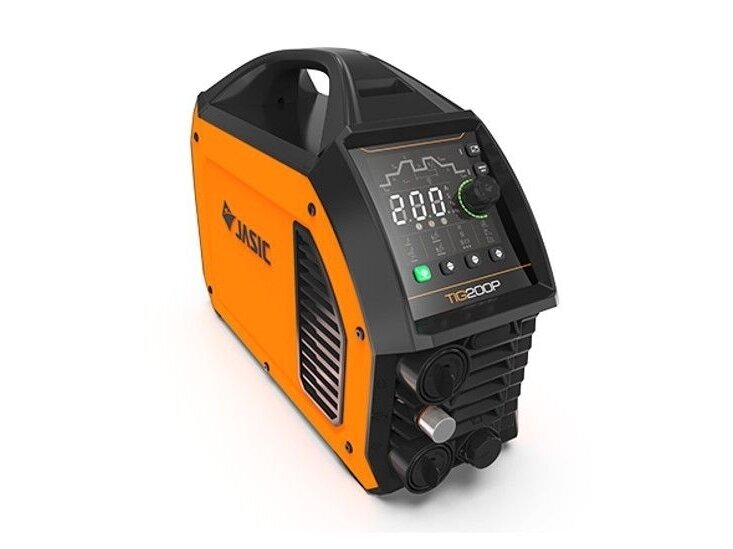

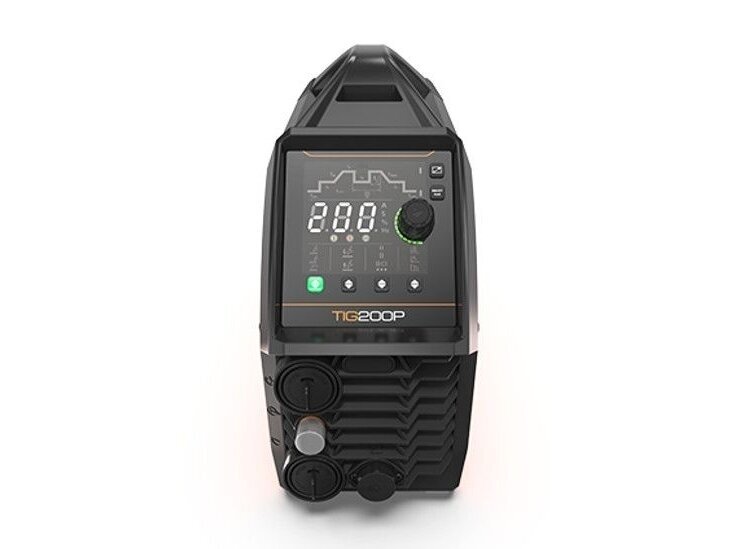

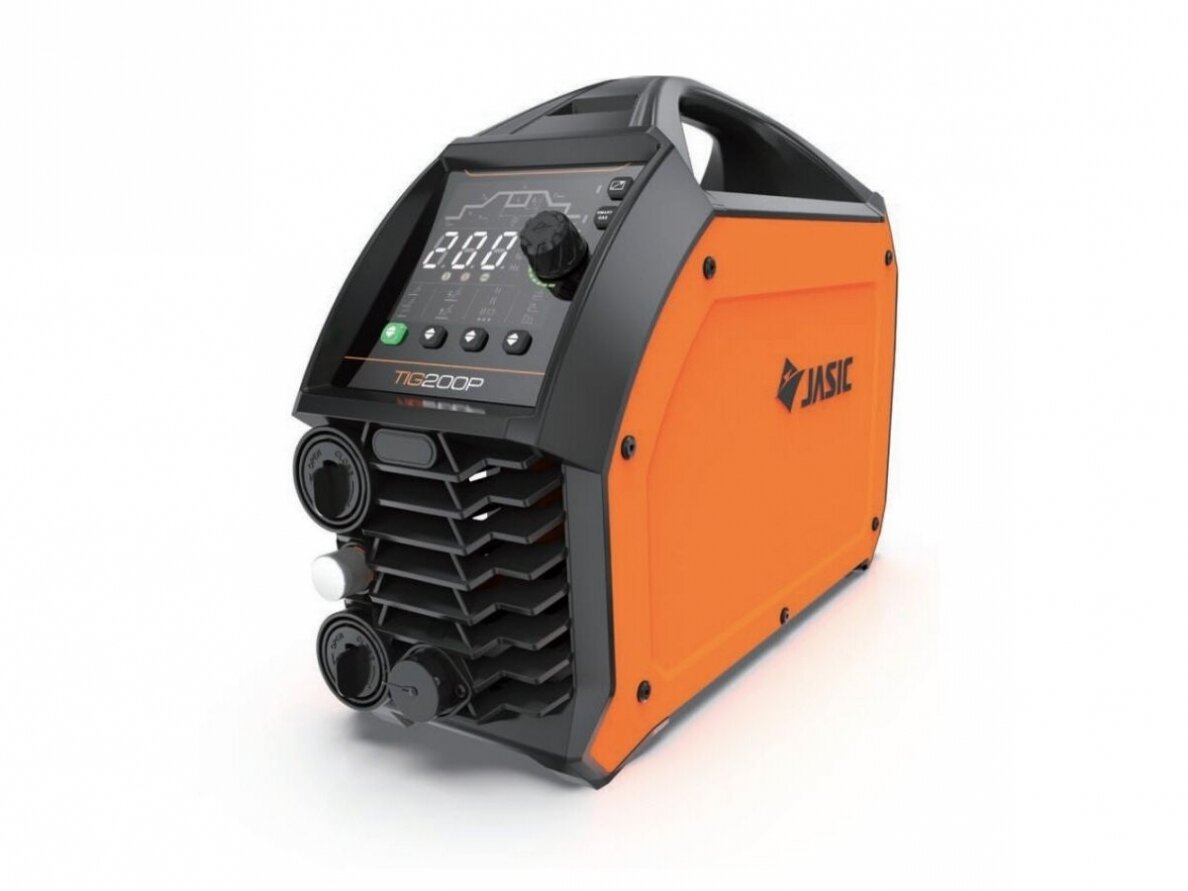

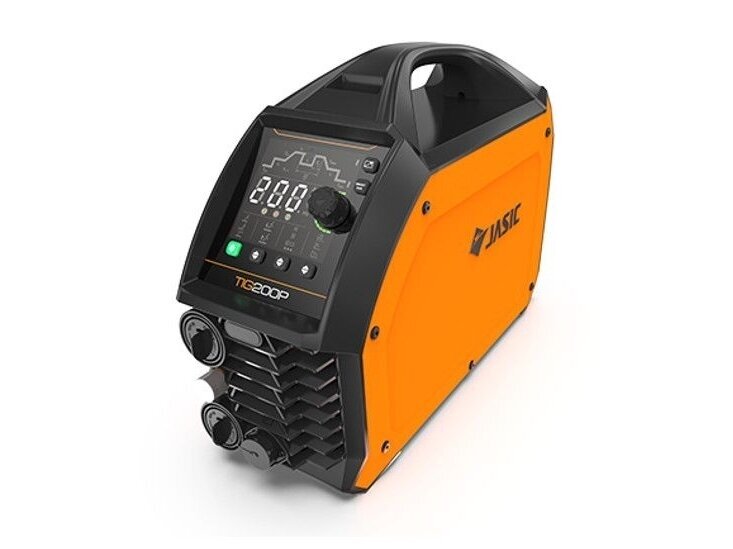

Welding machine JASIC EVO20 TIG200P W2S52, 200A, 230V

JASIC EVO20 TIG200P W2S52 is a digital multi-process TIG welding machine, featuring advanced technology and excellent performance. It can weld carbon steel, low alloy steel. Unique electronic component structure and air tunnel design effectively dissipate heat from the device, extending duty cycle. The device also has a separated air channel design to protect vital components from water and dust intrusion, significantly improving equipment reliability. The device features excellent welding performance, high functionality, efficiency, compact dimensions, and lightweight.

For TIG welding method, additional wire and tungsten electrode are used, operating in an inert gas environment. Such welding is clean but creates exceptionally beautiful and high-quality weld seams. JASIC EVO20 TIG 200P W2S52 welding machine features high frequency welding arc ignition.

MMA welding indicators are greatly improved by an excellent control algorithm: easier arc ignition, stable welding current, minimal spattering, electrodes do not stick, good formation, adjustable to welding cable length or diameter. (MMA welding requires an additional electrode holder, not included in the set).

The Smart Lift-TIG function eliminates welding defects by monitoring the arc and stopping it if necessary, detects short circuit caused by unintended tungsten tip and workpiece contact, and continues welding, improving arc ignition success rate and effectively avoiding tungsten tip sticking, contamination, and damage.

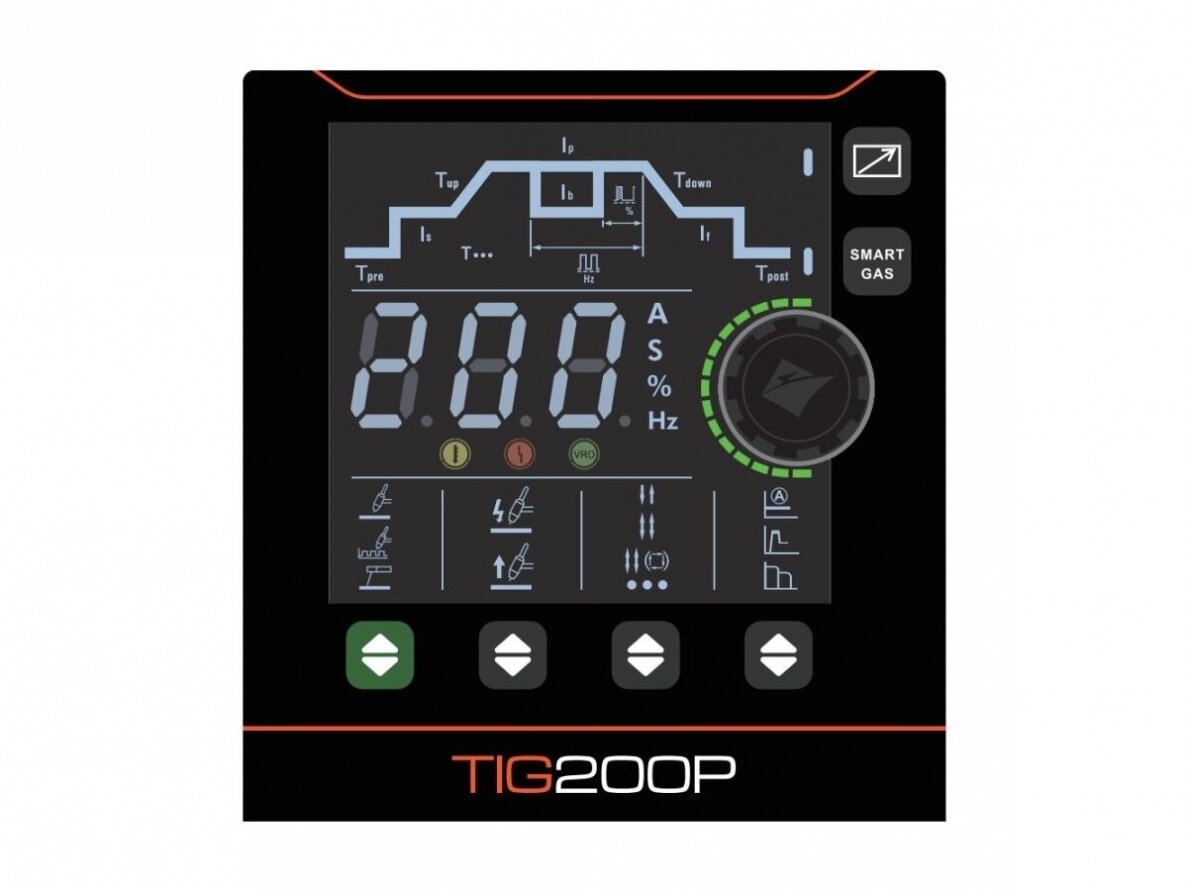

The welding machine has a detachable side panel for easy servicing, and reinforced overall construction resistance to shocks. HD digital panel with ClearVision ensures clear parameters display, visible directly in sunlight. Slanted front grilles ensure excellent heat dissipation efficiency and protection against penetration efficiency (IP23S) balance. A simplified integrated handle improves the overall aesthetics of the power source and ensures comfortable, firm grip even with gloves on. The control panel is tilted at a 45-degree angle, ensuring good visibility and operating comfort balance. The control panel area is increased by 41%, compared to vertically arranged control panels. Remote control unit connection capability.

Main Functions:

• All welding parameters can be adjusted on the screen for more accurate regulation of current and time parameters.
• “Anti-stick” function - prevents the tungsten electrode from sticking to the product.
• “Smart gas” function - automatically adjusts the appropriate purging time according to the user's welding specifications and efficiently saves argon gas.

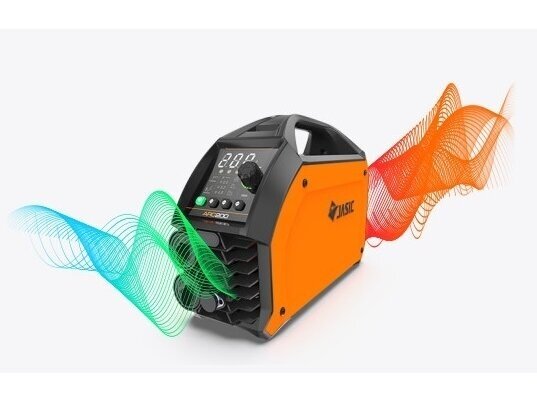

• Smart fan control: saves energy, reduces noise, decreases dust ingress, and prolongs fan service life.
• TIG arc ignition mode: supports high frequency and touch arc ignition with a high success rate.
• Multiple TIG operating modes: 2T, 4T, continuous, and spot welding.
• Settings are automatically saved before shutting down, and parameters are restored upon the next startup.
• Compatible with various remote control methods.
• Supports multiple user modes. Users can restore factory settings, review device error codes, activate standby function, set reaction times, and enable protection against overvoltage and low voltage.

Kit includes:

• JASIC EVO20 TIG200P W2S52
• TIG torch
• Mass cable with clamp
