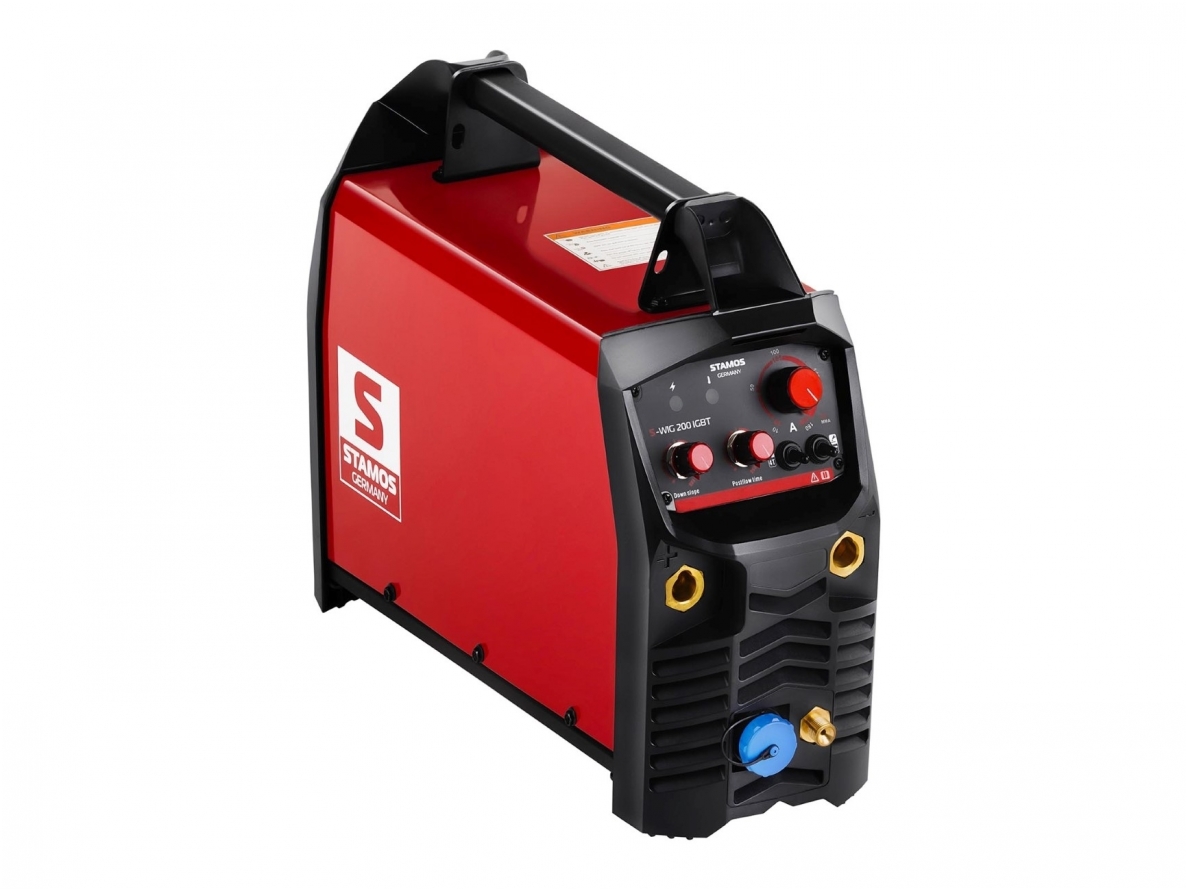

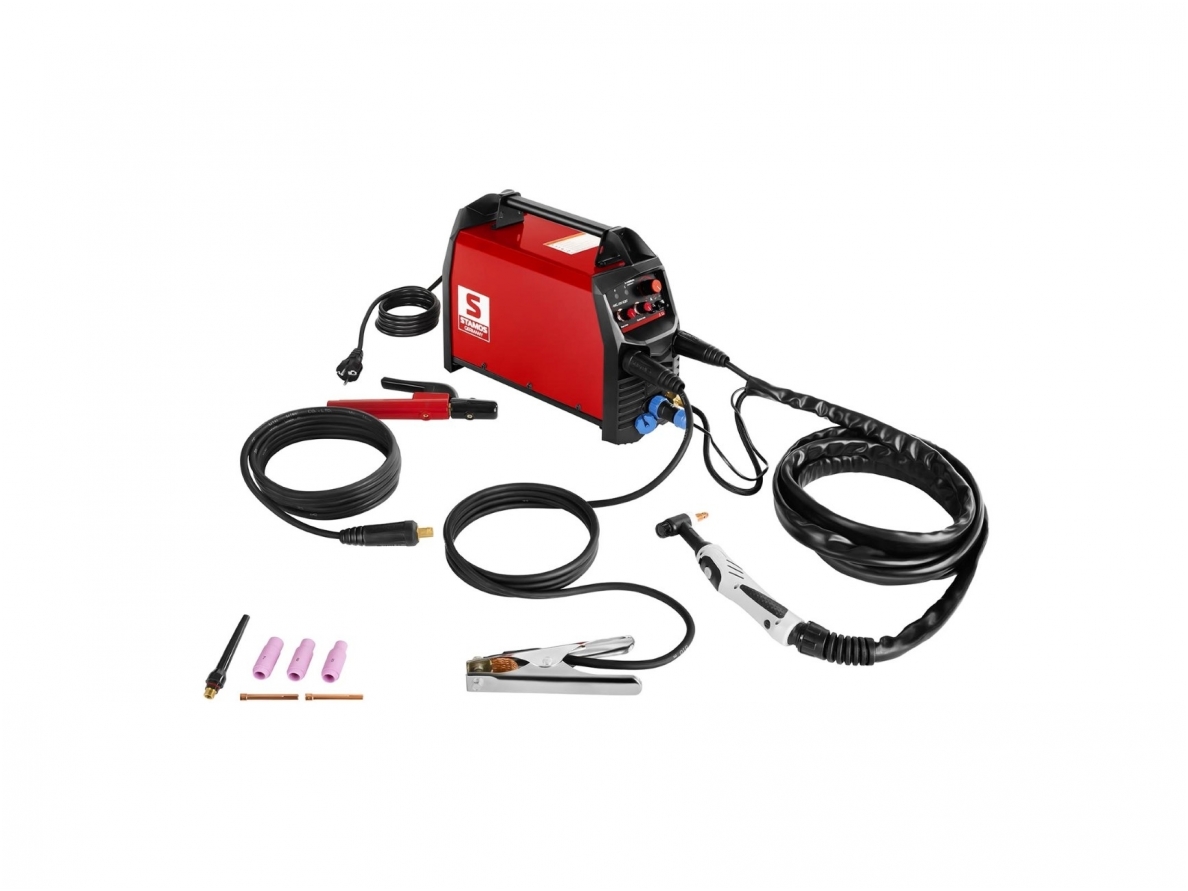

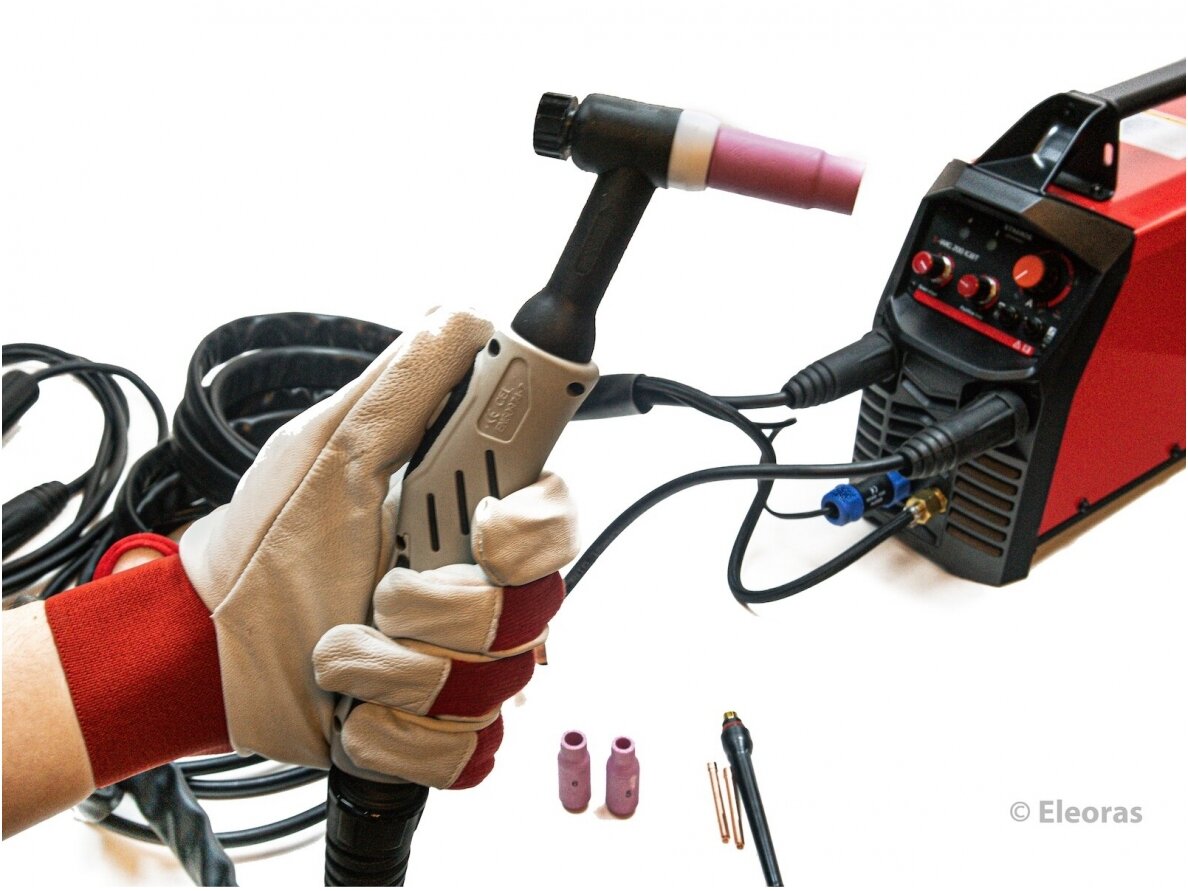

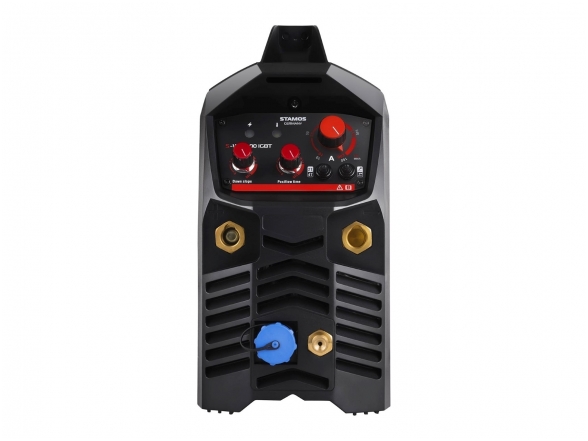

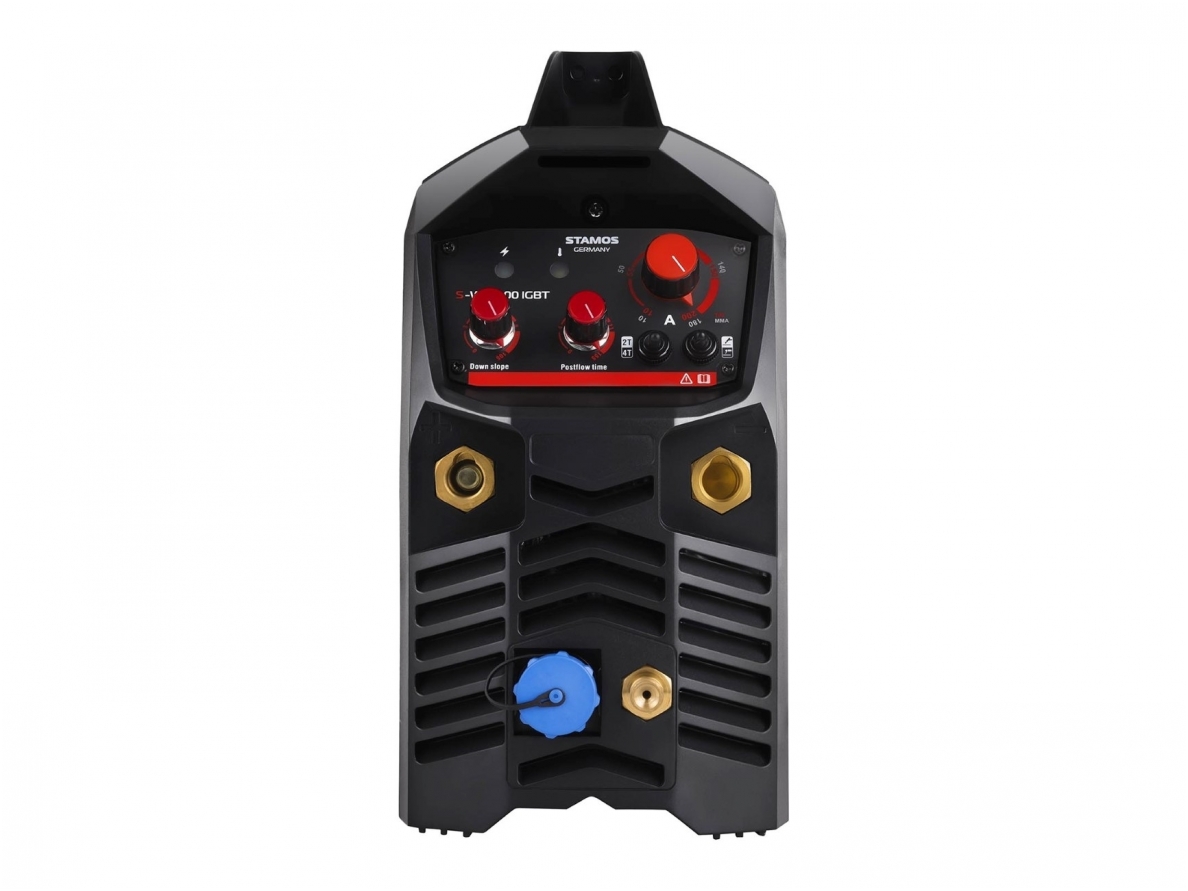

STAMOS GERMANY S-WIG 200 IGBT Welding Machine TIG, 200A, 230V

Code: EX10020161

Inquire about this item

Add to compareRemove from comparison Compare goods (0)

Add to wishlist

Price 320.00 € VAT incl.
( 264.46 € VAT excl. )

~~375.00 €~~ You save 55.00 €

Want another price? Suggest yours!

Add to cart

Manufacturer

STAMOS germany

Voltage

230V

Type of TIG machine

DC (Except Aluminum)

Product description
Customer reviews

Voltage / Frequency	230 V / 50 Hz
Nominal input current	15.7 A (TIG)	16 A (MMA)
Maximum input current	26.5 A (TIG)	35.6 A (MMA)
Nominal input power	6.1 kVA (TIG)	8.2 kVA (MMA)
Maximum input power	8.3 kVA
Open circuit voltage	59 V
TIG DC welding current	10 – 200 A
MMA welding current	10 – 180 A
Welding current at 100% duty cycle	118 A (TIG)	80 A (MMA)
Welding current at 60% duty cycle	152 A (TIG)	103 A (MMA)
Welding current at 35% duty cycle	200 A (TIG)
Welding current at 20% duty cycle	180 A (MMA)
Current decrease time	1 – 10 s
Gas flow time before welding	0.5 s
Gas flow time after welding	1 – 15 s
Ignition (TIG)	HF – high frequency
HOT START	yes
ARC FORCE	yes
ANTI-STICK	yes
2T / 4T	yes

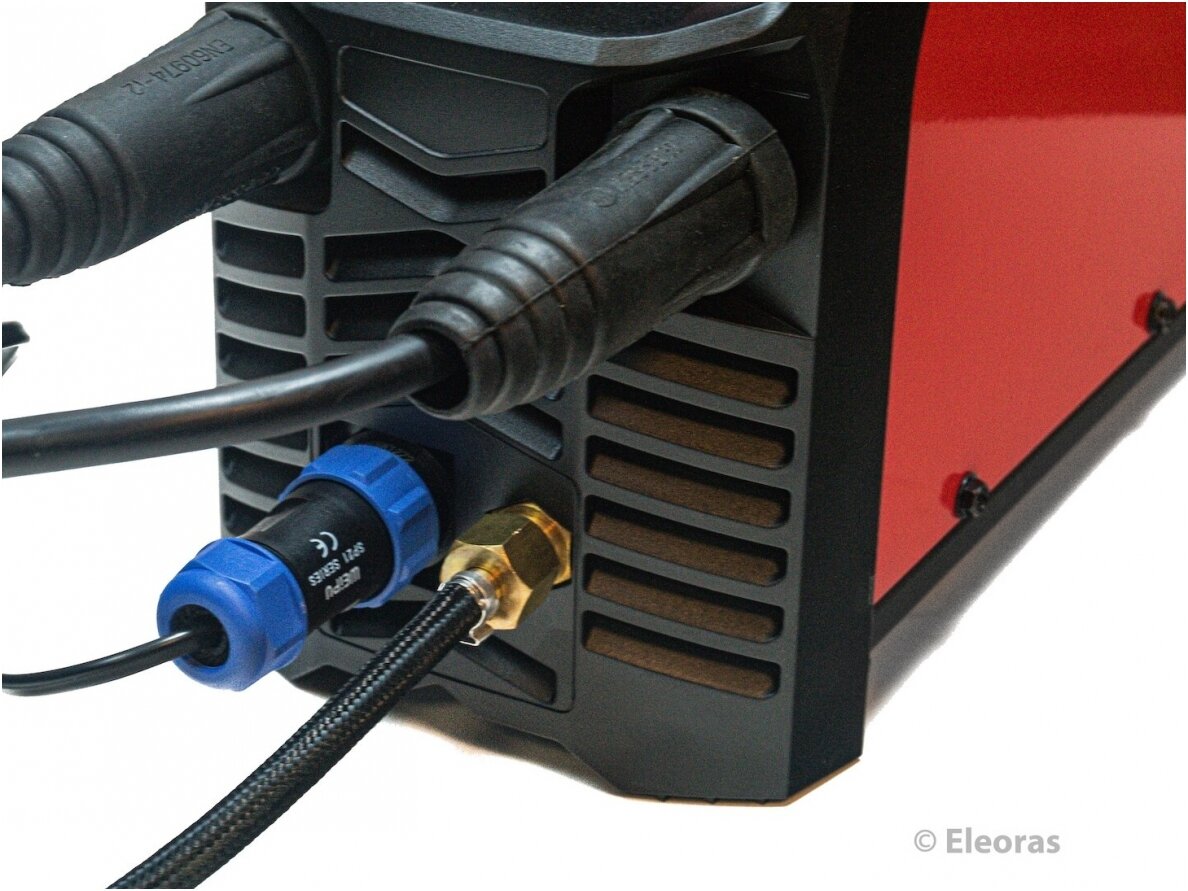

Magnetic gas valve	yes
Device cooling	Fan
Efficiency	≥ 0.85
Power factor	0.7
Insulation class	F
Protection class	IP21S
Electrode diameter (TIG)	1.6 mm / 2.4 mm / 3.2 mm
Electrode diameter (MMA)	1.6 – 5.0 mm

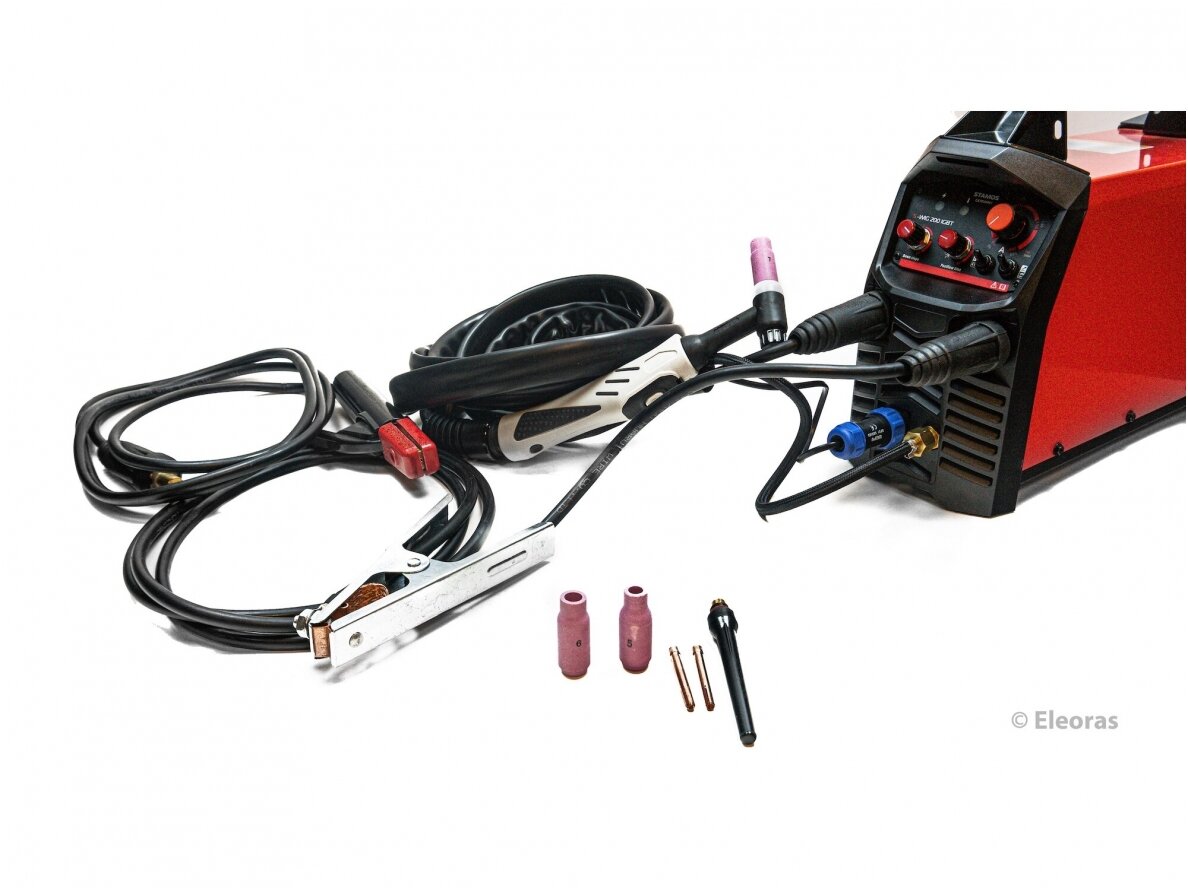

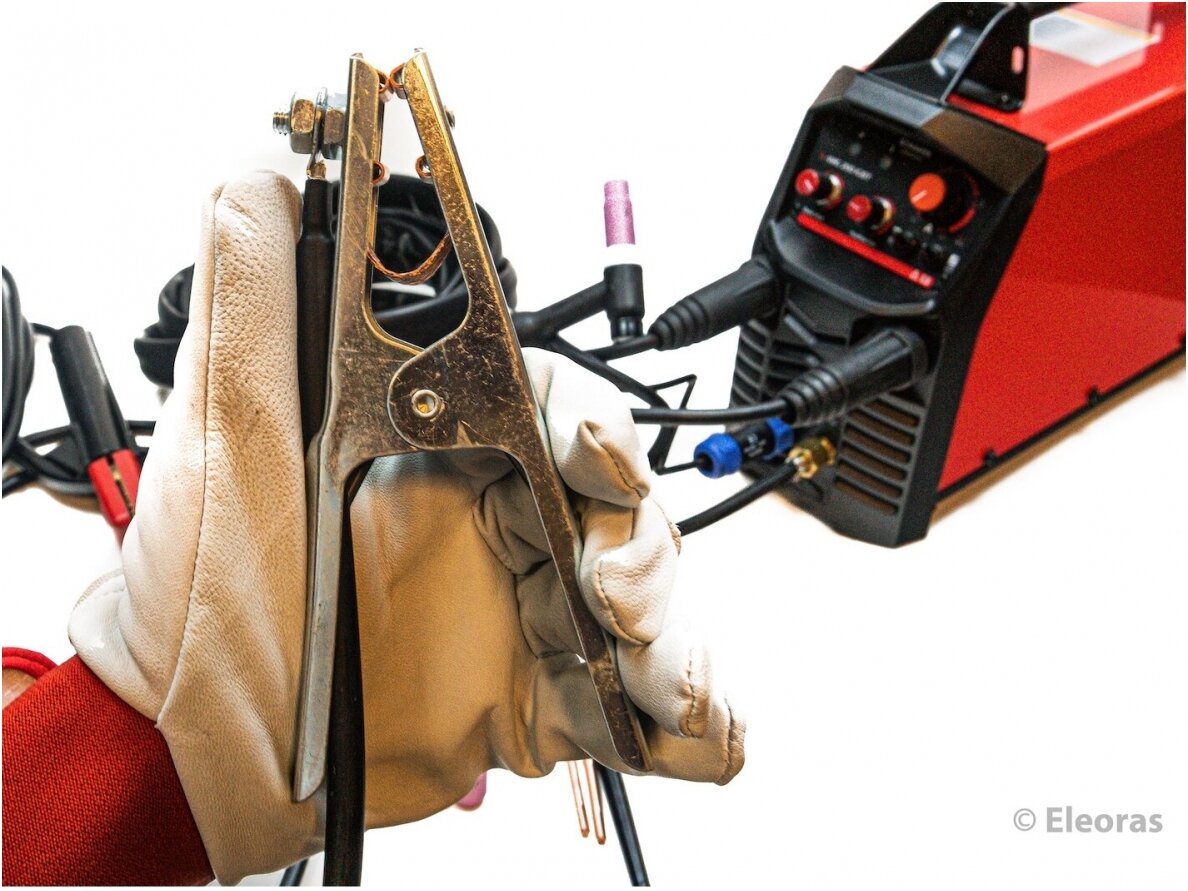

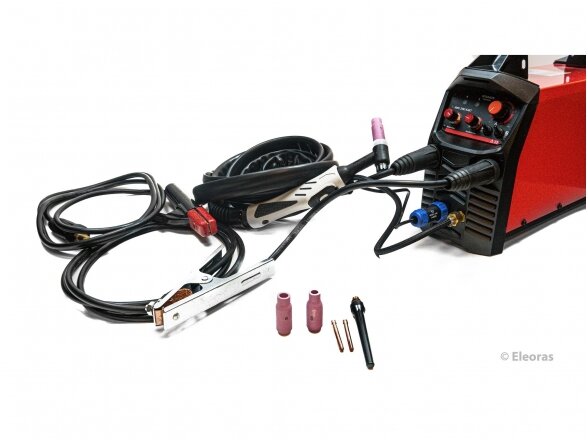

Earth cable with clamp	4 m

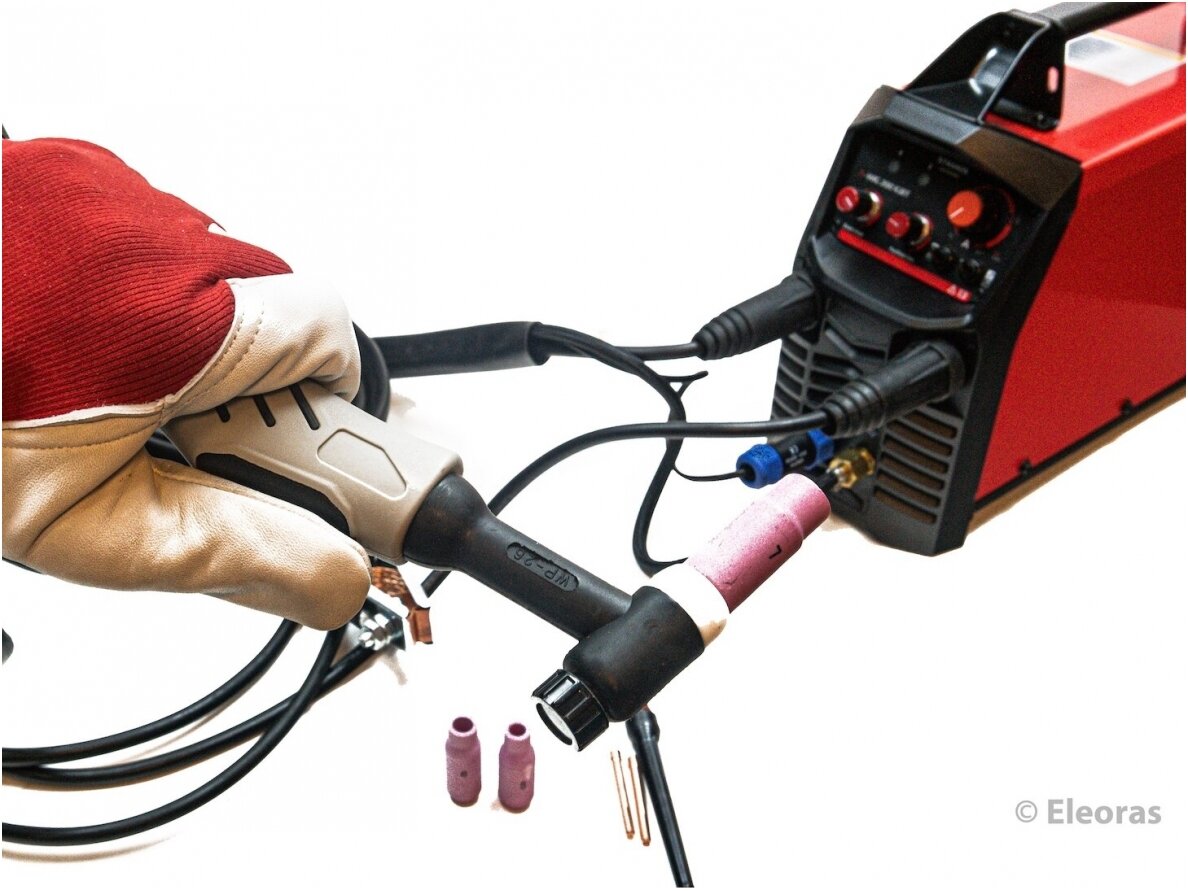

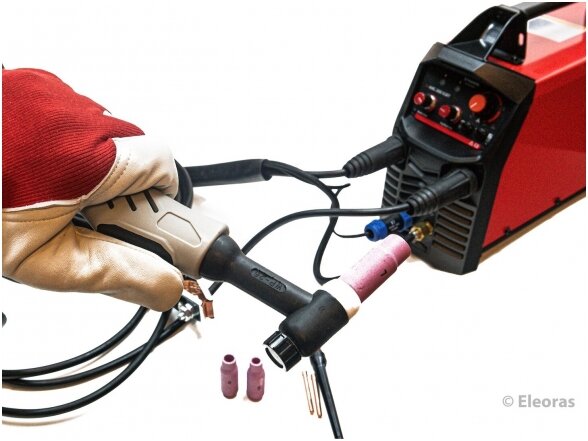

TIG torch	4 m

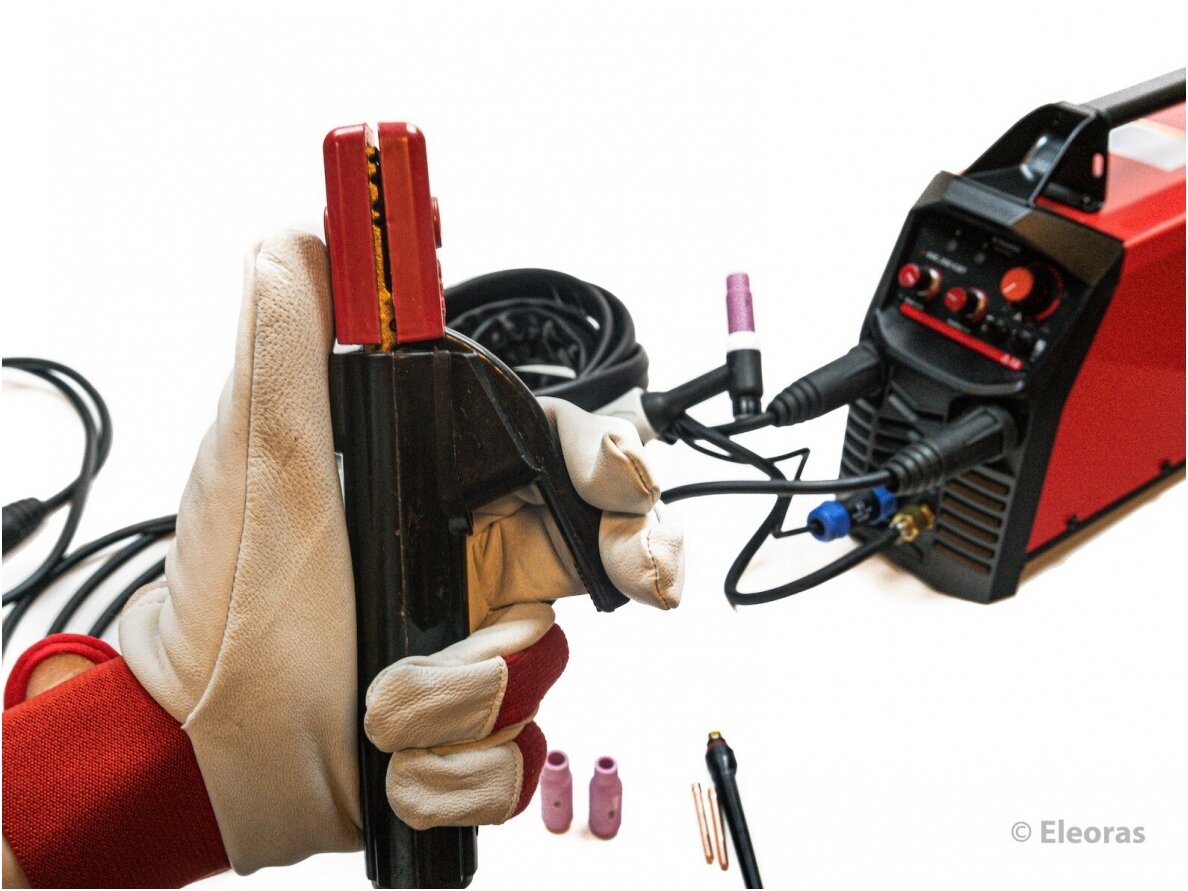

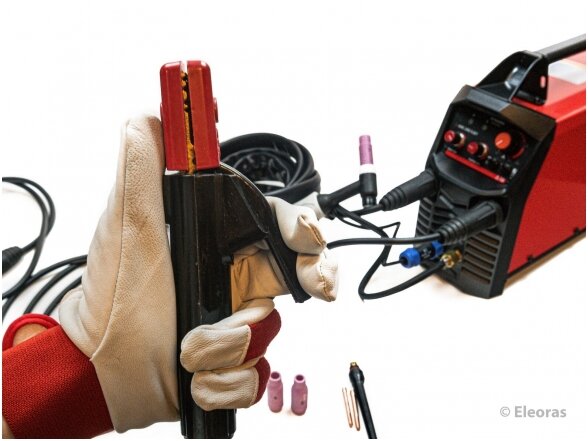

Electrode cable with holder	3 m
Power cord	2.2 m
Dimensions	41.00 x 14.00 x 29.00 cm
Weight	6.00 kg
Package dimensions	49.00 x 25.00 x 36.00 cm
Weight with package	11.50 kg

The TIG welding machine S-WIG 200 IGBT is perfect for both industrial and home use. This welding machine offers precision and flexibility. The welding current can be adjusted in the range of 20 - 200 A, allowing for use in both TIG and MMA welding modes (depending on the metal being welded and working conditions). The S-WIG 200 IGBT welding machine is ideal for even thin sheets.

The machine uses direct current (DC), therefore it can be used on almost all metals and their alloys, such as aluminum, copper, nickel, titanium, or steel. Welding can be done from different positions - even vertically or overhead. The welding process is characterized by clean welding joints and minimal spatter.

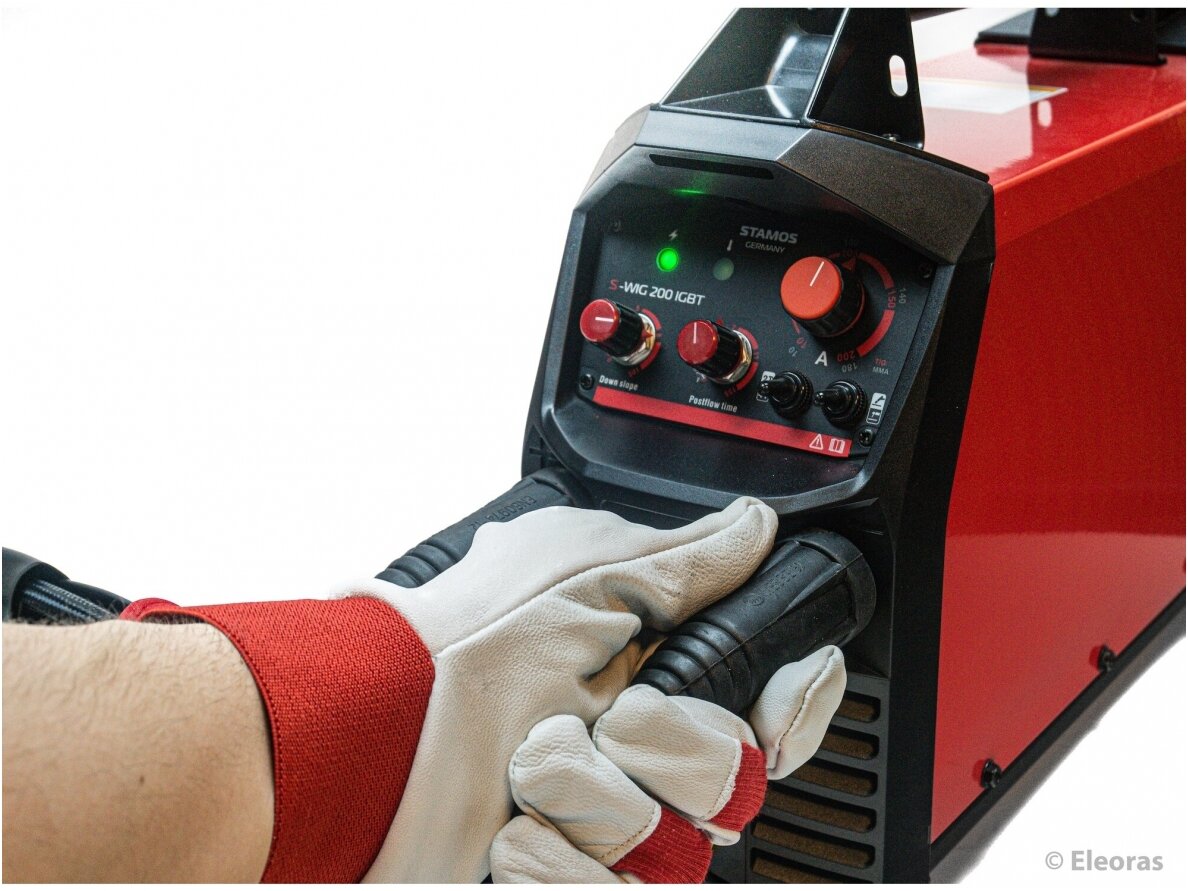

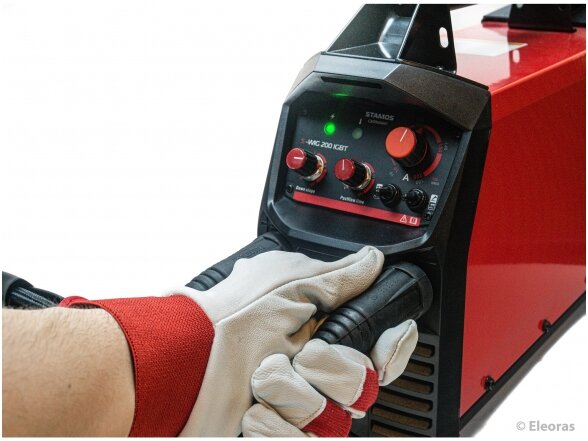

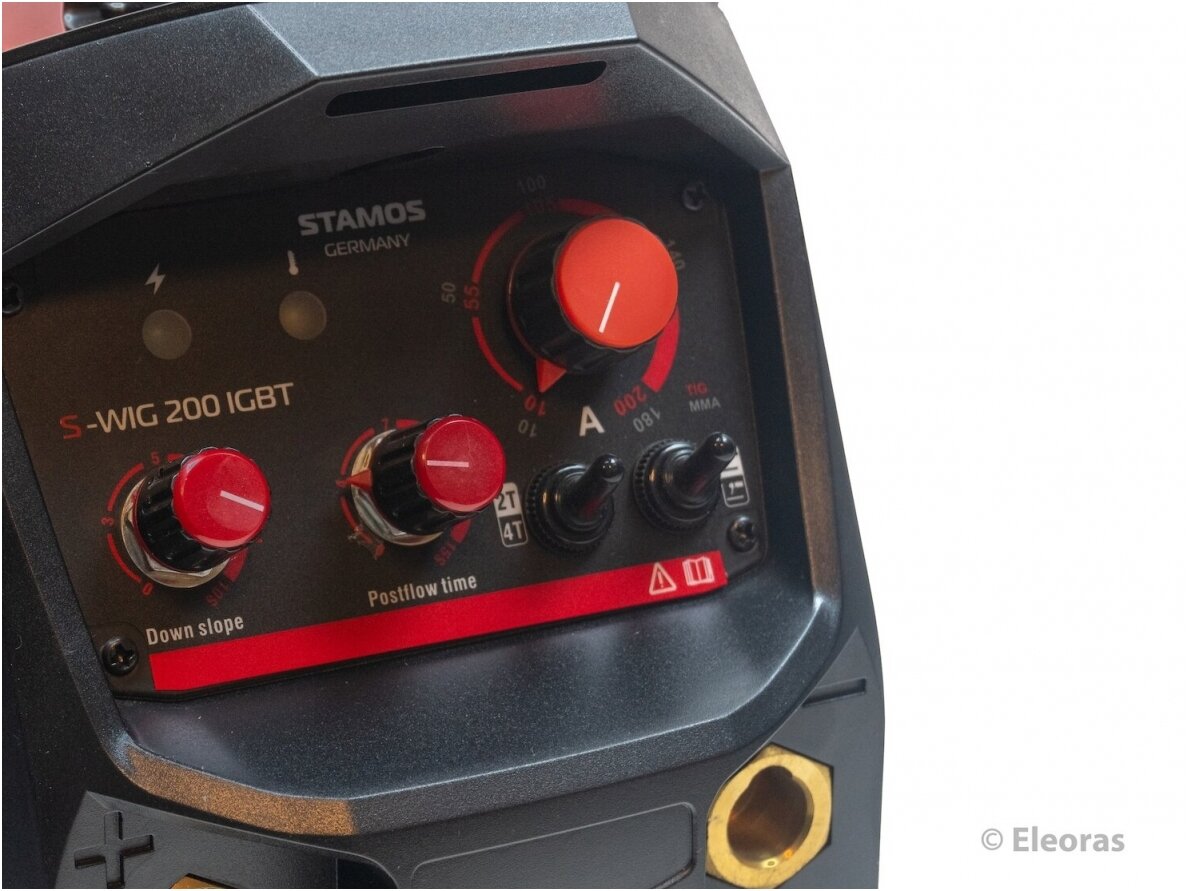

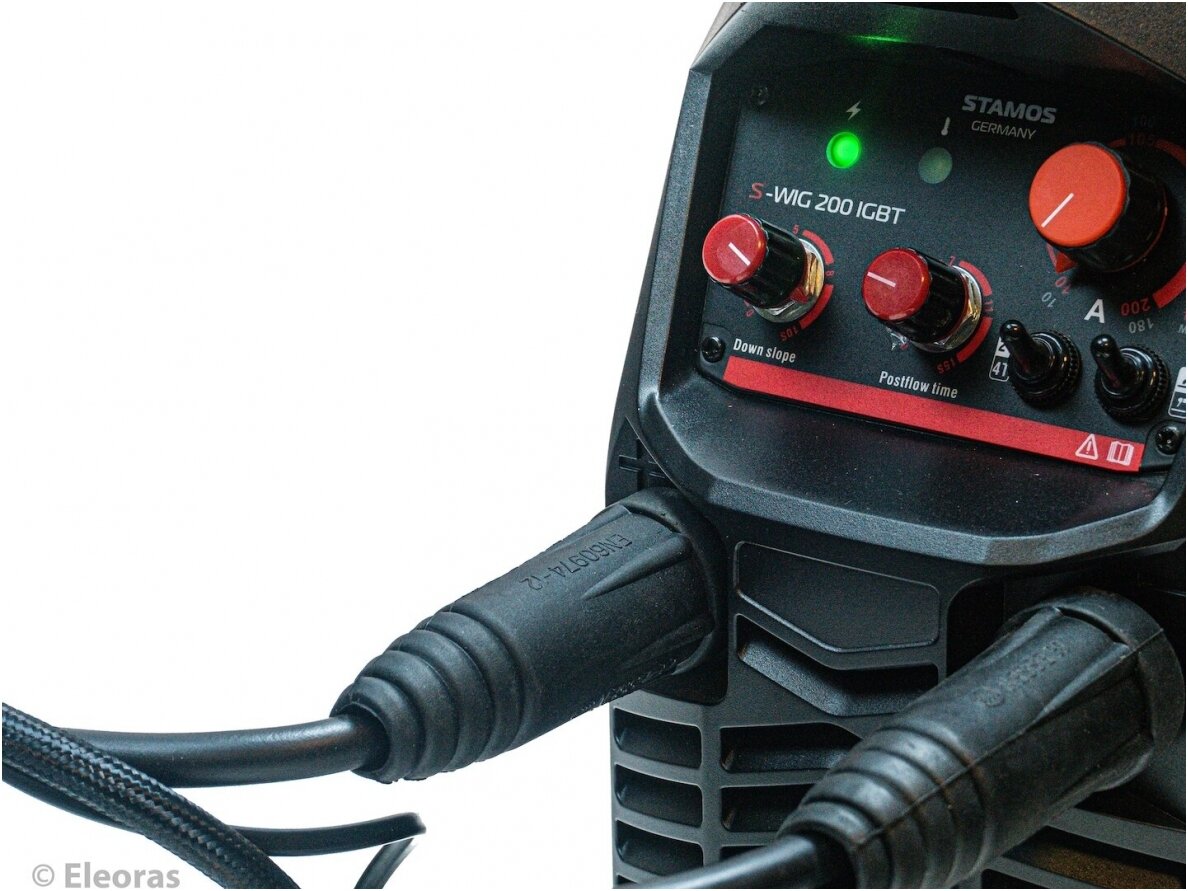

The powerful IGBT inverter switches quickly between welding processes and ensures high-quality welds. The control panel allows for precise adjustment of necessary welding parameters. You can adjust the current, voltage, switch between 2T or 4T modes, and select the required welding mode.

TIG and MMA welding
Welding current 20 - 200 A (smoothly adjustable)
Ideal for very thin materials (from 0.5 mm)
Accurate and clean welding
Powerful IGBT inverter
2T / 4T switch
Device cooled by powerful fans

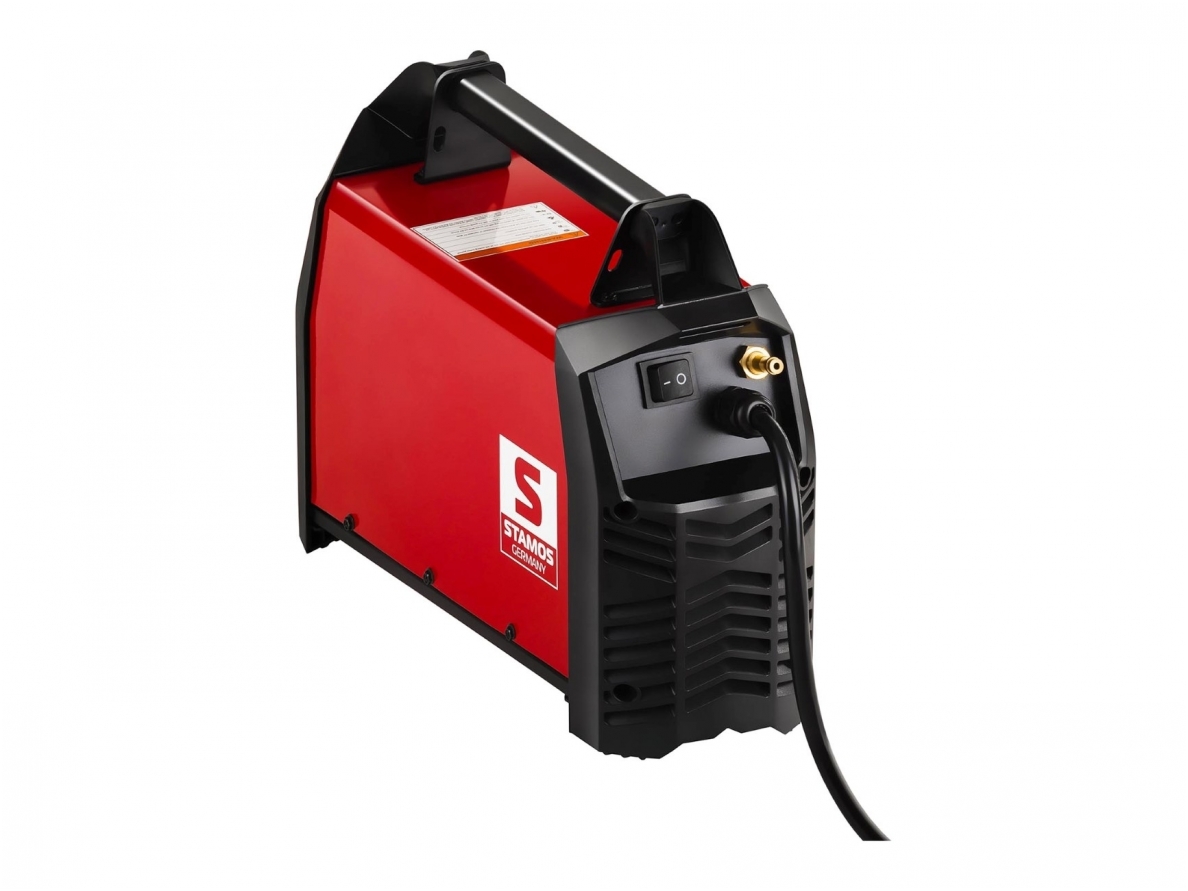

Lightweight construction with handle - practical and convenient
Fault indicator

Features of the S-WIG 200 IGBT welding machine:

	1. IGBT = Insulated Gate Bipolar Transistor is a semiconductor device used in powerful electronics, as it offers the advantages of bipolar transistors (e.g., good transfer, high blocking voltage, durability of welding equipment) and the benefits of field effect transistors. Also, it's useful for short-circuit protection, limiting current load. IGBT represents a further development of vertical MOSFET power.
	2. Powerful fans ensure optimal heat removal from the body.
	3. Ever For brevity and considering the extensive content, only a portion of the description is provided above. If more specific sections or further details are needed, please let me know! Love it? Share your thoughts in a review! Write Review Spartus EasyTIG 203P DC Welding Machine Code: EasyTIG203PDC Type of TIG machine DC (Except Aluminum) Price 389.00 € VAT incl. Add to cart JASIC TIG 200P W212 welding machine, 200A, 230V Code: TIG 200P W212 Price 499.00 € VAT incl. Add to cart Sherman DIGITIG 206P DC Welding Machine, 200A, 230V Code: SDIGITECTIG206P Type of TIG machine DC (Except Aluminum) Price 530.00 € VAT incl. Sold out Contact us Sherman DIGITIG 204 QUATTRO welding machine with plasma cutter, 200A, 230V Code: 7812713 Price 399.00 € VAT incl. Add to cart Sherman Welding Machine DIGITIG 214 CLEAN with Dirt Removal Function, 200A, 230V Code: 7812802 Price 448.00 € VAT incl. Sold out Contact us Sherman DIGITIG210P TIG Welding Machine, 200A, 230V Code: 7811737 Type of TIG machine DC (Except Aluminum) Price 338.00 € VAT incl. Sold out Contact us Sherman DIGITIG 200DC Multipro Welding Machine, 200A, 230V Code: 7812248 Type of TIG machine DC (Except Aluminum) Price 410.00 € VAT incl. Sold out Contact us Welding machine JASIC EVO20 TIG200P PFC W2S62, 200A, 230V Code: EVO20 TIG200P PFC W2S62 Price 859.09 € VAT incl. Sold out Contact us ESAB Caddy Tig 2200i TA34 + TXH 201F Welding Machine Code: CaddyTig2200i Type of TIG machine DC (Except Aluminum) Price 2399.00 € VAT incl. Add to cart EWM TIG Welding Machine Picotig 200 puls TG, 200A, 230V Code: Picotig200pulsTG Type of TIG machine DC (Except Aluminum) Price 1972.30 € VAT incl. Add to cart Sherman DIGITIG 200DC Welding Machine, 200A, 230V Code: SDIGITECDIGITIG200DC Type of TIG machine DC (Except Aluminum) Price 420.00 € VAT incl. Sold out Contact us -26^% STROM STWS 200A TIG Welding Machine, 220V Code: STWS200 Type of TIG machine DC (Except Aluminum) Price 265.00 € VAT incl. ~~359.11 €~~ You save 94.11 € Add to cart Useful information About us Terms of purchase and return Delivery pricing Privacy policy On waste electrical and electronic equipment Useful info Contact information (Vilnius) New Products Special offers Blog SALE Monthly promotion – June Get in touch +370 677 71883 Verskis.lt demo shop © 2026 UAB Eleoras. Without UAB Eleoras confirmation any use or copying of site content is prohibited. Rent an e-shop verskis.lt STAMOS GERMANY S-WIG 200 IGBT Welding Machine TIG, 200A, 230V Add to cart -
