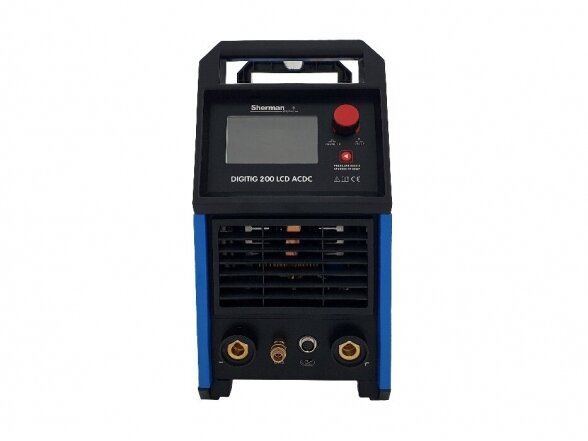

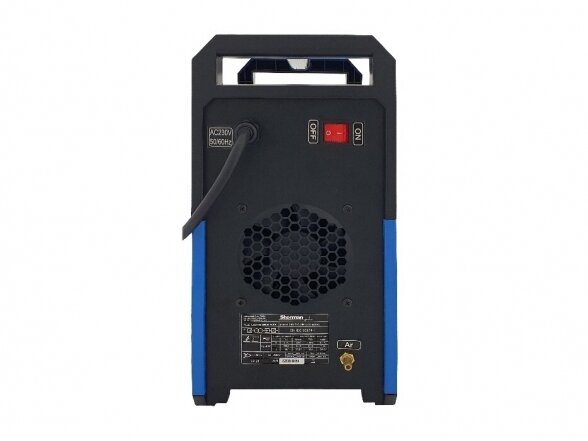

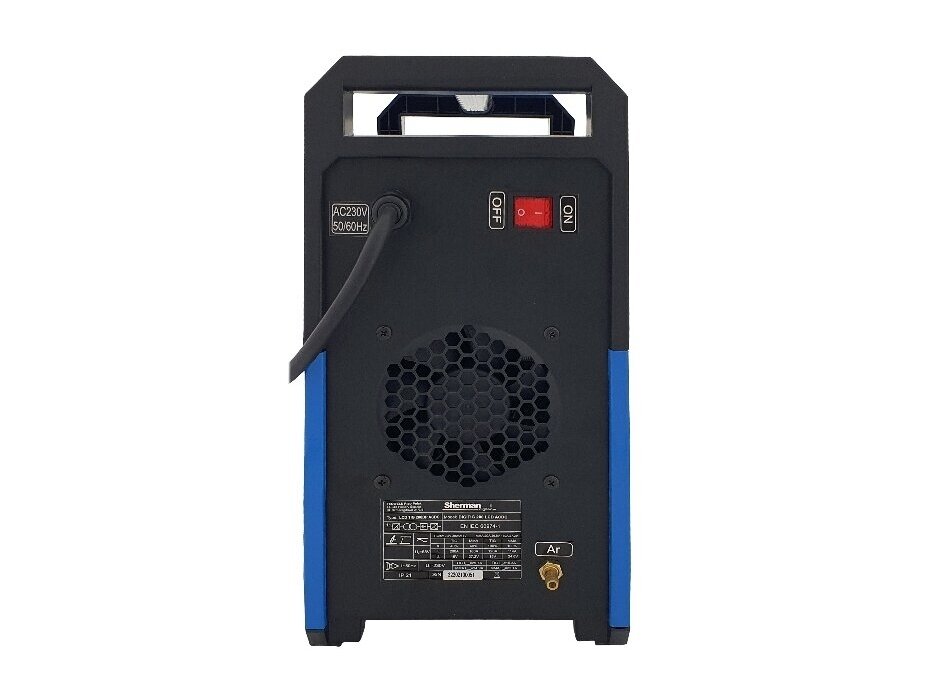

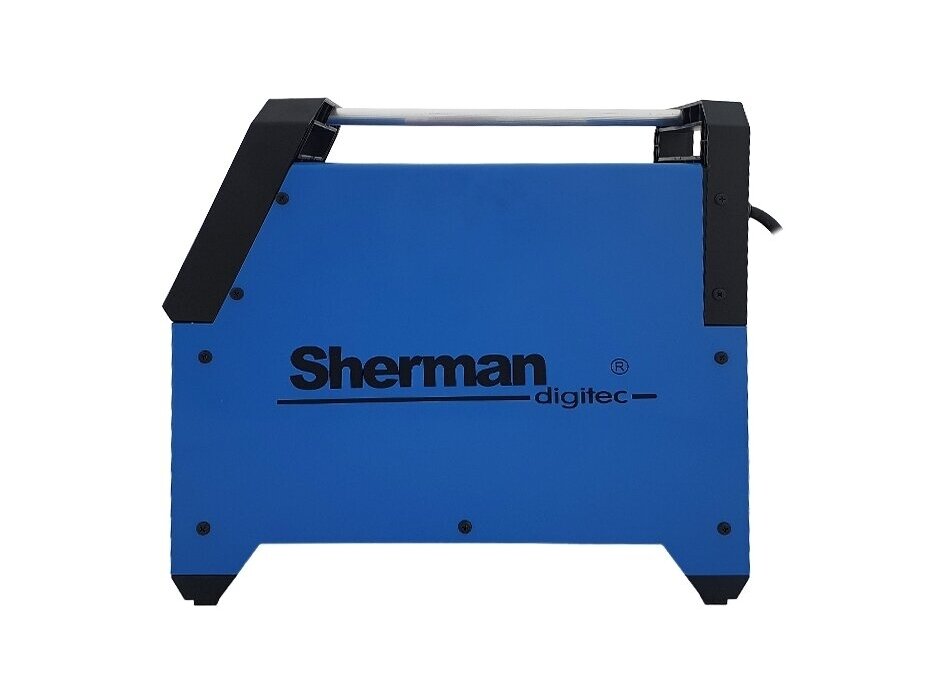

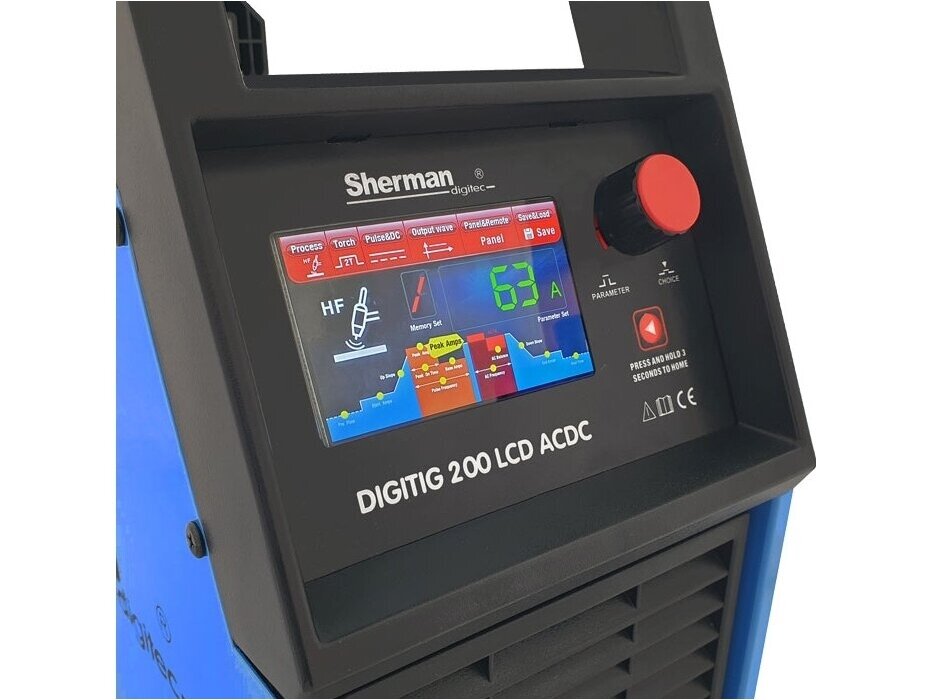

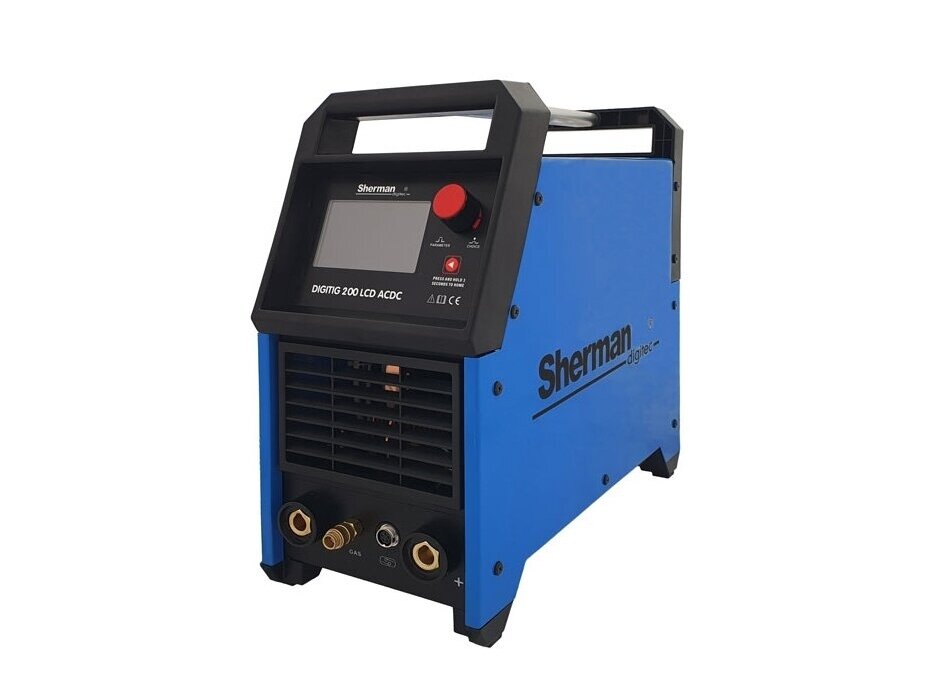

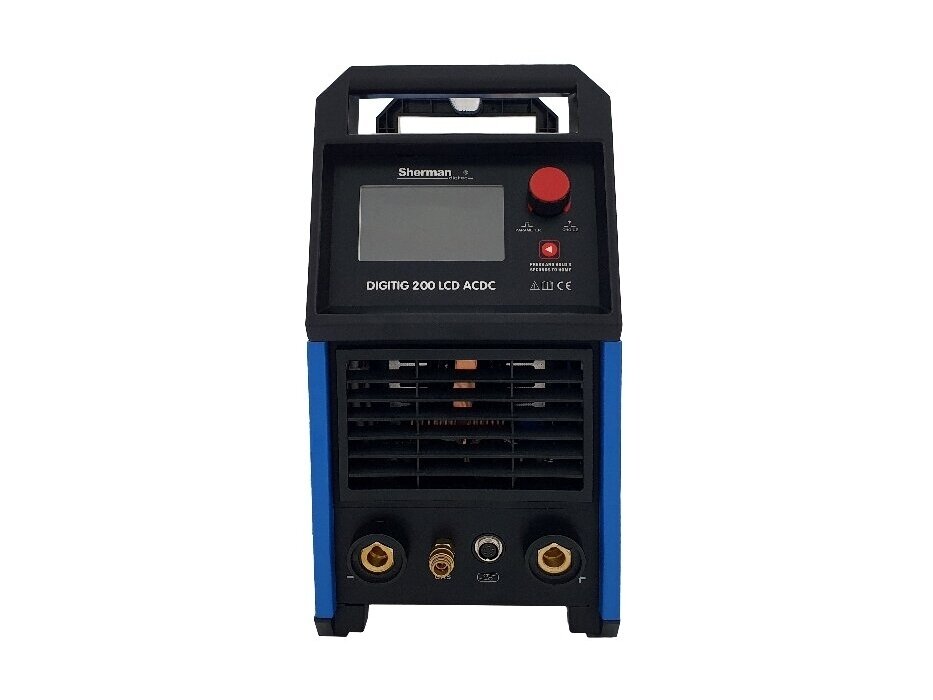

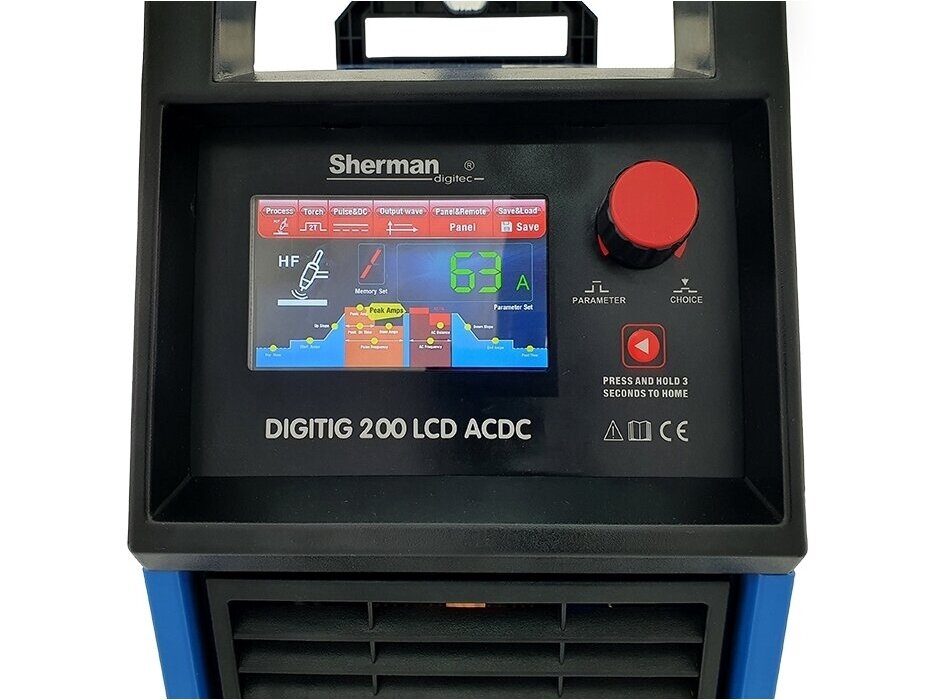

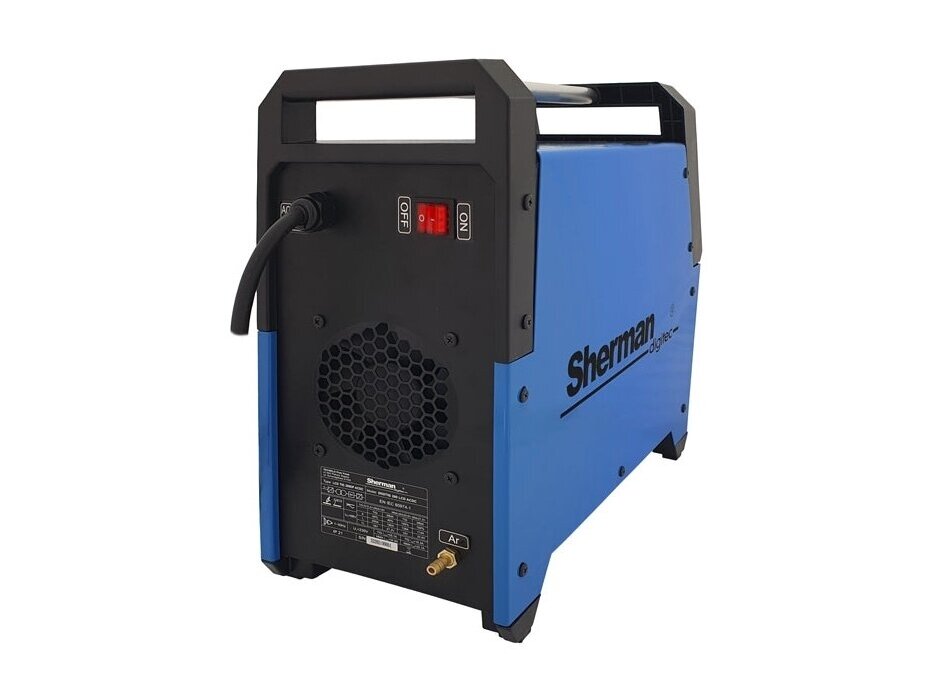

Sherman DIGITIG 200 LCD AC/DC Welding Machine, 200A, 230V

Power voltage

AC 230V 50Hz

Welding methods

TIG AC/DC, MMA

Manufacturing technology

IGBT

Welding current

MMA: 180A, TIG DC: 200A, TIG AC: 200A

Duty cycle

40%

No load voltage

68V

Max. current consumption

MMA: 34.9 A, TIG: 25.7 A

Max. energy consumption

MMA: 6.5 kVA, TIG: 4.1 kVA

Welding current adjustment

smooth

Gas pre-flow time before welding

0.1-5 s

Gas post-flow time after welding

0-15 s

Current rise

0-15 s

Current drop

0-25 s

Initial current

5-200 A

Base current

5-95% welding current

Crater current

5-200 A

Pulse frequency

0.5-200 Hz

Pulse duration

10-90%

AC frequency

4-200 Hz

AC balance

30-70%

Arc Force

0-10 A

Features

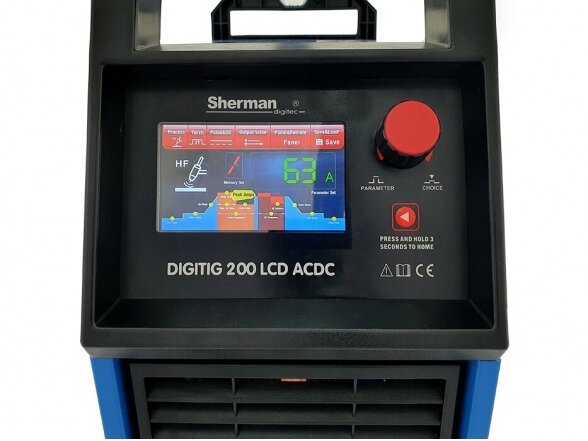

Digital control, HF, Arc Force, Hot Start, 2T/4T, VRD, current increase/decrease, pulse, gas flow time adjustment, electrode cleaning function, welding with variable current, preset memory

Dimensions

475 x 200 x 410 mm

Weight

14.3 kg
