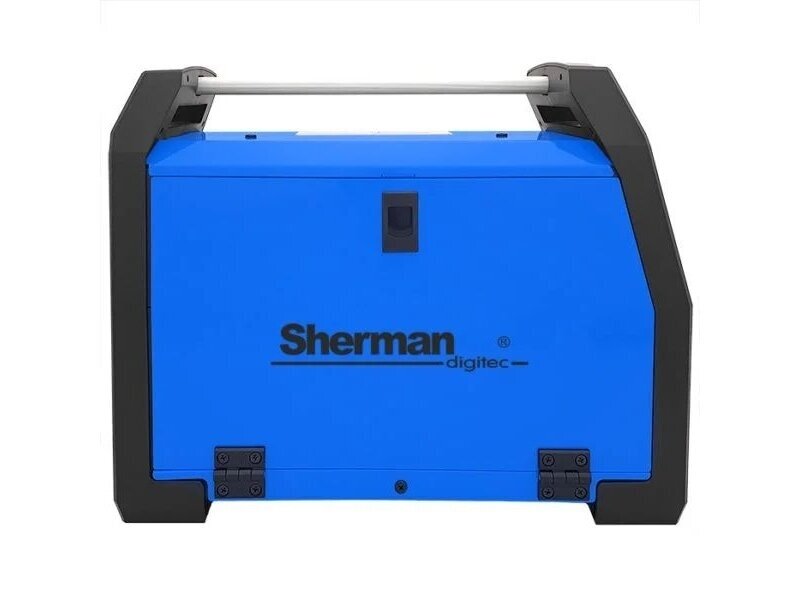

Synergic Inverter Welding Machine Sherman DIGIMIG 202 M-POWER, 200A, 230V
Synergic Inverter Welding Machine Sherman DIGIMIG 202 M-POWER, 200A, 230V
Code: 7812921_basic-
Welding methods
MIG/MAG, MMA DC, TIG Lift (rubbing) DC, soldering
Main method
MIG/MAG
Input voltage
AC 230V
Manufacturing technology
IGBT
Maximum welding current MMA
180A
Maximum welding current TIG DC/MIG MAG
200A
Duty cycle
60%
No-load voltage
59V
Wire feed speed
2–14 m/min
MIG welding voltage
15.5–24 V
MIG spot welding time
0.1–20 s
Maximum energy consumption MMA
8.4 kVA
Maximum energy consumption TIG
6.2 kVA
Maximum energy consumption MIG/MAG
8.2 kVA
Maximum current consumption MMA
36.4 A
Maximum current consumption TIG
26.8 A
Maximum current consumption MIG/MAG
35.7 A
Wire spool diameter
100, 200 mm
Number of rollers
2
Roll dimensions
30x10x10 mm
Features

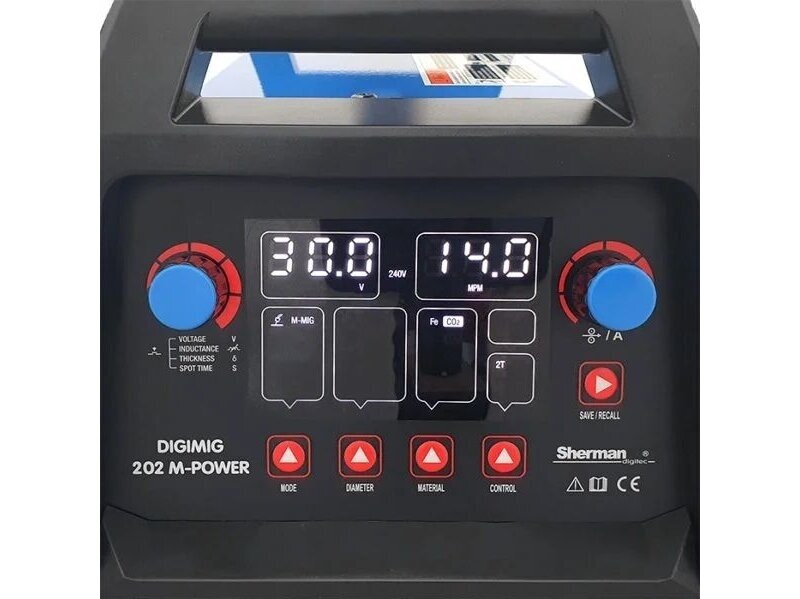

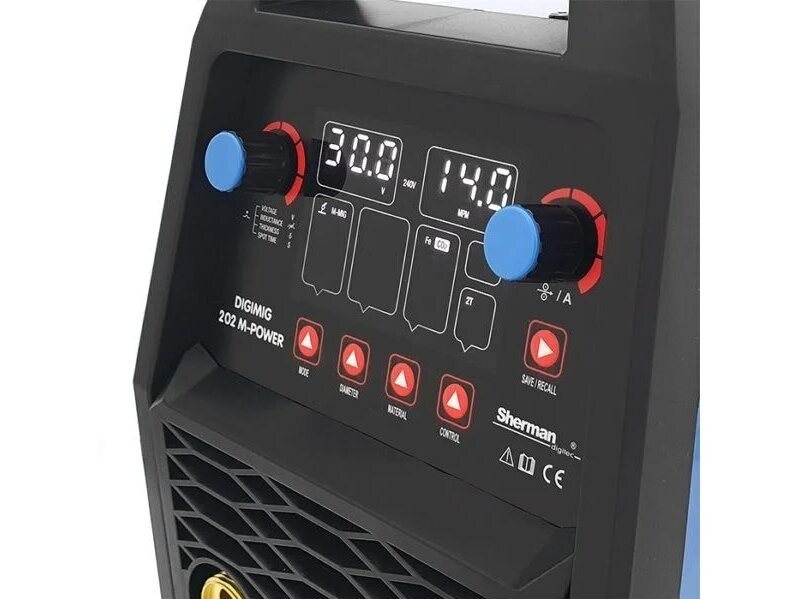

2T/4T, Arc Force, Fan Stop, Hot Start, Spool Gun connection, settings memory, 2-roller feeder, inductance adjustment, gasless welding, MIG spot welding, digital control, fast wire feeding, manual settings, VRD, LED display, synergic programs for carbon steel/aluminium/self-shielded wire/stainless steel
Network security
25 A
Dimensions
45 x 22 x 35 cm
Weight
10.1 kg

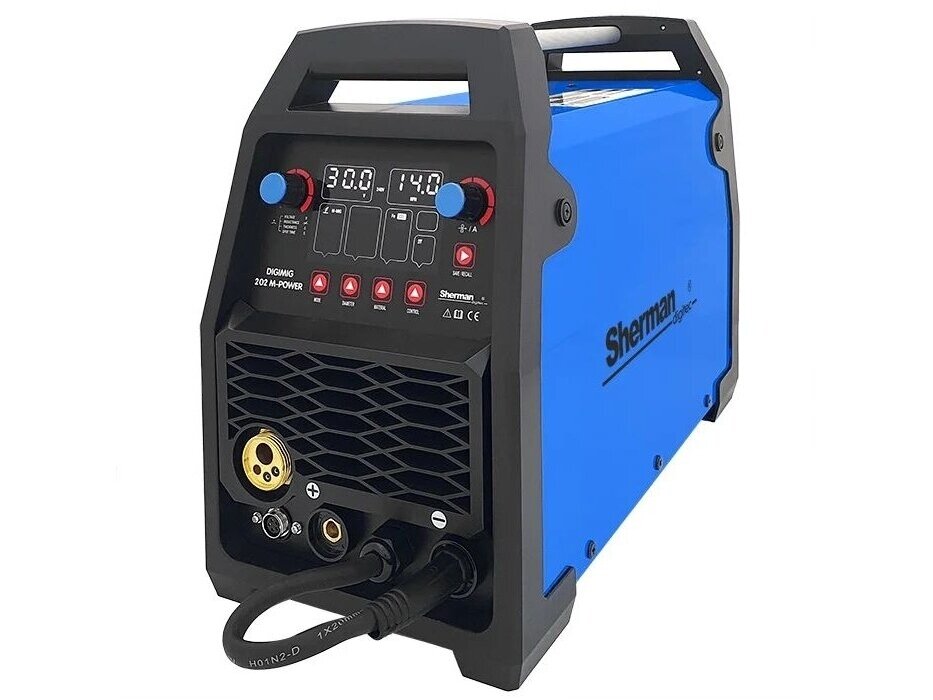

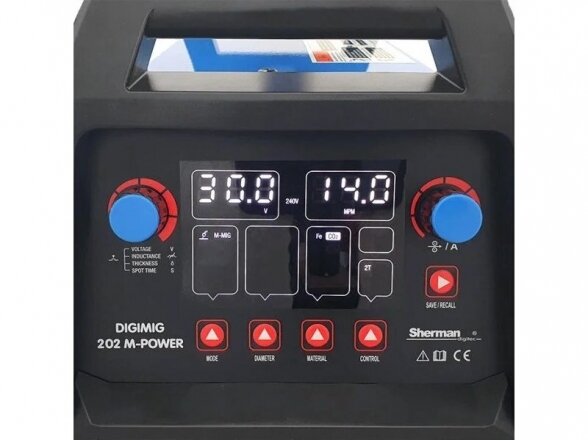

The synergic welding machine DIGIMIG 202 M-POWER is used for manual welding of steel and non-ferrous metals. It allows welding with MMA, TIG Lift, and MIG/MAG methods. Inductance control makes it possible to solder and weld thin sheets. The device has synergic MIG/MAG settings for welding structural steel, stainless steel, and aluminum alloys. The welding machine allows the connection of a Spool Gun type holder with a mini wire feeder and a D100 steel or coloured wire spool.

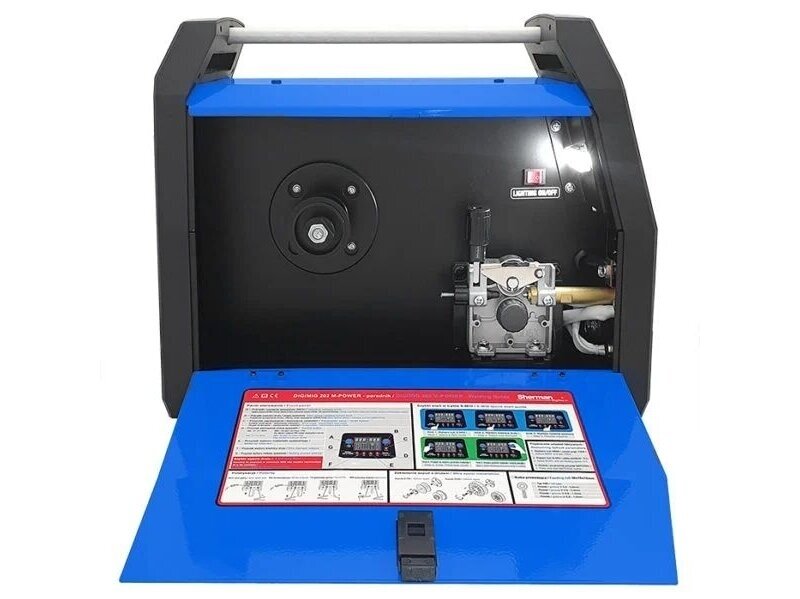

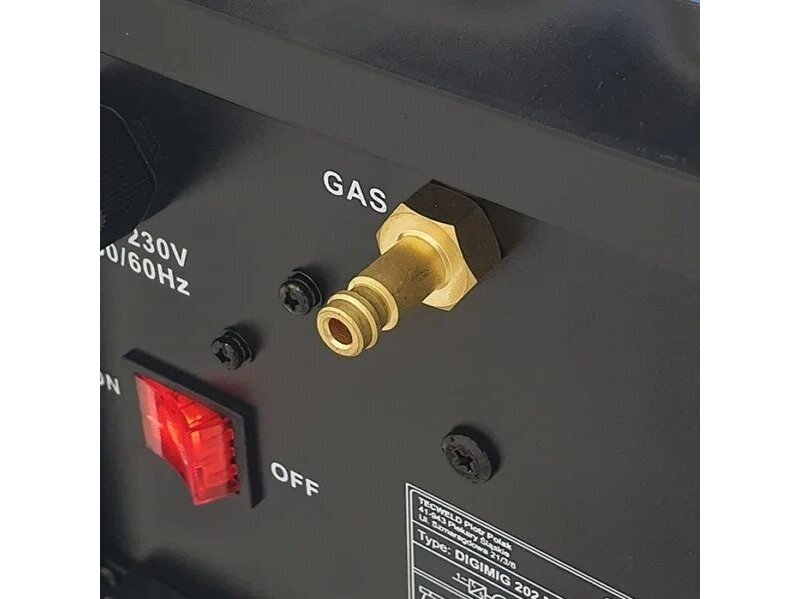

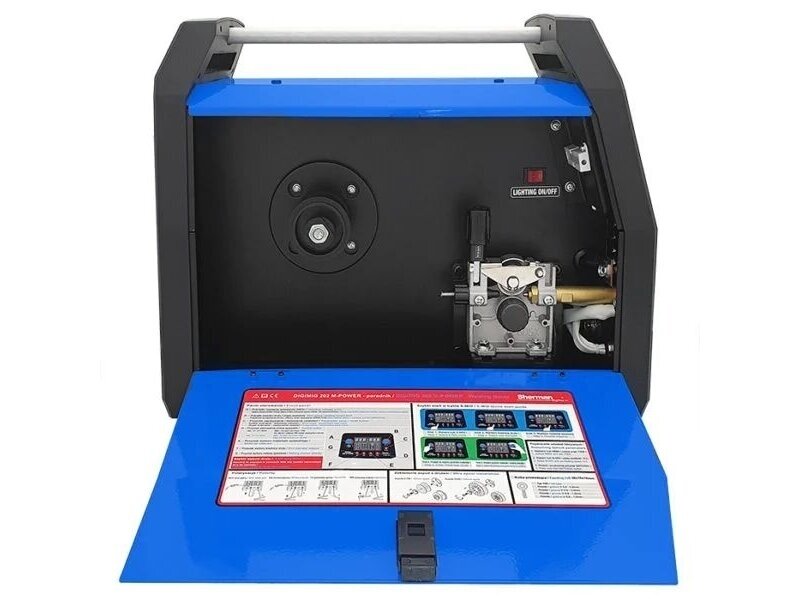

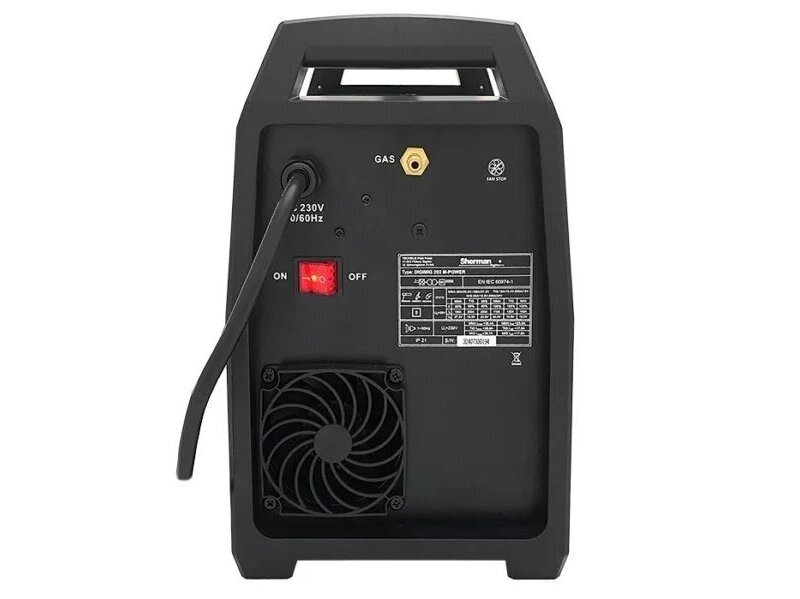

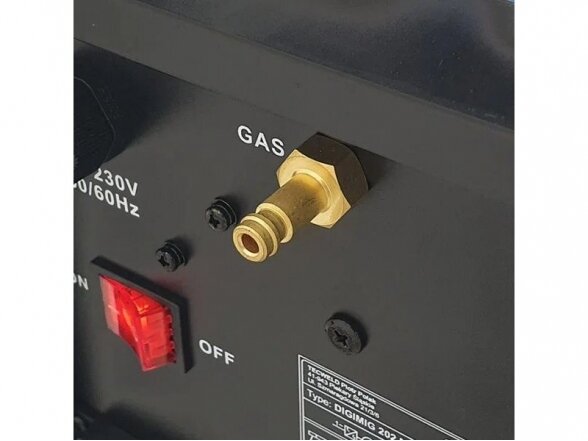

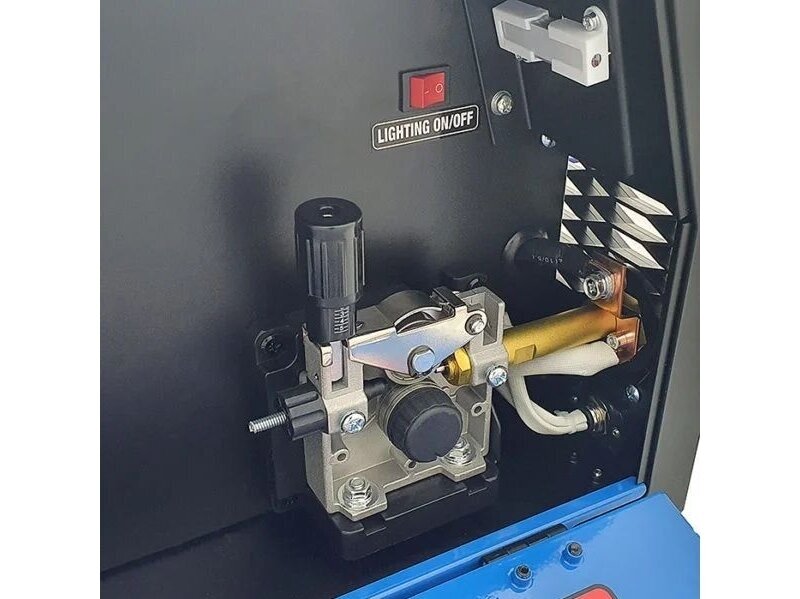

The device can remember 10 welding parameter sets and has a Fan Stop function, which turns off the fans when the welder's load is low, thus reducing noise and improving user comfort. The lighting of the supply chamber facilitates the wire insertion and roller change. The protective gas connector according to the R21 standard allows the use of a quick connector, which facilitates and speeds up the protective gas change.
Set includes:
- Welding machine DIGIMIG 202 M-POWER

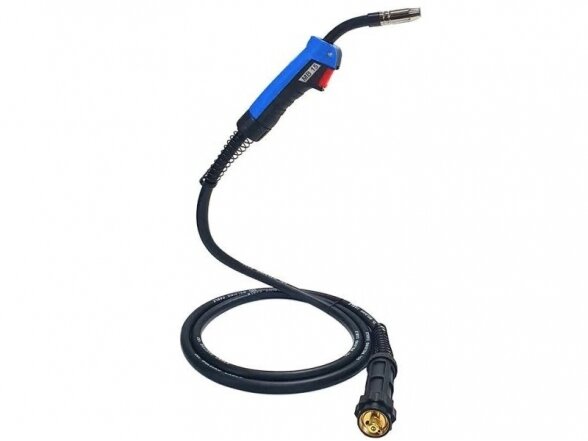

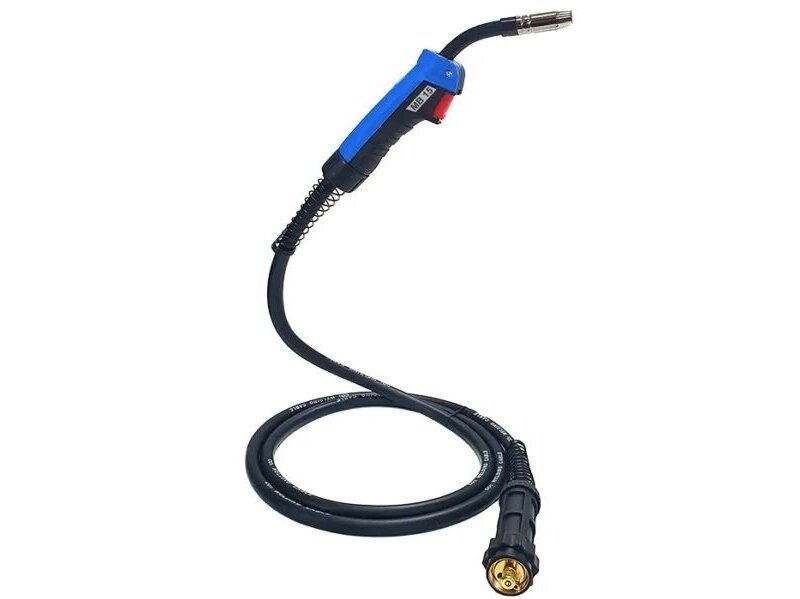

- MIG torch TW-15/3m

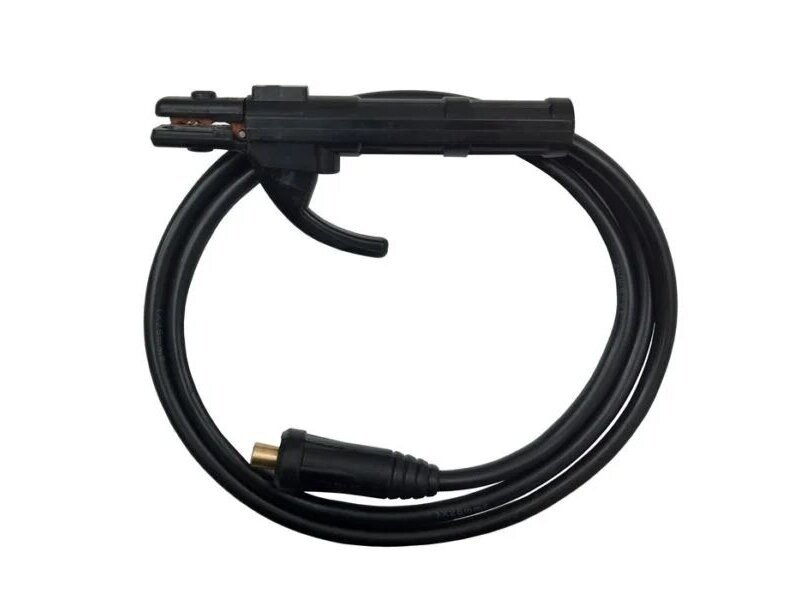

- Electrode cable

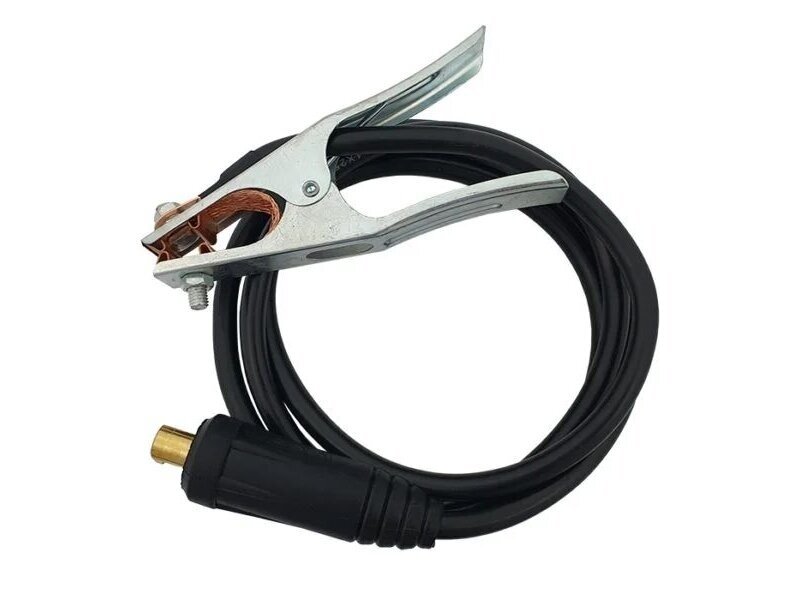

- Ground cable
-
