Synergic inverter Spartus MasterMIG 250PFC SYNERGY welder, 250A, 230V

  • Synergic inverter Spartus MasterMIG 250PFC SYNERGY welder, 250A, 230V

    Code: MasterMIG250PFCsynergy_easy
    Price 1603  VAT incl.
    (1324.79  VAT excl.)
    Manufacturer
    MIG power supply voltage
    230V
    MIG type
    Synergic
  • Input

    ~1× 230V ± 10% 50 / 60 Hz

    Welding current MIG [A]

    25 – 250

    Duty cycle MIG [%]

    60

    Output working voltage MIG [V]

    26,5

    Wire feeding speed [m/min]

    2,5 – 16,5

    Wire feeder

    built-in, 4-roll gear

    Welding wire spool [kg]/[mm]

    ≤ 15 / ∅300

    Wire diameter ∅ [mm]

    0.6 / 0.8 / 1.0 / 1.2

    Synergic

    Yes

    Synergic programs

    20 dedicated

    Inductance control

    0 - 10

    Brazing (CuSi)

    Yes

    Slow feed

    0 - 10

    Burnback

    0 - 10

    2T/4T Control

    Yes

    TIG DC welding

    Yes

    Welding current TIG [A]

    10 – 250

    Duty cycle TIG [%]

    60

    Down slope [s]

    0 – 10

    Post-gas [s]

    0 - 10

    Arc ignition

    LIFT

    MMA welding mode

    Yes

    Welding current MMA [A]

    10 – 250

    Duty cycle MMA [%]

    60

    ARC FORCE

    0 - 10

    HOT START

    0 - 10

    No-load voltage [V]

    14

    PFC

    Yes

    Current consumption [A]

    27

    Power factor (cosφ)

    0,99

    Efficiency η [%]

    85

    Insulation class

    H

    Protection class

    IP23

    Weight [kg]

    25

    Dimensions [mm]

    620 × 240 × 450

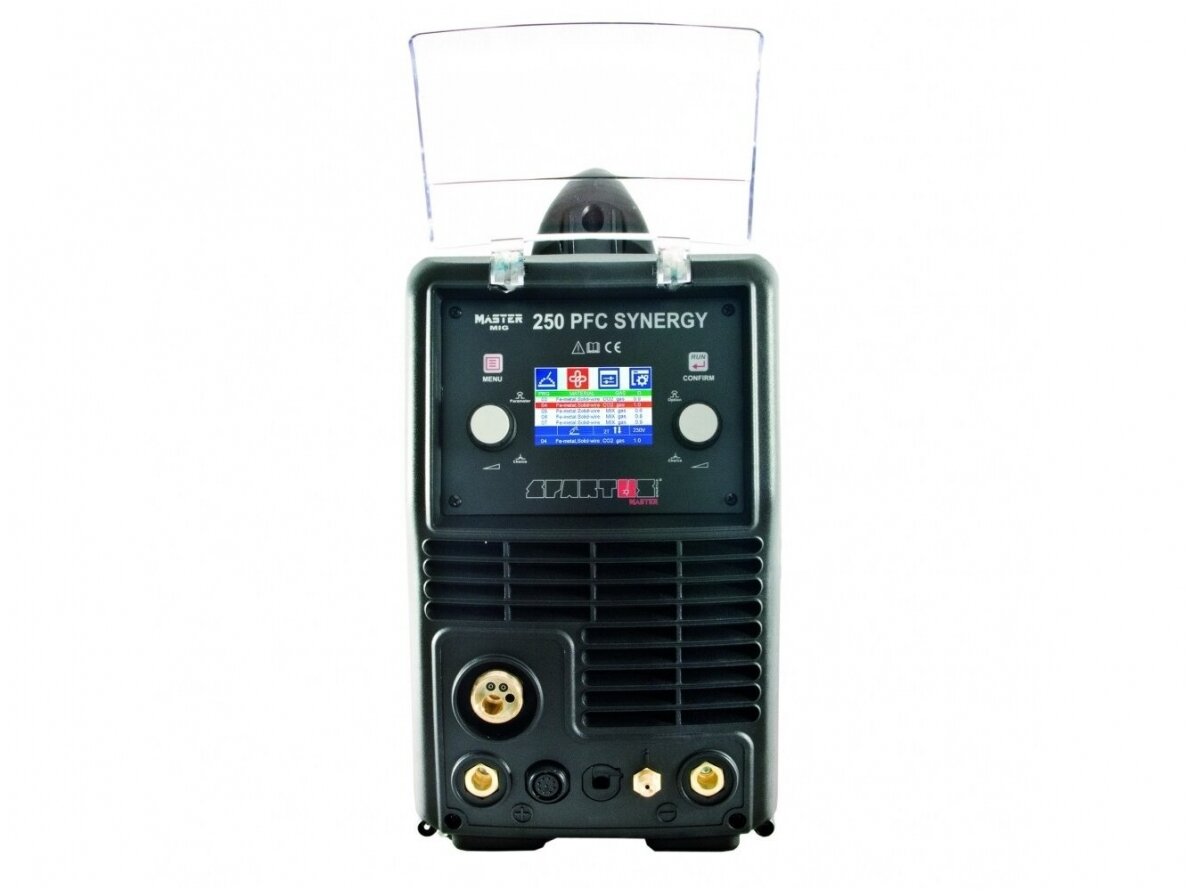

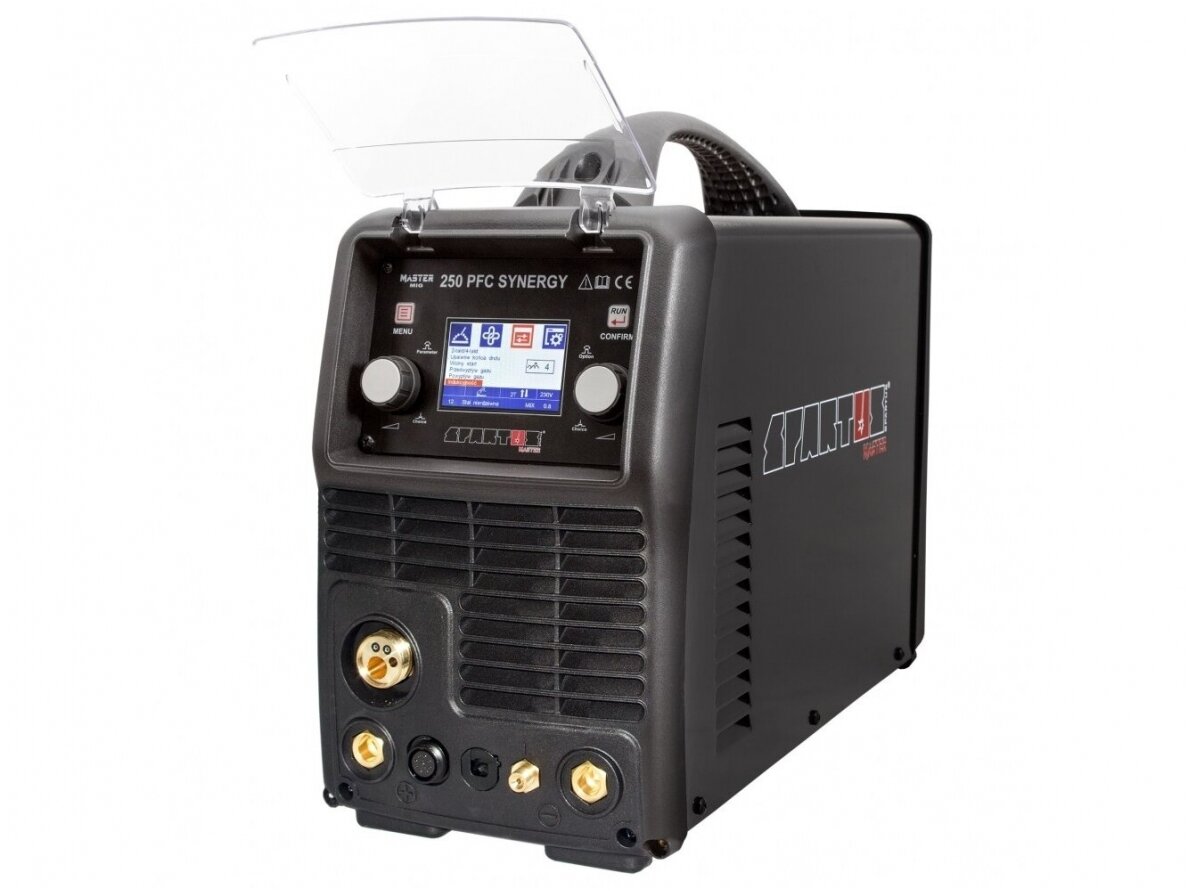

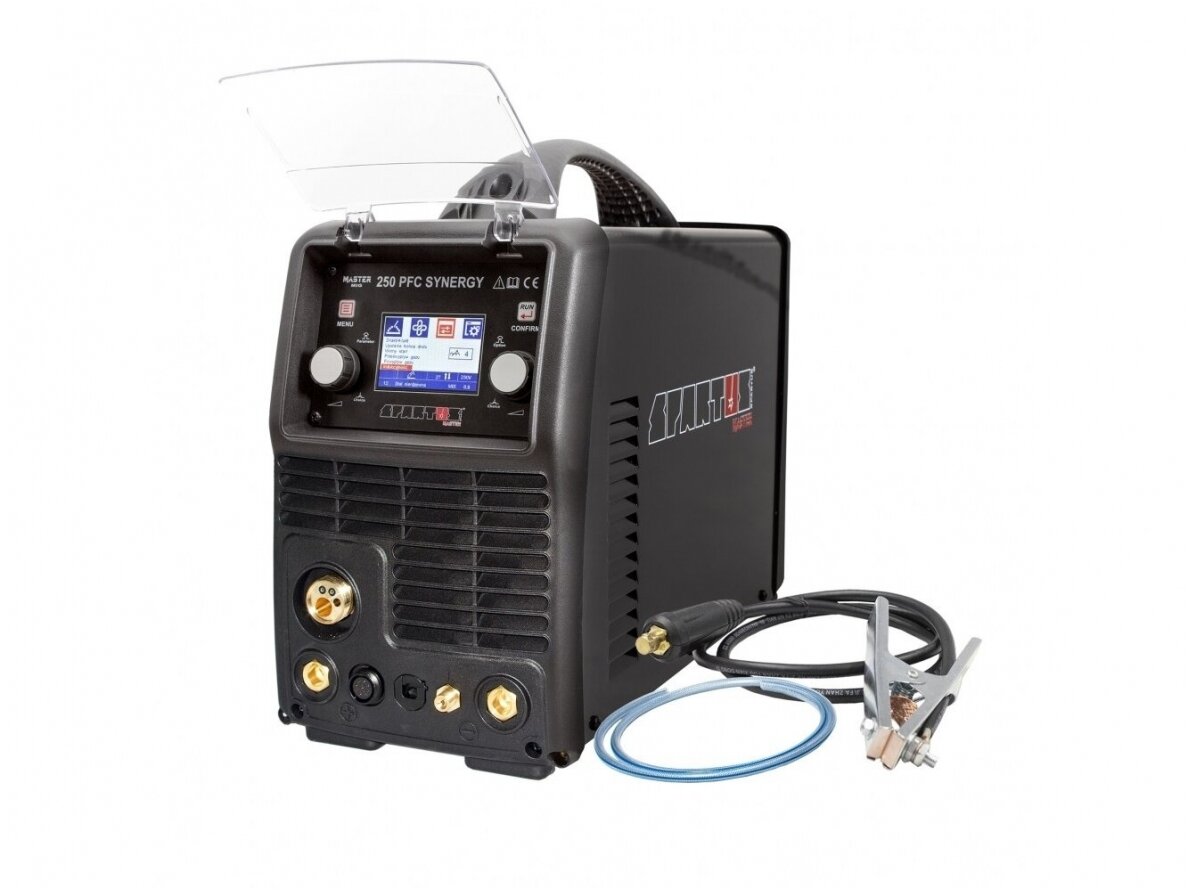

     SPARTUS® MasterMIG 250PFC SYNERGY is a professional, portable, multi-process welding semi-automatic device. It enables MIG/MAG, TIG and MMA welding with maximum welding current of 250A. The unit is powered from a single-phase network 230V.


    The device was produced with using of modern solutions such as inverter technology, IGBT power transistors, MCU controller, PWM technology, PFC filter. All of our technology solutions provide stable output performance under a variety of conditions, which has a direct effect on outstanding arc characteristics and welded joint quality.

    The device has a number of functions that support MIG / MAG welding processes:

    - Synergistic MIG/MAG welding mode: 20 dedicated programmes.
    - Wave Control - precise arc dynamics adjustment Wave control ensures full control over the welding arc: it allows to reduce the amount of welding splashes and controls the width and depth of fusion.
    - Burn Back - precise adjustment of welding wire burning speed allows limit a risk of sticking the welding wire to the contact tip.
    - Slow Feed - so called gentle start-up of the wire feeder, recommended especially during welding with high amperage and high speed of wire feed. Smooth start of wire feed eliminates the risk of welding defects at the beginning of the weld.
    - 2T / 4T - Choice of one of two operating modes.
    - Spool Gun - possibility of welding with type Spool Gun welding holder.

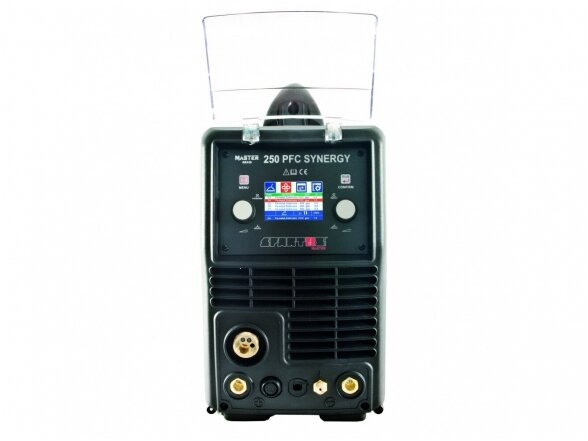

    The SPARTUS® MasterMIG 250PFC Synergy also has a number of features that support TIG welding processes (2T/4T mode, current falling speed adjustment, post-gas) and MMA (Hot Start for easier electrode ignition, Arc Force for easier welding in forced positions, VRD lower no-load voltage). Functional panel is equipped with a 480x320px colour LCD with an intuitive user interface. It is possible to choose one of several language versions of the control software (English, German, Czech, Slovak, Lithuanian, Spanish, Portuguese, Russian, French, Serbian, Polish). By default, the Polish language version of the interface is set.

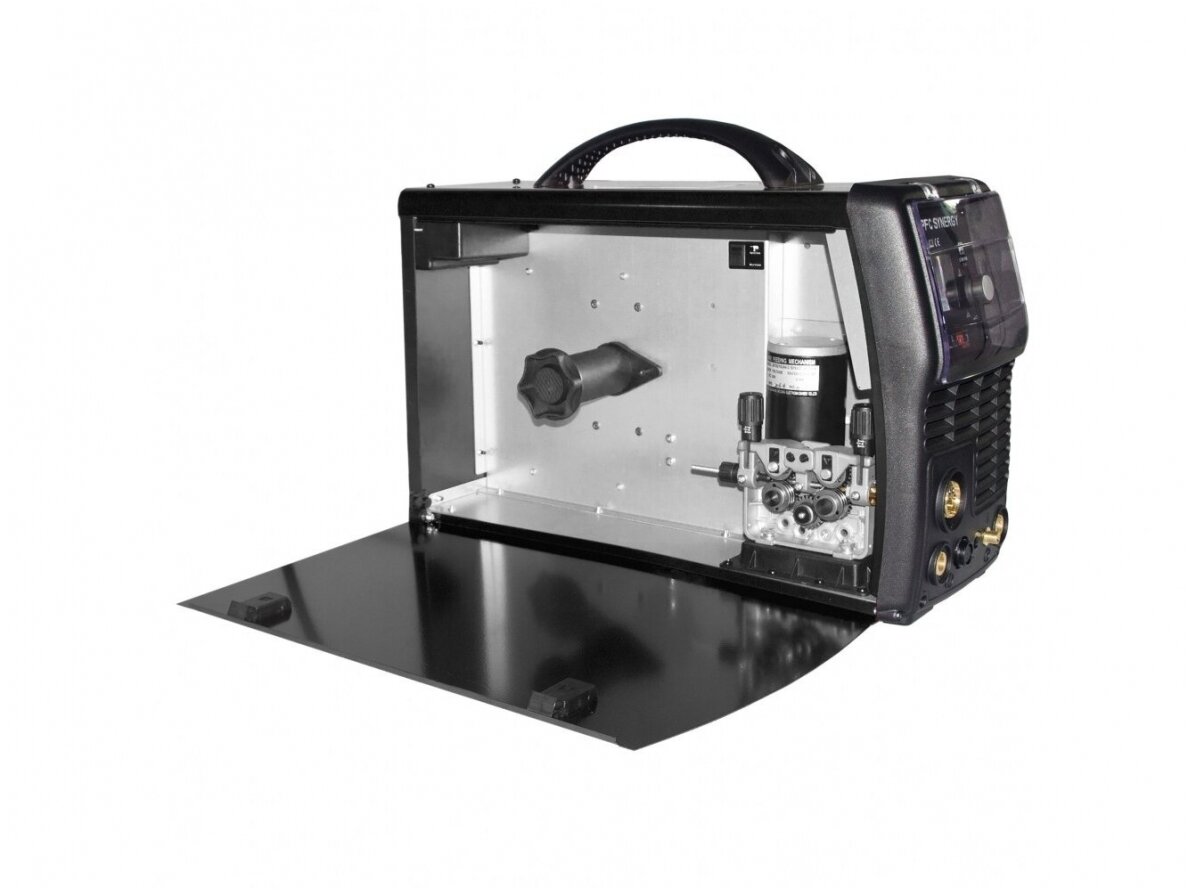

    SPARTUS® MasterMIG 250PFC SYNERGY is equipped with a professional four-roll wire feeder, which allows you to work with a long welding handle regardless of the type of wire used. Despite the small compact size and weight, the device is compatible with standard spools with welding wire D200 and D300 weighing up to 15kg.

    Examples of applications: workshop work, renovation works in the field, automotive - welding of galvanized car bodies (brazing), muffler welding, production sector, light industry.

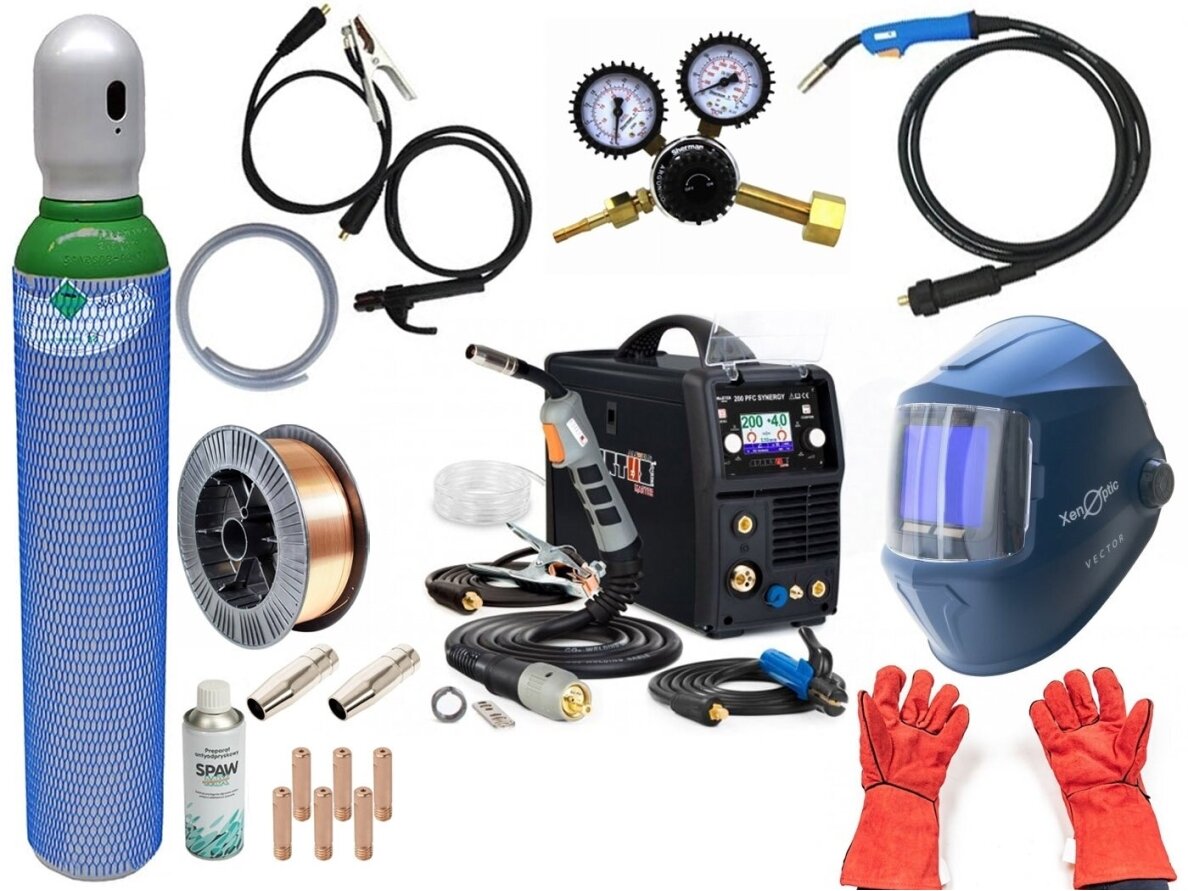

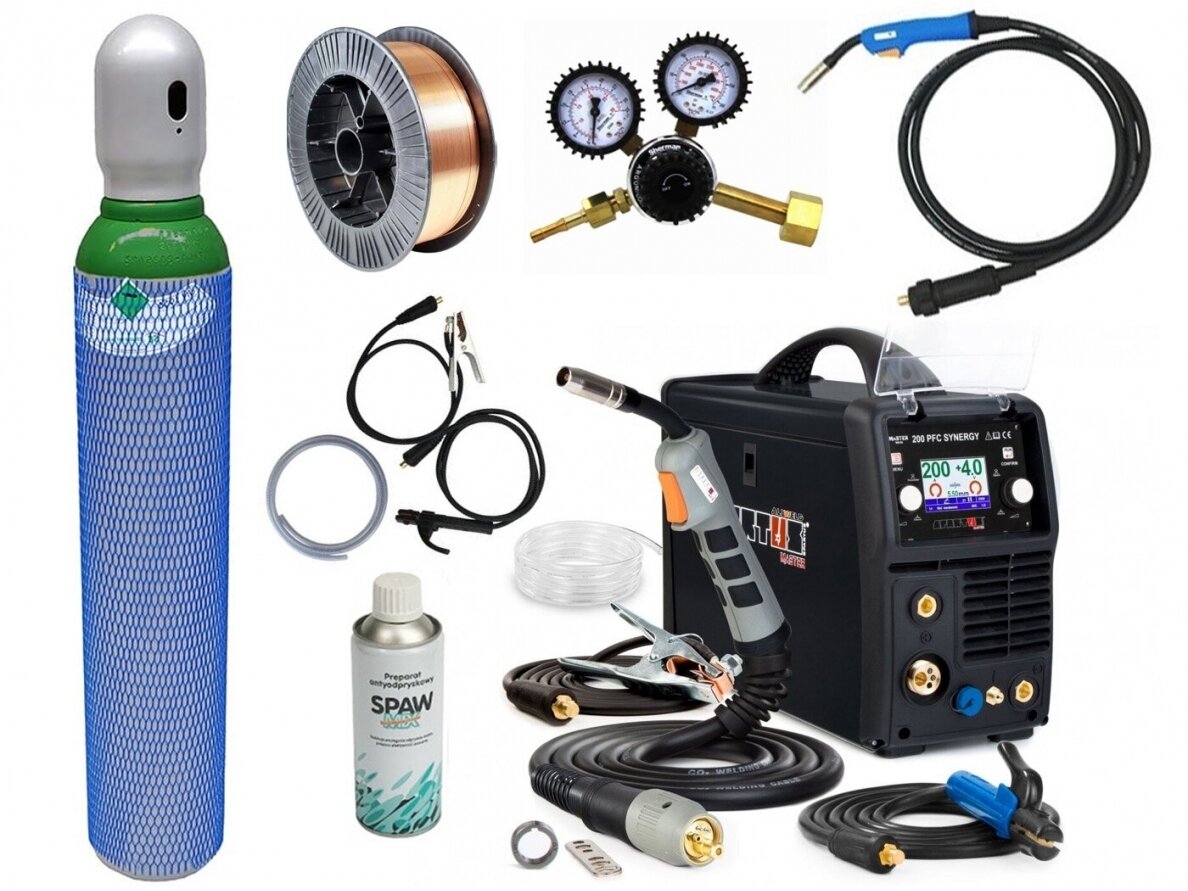

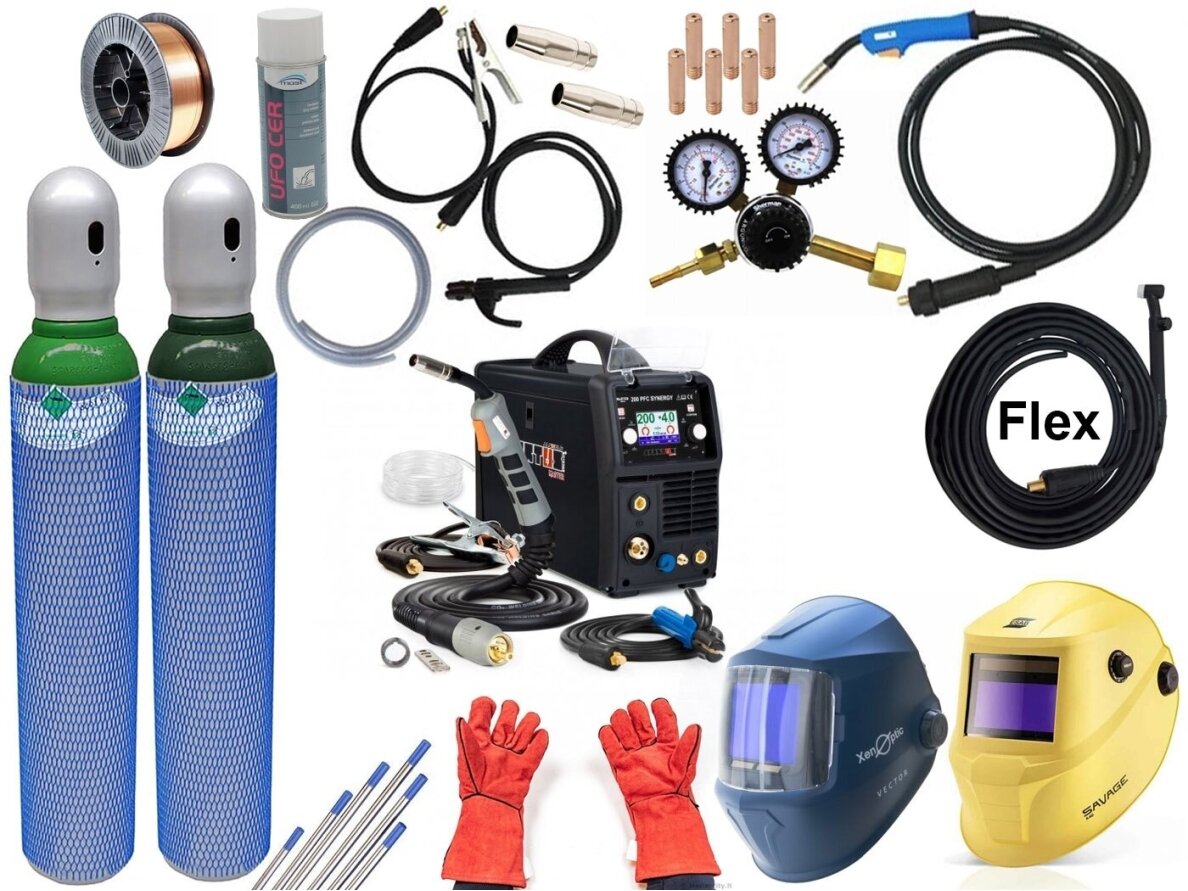

    Packages:



    Basic



    • Device SPARTUS® MasterMIG 250PFC SYNERGY
    • 3m work clamp
    • Gas hose
    • User's manual

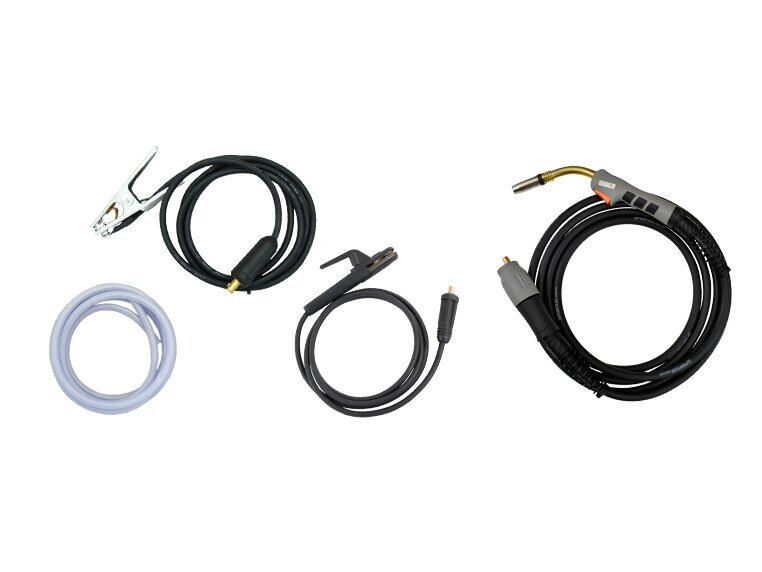

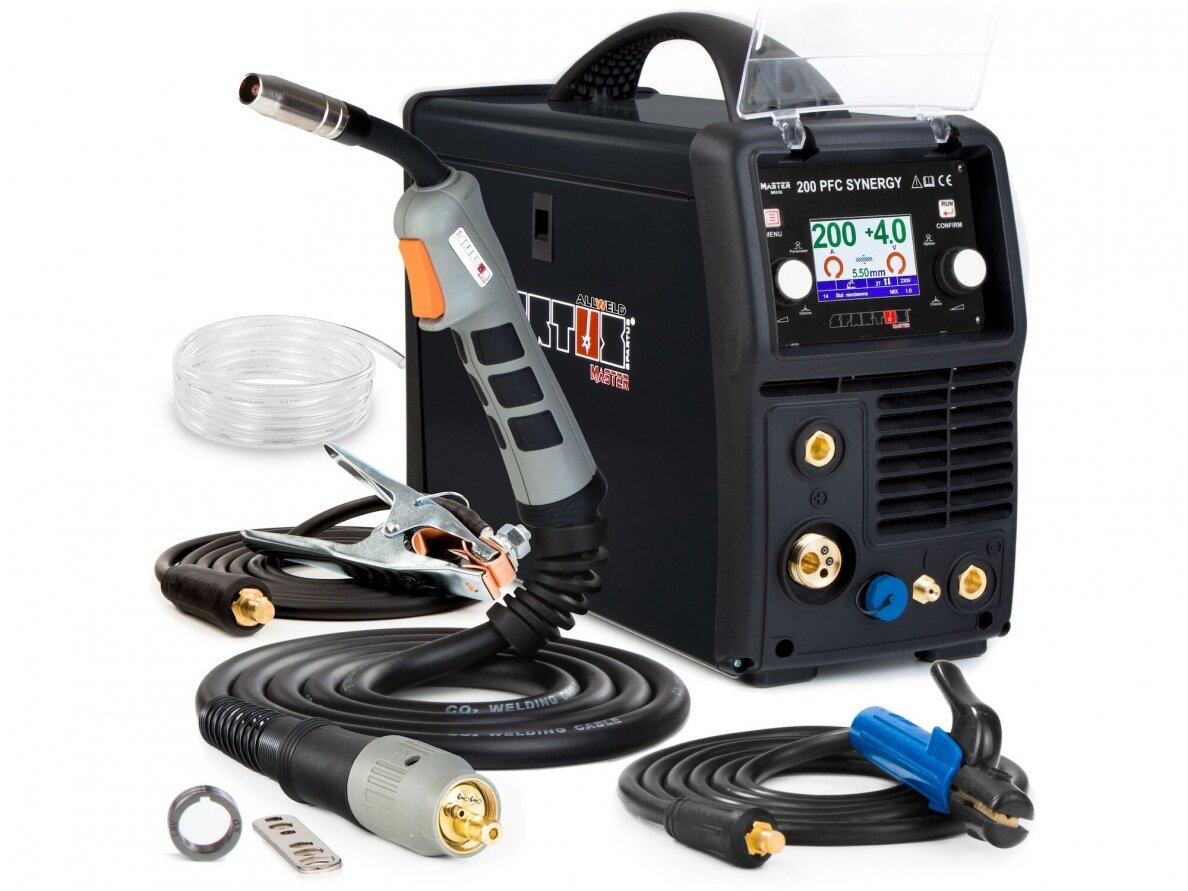

    Ultimate

    • Device SPARTUS® MasterMIG 250PFC SYNERGY
    • MIG gun SPARTUS® SPM 240
    • 3m electrode holder
    • 3m work clamp
    • Gas hose
    • User's manual
