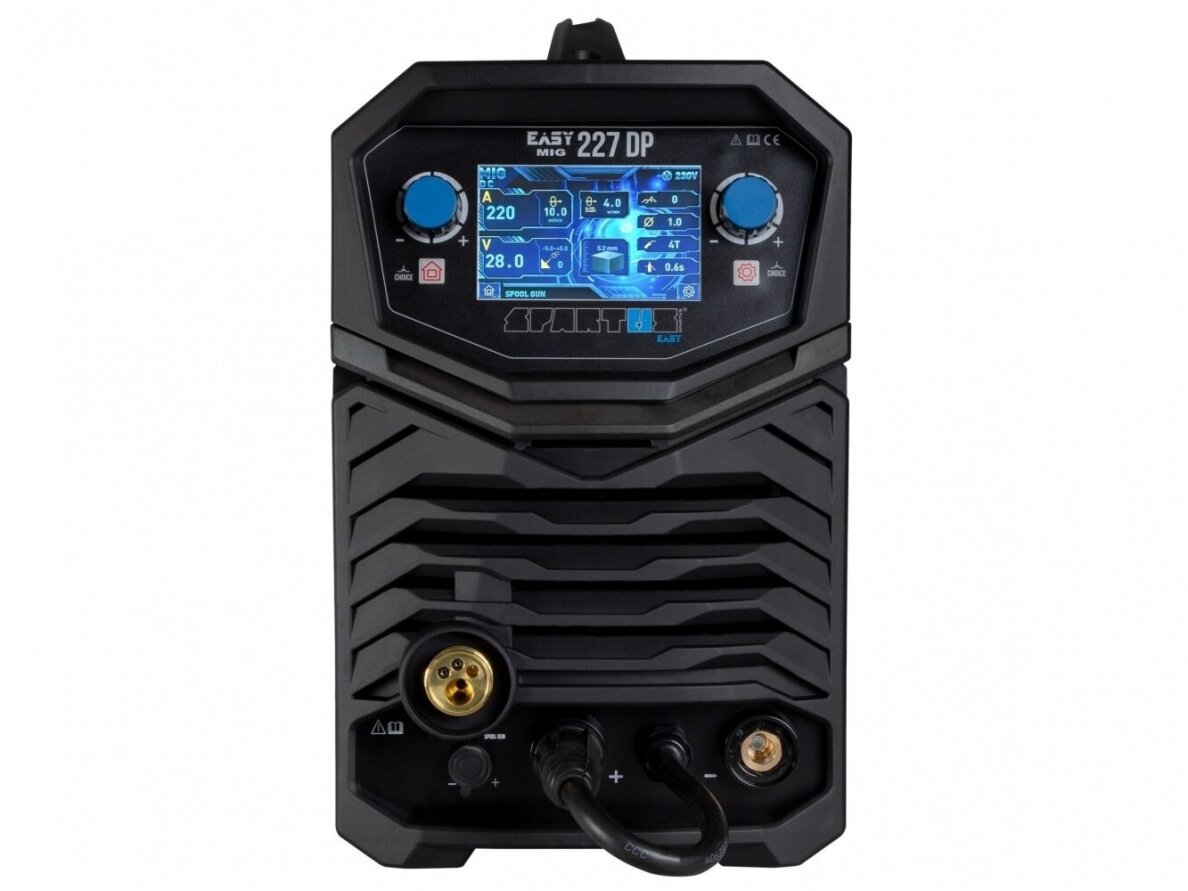

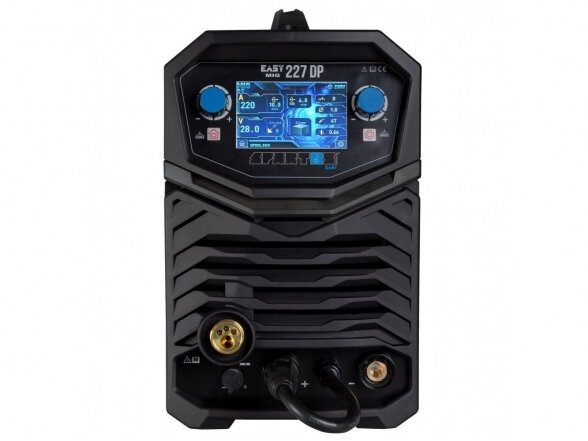

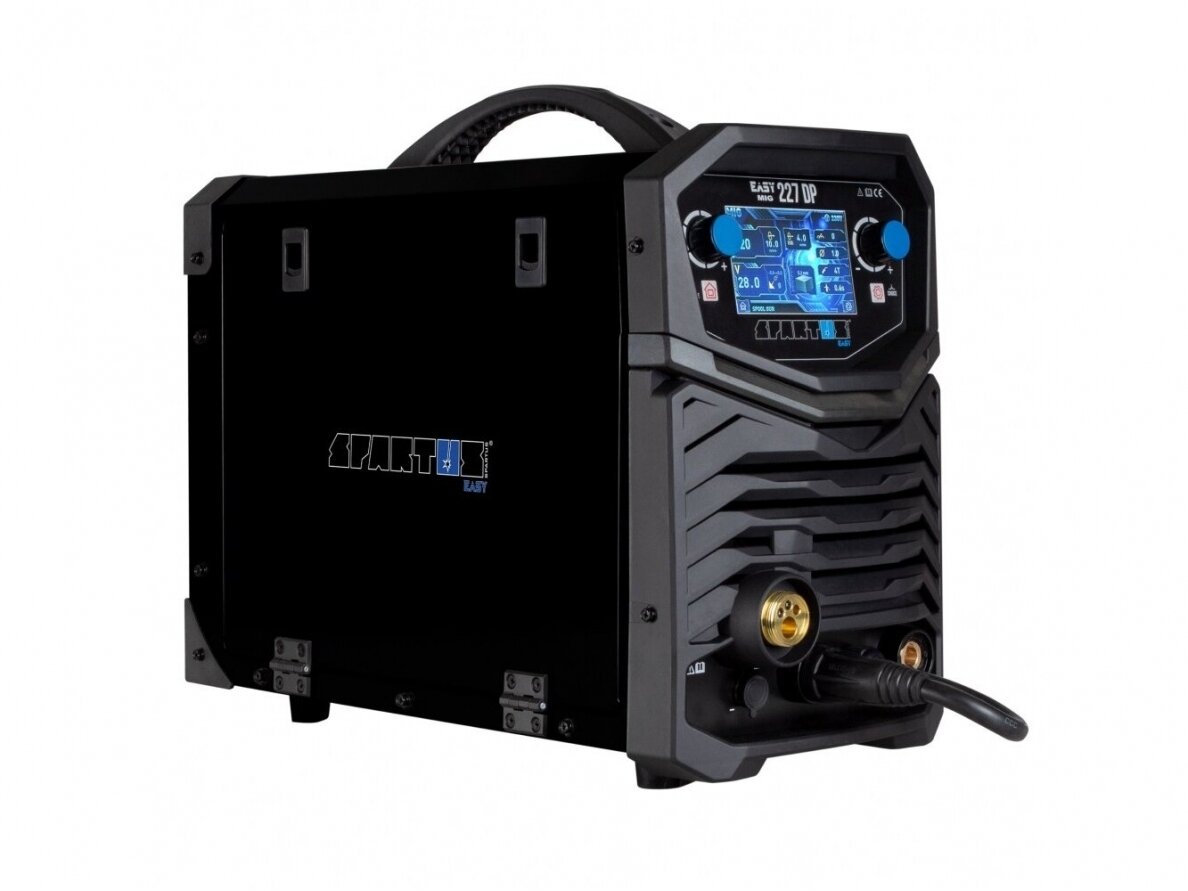

  • Semiautomatic Welder Spartus EasyMIG 227 DUAL PULSE, 220A, 230V

    Code: EASYMIG227DP-PAK-15-3_basic
    Manufacturer
    MIG power supply voltage
    230V
    MIG type
    Synergic
    MIG pulse (with pulses)
    Yes
  • Power supply voltage

    ~1× 230V ± 10% 50/60 Hz

    MIG welding current

    50 - 220 A

    TIG welding current

    10 - 220A

    MMA welding current

    0 - 200A

    MIG duty cycle

    60%

    No-load voltage

    16.5–25.0 V

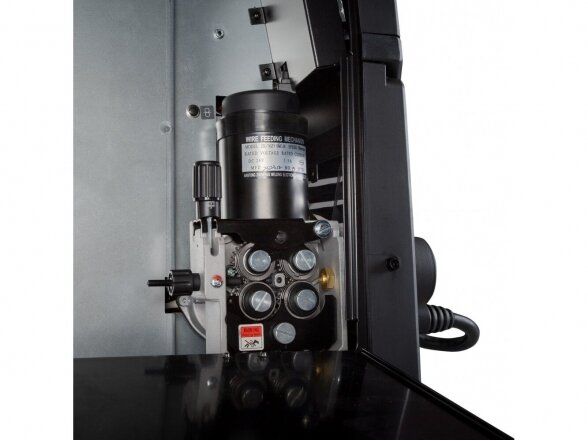

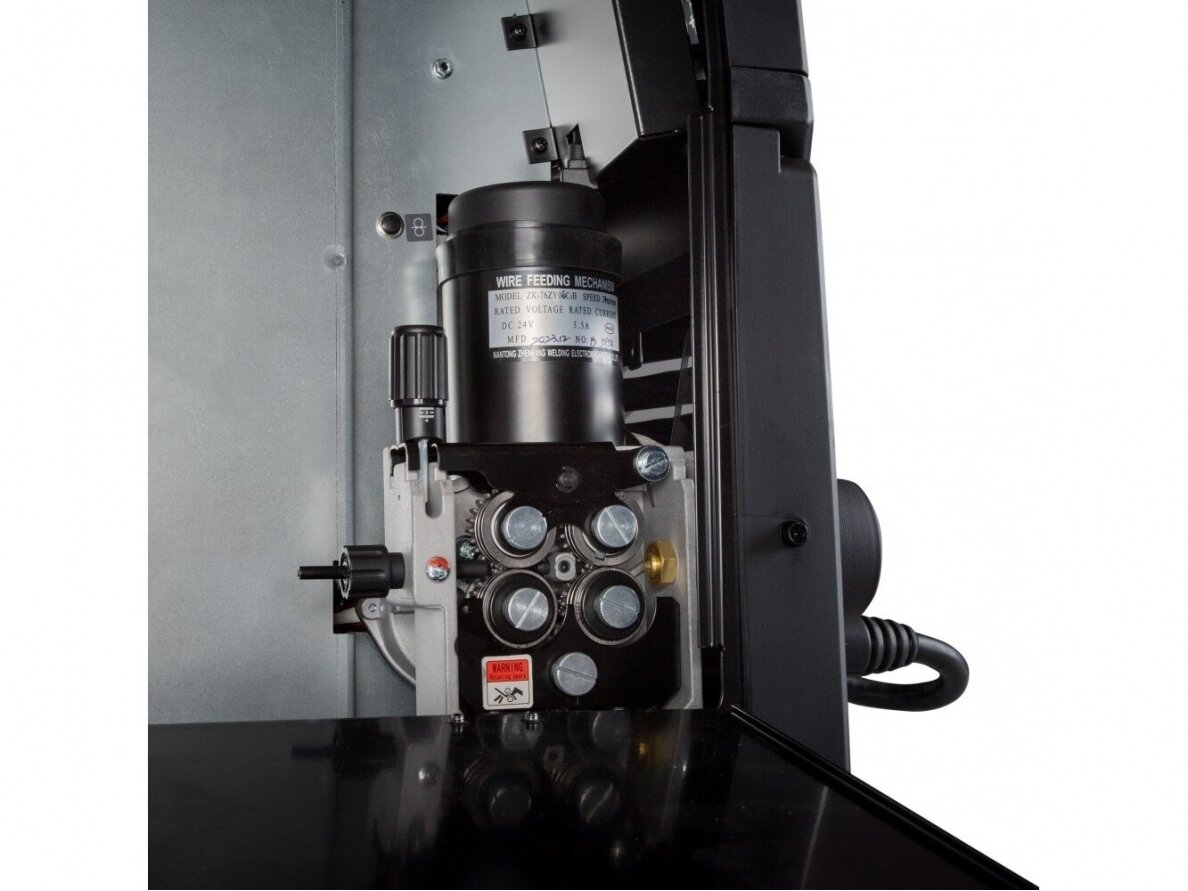

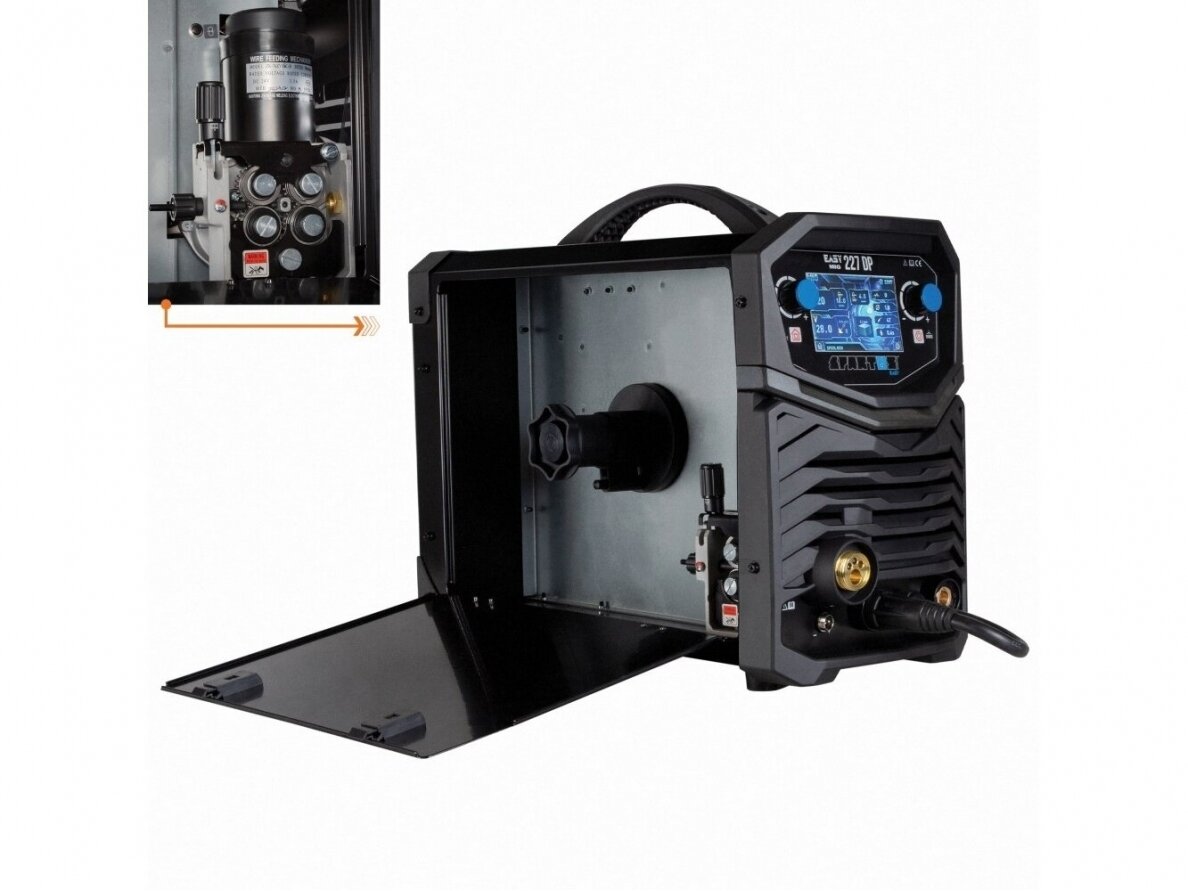

    Wire feeder mechanism type

    Built-in, 4 rollers

    Wire spool

    ≤ 15 kg / Ø200/300 mm

    Wire diameter

    0.8 / 1.0 / 1.2 mm

    Synergy

    yes

    2T/4T operating mode

    yes

    Additional functions

    MIG DUAL PULSE, inductance, post-weld gas delivery, pulsing, synergic programs, manual parameter adjustment, inductance adjustment, Spool Gun, slow feed (Slow Feed), polarity switching

    TIG Lift

    yes

    Arc Force

    yes

    Hot Start

    yes

    VRD

    yes

    Power consumption

    MIG 45 / TIG 35 / MMA 45

    Power factor (cosφ)

    0.8

    Efficiency η

    MIG 80.7 / TIG 78.5 / MMA 83

    Insulation class

    H

    Protection class

    IP21S

    Dimensions

    560 x 255 x 445 mm

    Weight

    19.5 kg

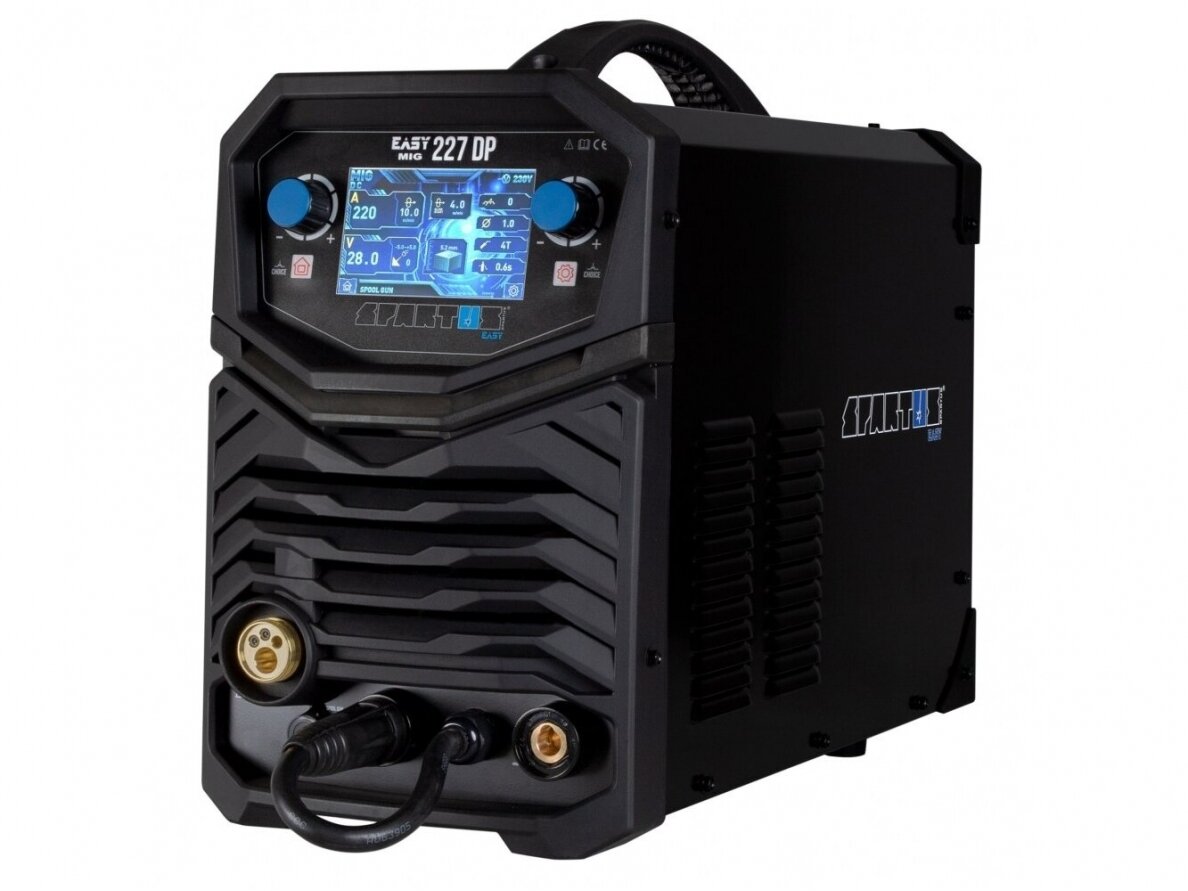

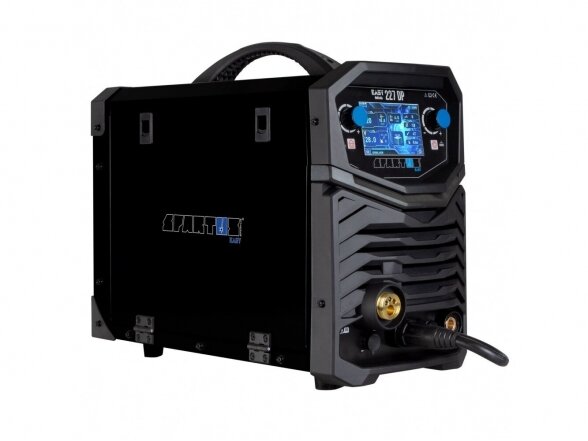

    The semiautomatic welder SPARTUS® EasyMIG 227DP combines precision, versatility, and durability in one device. It's a semiautomatic welding machine integrating advanced IGBT inverter technology with unmatched versatility. Thanks to its modern design, this device allows performing many complex welding tasks with unparalleled precision and efficiency.

    The SPARTUS® EasyMIG 227DP expands welding capabilities, offering not only traditional manual MIG/MAG welding but also advanced solutions such as welding with synergic programs, pulse MIG welding, and even dual pulse MIG welding. Thus, the semiautomatic machine can adapt to various welding needs. With this equipment, every project becomes easier. The machine can weld with self-shield wire, thus eliminating the need for external protective gases, which is a great advantage for those looking to reduce additional costs. Moreover, EasyMIG 227DP can work with the Spool Gun holder, further enhancing its versatility. The maximum welding current reaches 220 A for MIG/MAG/TIG welding and 200 A for MMA welding, ensuring high work efficiency in various welding tasks.

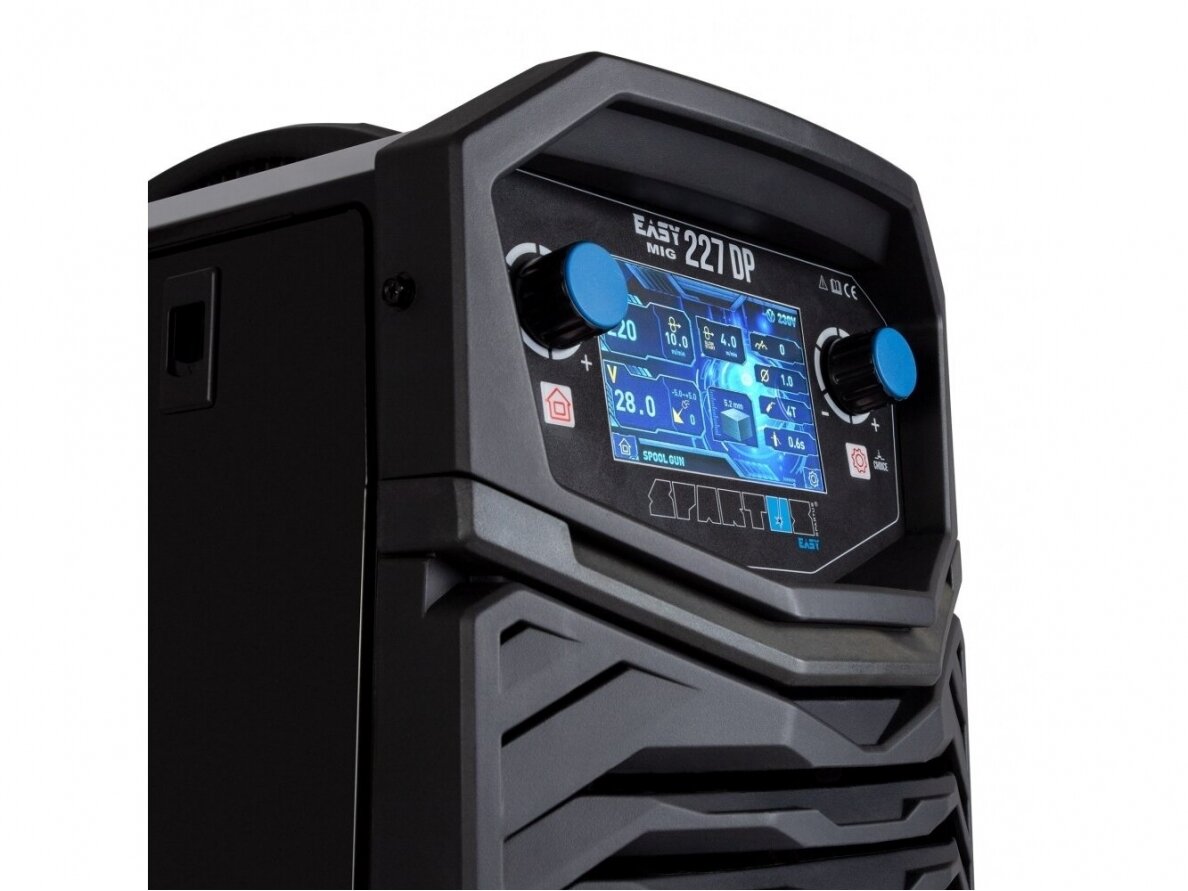

    The advanced LCD screen not only makes it easier to adjust the device settings but also helps in controlling its functions. In addition, the graphical representation of the welding form dependency on voltage facilitates the selection of appropriate parameters.

    The double pulsation in the MIG/MAG method provides the weld seams with aesthetic and quality similar to the TIG method, while increasing efficiency and reducing thermal deformation. It is ideally suited for precise aluminum processing, as it requires less operator intervention.

    The semiautomatic welder SPARTUS® EasyMIG 227DP has numerous features that simplify the welding process, such as 2T/4T operating mode, inductance adjustment, Hot Start, Arc Force, and VRD systems.

    SPARTUS® EasyMIG 227DP combines precision, versatility, and durability, raising the standard of welding projects. It is more than just a welding device - it is a comprehensive solution for welders who do not compromise on quality and efficiency.

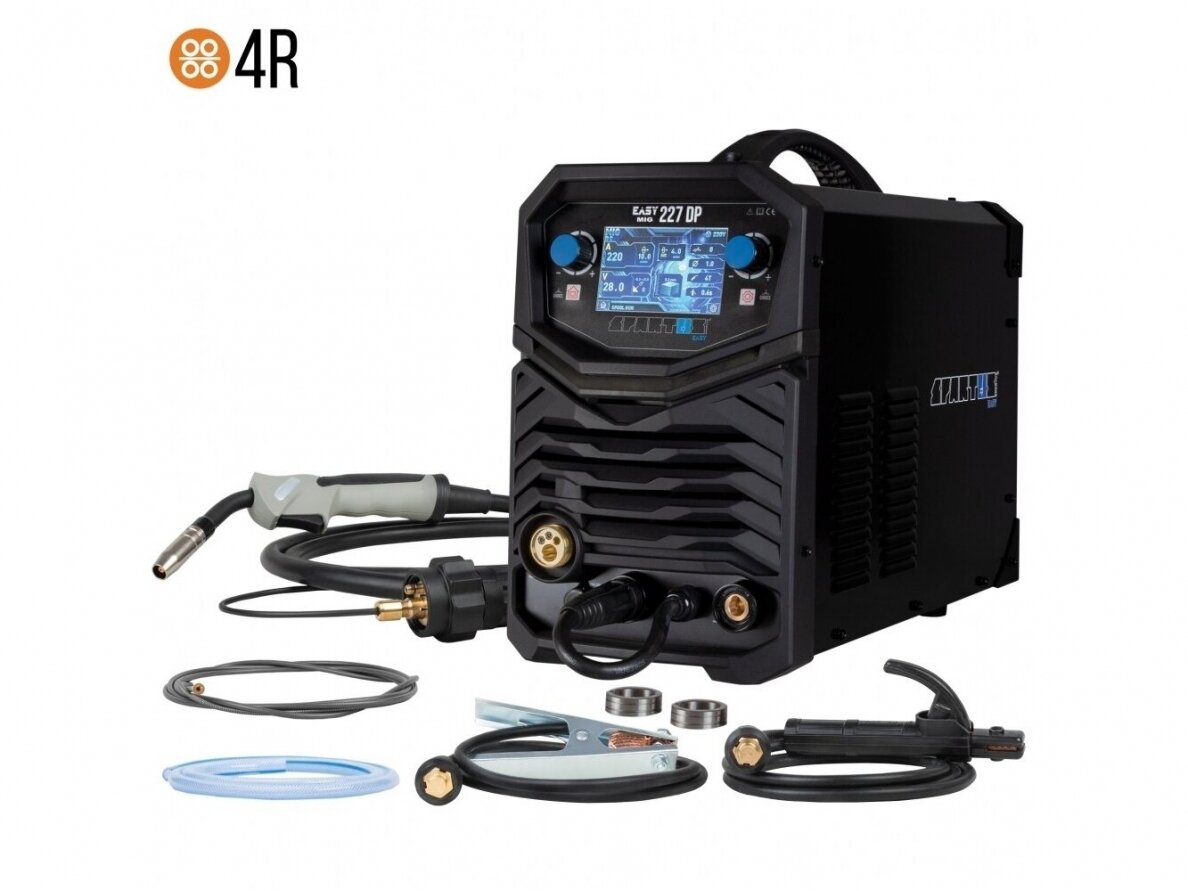

    Package includes:

    • Semiautomatic welder EasyMIG 227DP
    • SPARTUS® MIG SPE 150 3m torch with steel wire guide
    • Graphite wire guide
    • 2x guide rollers 0.8–1.0 V FI30 + additionally 2x 1.0–1.2 U FI30
    • Electrode holder
    • Grounding cable
    • Gas nozzle
  • Price 1443.00 € VAT incl.
