MIG/MAG SPARTUS® MasterMIG 250 DUAL Pulse Synergy welder

  • MIG/MAG SPARTUS® MasterMIG 250 DUAL Pulse Synergy welder

    Code: MasterMIG250dualPulseSynergyUltimate
    Price 1800  VAT incl.
    (1487.60  VAT excl.)
    2290  You save 490
    Manufacturer
    MIG power supply voltage
    400V
    MIG type
    Synergic
    MIG pulse (with pulses)
    Yes
  • Input

    ~3× 400V ± 10% 50 / 60 Hz

    Welding current MIG [A]

    15 – 250

    Duty cycle

    60[%] 250[A] 100[%] 195[A]

    Output working voltage MIG [V]

    14.8 – 26.5

    Wire feeder

    built-in, 4-roll gear

    Wire feeding speed [m/min]

    1,5 – 24

    Wire diameter ∅ [mm]

    0.8 / 1.0 / 1.2

    Synergic MIG/MAG programs

    Yes

    1P - with pulse

    20 programs

    2P - with dual pulse

    20 programs

    SYNERGY - without pulse

    17 programs

    Pulsation/dual pulsation

    Yes

    Dual pulse regulation

    Yes

    dPC (pulse current delta)

    10 – 200[A]

    FdP (Frequency 2P)

    0,5 – 3,0[Hz]

    dut (double pulsation width)

    10 – 90[%]

    bAL (arc length of the current)

    -10 – +10

    Spot welding

    Yes

    Welding inductance adjustment

    -10 – +10

    Operating mode

    2T/4T/s4T

    Operating mode s4T

    Yes

    SCP (initial current)

    10 – 200[%]

    SAL (initial current arc length)

    -10 – +10

    ECP (final current)

    10 – 200[%]

    EAL (final current arc length)

    -10 – +10

    SFt Slow Feed

    0 - 10

    Burn Back

    0 - 10

    Pre-Gas/Post-Gas

    0 - 5s / 0 - 10s

    SPOOL GUN

    Yes

    TIG welding current [A]

    10 – 250

    Arc ignition

    Lift

    dSL Time of current descent [s]

    0 – 10

    Welding with MMA coated electrode

    Yes

    MMA welding current [A]

    10 – 250

    ACF / HSt Arc Force/Hot Start

    0 - 10 / 0 - 10

    VRD

    15,5

    Current consumption [A]

    MIG 15,1/ MMA 18,2/ TIG 13,3

    Power factor (cosφ)

    0,70

    Efficiency η [%]

    85

    Insulation class

    H

    Protection class

    IP23

    Weight [kg]

    25,5

    Dimensions [mm]

    670 × 240 × 450

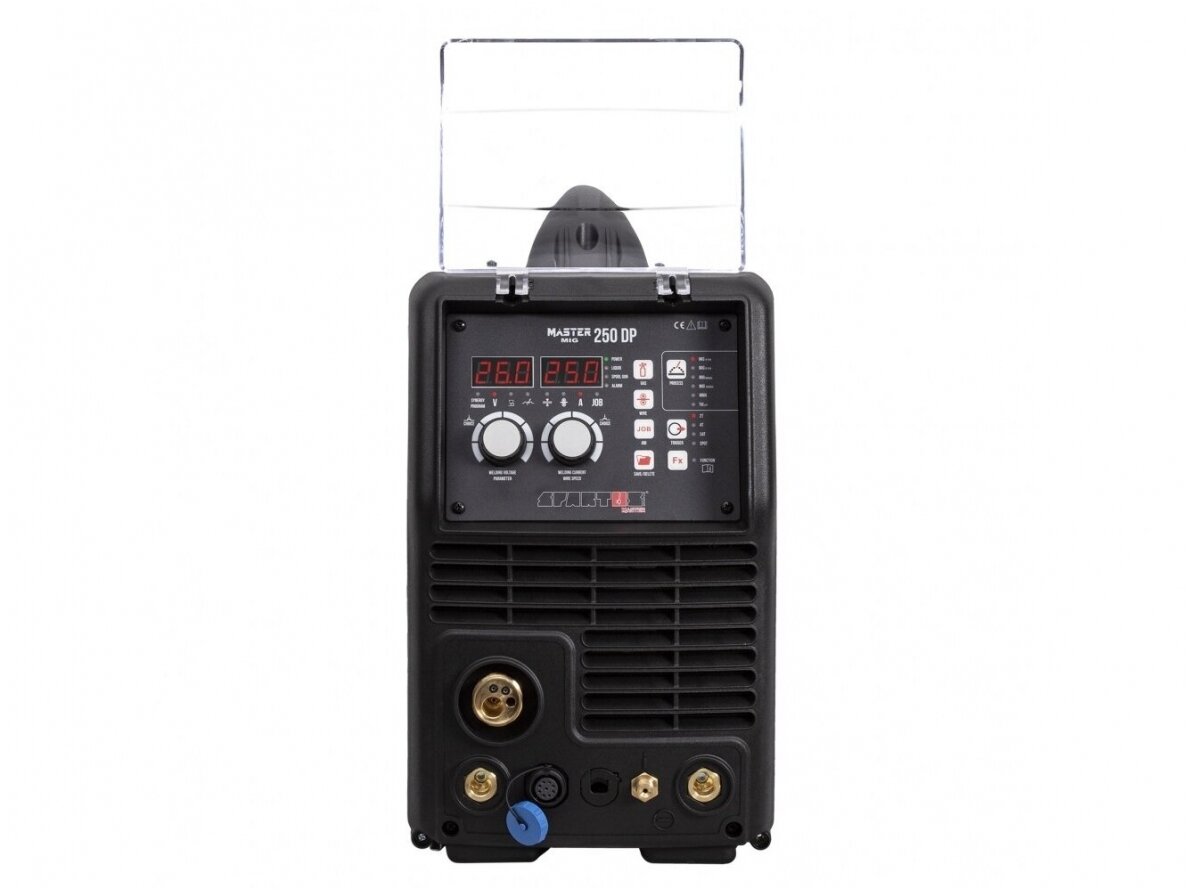

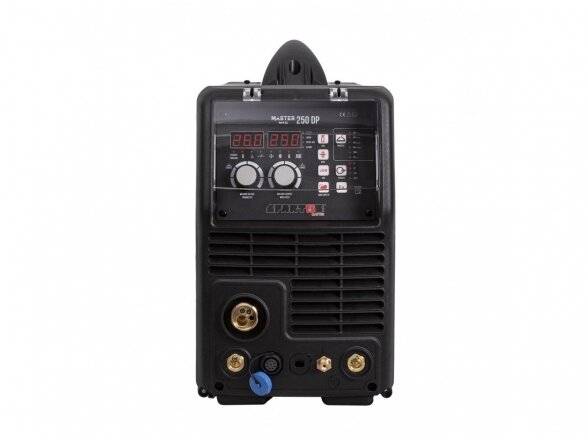

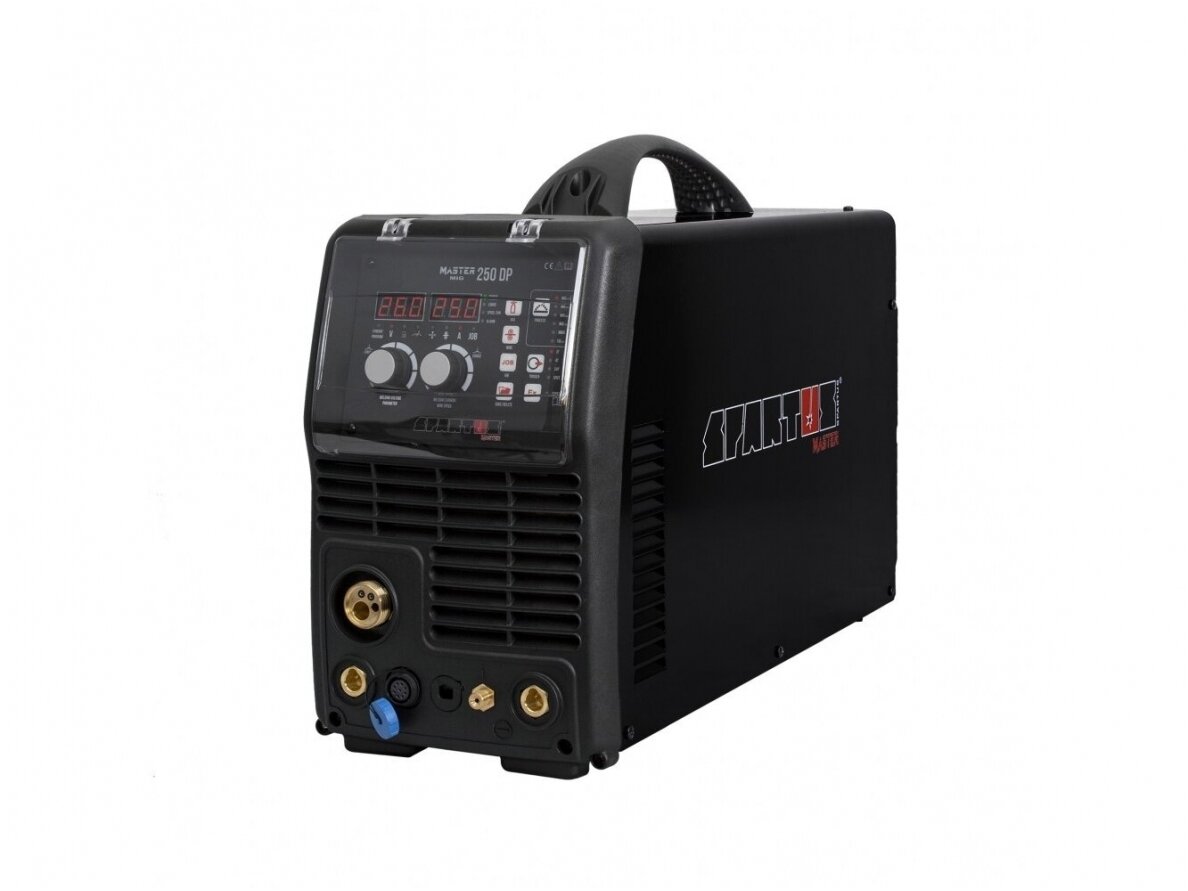

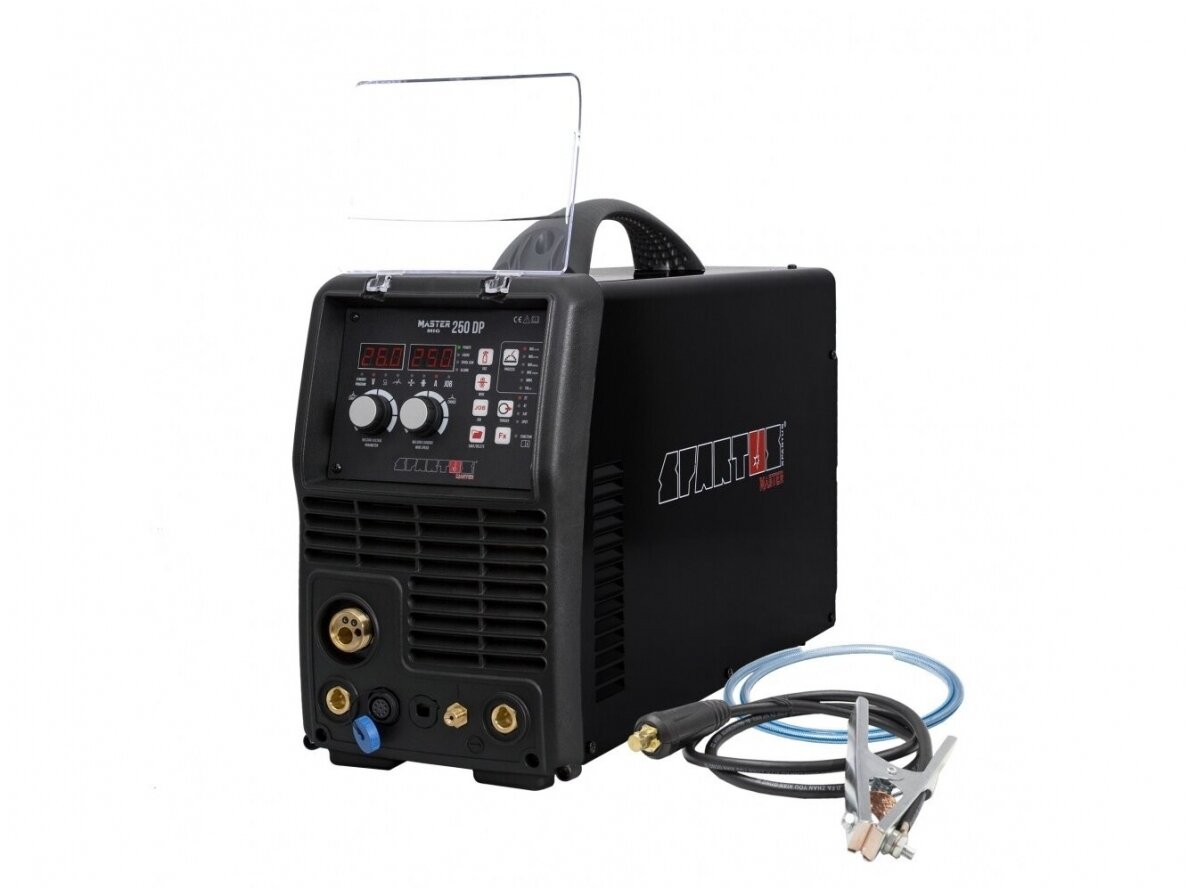

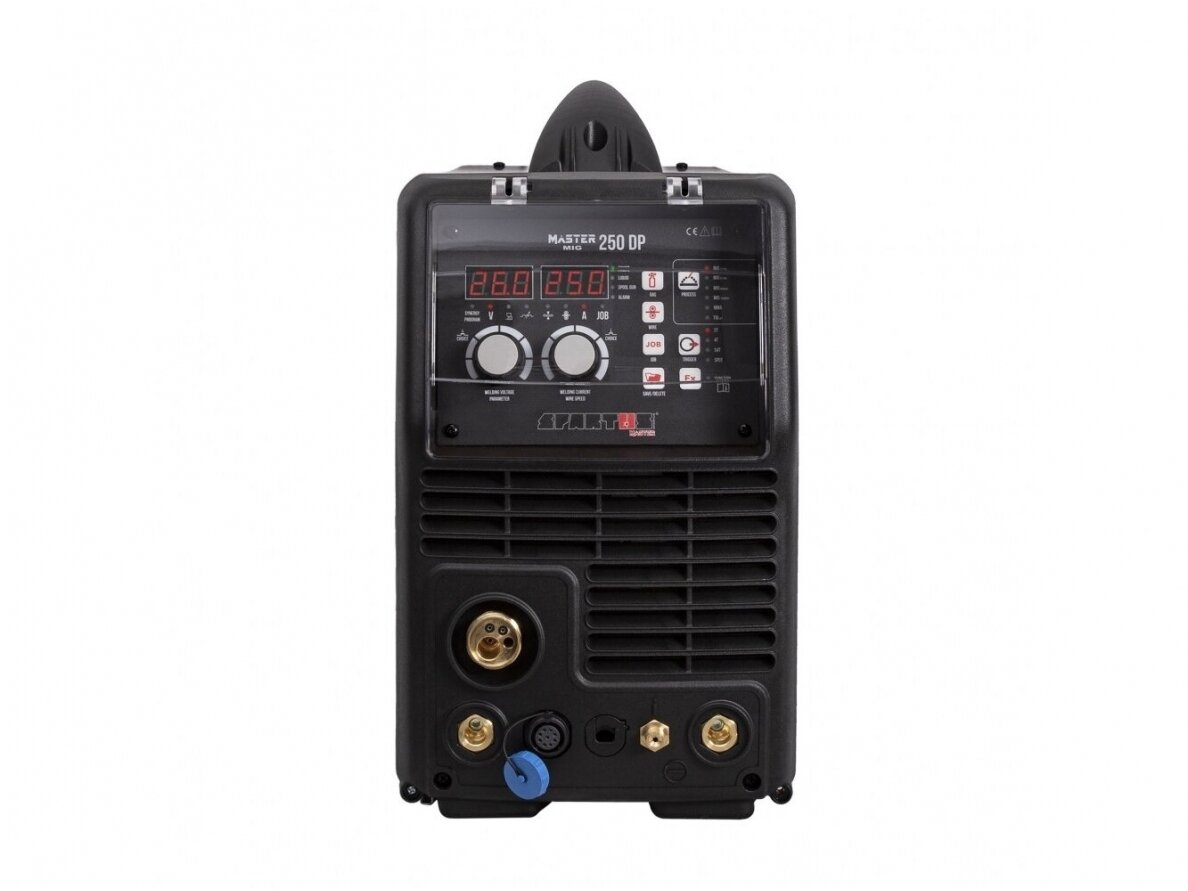

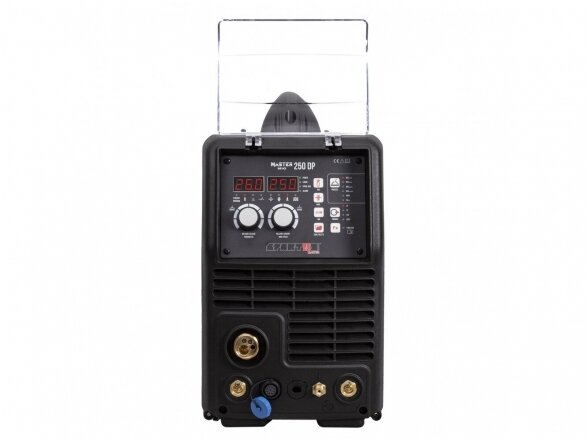

    SPARTUS® MasterMIG 250 Dual Pulse Synergy is a modern multi-functional inverter device for welding with MIG/MAG, TIG and MMA methods. During its production, modern technologies were used, such as: IGBT transistors, PWM, MCU control system. The device is powered from a 400V three-phase network and enables welding with a current of up to 250A for all three methods.

    MasterMIG 250 Dual Pulse Synergy have a number of modern functions necessary for high-performance and high-quality MIG/MAG welding of materials such as steels, stainless steels, acid-resistant steels and aluminum alloys. It will be used especially when welding aluminum and its alloys, thanks to the use of advanced functions, dedicated to welding demanding alloys.

    The most important functions:

    Examples of applications: workshop work, renovation works in the field, automotive - welding of galvanized car bodies (brazing), silencer welding, production sector, light industry.

    •1P (Pulse) - MIG/MAG welding with pulsation, which significantly facilitates obtaining a spray arc

    •2P (Dual Pulse) - MIG/MAG welding with double pulsation

    •Welding in two operating modes 2T/4T

    •Spot welding

    The use of double pulsation in the MIG/MAG method allows obtaining a weld of quality and aesthetics comparable to the TIG method. The benefits of using double pulsation in the MIG/MAG method:

    •High aesthetics (husk effect)

    •Higher welding efficiency compared to the TIG method

    •Smaller thermal deformations compared to the TIG method

    •When welding aluminum requires less skill from the operator in relation to the TIG method

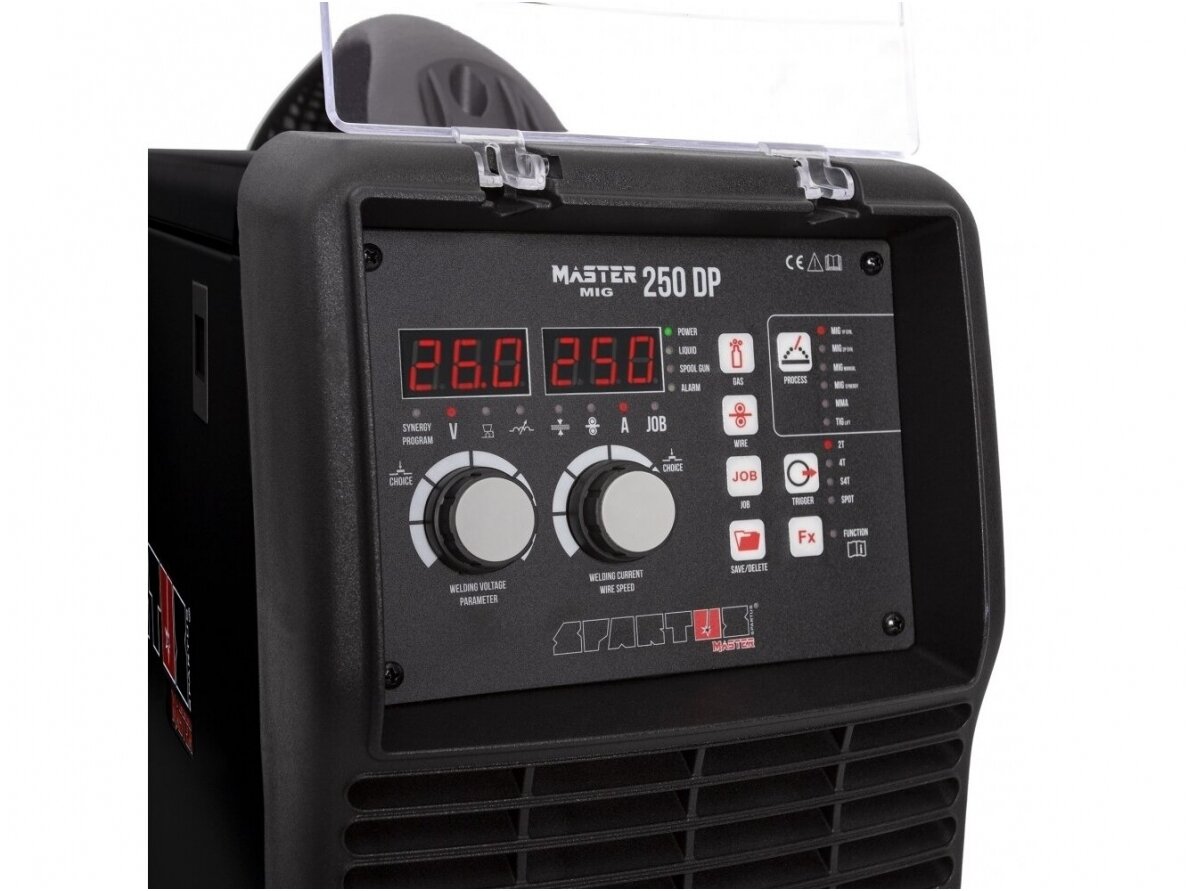

    Simple to use and intuitive function panel allows precise control of parameters for MIG/MAG, TIG and MMA methods. For the MIG/MAG methods it is possible to smoothly adjust the welding parameters such as: welding voltage, wire feed speed, inductance. In addition, the device is equipped with synergic programs in which the parameters are programmed - according to the welding mode and the material being welded.

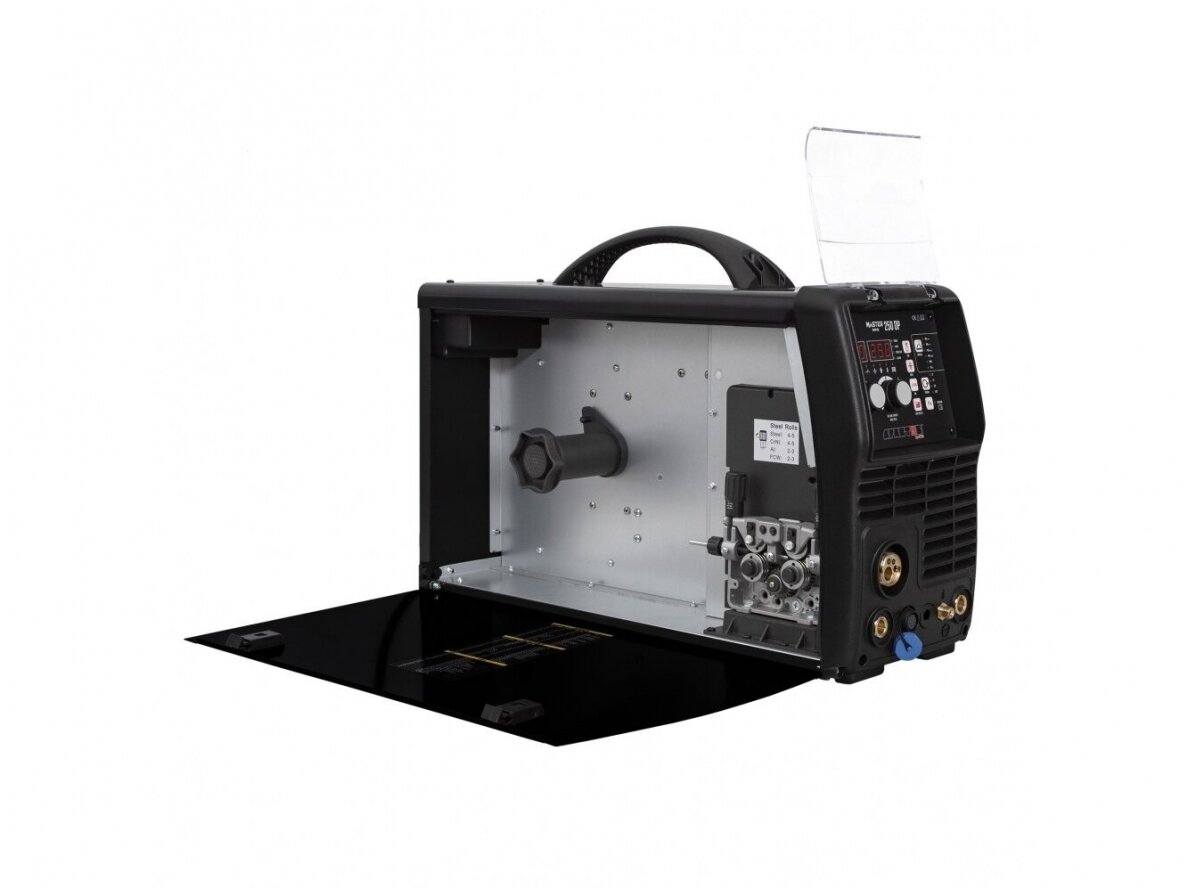

    MasterMIG 250 Dual Pulse Synergy is equipped with a professional four-roll wire feeder, which allows you to work with a long welding handle regardless of the type of wire used. Despite the small compact size and weight, the device is compatible with standard spools with welding wire D200 and D300 weighing up to 15kg.

    Examples of applications: workshop work, renovation works in the field, automotive - welding of galvanized car bodies (brazing), muffler welding, production sector, light industry, high-performance aluminum welding.




    Packages:

    Basic

    • Device SPARTUS® MasterMIG 250 Dual Pulse Synergy
    • 3m work clamp
    • Gas hose
    • User's manuals

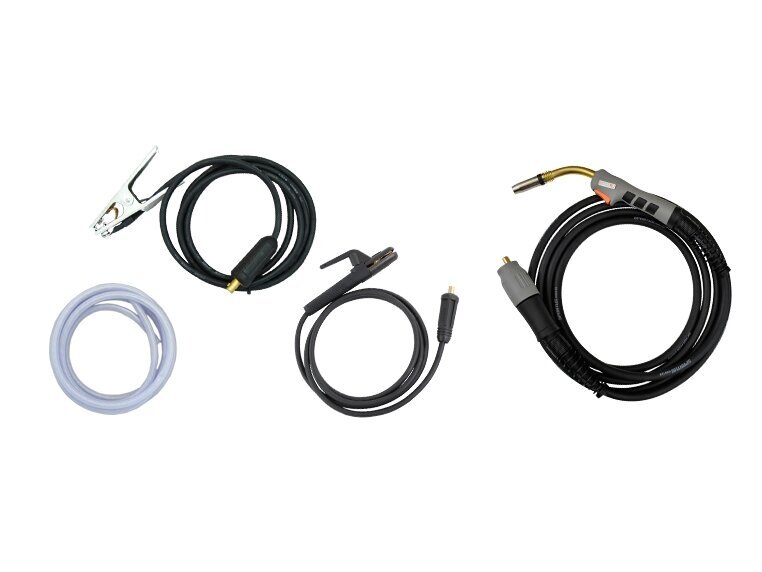

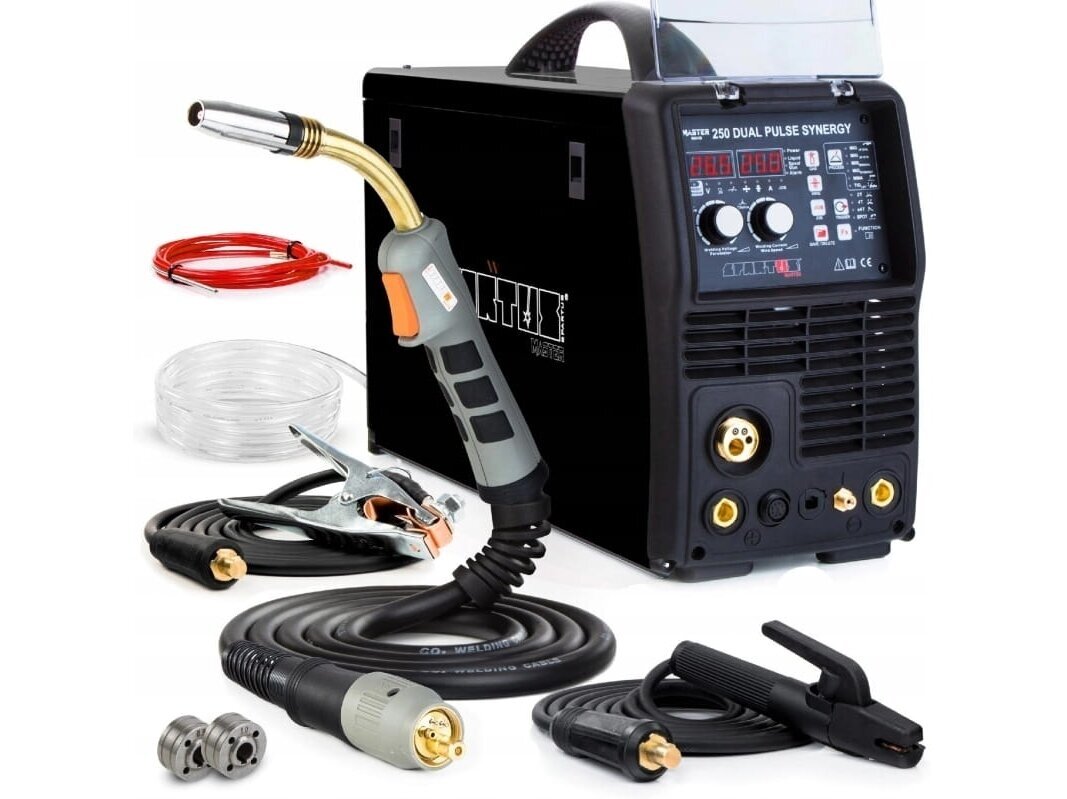

    Ultimate

    • Device SPARTUS® MasterMIG 250 Dual Pulse Synergy
    • MIG gun SPARTUS® SPM 240
    • 3m electrode holder
    • 3m work clamp
    • Gas hose
    • User's manual
