GPPH welding table 2000x1000 mm, Basic series, without side walls

The GPPH Basic welding table is designed for use wherever precision is required during welding. Whether you are performing welding tasks in a traditional manual way or using welding robots – the Basic table is an excellent choice! Your welded structures will be made precisely, without unnecessary adjustments.

The GPPH Basic welding table does not have side walls, making it perfectly suitable as a base for robotic welding, as well as for measurement stations. Side walls are not used for such tasks, so the Basic welding table is perfectly suited and at the same time cheaper than traditional welding tables with side walls.

Key features:

• ideally flat working surface [±0.3 mm across the entire tabletop area].
• sturdy tabletop construction, which is 80 mm high.
• de-burred and milled holes, designed for easy mounting of tools, made with +0.05 mm precision.
• engraved grid of 100x100 mm.
• made from S355J2+N material according to ISO 2768-1.
• height adjustment with standard legs about 880-930 mm.
• all tables are reinforced with side beams, placed on average every 400 mm.
• top edges milled.

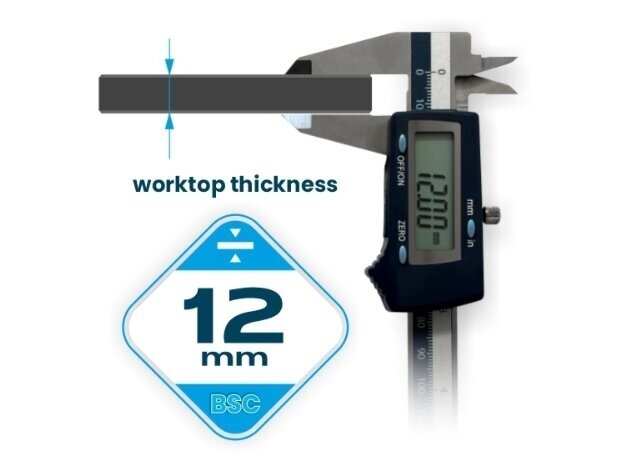

• top thickness 12 mm.
• legs made from 60x60 mm profile.

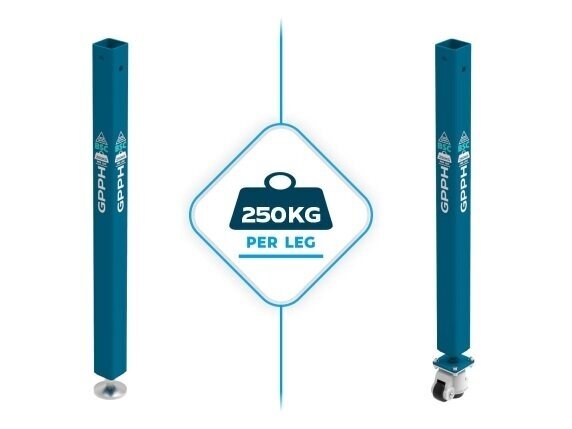

• tabletop load capacity up to 250 kg/leg.

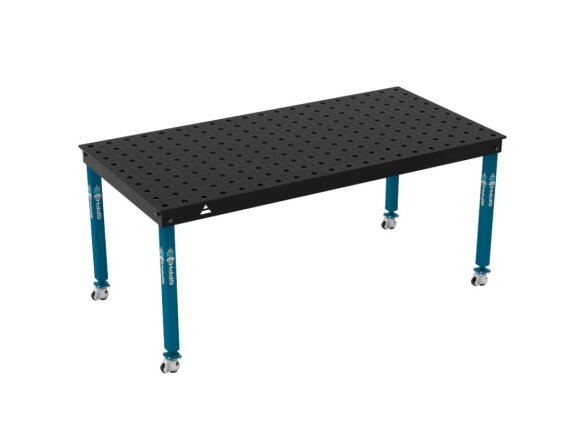

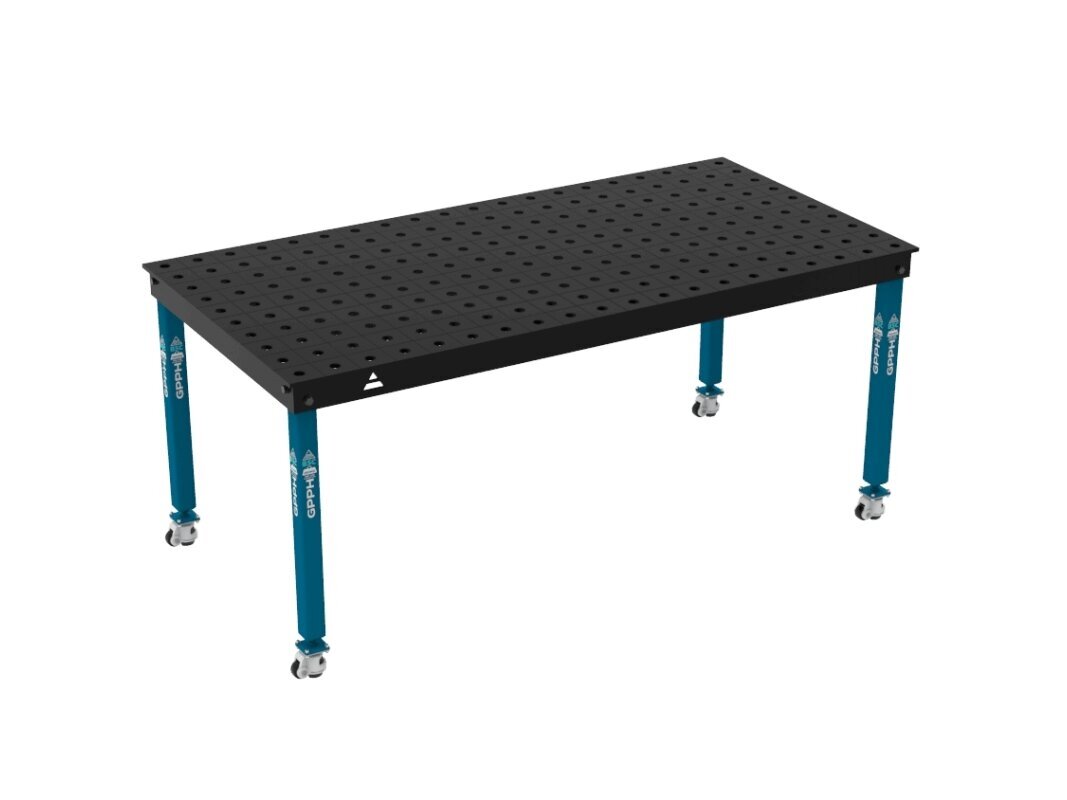

All tables can be made with standard legs or with wheels. Stable legs ensure reliable support, maintain the tabletop flat and stable, so you can concentrate on your work. Legs with wheels are for those who need mobility and flexibility in organizing their workspace. Wheels allow the table to be easily moved in the workshop, which increases work efficiency. Moreover, wheels are equipped with a locking mechanism, which keeps the table stable during welding or assembly.

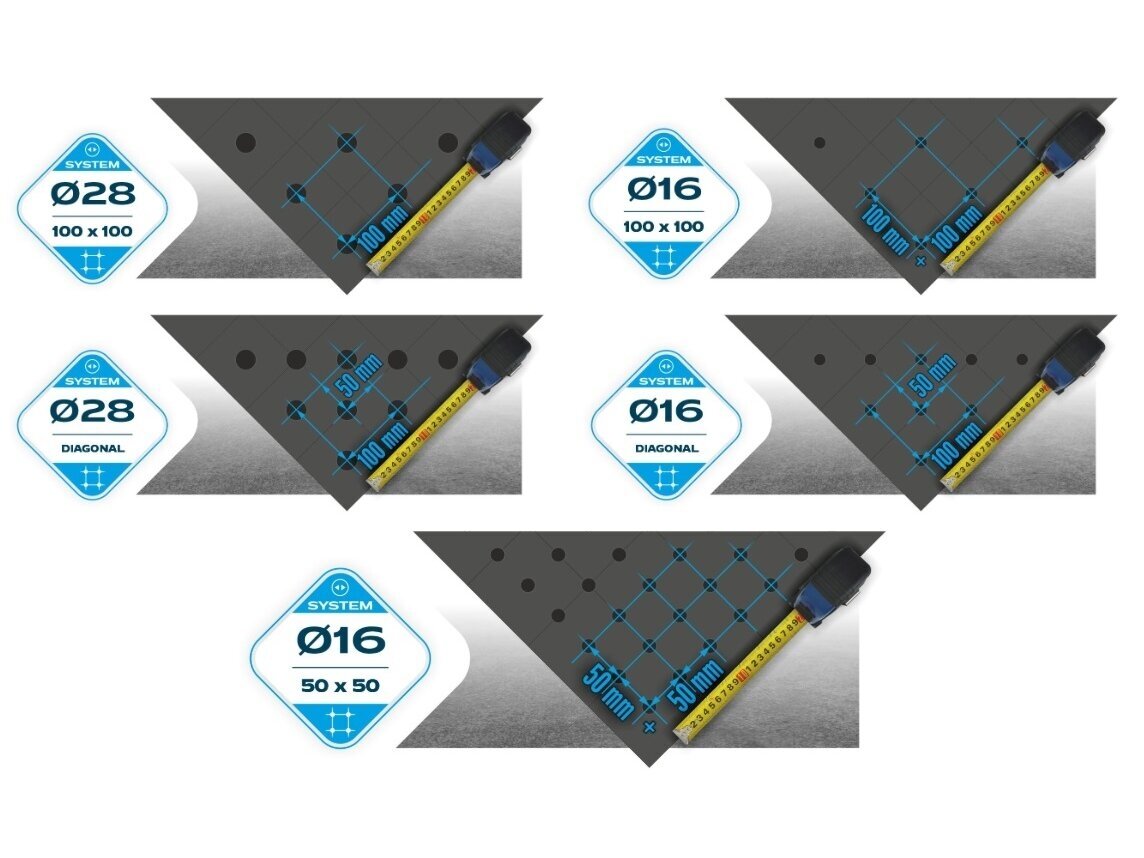

You can choose the table hole system variant and leg type at the time of purchase.

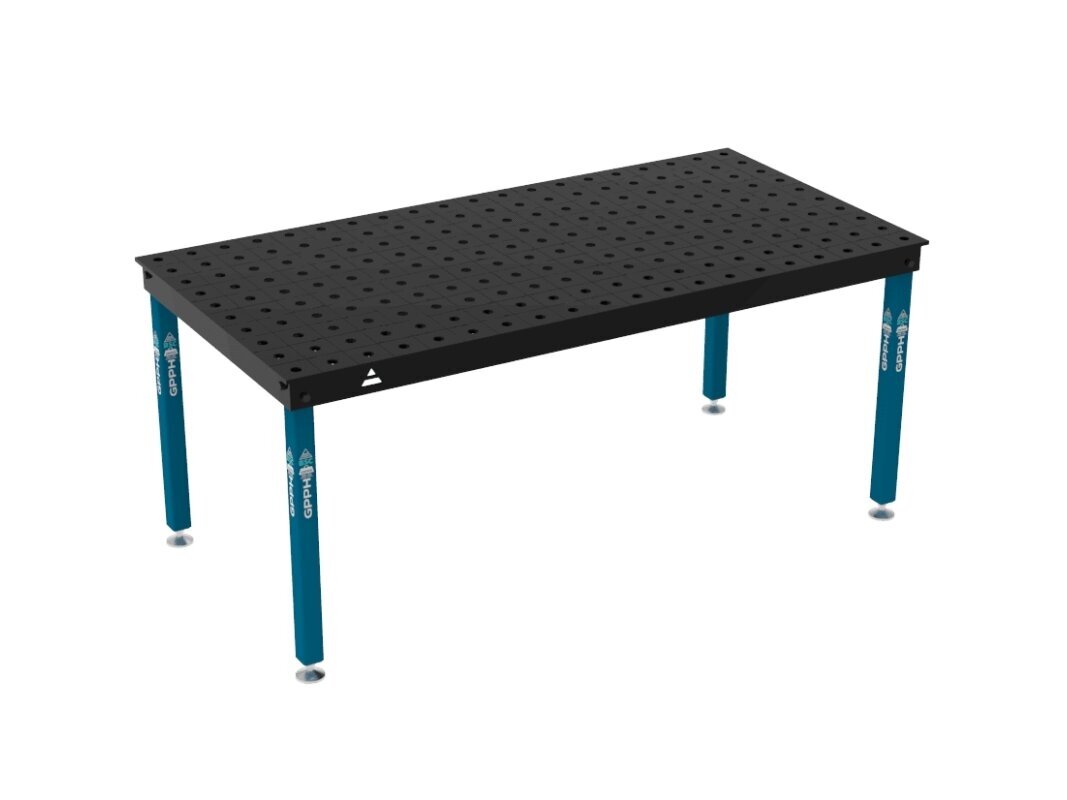

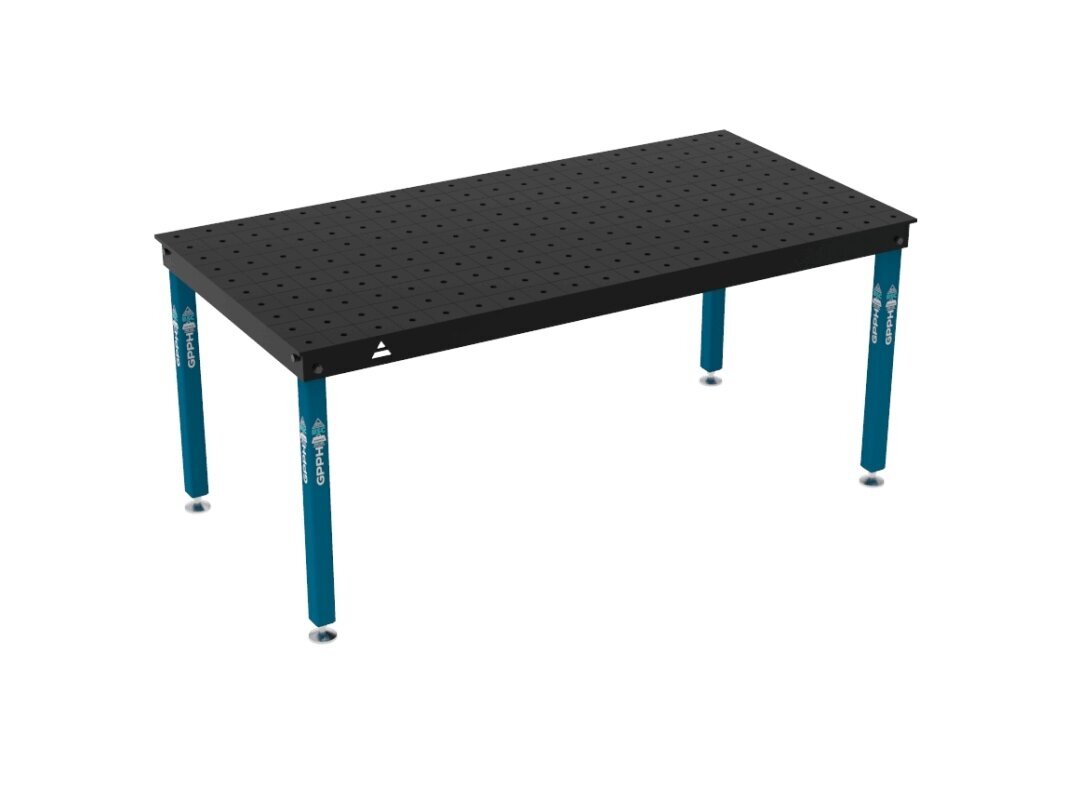

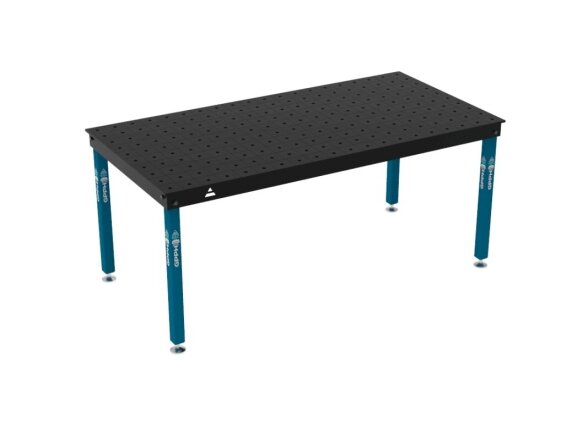

The photo is illustrative, the appearance of the table (hole version, layout, and leg type) depends on your choice at the time of purchase.
