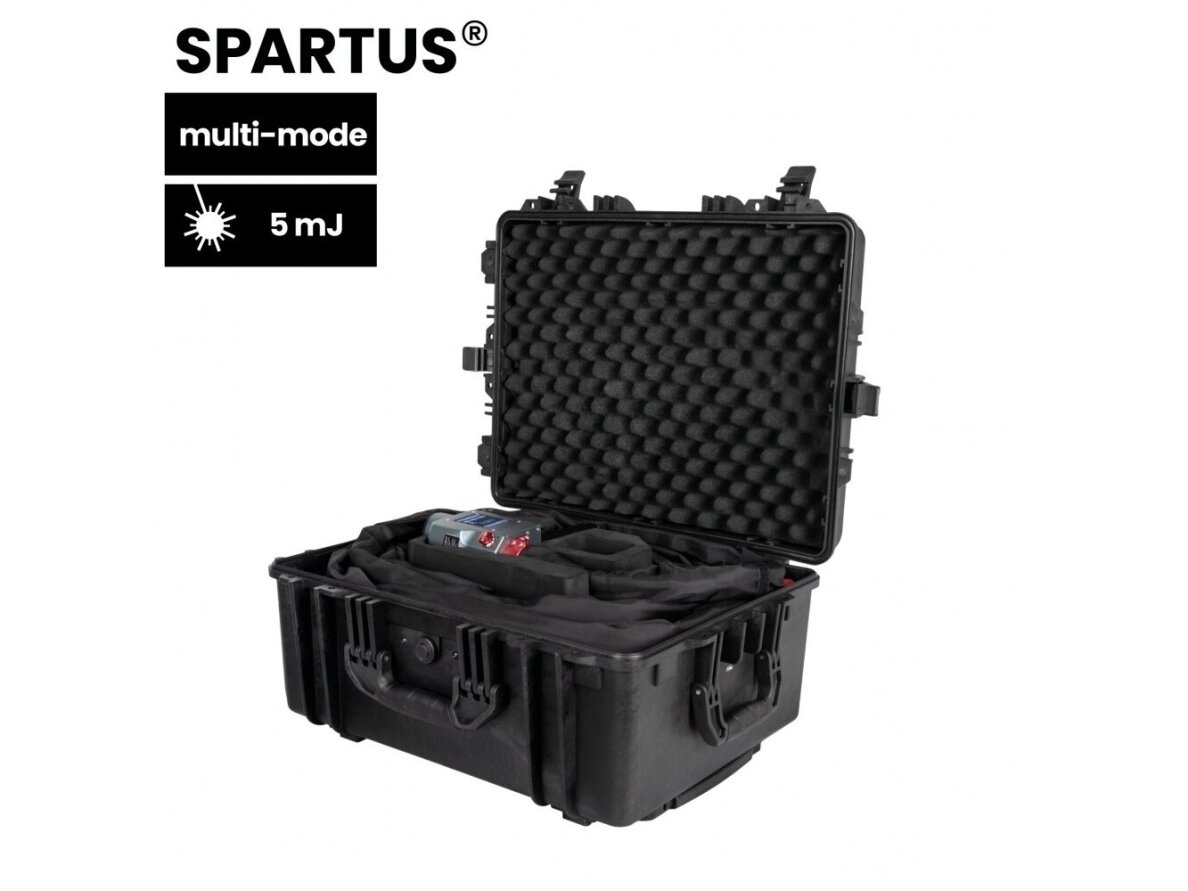

Spartus Easy 500CL pulsed laser cleaning device, 5 mJ, case included

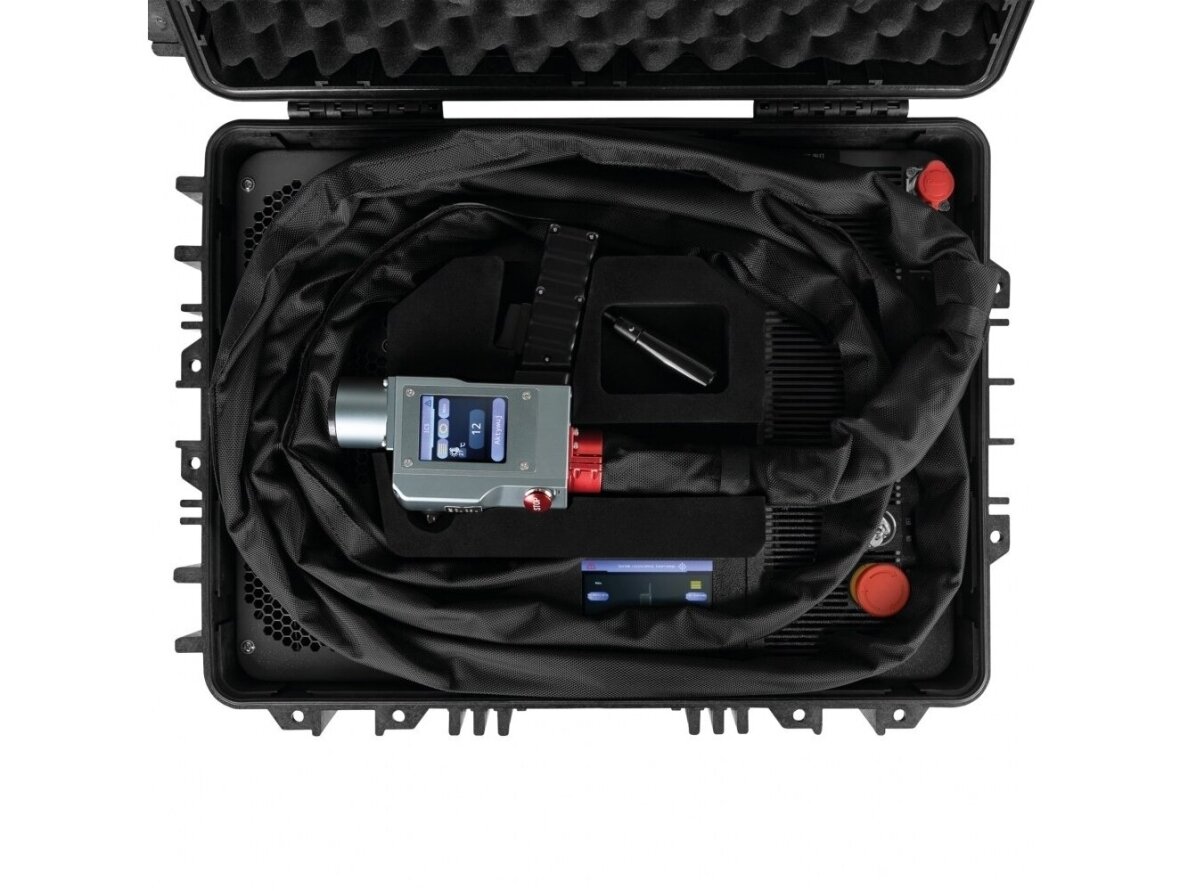

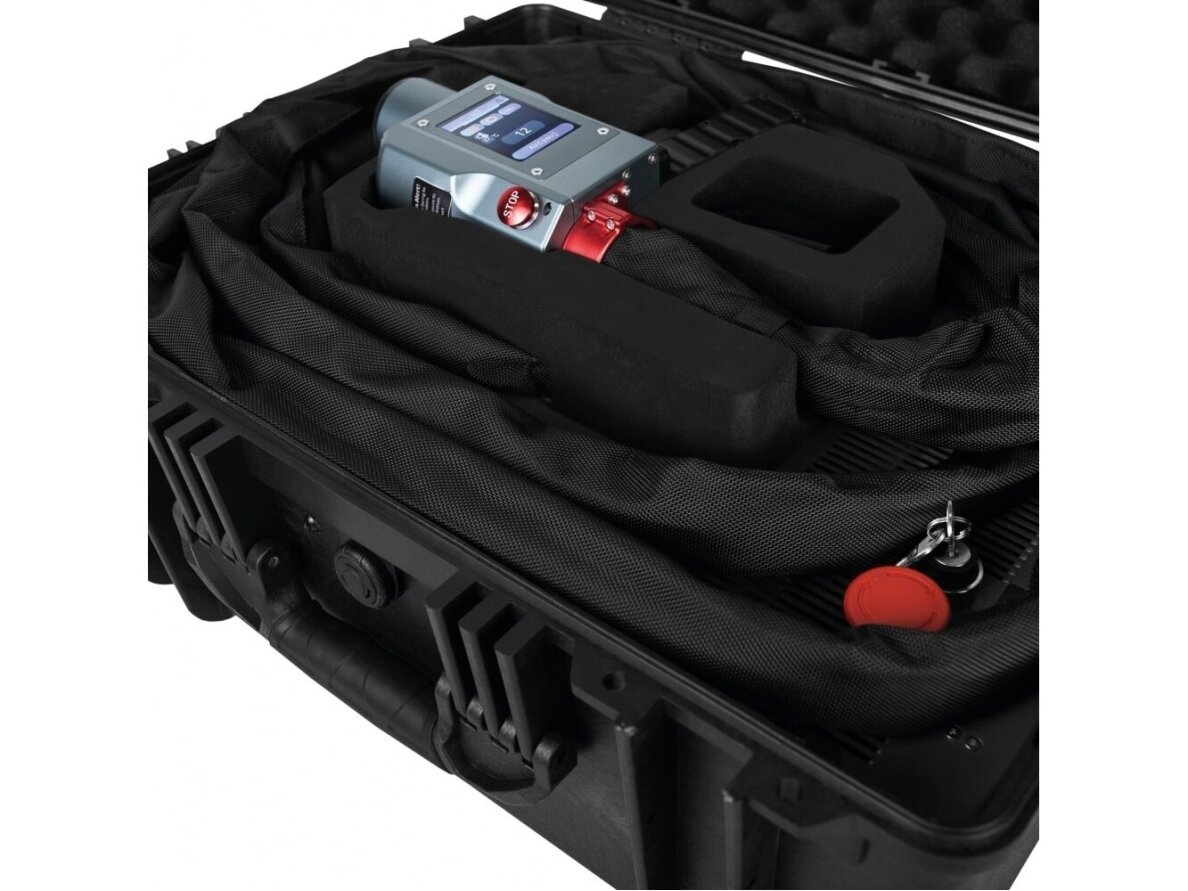

SPARTUS Easy 500CL is a compact 500 W pulsed laser cleaner designed for precise, non-contact removal of surface contaminants. Its design is mobile, and the entire unit is packed into a durable carrying case. Despite its size, the cleaning device combines the high power of a pulsed source with convenient transfer between workstations.

The unit uses a pulsed laser source with a maximum single-pulse energy of 5 mJ, enabling precise process control and reduced heat input into the processed material. A wide adjustment range of frequency, pulse duration, and beam path allows the process to be adapted to the type of surface and contaminants being removed.

This cleaning device is intended for service and renovation work as well as industrial applications where precision, mobility, and the ability to quickly change process parameters are required.

Pulsed technology – precise control

During the cleaning process, laser energy is delivered to the surface in short pulses. This makes it possible to effectively act on the contamination layer while maintaining precise process control.

The SPARTUS Easy 500CL pulsed laser allows adjustment of the key operating parameters:

• Laser power: 10–100 %,
• Pulse frequency: 1–4000 kHz,
• Pulse width: 30–500 ns,

This allows the operator to tailor the laser operation to a specific material, degree of contamination, and the desired surface effect.

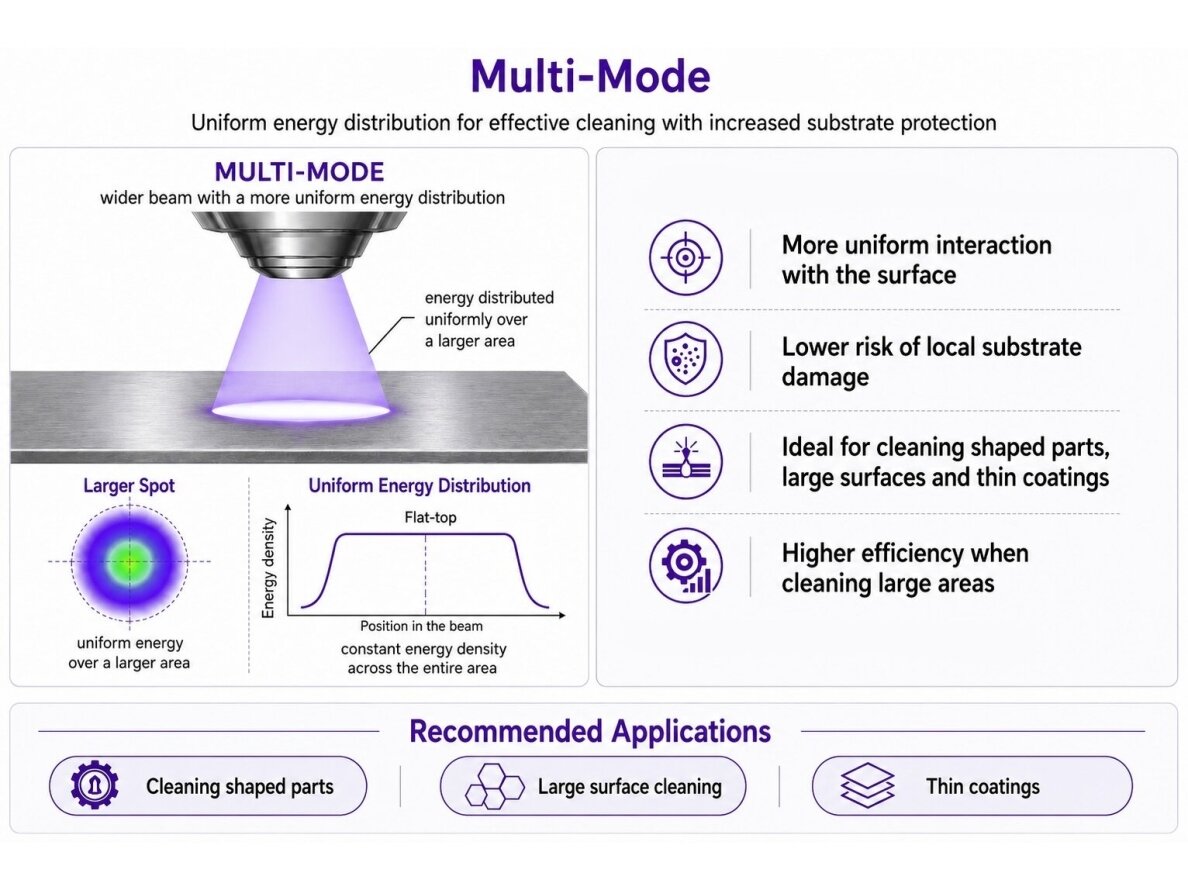

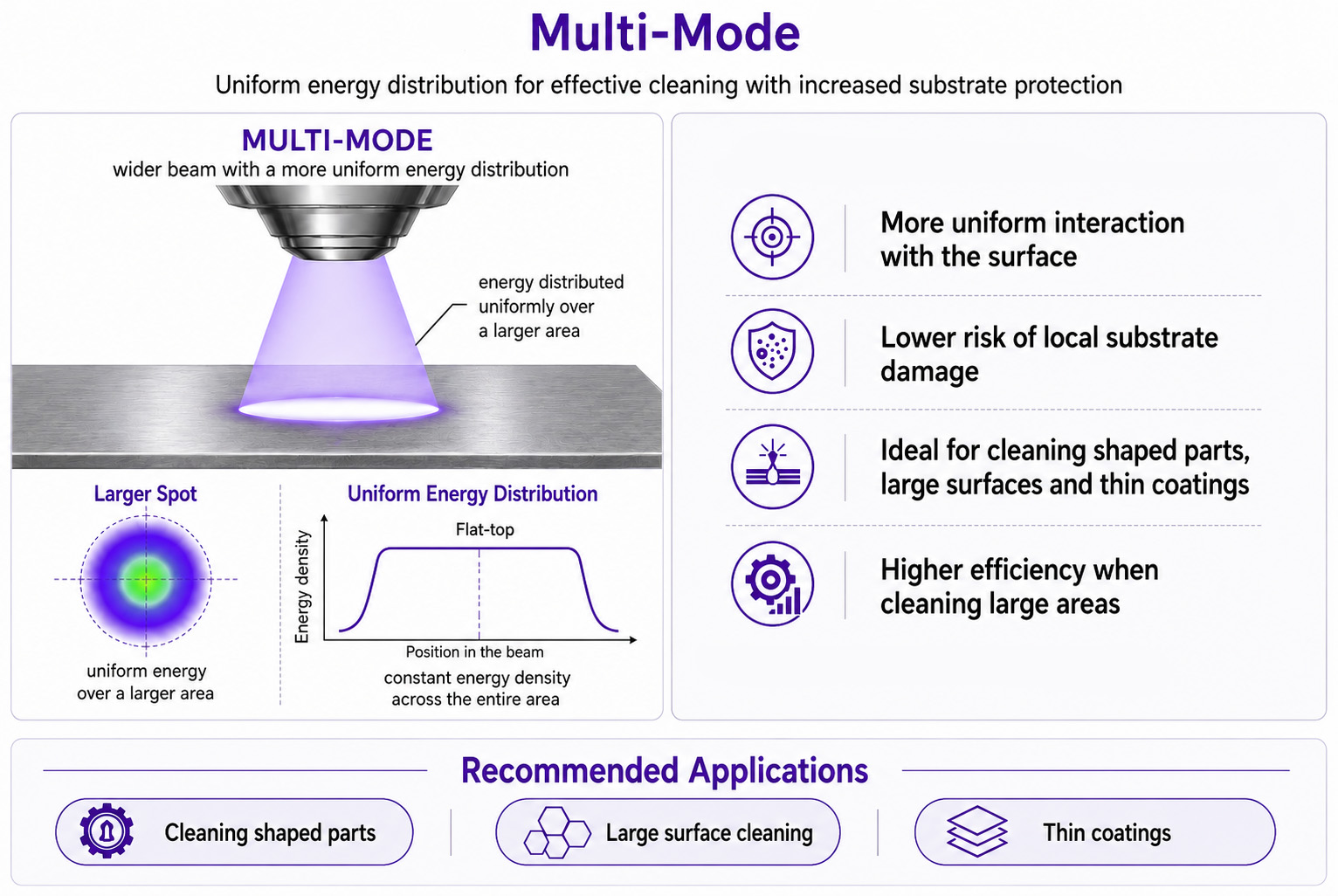

Multi-mode 5 mJ – uniform impact and enhanced surface protection

The SPARTUS Easy 500CL pulsed multi-mode 5 mJ model uses a flat-top beam in which energy is distributed much more evenly across the entire spot. Despite the higher maximum single-pulse energy – 5 mJ – the energy is not as strongly concentrated at one point as in single-mode operation. This reduces local surface overload and effectively removes contaminants while reducing the risk of damaging the base material. The multi-mode variant is especially suitable for cleaning molds, larger surfaces, thin coatings, and areas where process uniformity and substrate protection are critical. Thanks to a larger spot size and more even energy distribution, it can also provide higher cleaning efficiency over larger areas.

13 scanning modes – adapt the beam to a specific task

The bidirectional X/Y scanning system offers 13 different laser beam control patterns. Operators can choose from the following modes: linear, rectangular, rectangular cross, circular, sinusoidal, spiral, freeform, ring, rotational, triangular, rotational circle, rotational line, and omnidirectional linear-rotational scanning. A variety of beam geometries makes it easier to adapt the process to both large, flat surfaces and more complex-shaped components.

Comprehensive process database – quick start without constant parameter setup

SPARTUS Easy 500CL Pulse features a system that allows users to save 100 groups of process parameters. The operator can prepare settings tailored to specific tasks and quickly recall them from the interface, eliminating the need to enter all parameters from scratch each time.

The system also includes a process library with settings for applications such as:

• rust removal,
• degreasing,
• paint removal,
• oxide layer removal,
• weld seam cleaning,
• mold cleaning

This solution helps achieve repeatable results and reduces the time required to prepare the device for the next task.

Distance sensor for process control

The system can be linked to a distance sensor that monitors the head position relative to the surface being cleaned. Within the set operating range, the system allows the beam to be emitted, but it can be blocked if it exceeds the permissible range. This solution helps the operator maintain the correct head position during work.

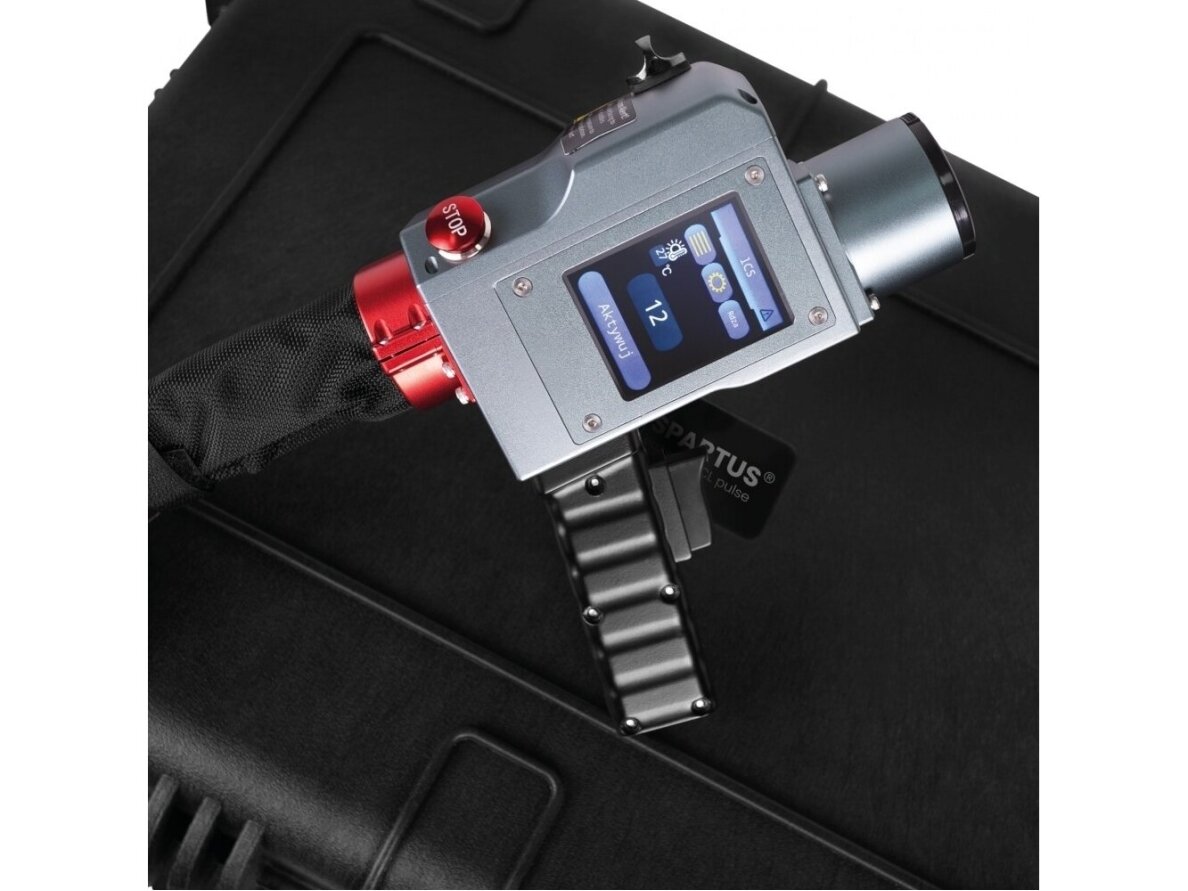

Lightweight head and 4-meter cable

The manual cleaning head weighs less than 1.4 kg. The unit features a 4-meter fiber-optic cable that ensures freedom of movement without the need to constantly reposition the entire cleaning device. The compact source, lightweight head, and housing ensure that Easy 500CL Pulse is a suitable solution both for production and for working directly on the workpiece.

Cleaning without abrasives and chemical cleaners

Laser technology eliminates the need for contact between a mechanical tool and the surface. The process does not require the use of abrasives or conventional chemical cleaners. Depending on the material and properly selected parameters, the device can be used to remove rust, oxide layers, paint and coatings, oils and dirt, deposits, mold residues, and welding contaminants.

A mobile solution for industry, service, and renovation sectors

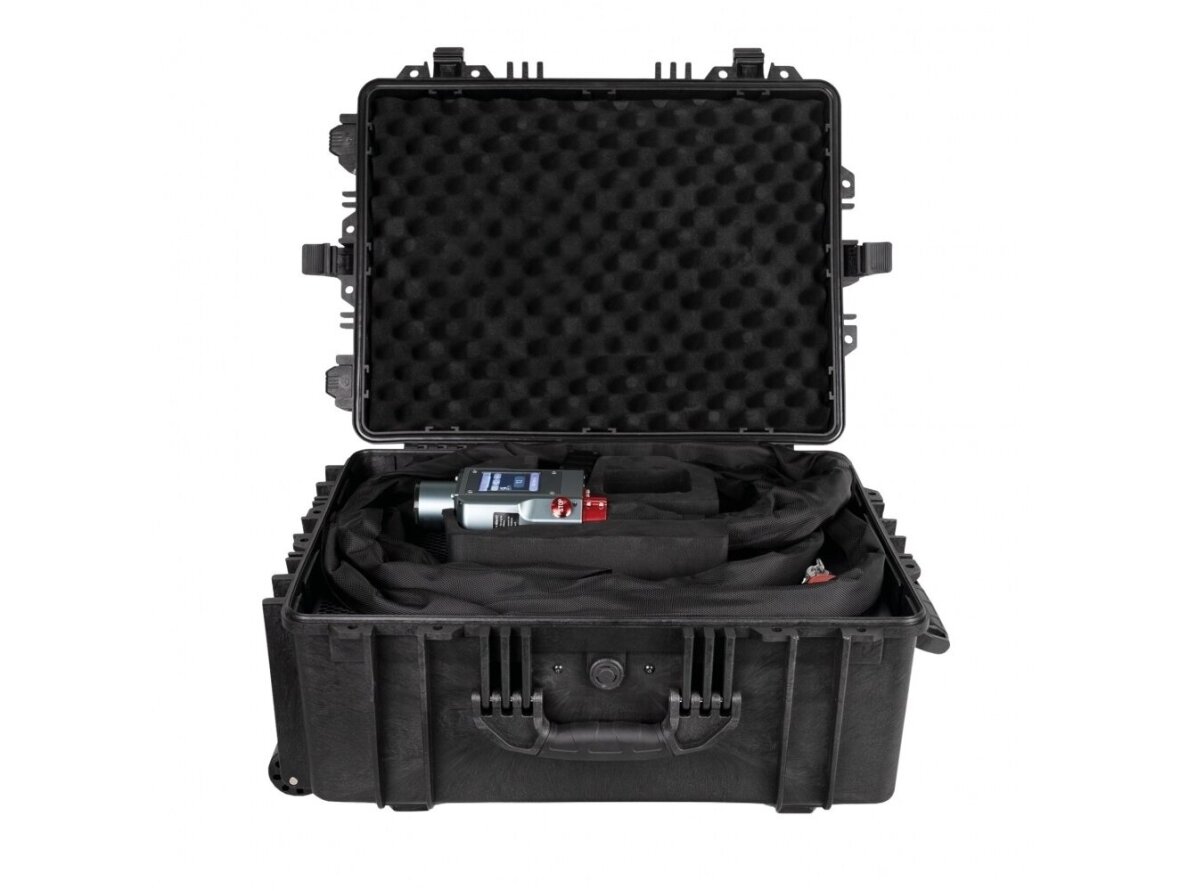

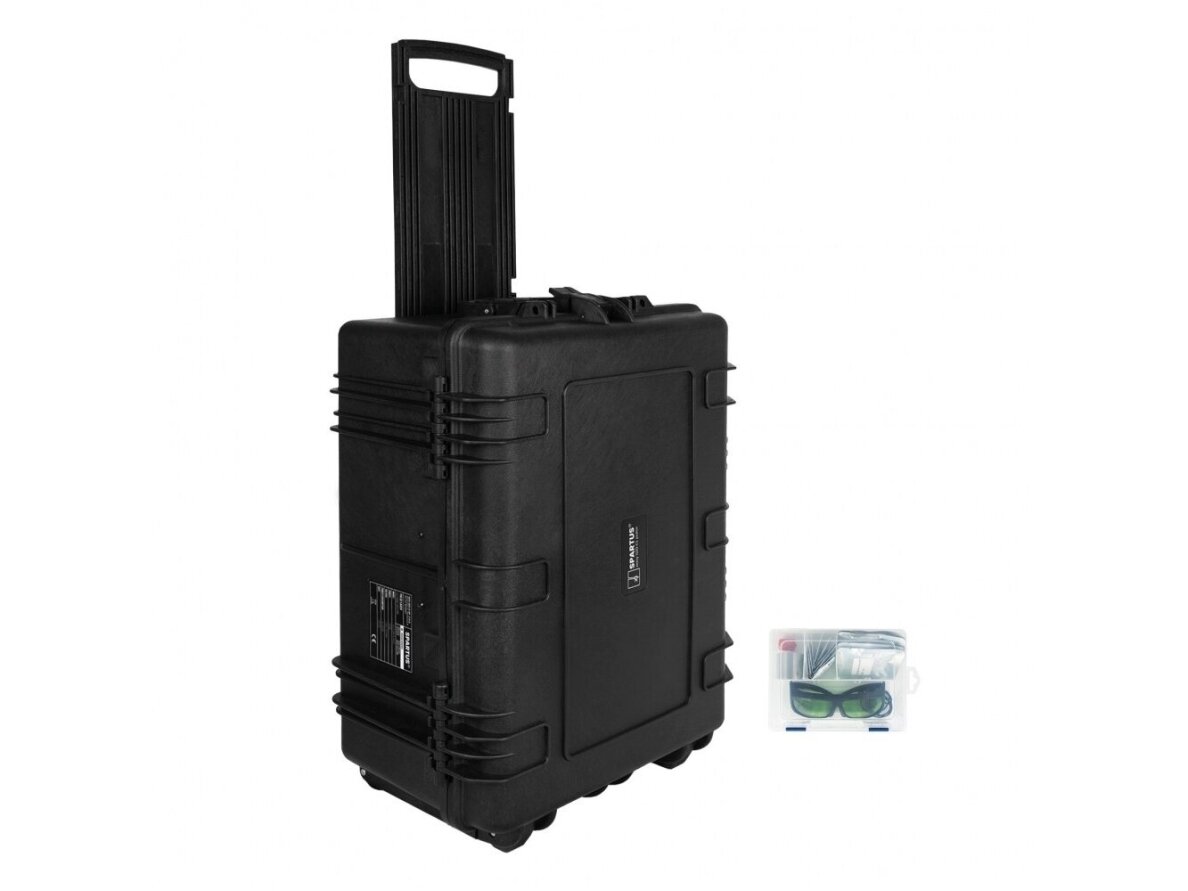

One of the biggest advantages of SPARTUS Easy 500CL Pulse is its 500W power and compact design suitable for easy transport. The device weighs about 32 kg and is housed in a durable case with wheels and a pull-out handle. This makes it easier to transport between workstations, production halls, and service areas. The compact design allows the cleaner to be used even in places where using large, stationary laser systems would be inconvenient or unjustified.

SPARTUS Easy 500CL – precision you can take with you

500 W pulsed power, 5 mJ single-pulse energy, air cooling, 13 scanning modes, 100 parameter groups, and a weight of about 32 kg create a system that combines industrial pulsed cleaning capabilities with the mobility of a portable device. SPARTUS Easy 500CL Pulse is an excellent solution for users who need controlled laser cleaning without sacrificing mobility and flexibility.

Package contents:

• Laser source
• Handheld laser head with F254 focusing lens
• Safety glasses
• 5 protective lenses
• 5 m power cord
