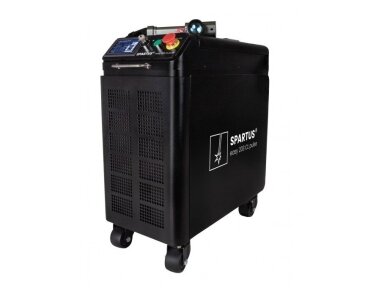

Spartus Easy 313CL Pulse Mini pulsed mini laser cleaning device

Spartus Easy 313CL Pulse Mini is a compact 300 W pulsed laser cleaning device that combines advanced fiber-optic technology with exceptional mobility and ease of use.

This device is ideal for cleaning:

• rust, paint, oils and grease,
• oxides, welding discoloration and deposits,
• resins, adhesives and protective coatings,
• foundry and casting molds, tools, machine parts,
• metal, stone and ceramic surfaces, as well as historical objects requiring gentle cleaning.

Laser cleaning is a non-contact, chemical-free, non-damaging process that offers industrial efficiency and is environmentally friendly.

SPARTUS Easy 313CL Pulse uses a 300 W pulsed laser source emitting radiation at a wavelength of 1064–1080 nm. Short, precisely controlled pulses with high energy density act locally on contaminants, causing microscopic evaporation or detachment without damaging the structure of the base material.

Pulsed technology ensures:

• minimal surface heating,
• reduced risk of distortion and discoloration,
• full control of beam energy,
• high efficiency when working with thin and precision components.

This solution is especially valued where high-quality finishing and minimally invasive contaminant removal are important.

SPARTUS Easy 313CL Pulse features a compact, lightweight housing that significantly increases device mobility without compromising performance. Thanks to its low weight and dimensions, the unit is easy to transport, takes up less space in workshops and production areas, is perfect for service and field work, and allows convenient maneuvering in confined spaces.

The device has a modern control panel with a touchscreen that allows quick configuration of all operating parameters. The operator can:

• select one of nine scanning modes,
• adjust power, frequency and pulse width,
• set scanning speed and range,
• save and load custom cleaning profiles.

The system operates in multiple languages, and the built-in safety features – a safety key and an emergency button – ensure safe operation under any conditions.

SPARTUS Easy 313CL Pulse offers nine laser beam scanning modes, allowing precise adjustment of the cleaning method to the surface type and the nature of the dirt. Users can choose from linear, rectangular, circular, spiral, sinusoidal, ring, rotary, and two rectangular modes with different fill directions. Each mode generates a different laser beam movement pattern, enabling the most accurate cleaning possible.

Using the appropriate mode increases process efficiency, reduces energy consumption, and achieves optimal visual results without damaging the underlying surface.

SPARTUS Easy 313CL Pulse features a new-generation ergonomic cleaning head that combines precision with maximum ease of use. The key element of the head is a TOF (Time of Flight) laser distance sensor that measures the distance between the lens and the cleaning surface in real time. The head display shows a clear distance indicator – a green signal indicates the optimal focal distance, while a red signal warns when it is exceeded. This ensures the operator always works under ideal beam focusing conditions, ensuring high process efficiency and safety.

Easy replacement of the protective glass and a durable design ensure reliability even during prolonged use.

Package includes:

• Laser source
• Handheld laser head (5 m) with F210 focusing lens
• 5 protective lenses and a replacement insert
