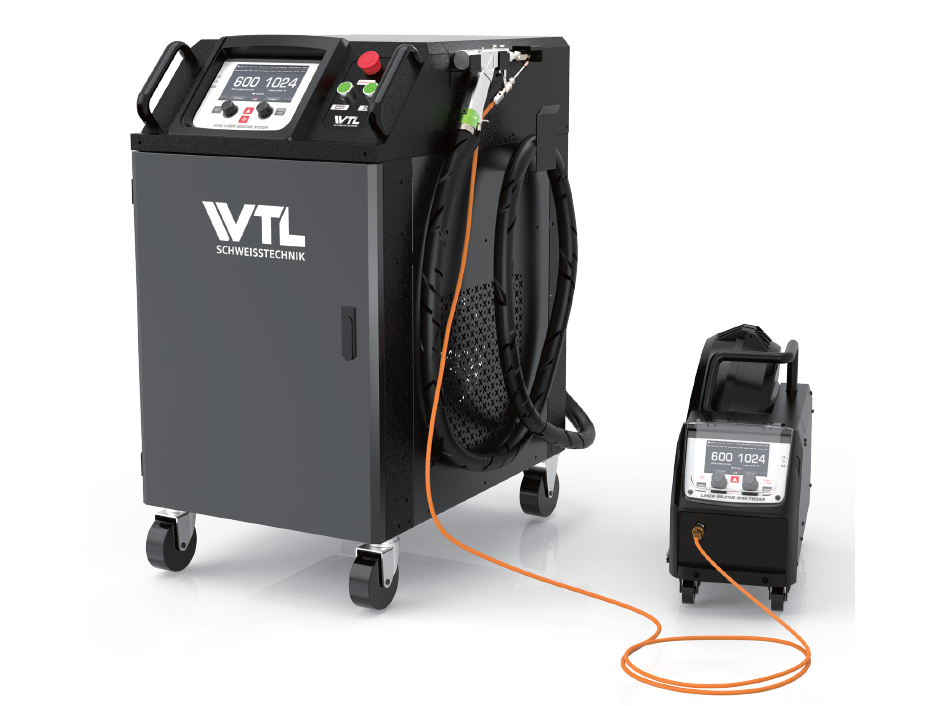

Laser Welding Machine WTL HLW-F1500, 1500W

The laser welding machine is a device used for welding metal or other materials. It uses an intense laser beam to heat and weld the material surfaces. The laser welding process works as follows: the laser beam is focused directly on the surface of the part being welded. The beam creates a high temperature, causing the material surfaces to heat up and begin to melt. When the material alloys cool down, they harden and fuse together, forming a strong welding seam.

Laser welding has several advantages. First, the laser beam is highly concentrated, making the welding very precise and ensuring minimal deformation. Moreover, laser welding is fast and can be automated, which reduces labor time and increases efficiency.

Laser welding machines are used in many industries, such as automotive, shipbuilding, aerospace, electronics, and many others, where high-quality, strong, and precise welding is required.

Features and functions of the laser welding machine:

• The device has integrated expert-set synergic parameters, including four materials: stainless steel, carbon steel, aluminum, and galvanized sheets, with thicknesses ranging from 0.6 mm to 6 mm.
• The laser welding machine has a compact design, low weight, it is practical and easily moves between work stations.
• Energy saving - laser welding is much more economical compared to other welding methods.
• More stable wire feeding.

1. 7" LCD display
2. Settings (SET)
3. Handle (left)
4. Technique
5. Gas check
6. Handle (right)
7. Monitor
8. Control system
9. Water cooler
10. Emergency stop

Included in the package is a high precision 4-roller wire feeder mechanism. Technical specifications of the wire feeder mechanism:
