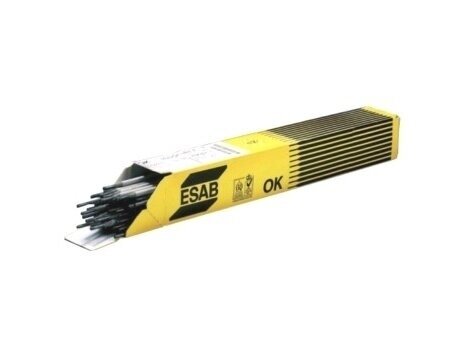

ESAB OK Weartrode 50 welding electrodes

ESAB OK 83.50 are electrodes intended for electric arc welding, used for repairing worn-out parts of agricultural, forestry, loading equipment, etc. ESAB OK 83.50 can be used for open circuit voltage transformers (> 45 V).

Welding current

AC, DC+ OCV 45 V

Typical mechanical properties of weld metal

Hardness of the weld metal, a w 50-60 HRC (preheat and interpass temperature approx. 250 °C)

Machinability: only grinding

Wear resistance: very good

Typical composition of weld metal, %

C: 0.4

Si: Mn: Cr: 6.0

Mo: 0.6

Resistance to softening

Temp.°C/1h HRC

200 56

300 54

400 53

500 52

550 51

600 44

650 41

700 34

Classification

DIN 8555 E6-UM-55

Please choose the required package size before purchasing.
