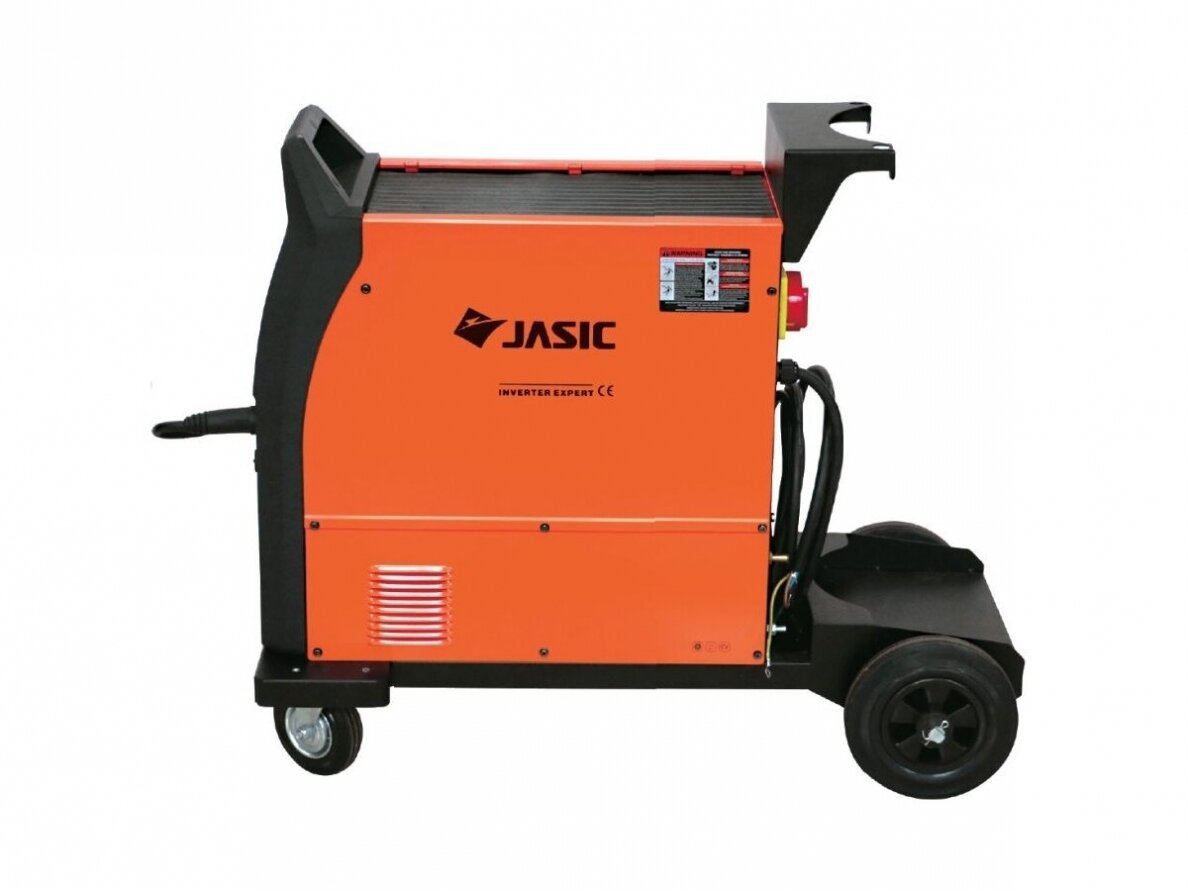

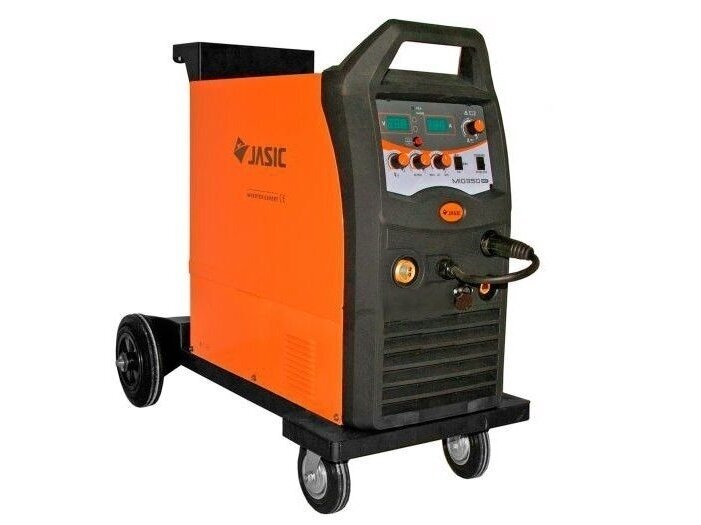

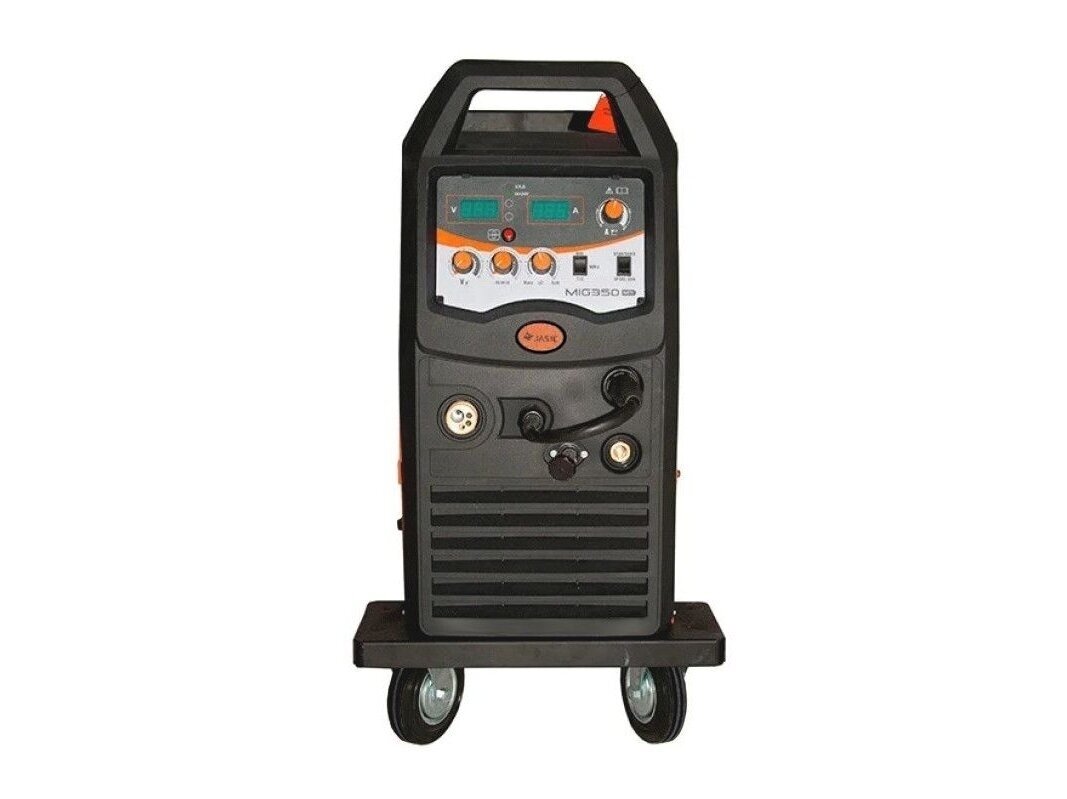

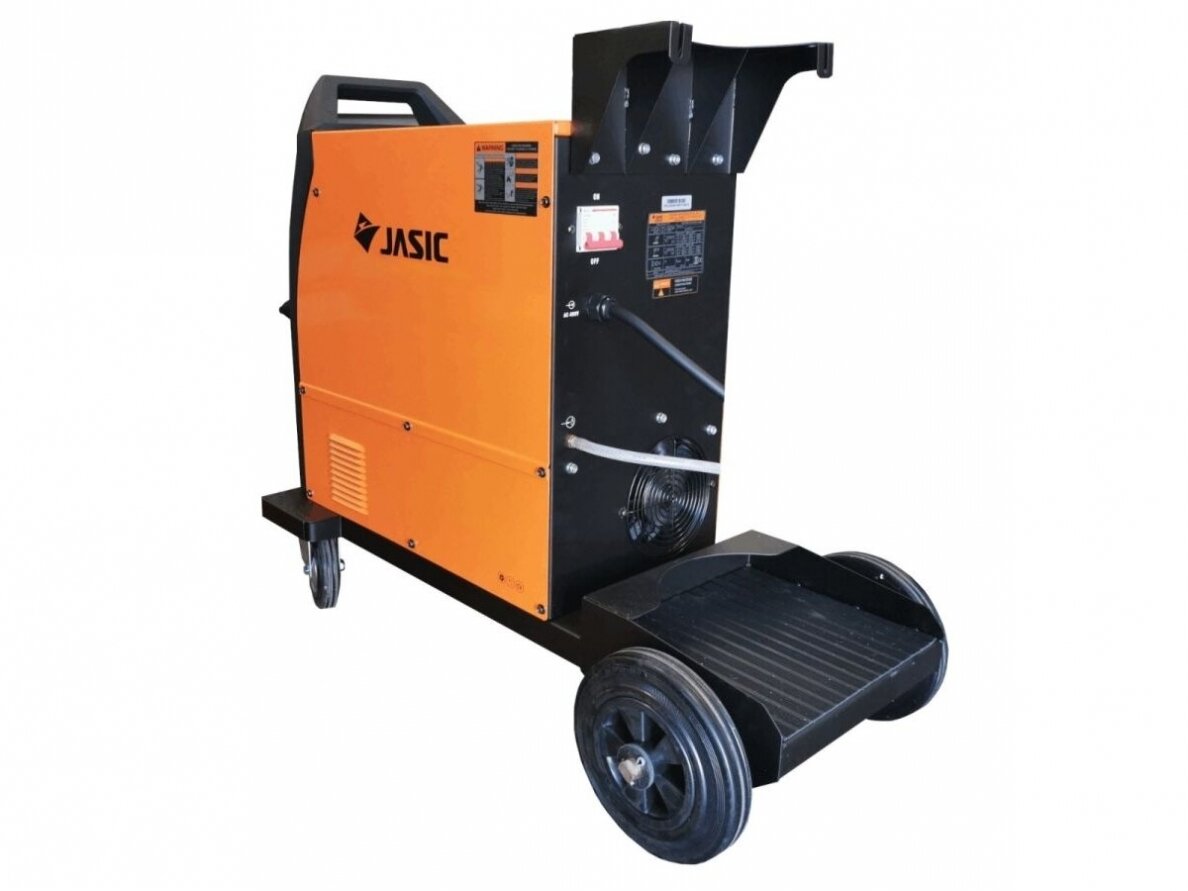

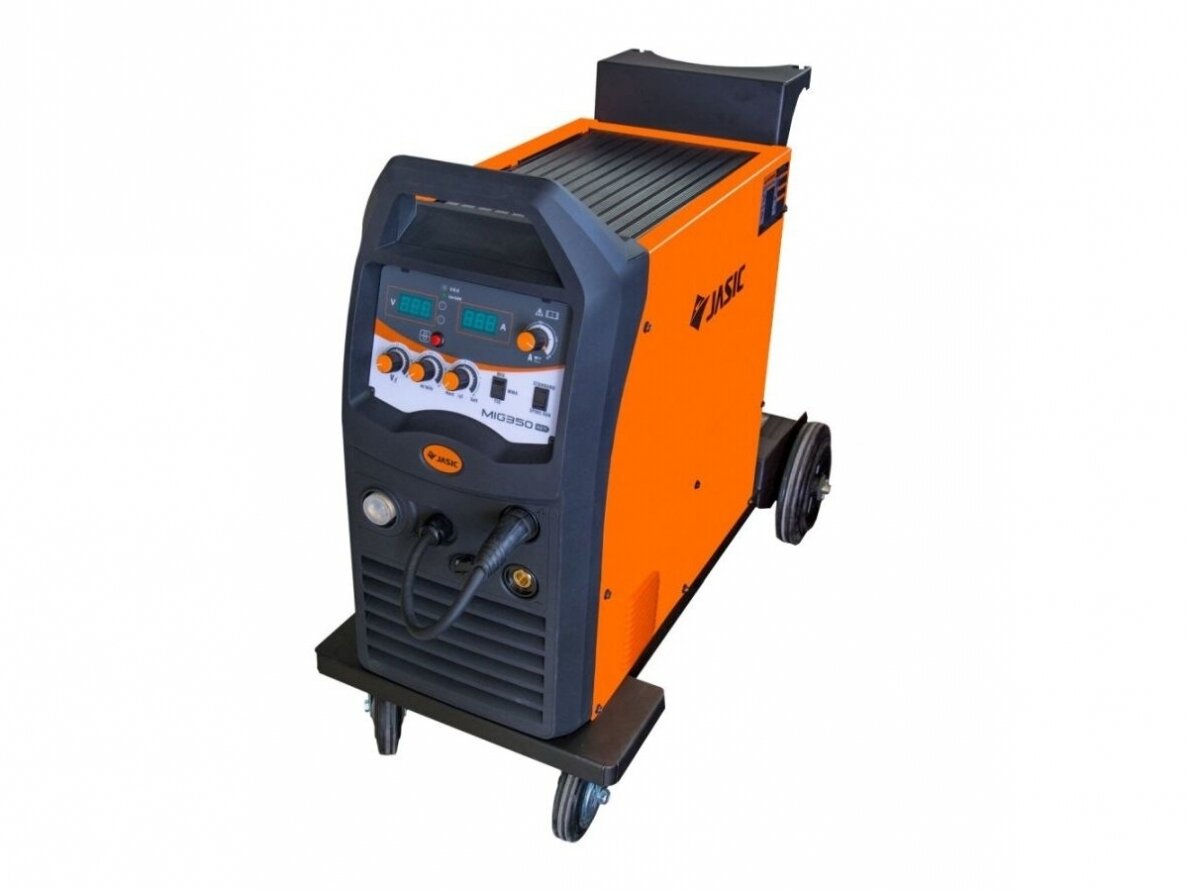

Welding Semi-Automatic JASIC MIG 350 N271, 350A, 400V
Code: MIG 350 N271ManufacturerMIG power supply voltage400V-
Power supply voltage
400V ±15% 3phase. 50/60 Hz
MMA welding range
20-350 A
MIG welding range
50-350 A
MIG duty cycle at 35%
350 A
MIG voltage range
15 - 38 V
Open circuit voltage
62 V
Wire feed speed
1.5-18 m/min
Wire diameter
0.6-1.2 mm
Electrode diameter
1.5-4.0 mm
Efficiency
0.85

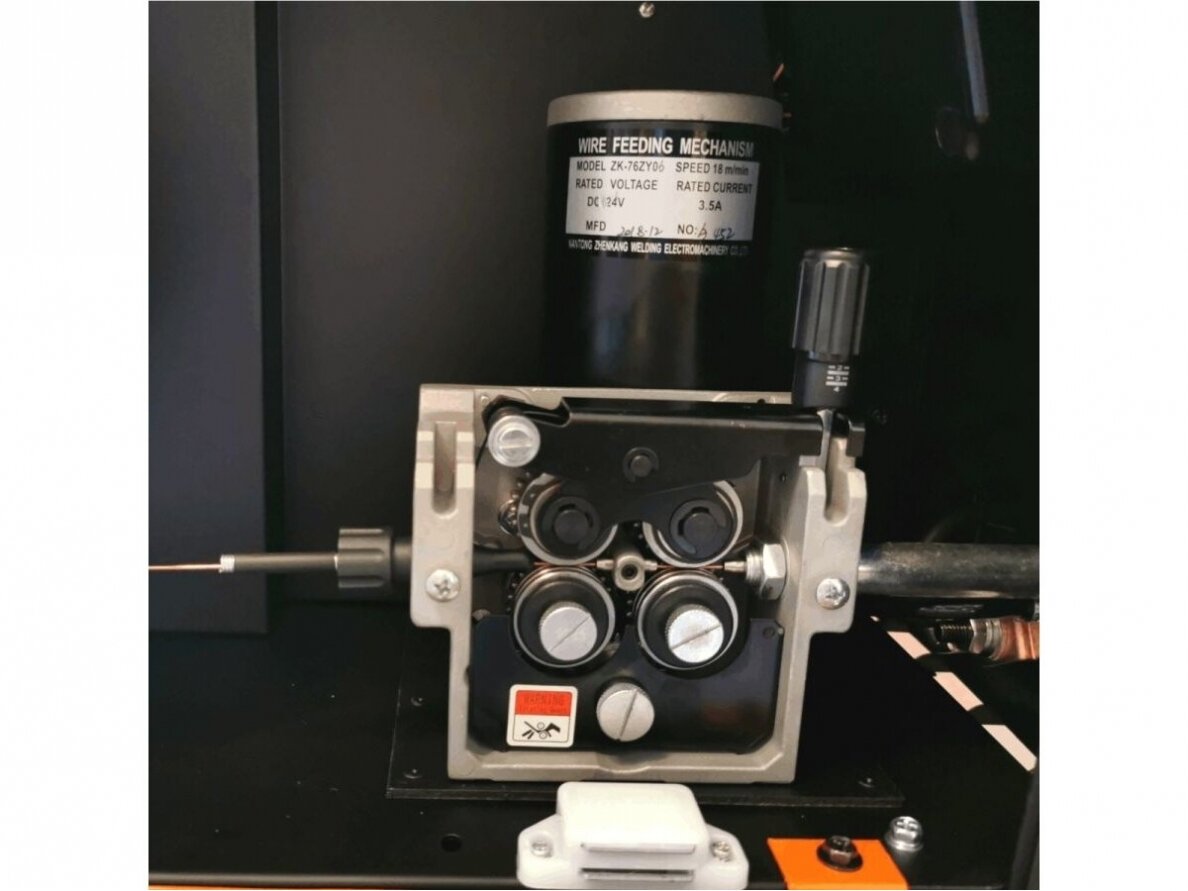

Feeding wheels
4 Wheels (2 driving and 2 pressing)
Weight
52 kg
Processes
MIG / MAG, MMA
Protection class
IP22S
Insulation class
F
Connection
J35-50
Dimensions
900 x 450 x 755 mm
JASIC MIG 350 N271 is one of the most popular MIG welding machines in Lithuania. It will help you to perform all necessary tasks, whether you are a welding enthusiast or a professional. JASIC MIG 350 N271 can weld in MIG/MAG and MMA modes, also has the capability to weld using self-shielded wire, which allows for the convenience and speed of semi-automatic welding even in outdoor conditions, without the use of protective gases. JASIC MIG 350 is made with IGBT technology, which ensures greater reliability of the welding machine. When working in MIG mode, a unique welding dynamics control circuit is used, stable arc, low spatter, beautiful seam bead, high welding performance.
Features and functions:
- The device operates in these modes: MIG, MMA and welding with self-shielded wire without protective gases.
- IGBT power device with a unique control mode for greater reliability of the welding machine.
- High duty cycle ensures long welding time.
- Control through closed feedback contour, constant voltage output, can work with power supply voltage fluctuations ±15%.
- Adjustable welding voltage and current, excellent welding characteristics.
- When working in MIG mode, a unique welding dynamics control circuit is used, stable arc, low spatter, beautiful seam bead, high welding performance.
- After welding, the nozzle detaches the bubble, high open circuit voltage, slow wire supply, high arc ignition success rate.
- Stable welding current in MMA mode, excellent arc ignition, suitable for various electrodes.
- High inverter frequency greatly reduces the size and weight of the welding machine.
- Significantly reduced magnetic and core losses clearly improve welding performance and save energy.
- Switching frequency is in the inaudible range, thus nearly eliminating noise pollution.
Package includes:
- Welding machine JASIC MIG 350 N271
- 3m torch
- 3m ground cable with clamp
- integrated trolley
-
