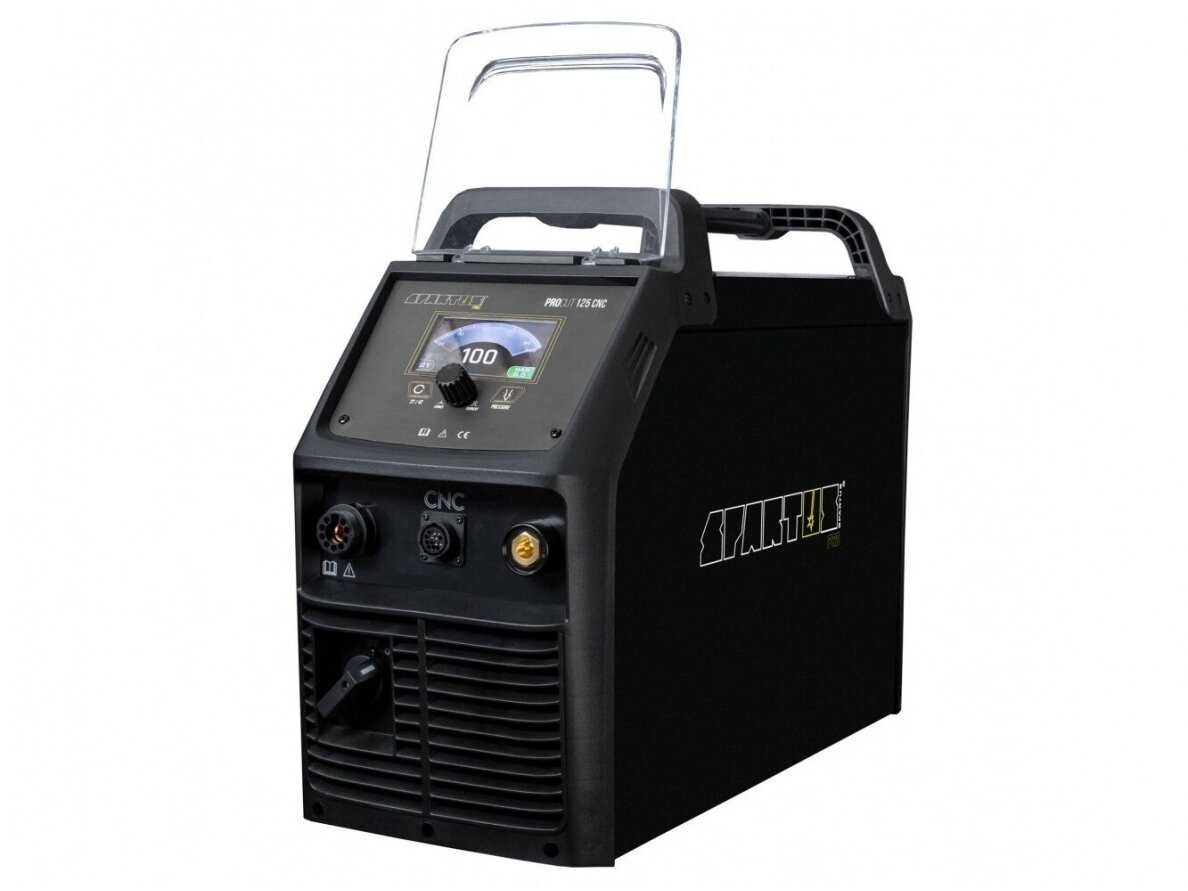

Spartus ProCUT 125CNC plasma cutting device, 100A, 400V, 55mm
Code: PROCUT125CNCManufacturerType of ignitionCNC-
Power supply voltage
~3× 400V ± 10% 50 / 60 Hz
Cutting current
20 - 100A
Maximum cutting thickness
55 mm
Duty cycle
100%
Operating output voltage
88 - 125V
Recommended operating pressure
5.5 bar
Air requirement
250 l/min
Post-gas
yes
Arc ignition
without HF
Current consumption
28A
Power factor
0.76
Efficiency
85%
Insulation class
H
Protection class
IP21S
Dimensions
770 × 270 × 490 mm
Weight
32 kg
SPARTUS® ProCUT 125CNC is a modern plasma cutter with an integrated CNC control port. Designed for cutting metals and all electrically conductive materials. The device is powered from a three-phase 400 V network. This device is manufactured using modern technologies, which allow getting a professional cutter with a high 100% duty cycle and 100A cutting current. The maximum thickness of the material that can be cut is 55 mm.
ProCUT 125CNC has an easily usable panel with an LCD screen. The user can easily adjust the cutting current and set the required pressure. Moreover, the cutter has a switch with 2T / 4T operating modes.
Included:
- Plasma cutting device ProCUT 125CNC
- Air filter with pressure regulation
- Ground cable 3 m
- Air hose
-
