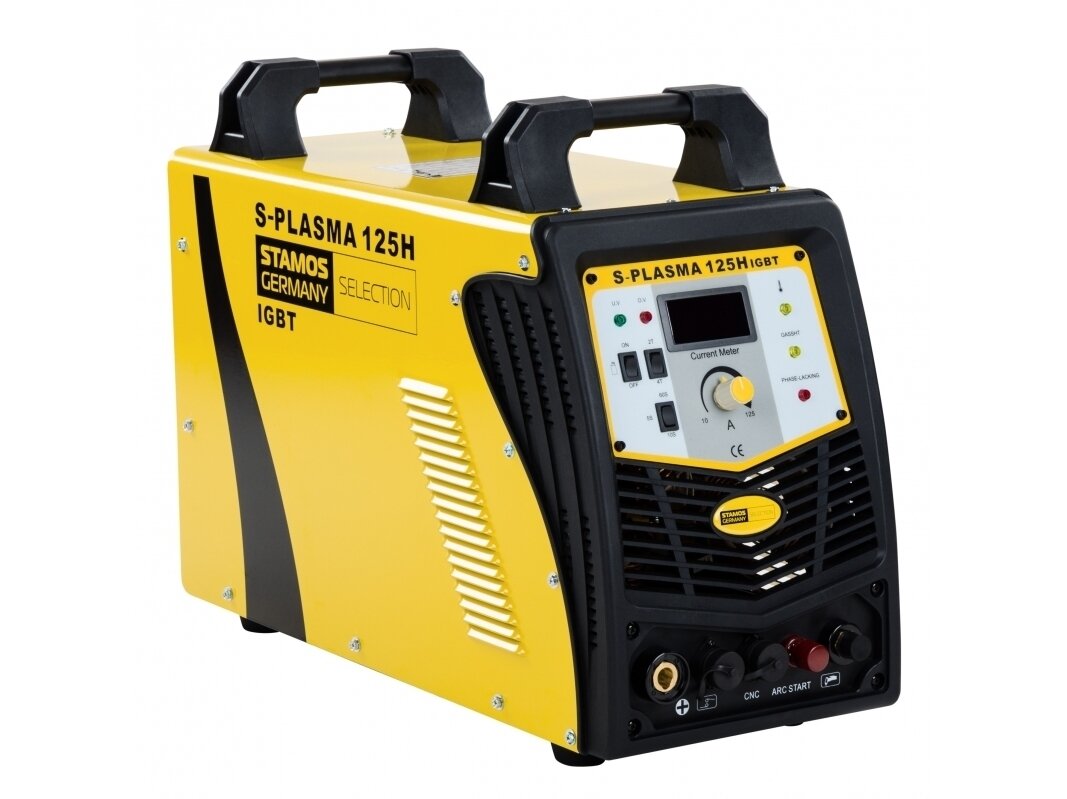

Plasma Cutting Machine, 125A, 400V, 35mm

Input voltage

400 V, 3-Phase

Frequency

50/60 Hz

Input current

20 A

Open circuit voltage

300 V

Protection class

IP21S

Insulation class

H

Overvoltage protection

Yes

Cooling

Fans

Solenoid valve

Yes

Duty cycle at max. A

80 %

Amps for 100% work cycle

96.8

Cutting current

30 - 125 A

Ignition

Non-contact

Cutting depth

up to 35 mm (depends on the material)

Cutting width

1.4 mm

Compressor connection

7 bar

Dimensions

67 x 27 x 47 cm

Weight

30 kg

Dimensions with package

74 x 38 x 52.5 cm

Weight with package

36.7 kg

1. IGBT = Insulated Gate Bipolar Transistor is a semiconductor device used in high-power electronics because it offers the benefits of both bipolar and field-effect transistors. It also provides short-circuit protection, as the IGBT limits the current load. IGBT is the next step in the evolution of power MOSFETs.

2. LED display = Displays the current strength in amperes.

3. High voltage = the device is 3-phase (380V +/- 10%). The yellow-green wire is for the protective earth PE connection. The three phases (black wire) can be connected to wires L1, L2, L3 (this should be done by a qualified electrician).

The warning light comes on in two cases:

a) When the device has a malfunction and cannot be controlled.

b) If the welding machine exceeds the standard load duration, the protection mode activates, and the machine stops its functions. This means that the machine restores temperature control after the device has overheated. For this reason, the machine stops.

During this process, the red warning light turns on. In this case, you do not need to unplug the power plug from the electrical outlet. The cooling ventilation must continue to work. When the red light turns off, the temperature has dropped back to normal operating temperature, and the device can continue working.

1. CNC = This plasma welding machine is specially designed for use with CNC machines. It cuts metal automatically, quickly, accurately, and efficiently. Any other use is not possible.
