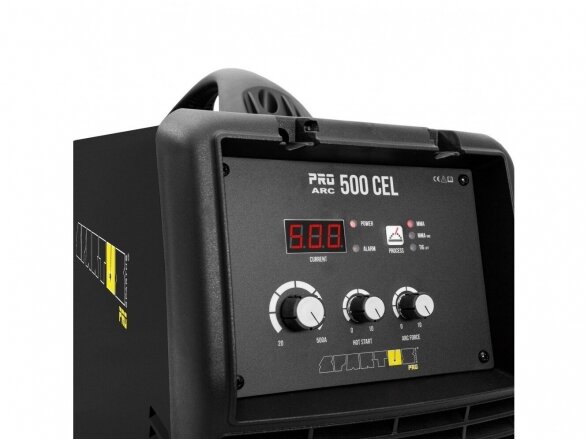

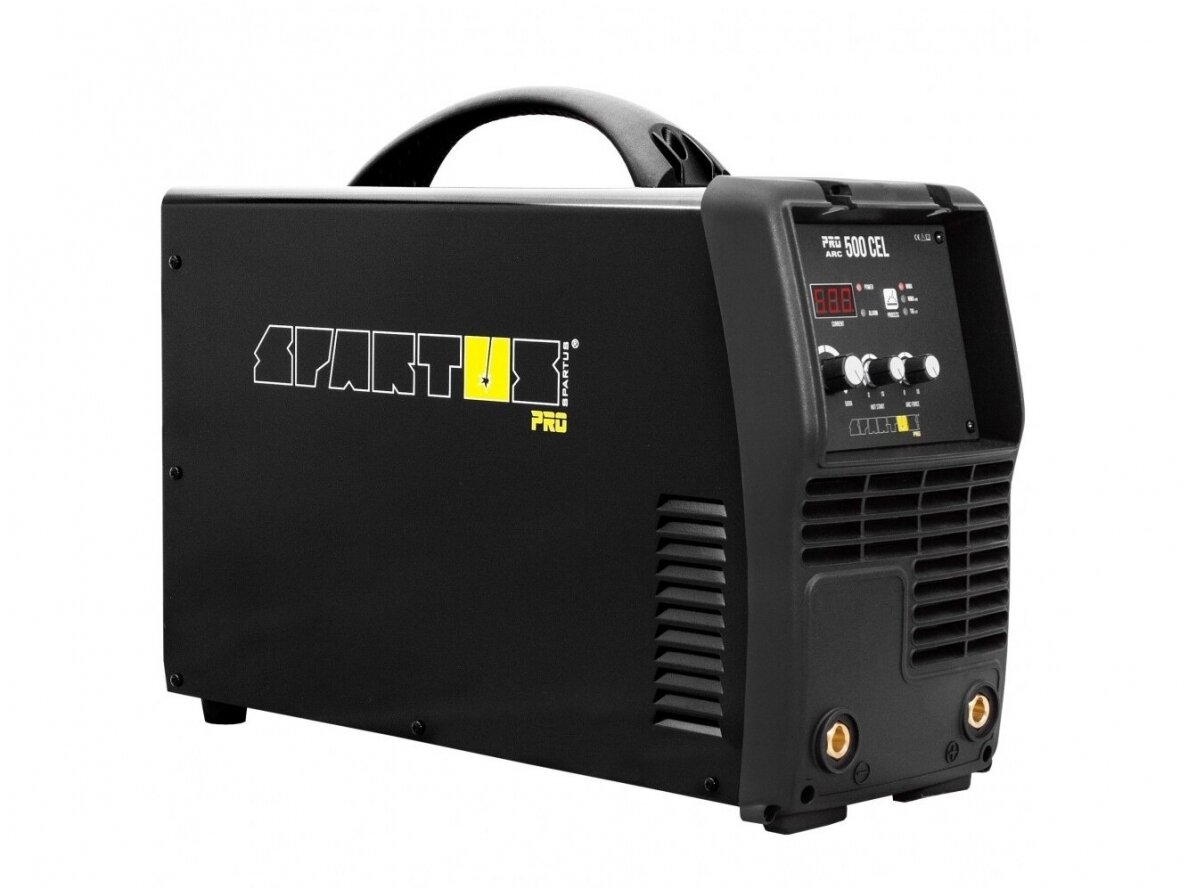

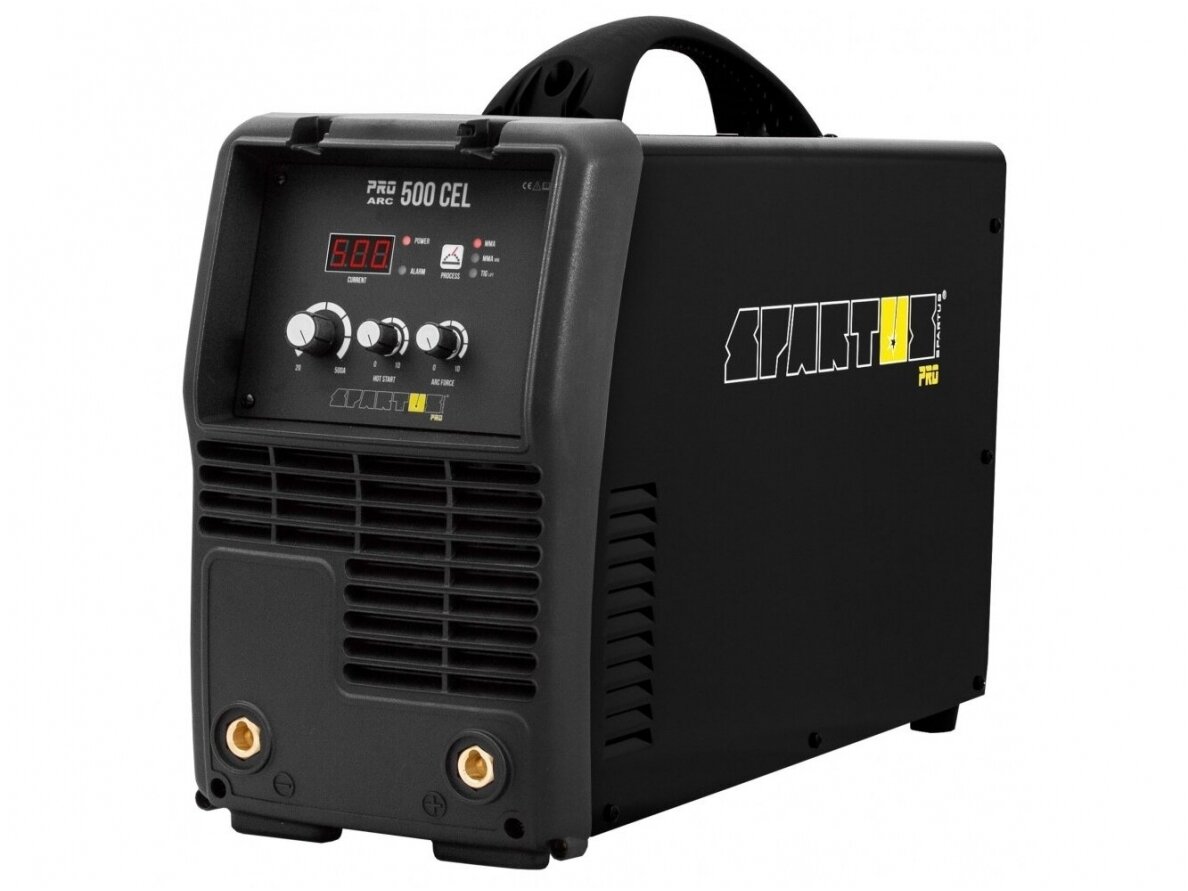

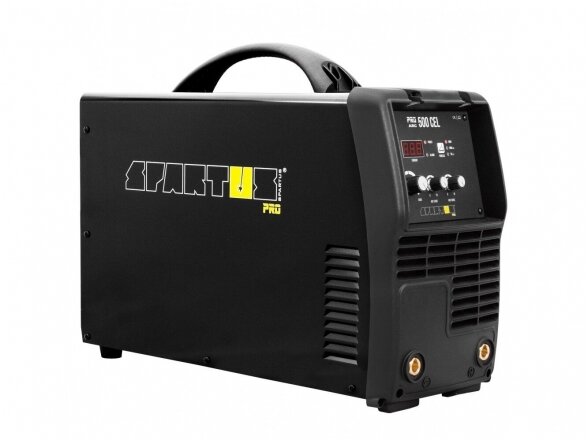

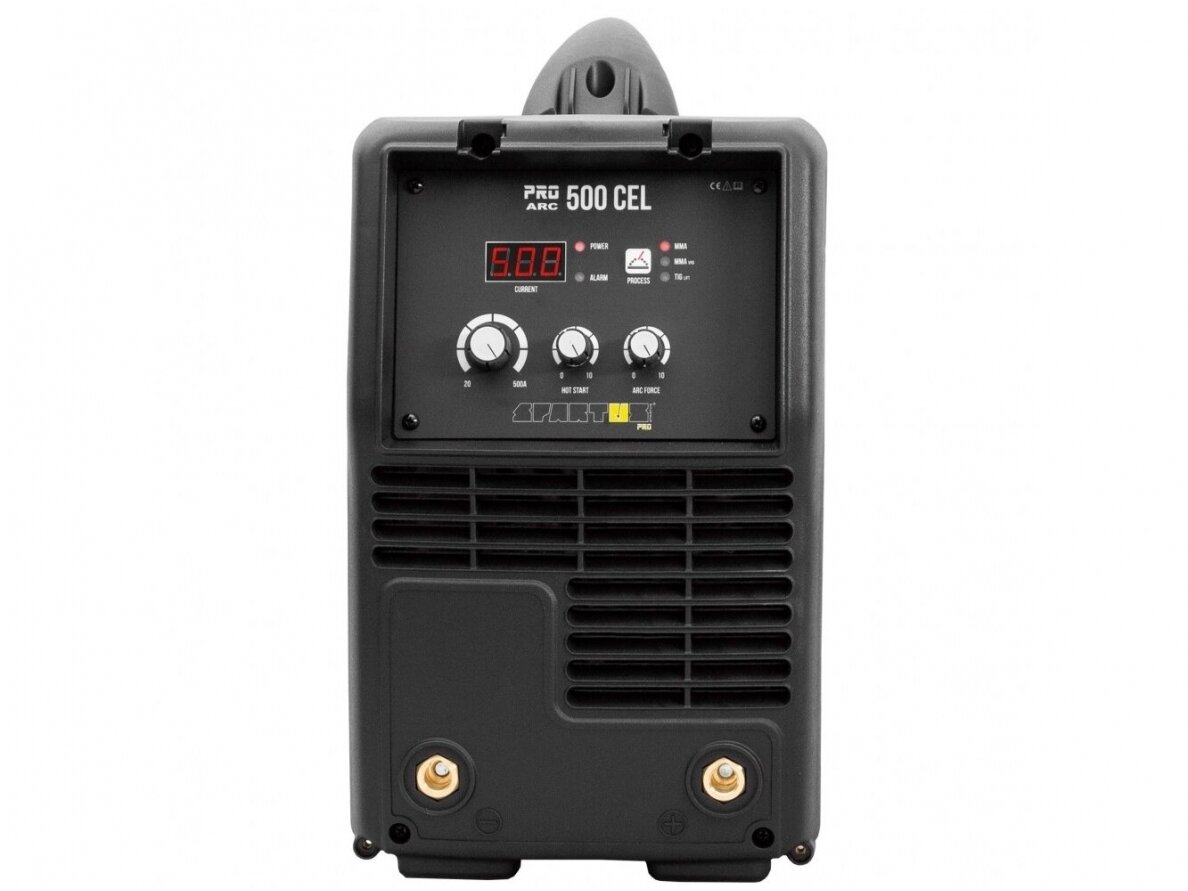

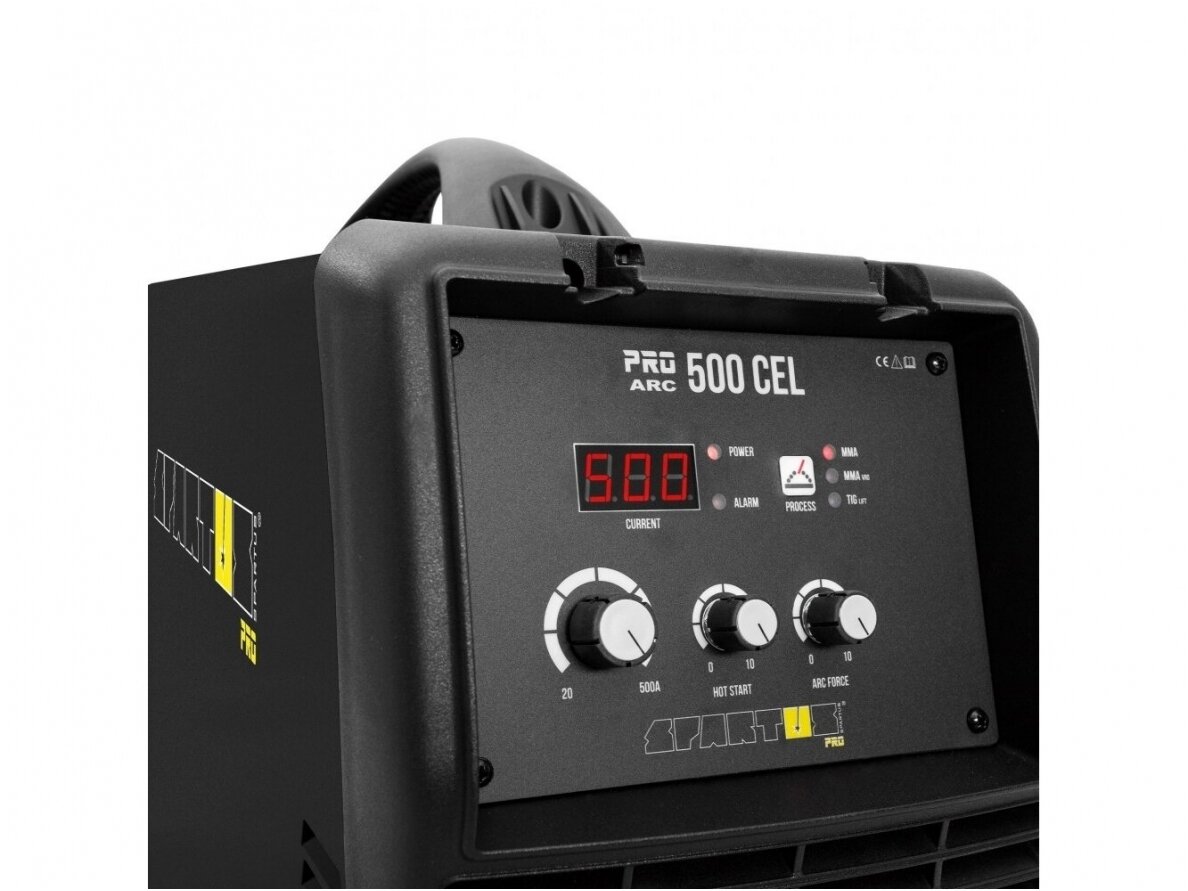

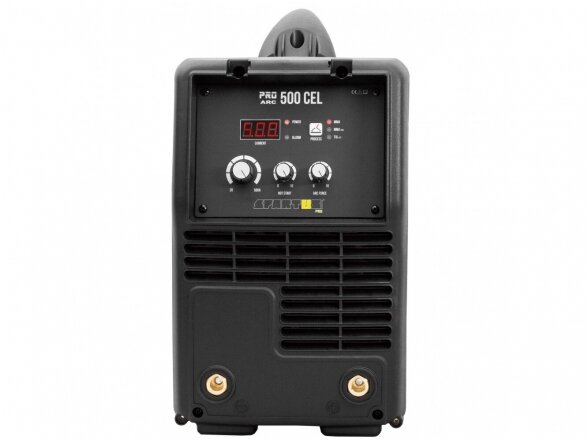

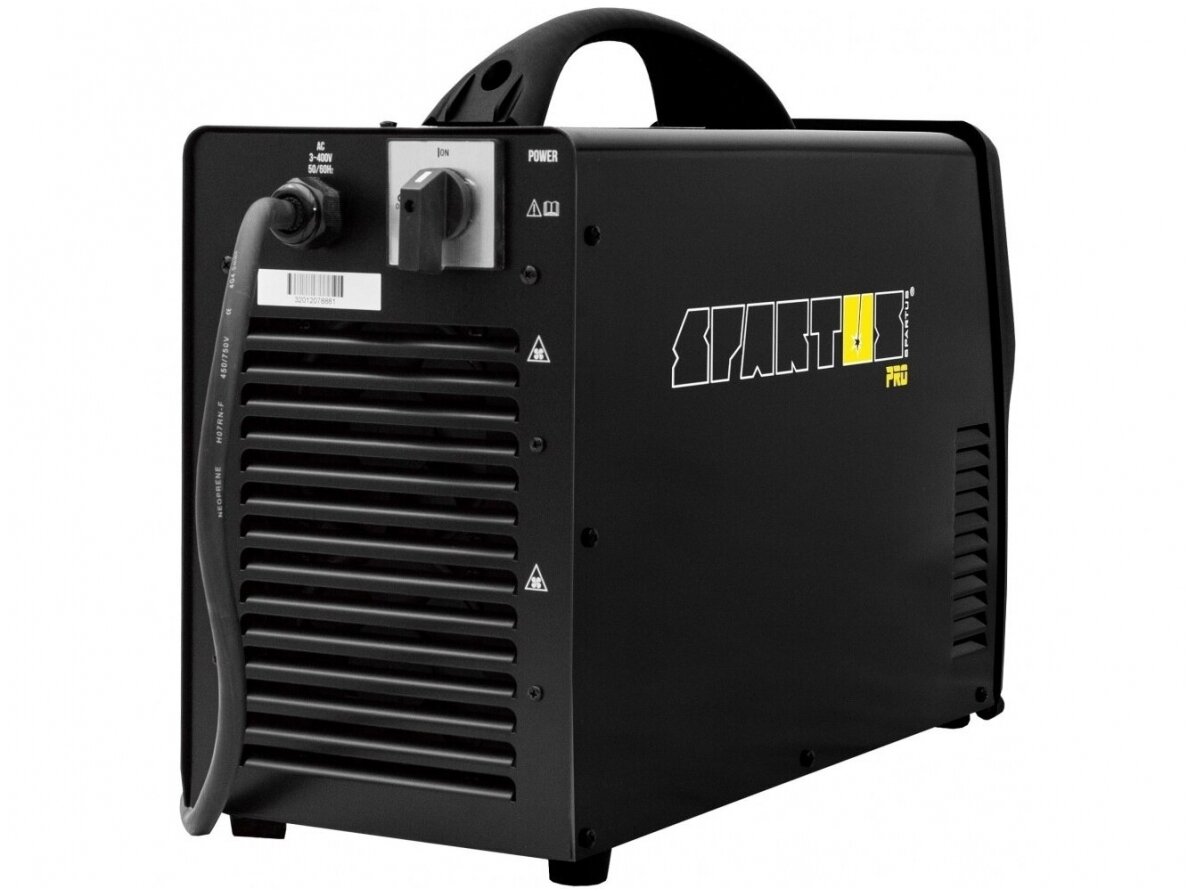

Spartus ProARC 500CEL welding machine, 500A, 400V

The SPARTUS® ProARC 500CEL is a modern welding machine manufactured using IGBT transistor technology. It is powerful and reliable, powered from a three-phase network and allows welding with any diameter coated electrodes with a maximum current of 500A.

This welding machine is resistant to even the most challenging work, has an efficient cooling system, and a high nominal 60% duty cycle. By reaching a 100% duty cycle, the welding machine's current can achieve up to 400A!

The SPARTUS® ProARC 500CEL welding machine is perfectly suited for professional use, requiring high power and reliability from welding equipment. The equipment is ideal for use in industry, construction welding, construction works, and workshops.

The most important features of the ProARC 500CEL welding machine:

• MCU controller.
• VRD function - reduction of no-load voltage to a safe level, ensuring protection against electric shock. This function meets regional directions and safety standard requirements worldwide.
• Stable output characteristics and high welding quality.
• Hot Start function facilitates the ignition of the electrode. This function applies a current impulse at the moment the electrode touches the workpiece, thus facilitating arc ignition.
• Arc Force function - this is to maintain a stable welding arc. This function is necessary to prevent electrode 'sticking' and to increase arc stability – at the moment when the electrode metal splash separates, the current automatically increases to the optimal value, which allows avoiding electrode sticking during welding or cutting. The function is adjustable and makes working in difficult positions, e.g., above head, easier.
• Anti-stick function protects the electrode from sticking.
• The ability to weld with cellulose-coated electrodes.
• TIG Lift welding capability.

Package includes:

• Welding machine ProARC 500CEL
• Ground cable 3 m
• Electrode holder 3 m
