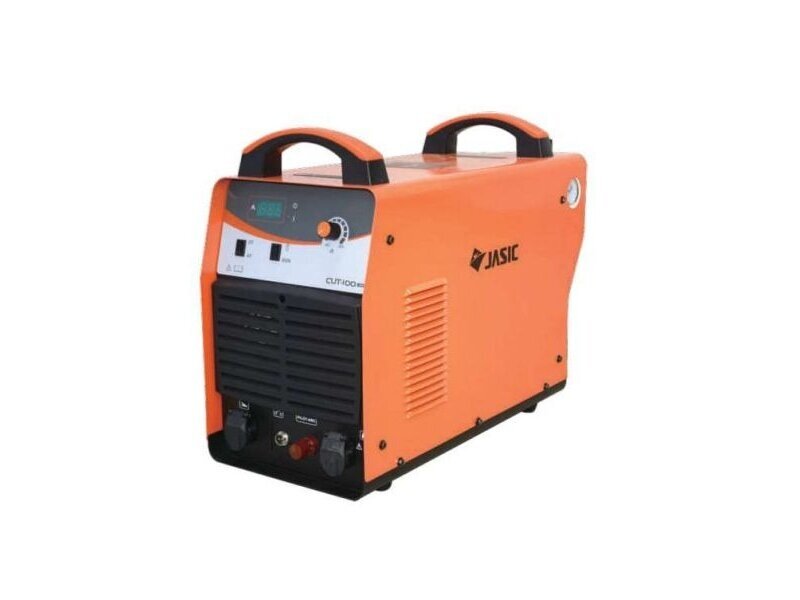

JASIC CUT 100 L221 plasma cutting machine, 100A, 380V, 35mm
Code: CUT 100 L22ManufacturerType of ignitionHF (high frequency) ignition-
Supply voltage
3~AC 380V ± 15% 50/60Hz
Rated input current
27,2 A
Rated input power
20 kVA
Cutting current range:
20 - 100 A
Post-flow time
10 s
Arc ignition
HF
No-load voltage
315 V
Rated duty cycle at 40ÚC
60 %
Quality cutting thickness (for carbon steel)
25 mm
Maximum cutting thickness (for carbon steel)
35 mm
Efficiency
85%
Power factor (cos)
0,9
Protection class
IP21S
Insulation class
F
Dimensions
568 x 259 x446 mm
Weight
27 kg
Recommended compressor capacity
200-300 L/min
Recommended cutting pressure
5-6 bar
The Jasic Cut 100 L221 plasma cutting machine is designed for cutting steel, stainless steel, copper, aluminium, cast iron and hard steel alloys. It features a convenient and simplified control panel that allows you to quickly and easily set the most suitable parameters. HF arc ignition for fast and reliable operation. The Jasic Cut 100 L221 is characterised by high cutting speed and a clean cut.
This plasma cutting machine is ideal for manufacturing boiler tanks, industrial stations, installation and construction work, automotive manufacturing, farmers, and other fields of work related to metal cutting.
Main features:
- IGBT technology
- Easy arc ignition with HF
- Widely used for cutting stainless steel, copper, cast iron, aluminium, etc.
- Smooth cutting surface, high cutting speed
- Digital control technology improves performance
- Compatible with automatic cutting equipment
Package includes:
- Plasma cutting machine JASIC CUT 100 L201
- P80 torch, 5 m,
- Ground cable with clamp 300A, 3 m
-
