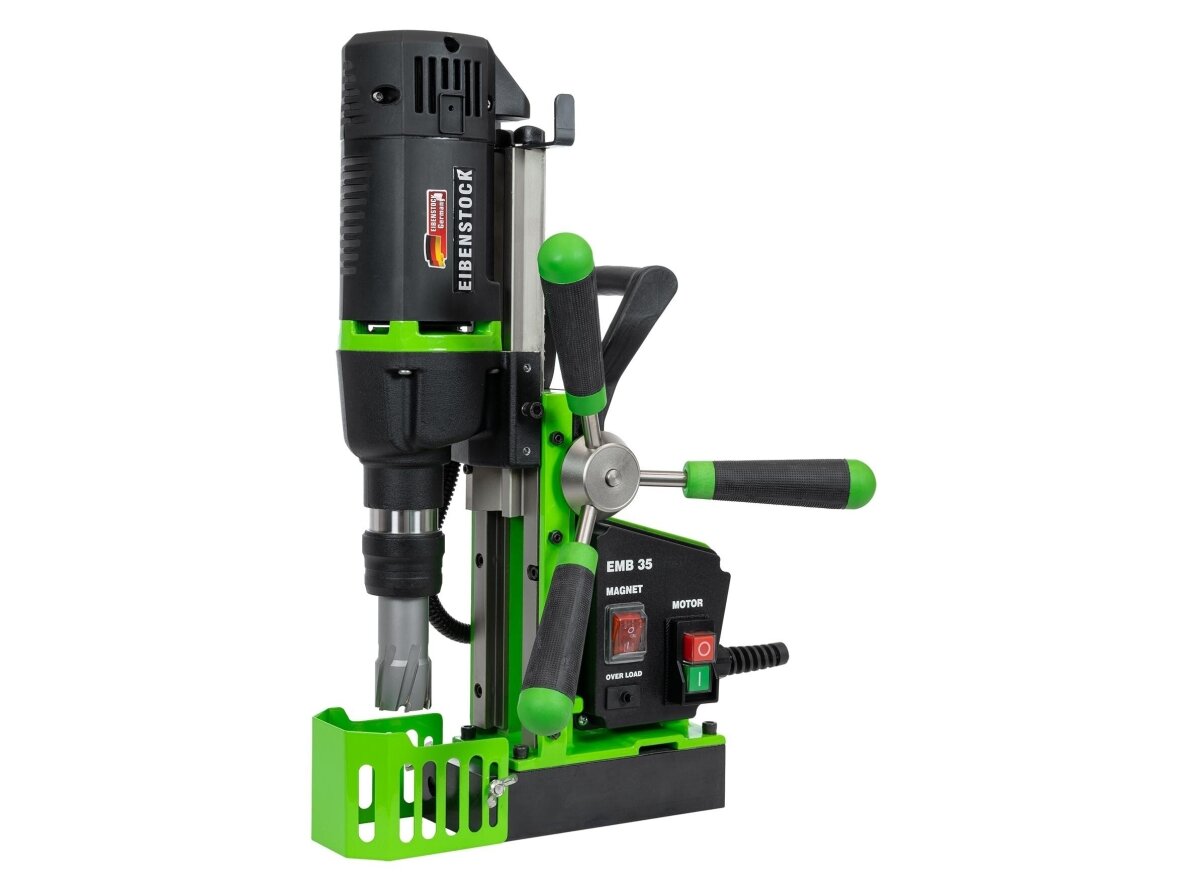

Eibenstock magnetic drill EMB 35, 1200W, 750 rpm, maximum drilling diameter 35 mm
Code: ee-08E11Manufacturer-
Supply voltage
230V
Power
1200W
No-load speed
750 aps./min.
Rated speed
400 aps./min.
Tool holder
19 mm, quick-change „Weldon“ shank
Stroke
160 mm
Maximum drilling diameter with annular cutters
35 mm
Maximum drilling diameter with twist drills
13 mm
Weight
10,9 kg

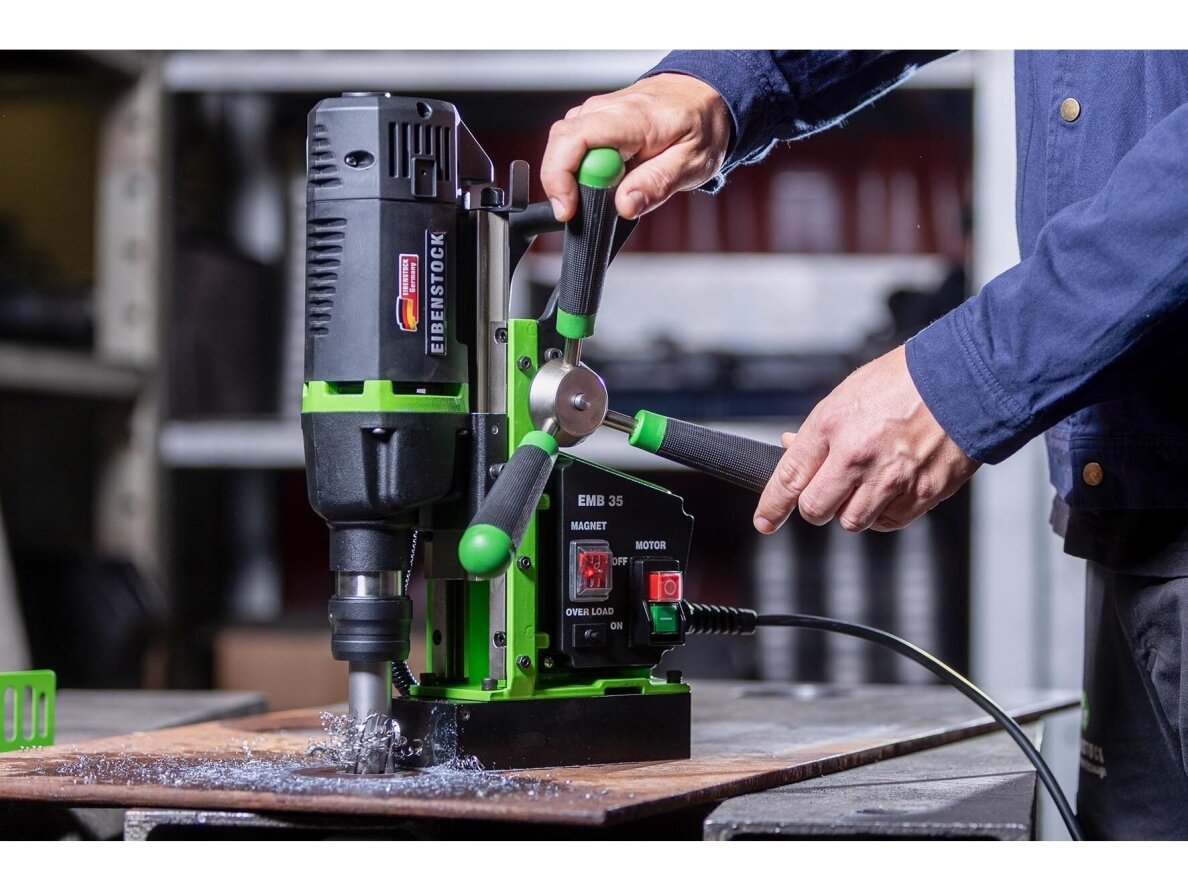

Magnetic drill Eibenstock EMB 35 is designed for professional use in steel construction, mechanical engineering, metal structures, the railway sector and industrial manufacturing. It is used for fast, precise and economical metal drilling.
Main features of the magnetic drill:
- Overload protection
- Quick-change system
- Coolant tank – mountable on both sides
- Feed handwheel with soft grip – repositioning without tools

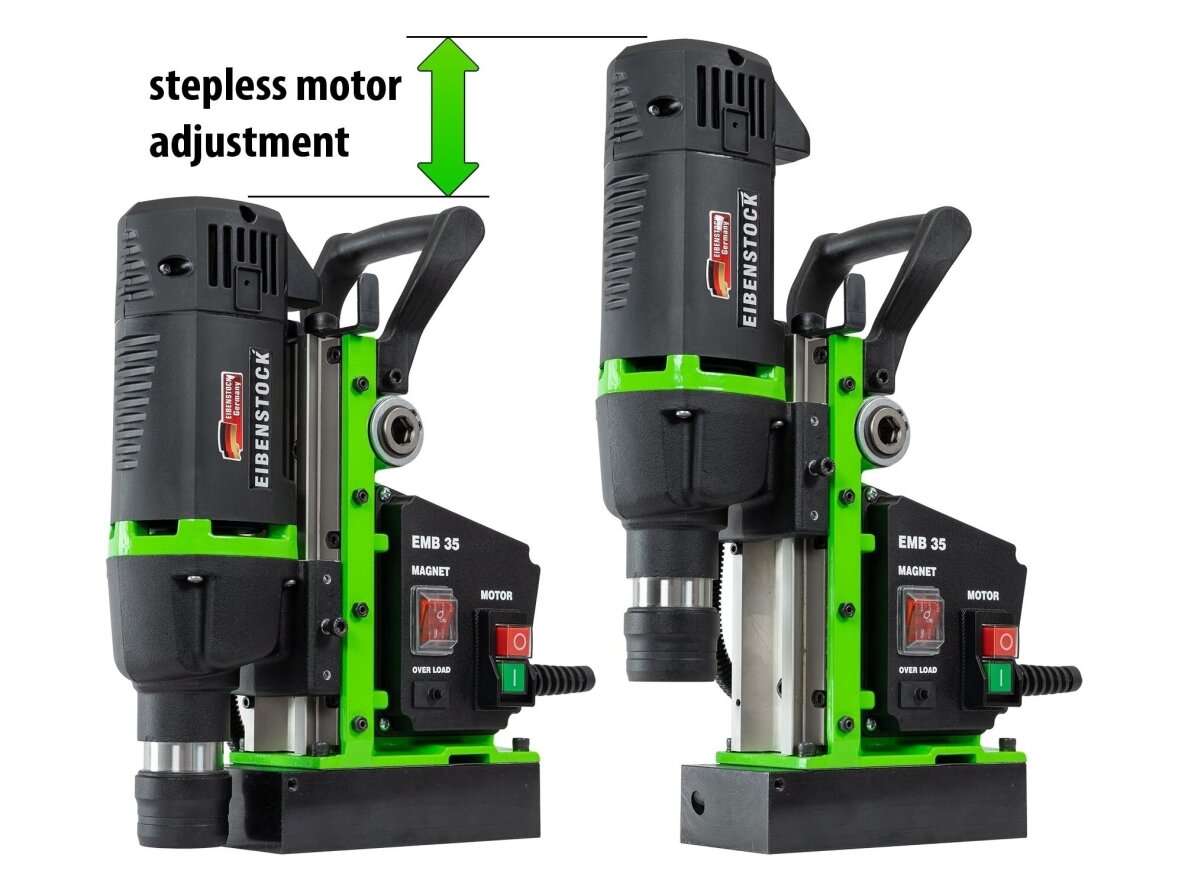

- Infinitely variable motor speed
- User protection from chips
- Magnetic holding force monitoring system

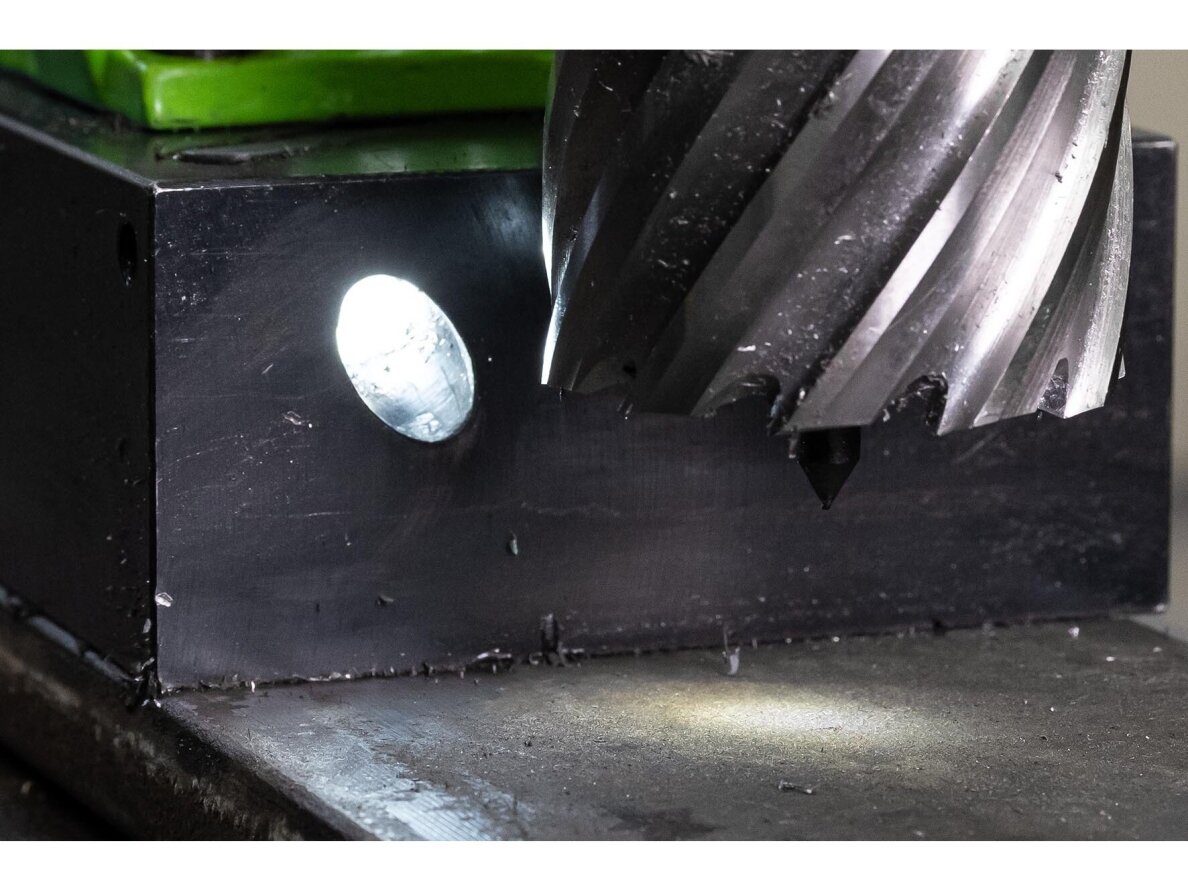

- LED light for better visibility and drilling accuracy
Package contents:
- Drill with magnetic base Eibenstock EMB 35
- Plastic case
- 2 centering pins
- Chuck adapter
- Safety tension belt
-
