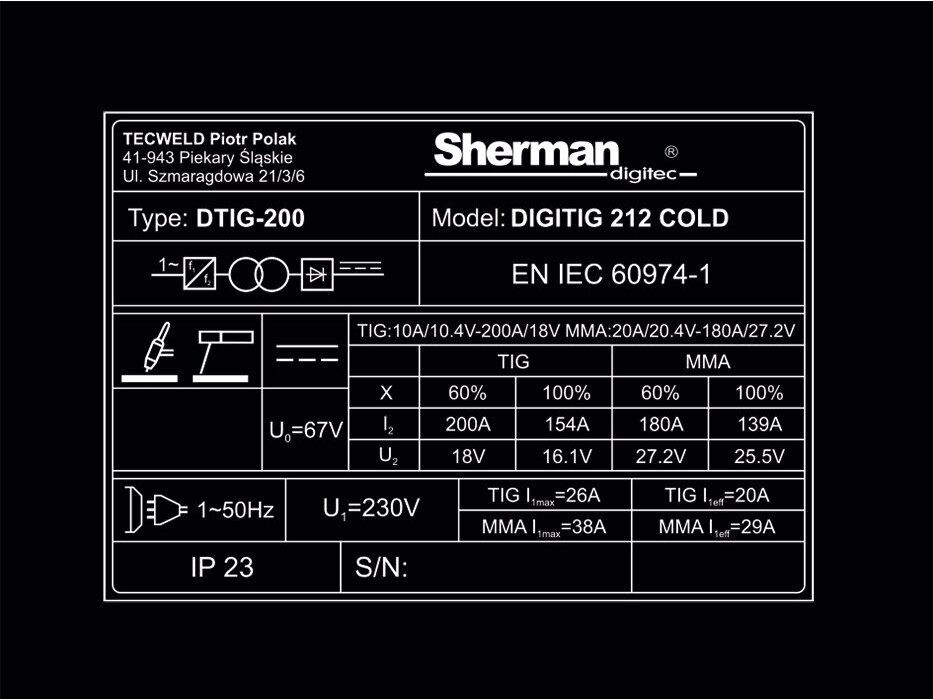

  • Welding machine Sherman DIGITIG 212 COLD, 200A, 230V

    Code: 7812679
    Manufacturer
    Voltage
    230V
    Type of TIG machine
    DC (Except Aluminum)

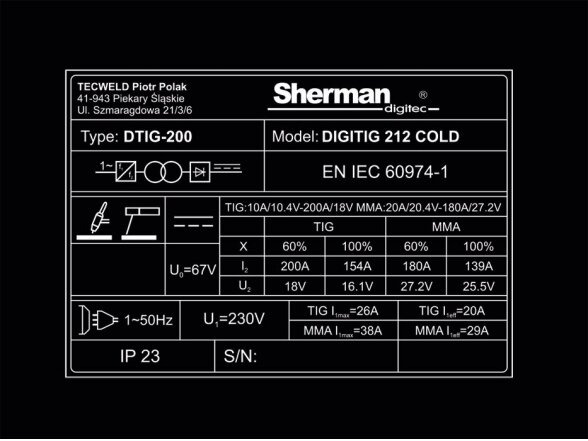

  • Power supply voltage

    AC 230V 50Hz

    Welding methods

    TIG DC and MMA

    Manufacturing technology

    IGBT

    Welding current

    MMA: 180A, TIG: 200A

    Duty cycle

    60%

    No-load voltage

    67V

    Max. current consumption

    MMA: 38A, TIG: 26A

    Max. power consumption

    MMA: 7.2kVA, TIG: 5.3kVA

    Welding current adjustment

    smooth

    Current decay time

    0-15 s

    Features

    Digital control, HF, Hot Start, 2T/4T, VRD, current drop, parameter display, gas flow time adjustment

    Dimensions

    430 x 170 x 310 mm

    Weight

    7.3 kg

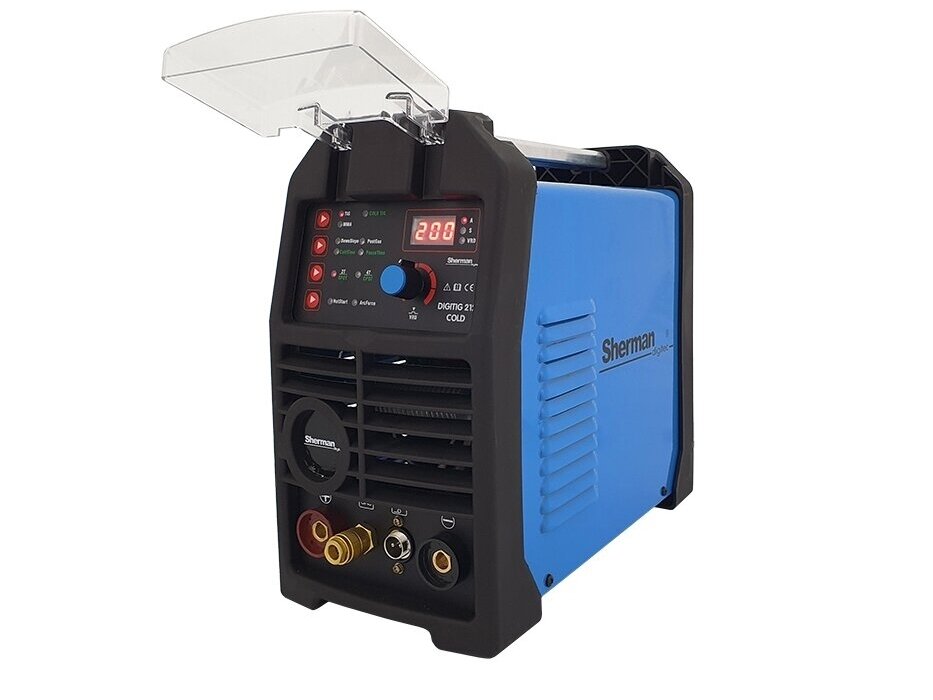

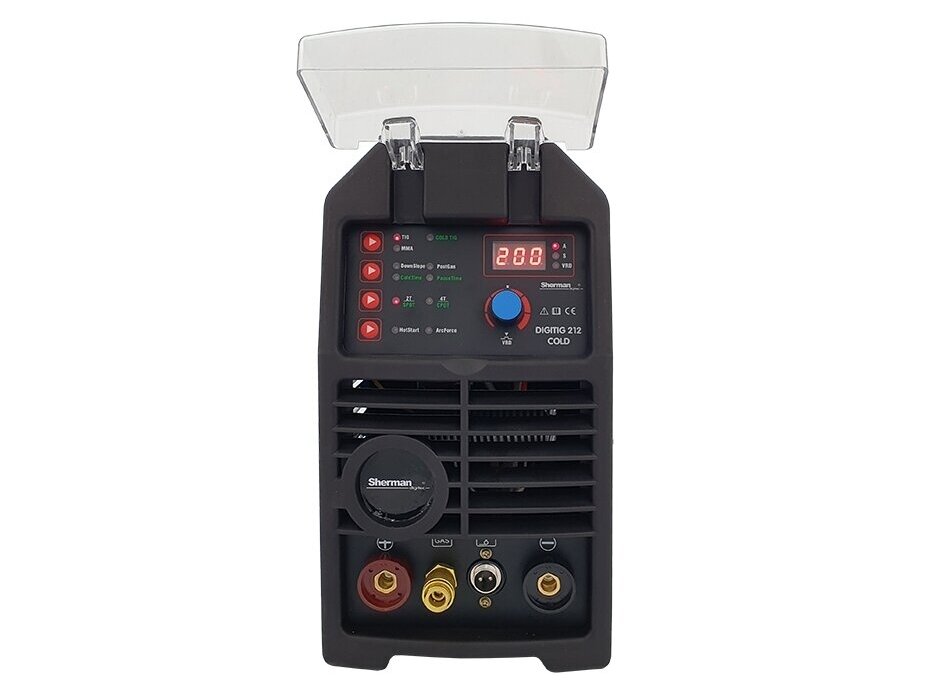

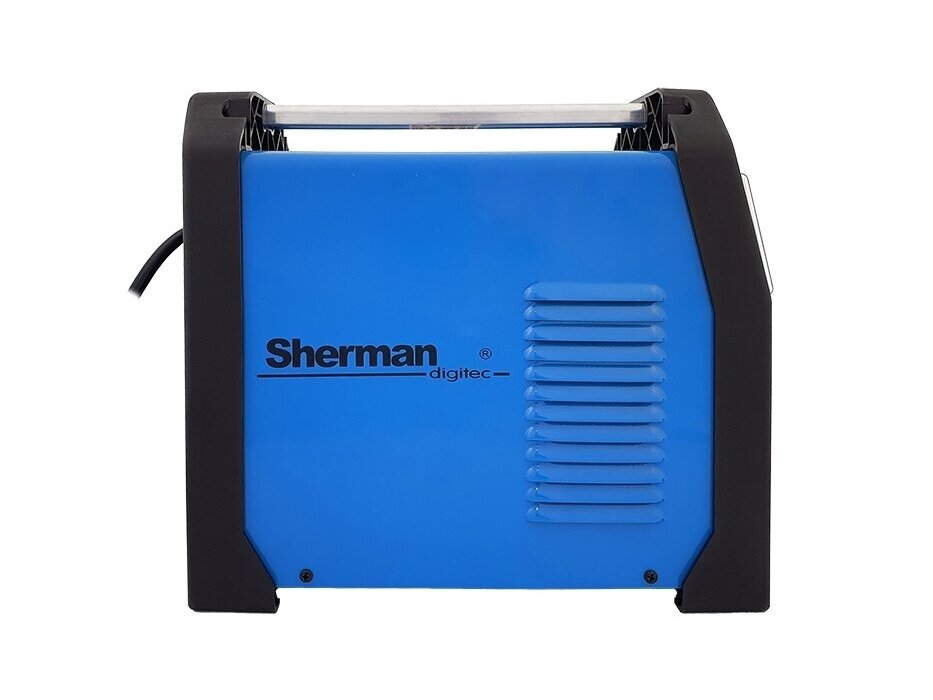

    The digital welding machine DIGITIG 212 COLD is a latest generation device designed for professional use. It is manufactured using IGBT technology and has digital control. The device is intended for manual welding of steel and non-ferrous metals in DC TIG. The machine features an MMA welding option.

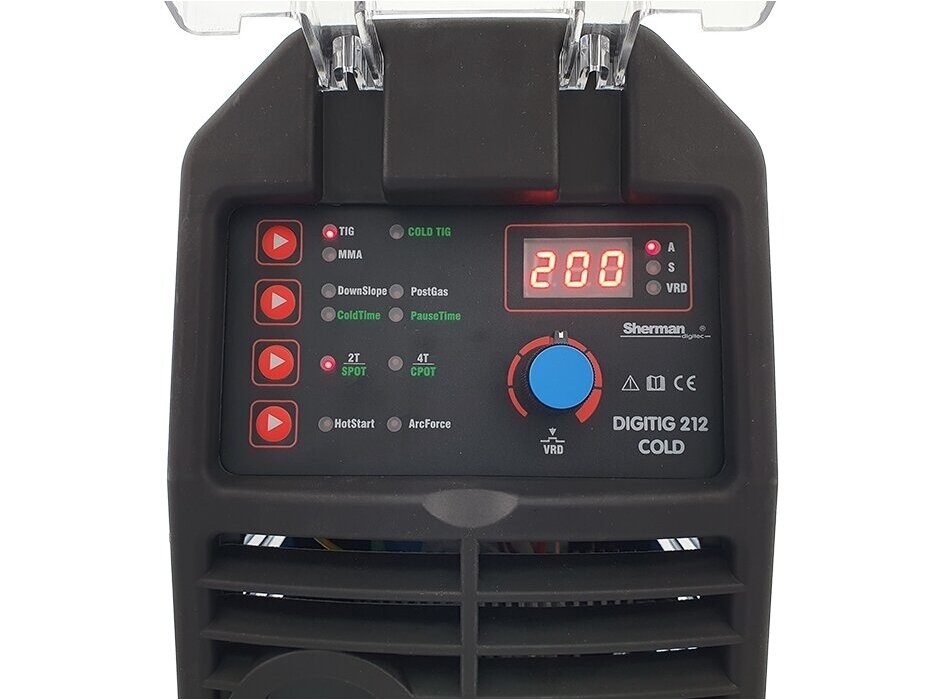

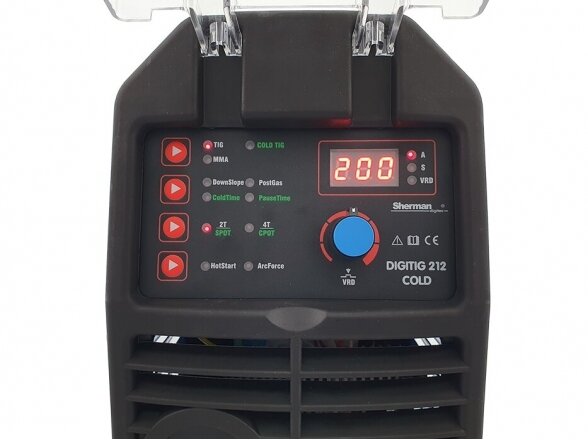

    The welding machine allows complete digital regulation and control over the welding arc characteristics and parameters. The device features a cold welding function, which enables joining of thin elements due to very low heat input in the joint zone. Moreover, it includes HF ignition, HOT START and ARC FORCE functions, 2T/4T switch, and display showing the welding current.

    HOT START facilitates arc ignition during MMA welding. The HOT START function initiates a current impulse the moment the electrode touches the workpiece, thus making arc ignition easier.

    ARC FORCE is for maintaining a stable welding arc (MMA). The ARC FORCE function is necessary to prevent electrode 'sticking' and to improve arc burning stability – at the moment when electrode metal consumable drops, the current automatically increases to the optimum value, which helps to avoid electrode sticking during welding or cutting. The system is important when working with demanding constructions and using electrodes with basic, acid, ilmenite, rutile, and cellulose coatings.



    Includes:

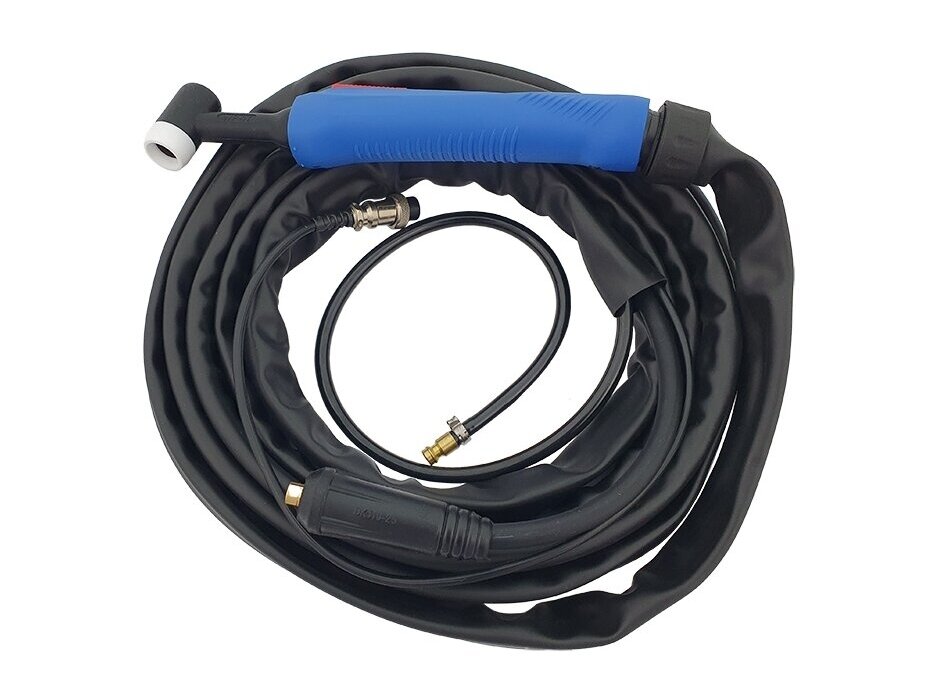

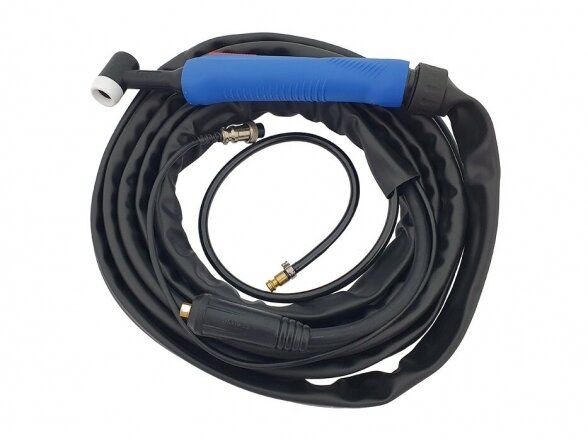

    • TIG welding torch

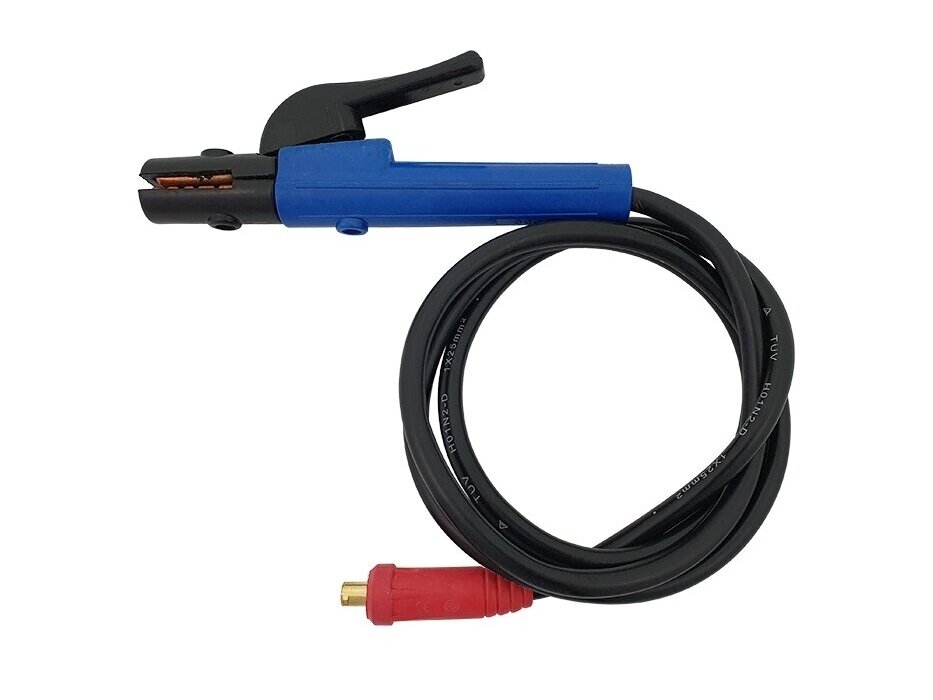

    • Electrode holder

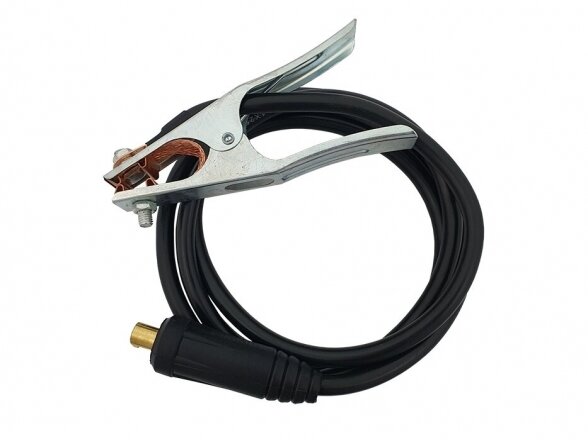

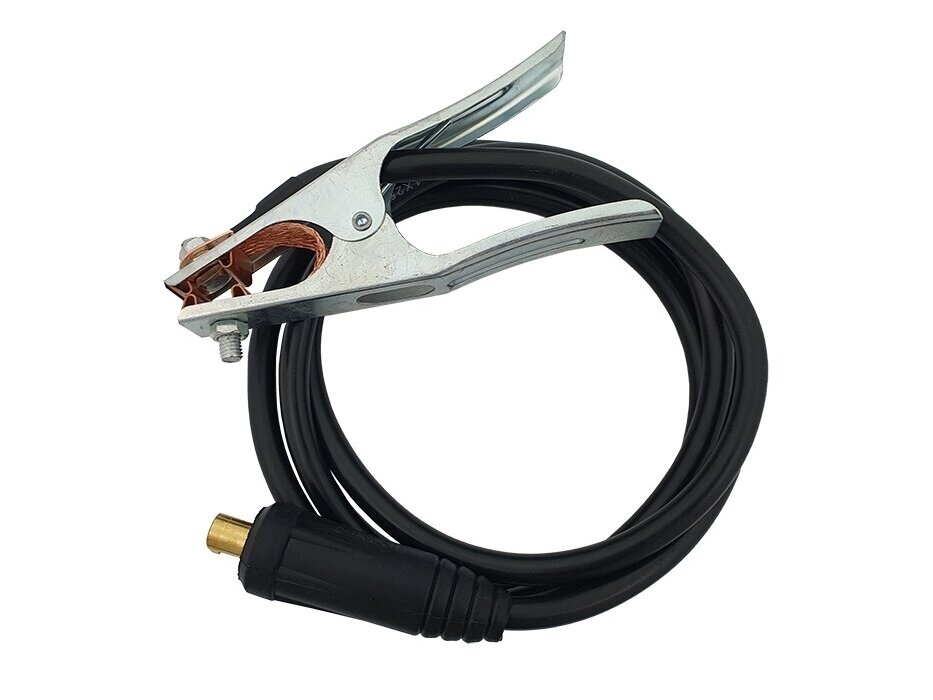

    • Grounding cable
  • Price 330.64 € VAT incl.
