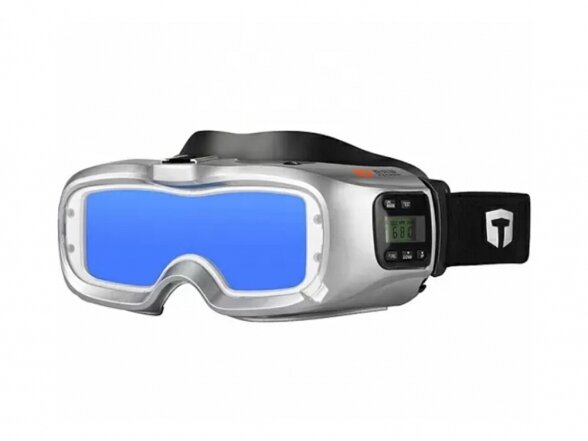

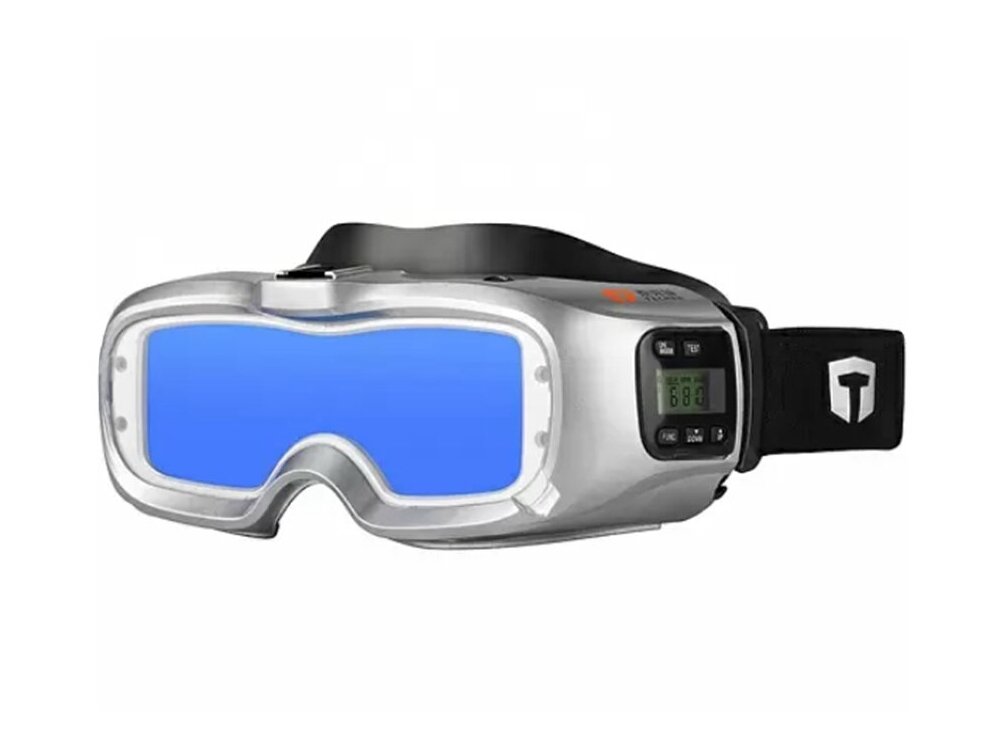

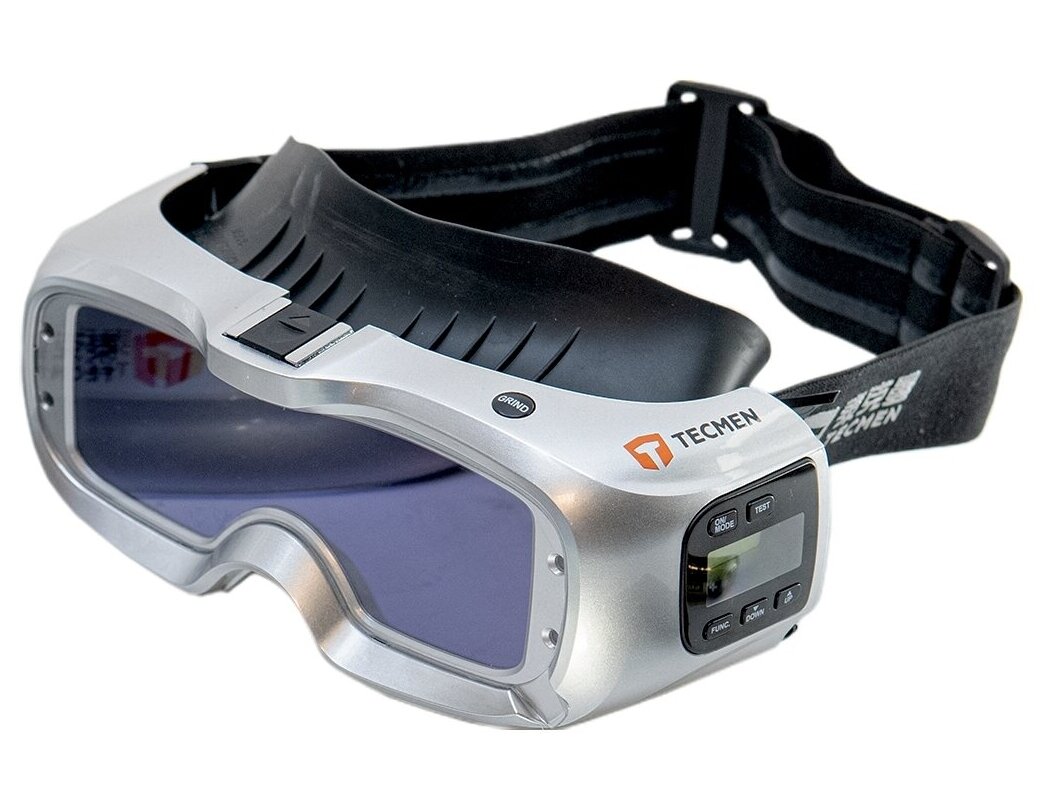

  • TECMEN ADF Arc-Mask Welding Glasses

    Code: ADF ARC MASK
    Manufacturer
  • Power type

    1 CR2450 battery

    Optical filter class

    1/1/1/1

    Number of optical sensors

    4

    Darkening range

    DIN 5-13

    Darkening control

    external

    Grinding mode

    yes

    UV/IR protection

    DIN 16

    Ventilation

    none

    Chameleon

    Yes

    Material

    plastic

    Body material

    PVC

    Dimensions

    187x75x82 mm

    Weight

    0.245 kg

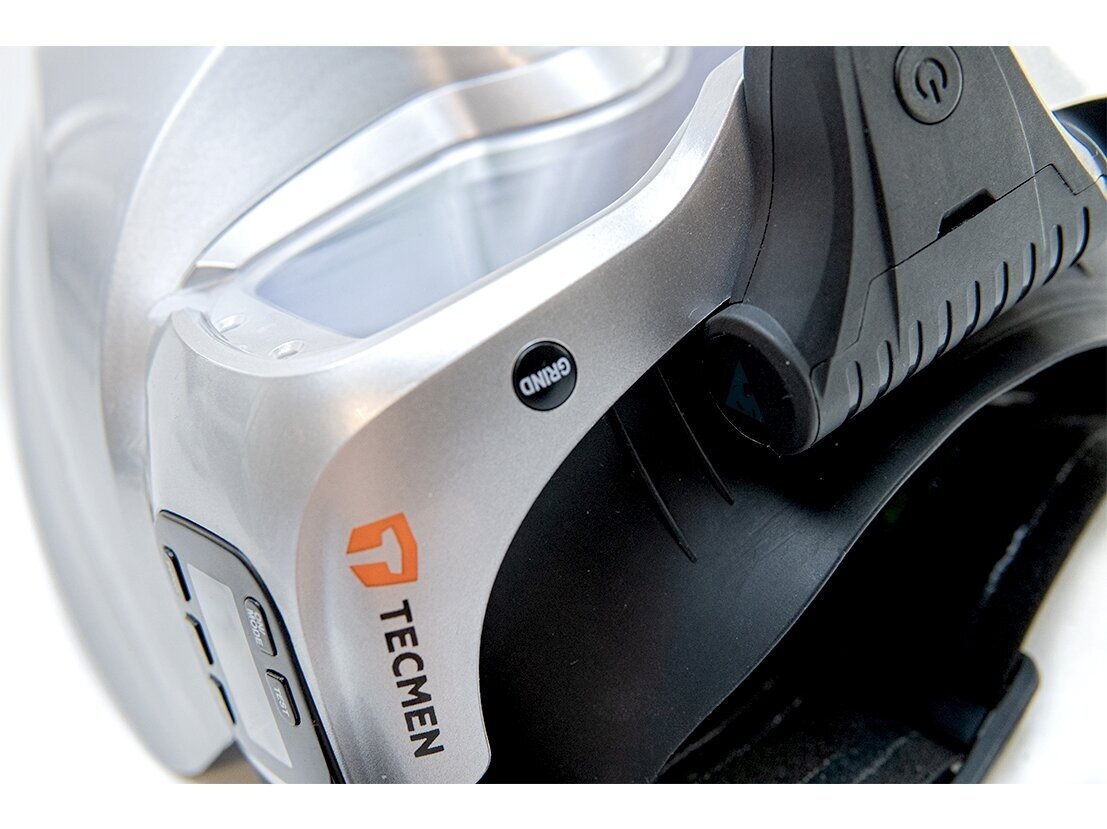

    The TECMEN ADF Arc-Mask welding glasses are universal, lightweight, comfortable welding glasses with an automatic light filter. The glasses are designed for maximum eye protection, especially when working in enclosed spaces. The optical light filter characteristic 1/1/1/1 ensures excellent vision without defects and distortions and relieves eye strain when using welding glasses. The glasses feature RealensTM technology that guarantees excellent clarity and color accuracy throughout the filter's working range. The exceptional 0.04 ms response time ensures maximum eye protection. These glasses can also be used in grinding mode (automatic darkening is easily turned off by pressing the shade control button on the protective frame).

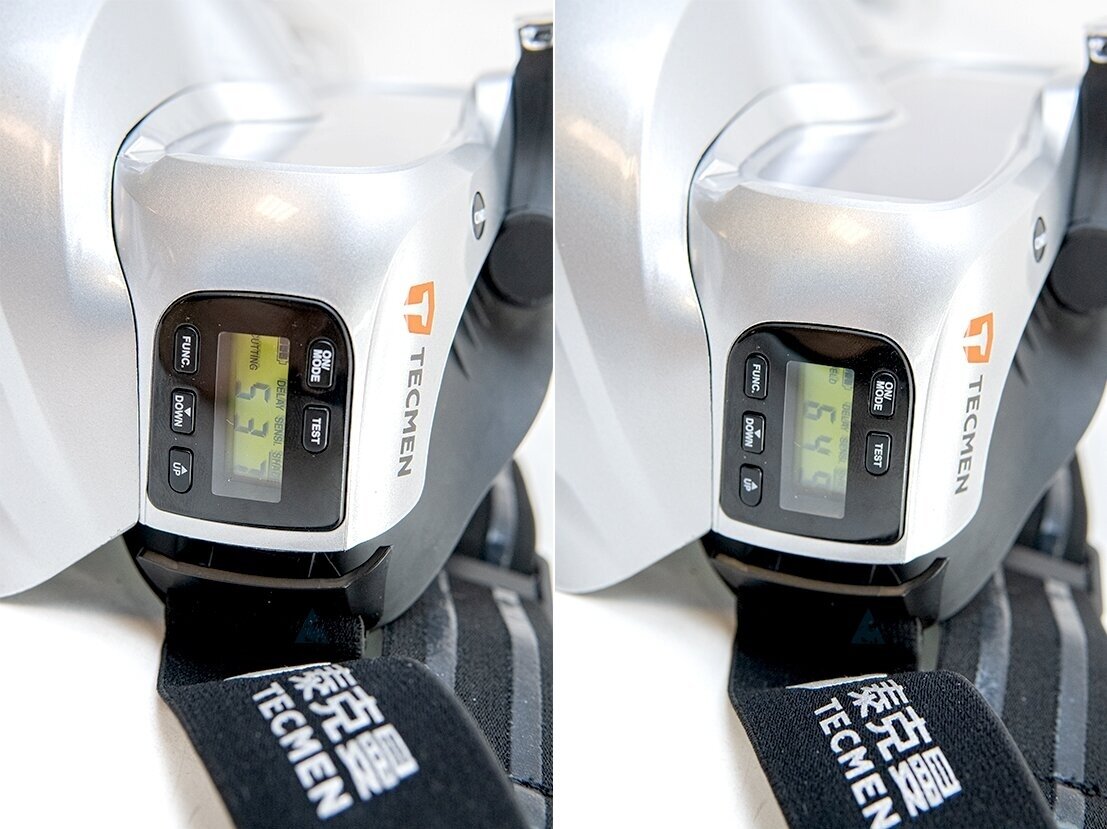

    All essential settings of the welding glasses are on the exterior left side, making it easy to adjust darkening, sensitivity, delay, activate the test mode, remove and select darkening ranges. The inner glass is protected against condensation. There are additional forced ventilation channels in the viewing window area. The glasses can be used together with construction screens, vision glasses, half-masks, respirators.

    The extended shade range of 5-13 DIN is suitable for all types of welding and cutting. To ensure reliable operation during all types of welding and cutting, the light filter has 4 sensors that ensure maximum stability at the start of the welding, cutting process. Compared to cheaper analogs, the light filter has an increased viewing window – 47 cm², which provides additional comfort and convenience while working.

    The glasses fully comply with the European eye protection standard for welding DIN EN 379:2009, certified by the TÜV Rheinland Group laboratory.

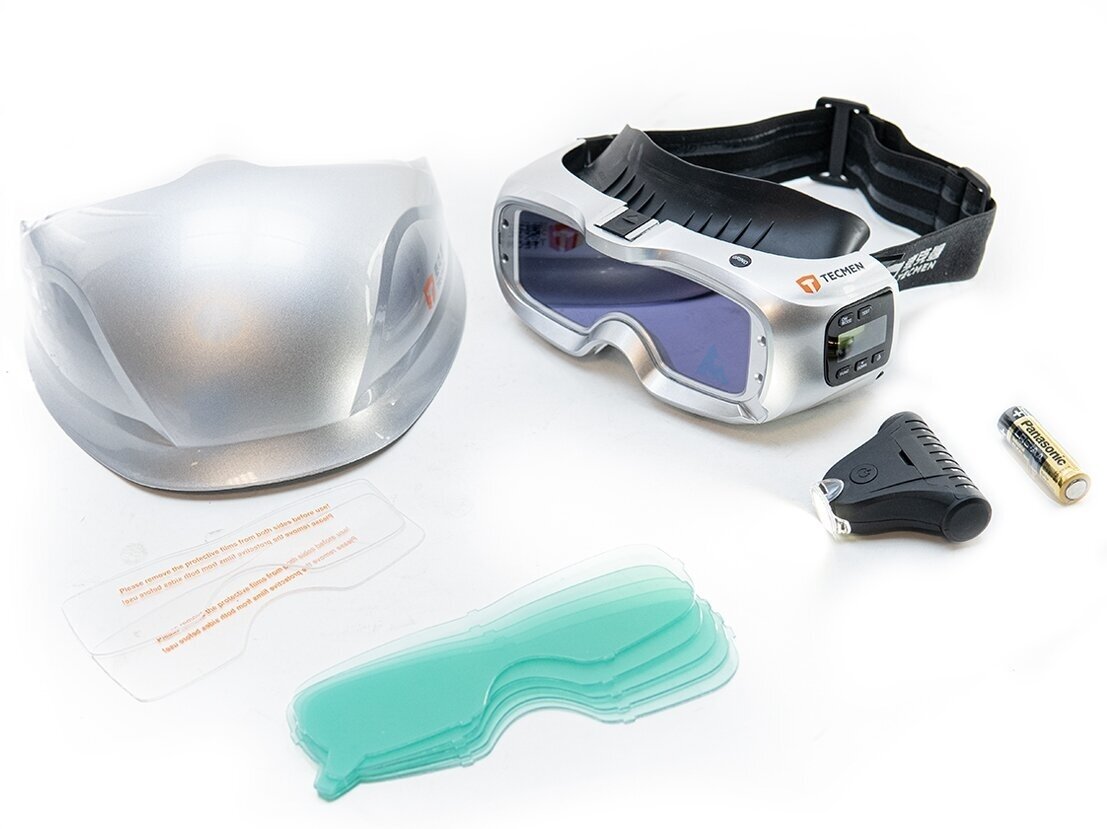

    Package includes:

    • Welding glasses;

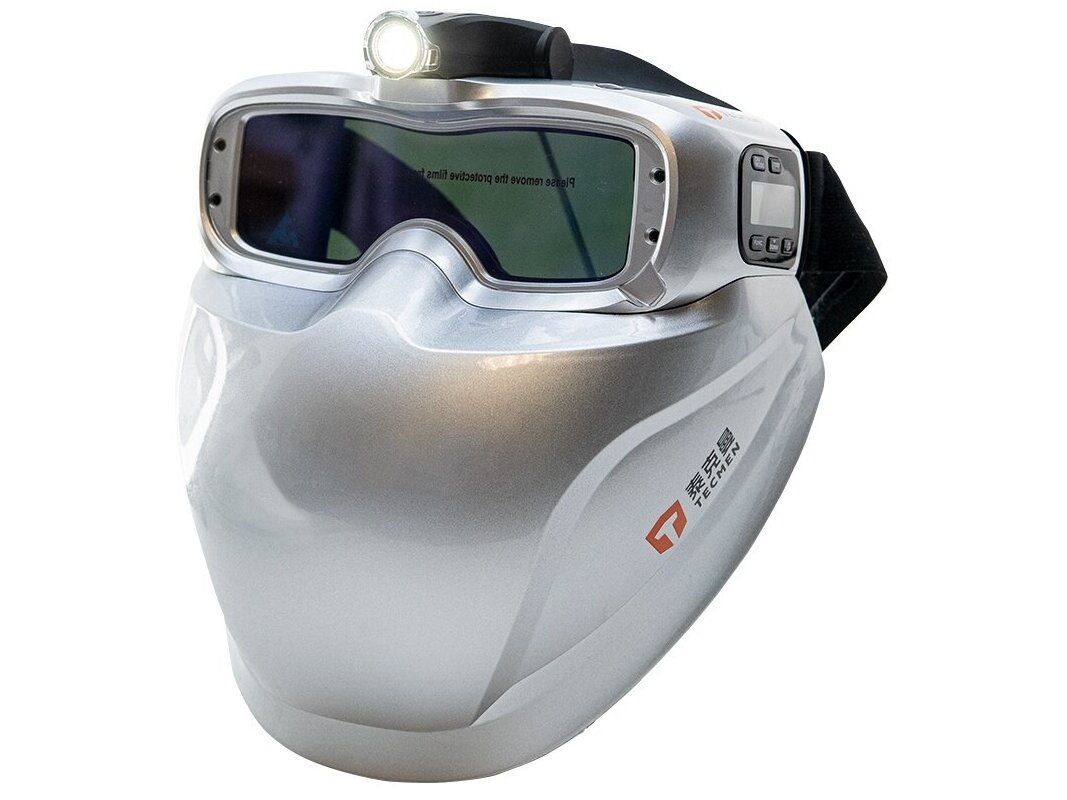

    • Removable face protection;
    • Removable LED flashlight;
    • Balaclava;
    • 1x AA battery;
    • 2x inner glasses;
    • 5x outer glasses;
    • Instruction manual.
