Soldering Station with Hot Air Gun S-LS-1 (480°C, 650W) and Soldering Iron (480°C, 75W)
Code: 6120Manufacturer-
Soldering Station with Hot Air Gun and Soldering Iron
Manufacturer: Stamos Soldering
Model: S-LS-1Voltage
230 V / 50 Hz
Power
1000 W
Nominal Current
6 A
Display
LED
Soldering Iron
Output Power
75 W
Temperature Range
200 – 480 °C
Soldering Tip Resistance
< 2 Ω
Soldering Tip Voltage
< 2 mV
Hot Air Gun
Output Power
650 W
Temperature Range
100 – 480 °C
Max. Air Flow
120 L/min
DC Power Supply
Output Voltage
0 – 30 V
Output Current
0 – 5 A
Dimensions
Dimensions
33.5 x 27 x 20 cm
Weight
7.3 kg
Dimensions with Package
41 x 27 x 31 cm
Weight with Package
8.8 kg

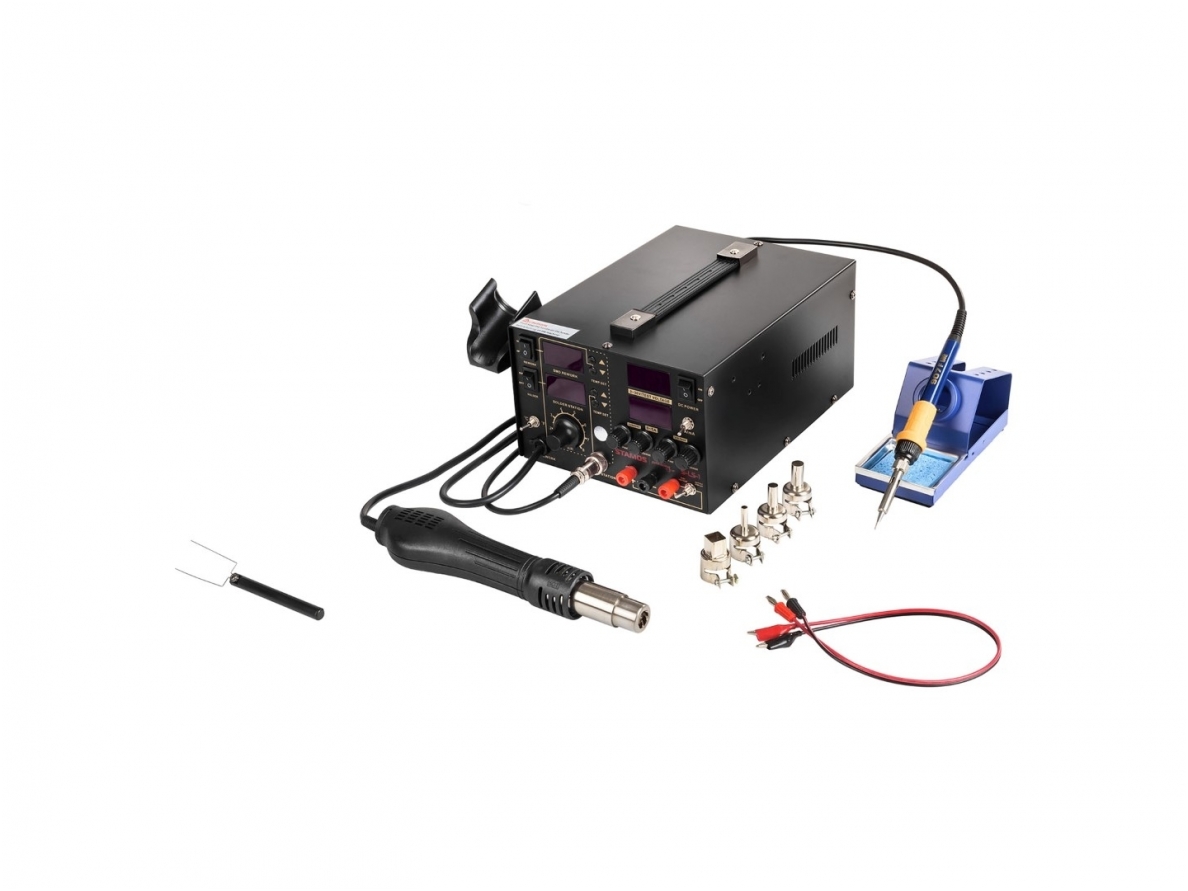

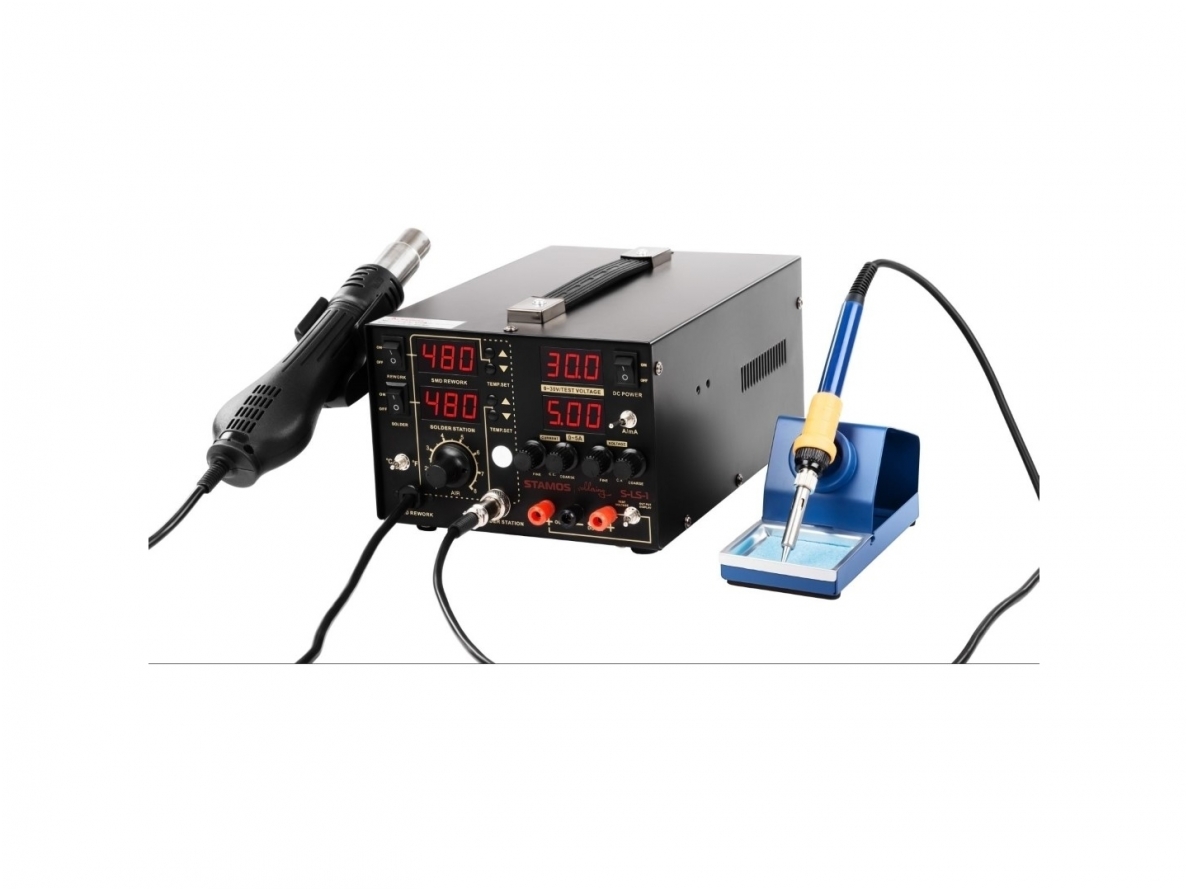

Digital soldering station S-LS-1 with soldering iron, soldering iron holder, hot air gun, and its holder.
The S-LS-1 soldering station is characterized by simplicity and is designed for use in industry, manufacturing, or at home. Thanks to its compact size and ergonomic design, it is easily portable. Moreover, the soldering station is very safe. The main soldering station block serves as a power supply, switches all functions, and has all the connections. There are four LED displays on the soldering station block for monitoring the precise temperature (soldering iron and hot air gun). The front of the soldering station has a holder for the hot air gun, and the set also includes a stand for the soldering iron.

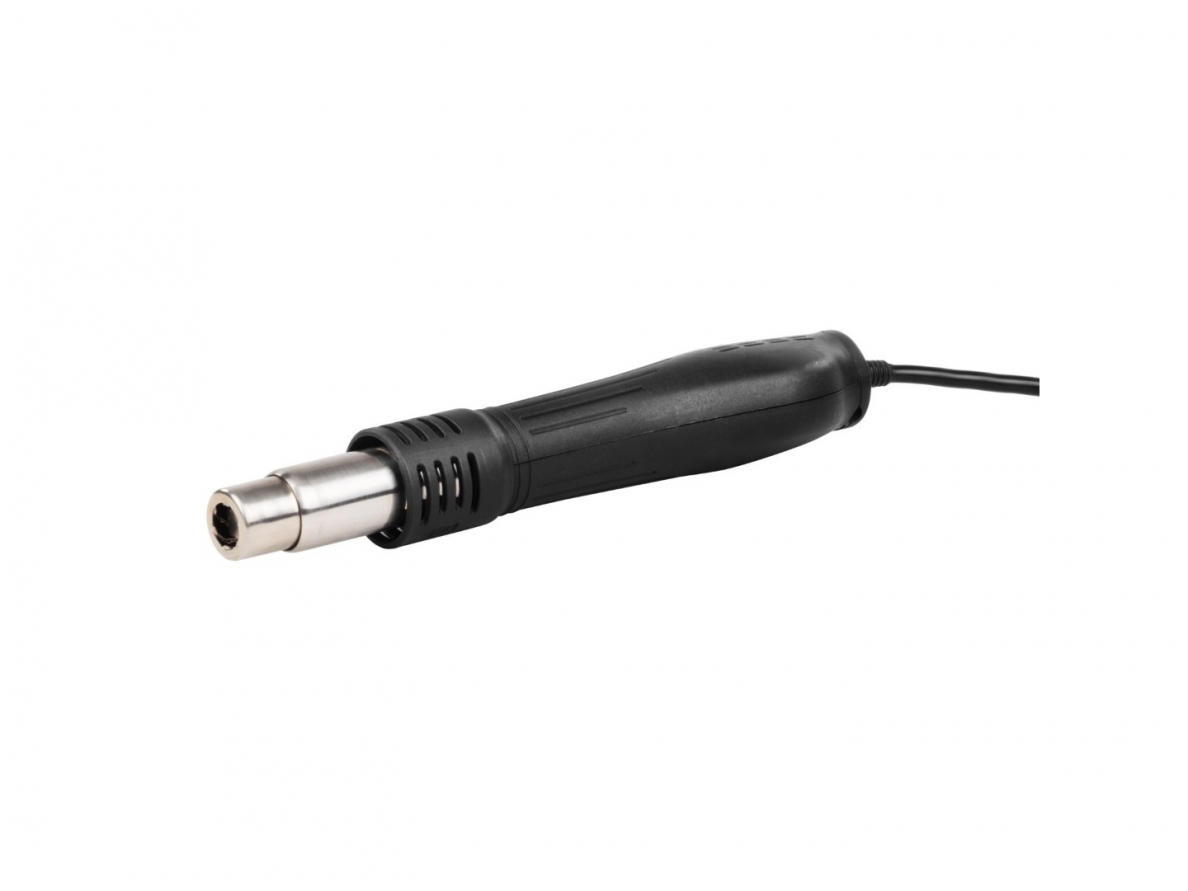

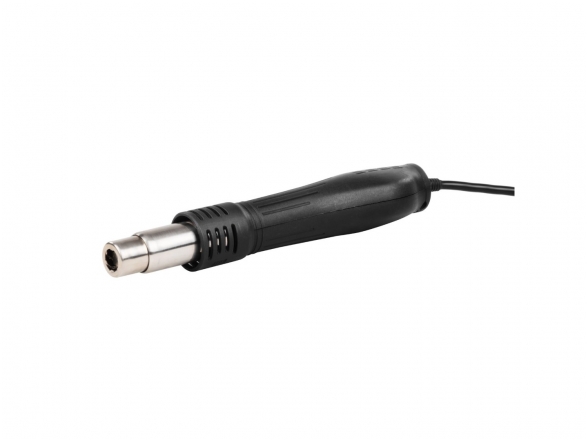

The 650W hot air gun uses hot air technology suitable for soldering and desoldering components. The integrated soldering iron heating element ensures efficient heat transfer.
Information about the Soldering Station S-LS-1:
- Ideal for electric device repair, platinum soldering, tinning, mechanical metal working, etc.
- Compact, sturdy, insulated casing

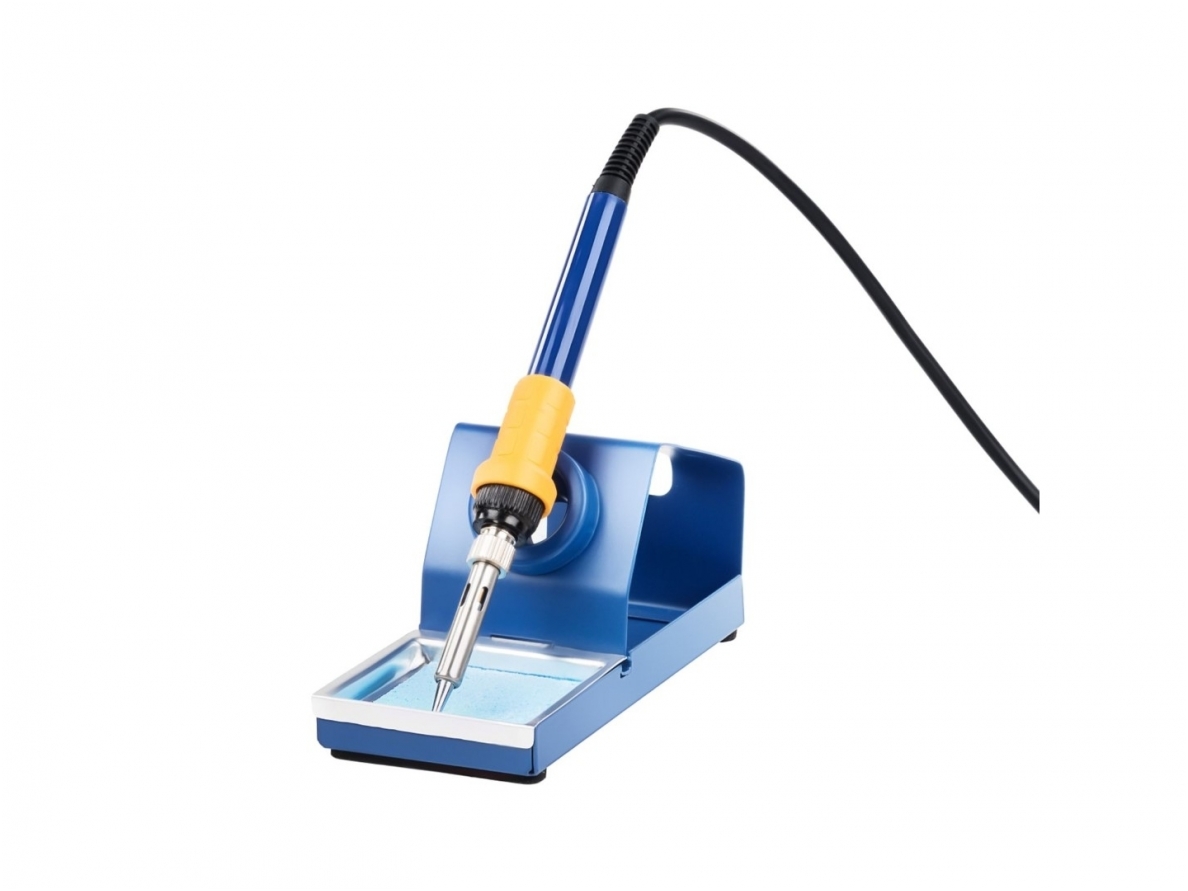

- Powerful 75W soldering iron
- Short warm-up time and precise temperature control
- 4 LED displays
- Practical handle
- Quick and easy tip change
- Protection against electrostatic discharge
Available configurations (choose before purchasing the product):
Basic configuration: hot air gun holder, 4 gun nozzles, soldering iron holder, soldering iron with 1 tip

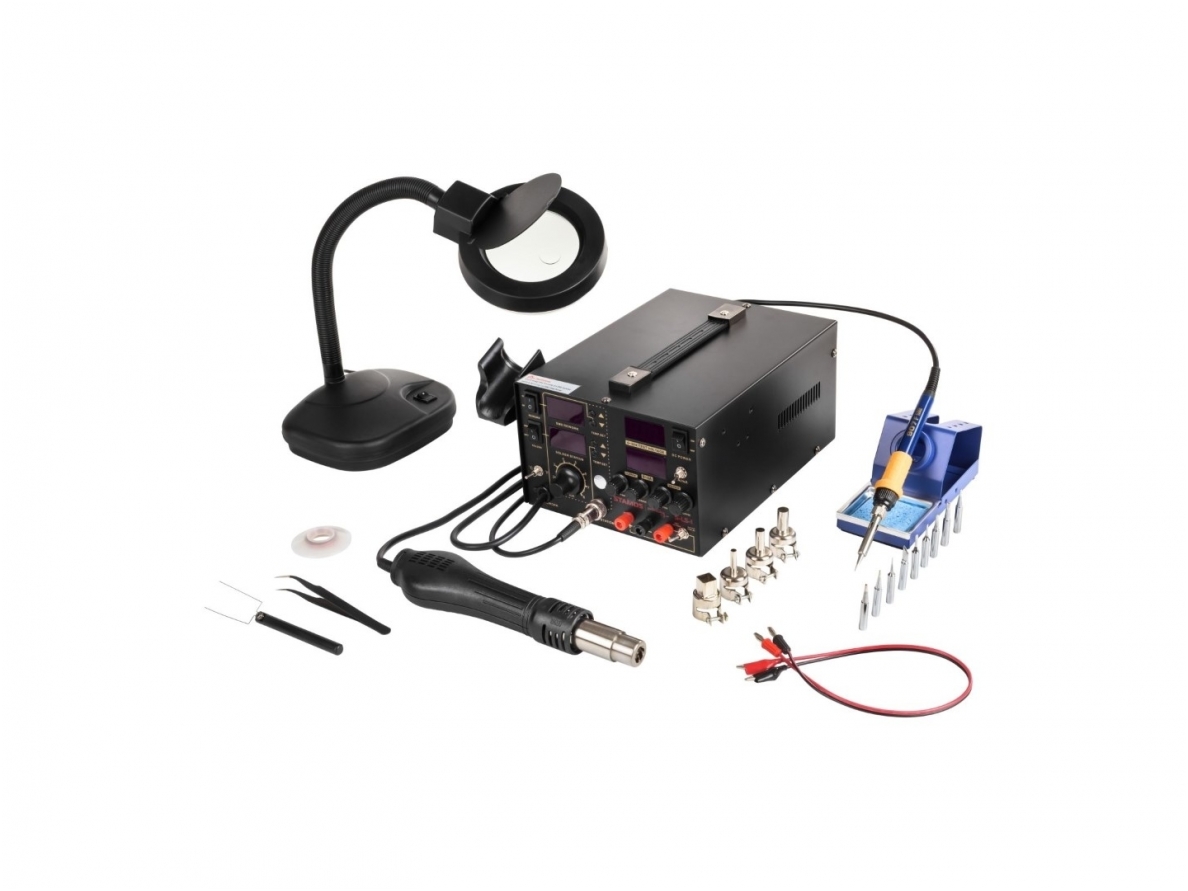

Full configuration: hot air gun holder, 4 gun nozzles, soldering iron holder, soldering iron, magnifying lamp, 9 soldering tips, tweezers, solder wire, clamp -
