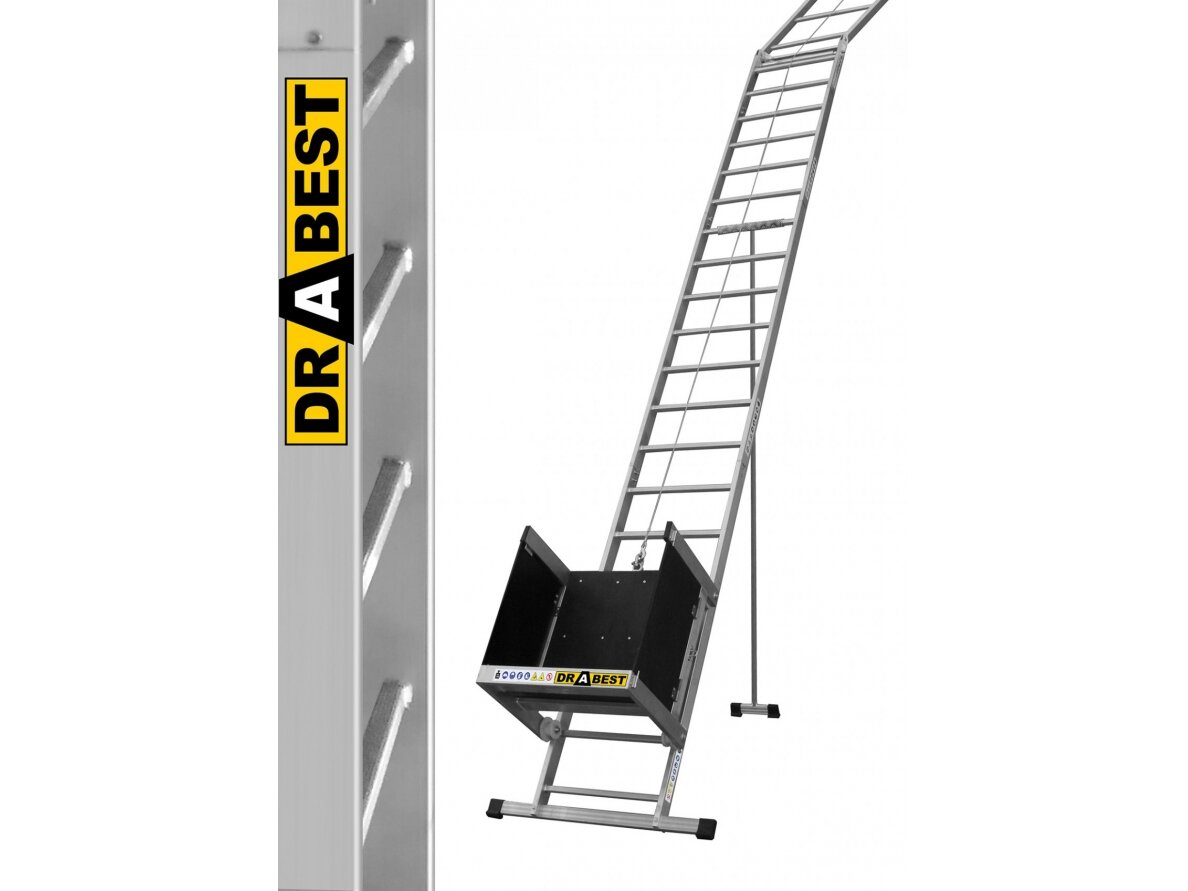

Roofer's lift DRABEST, 12 m

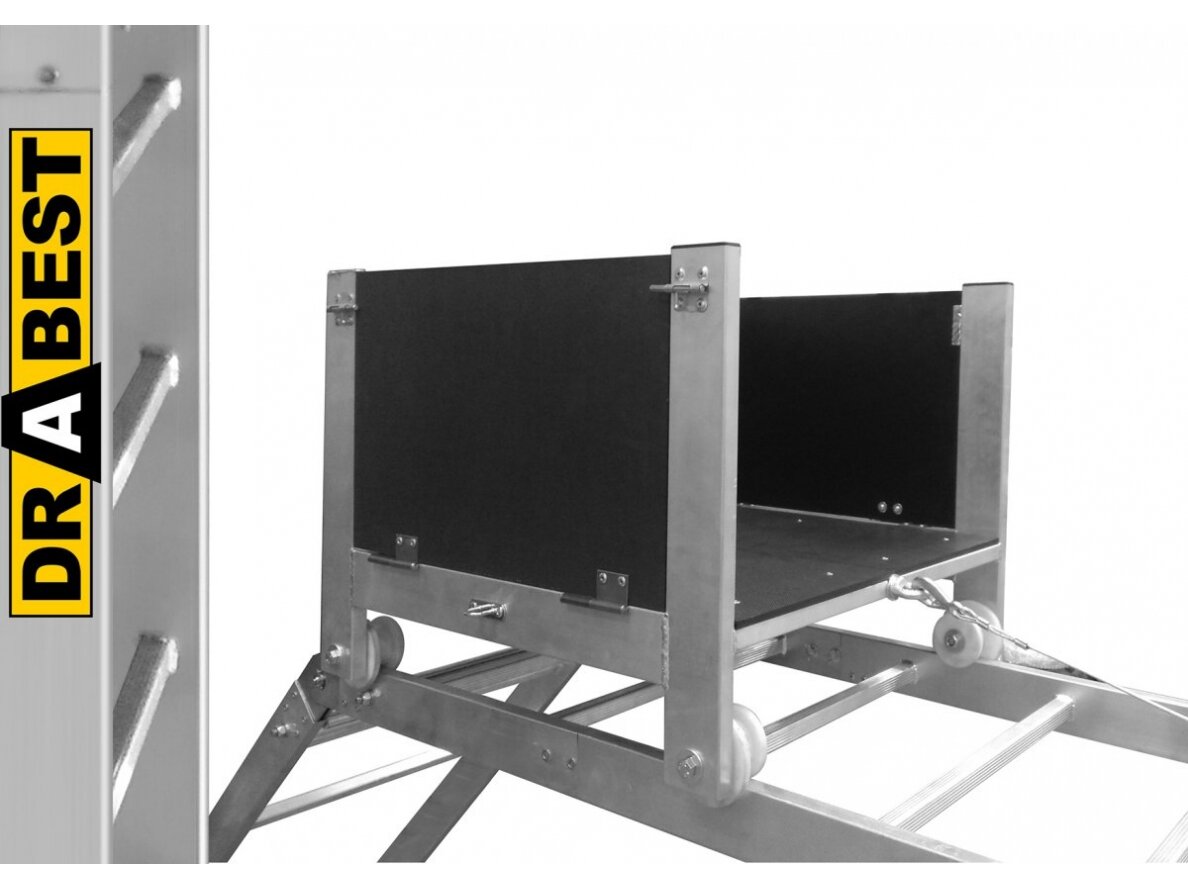

The DRABEST roofer's lift is a lightweight aluminum structure, perfectly suited as a daily support in construction and renovation works. Easy to assemble and disassemble, its compact form after folding allows for convenient transportation. The total weight of all its elements is 90 kilograms. The winch significantly speeds up the work and saves the necessary time for its completion. The “Drabest” lift has a lifting speed of up to 10 meters per minute, and the lifting capacity is up to 125 kilograms. It is equipped with a large trolley, dimensions: 760 x 720 mm (base), 230 mm x 720 mm (backrest), which is additionally covered with a water-resistant non-slip plywood. The trolley can be adapted to non-standard dimensions of transported materials, for example, long wooden beams. Foldable side boards allow. The “Drabest” roof lift has all necessary certifications and complies with health and safety standards. This will provide you and your workers many years of safe and convenient work.

Aliuminum scaffold structure, Technical specifications:
All elements weight: 90 kg!
Permitted load 125 kg
Rope length: 12 m
Lifting speed: average 10 m / min

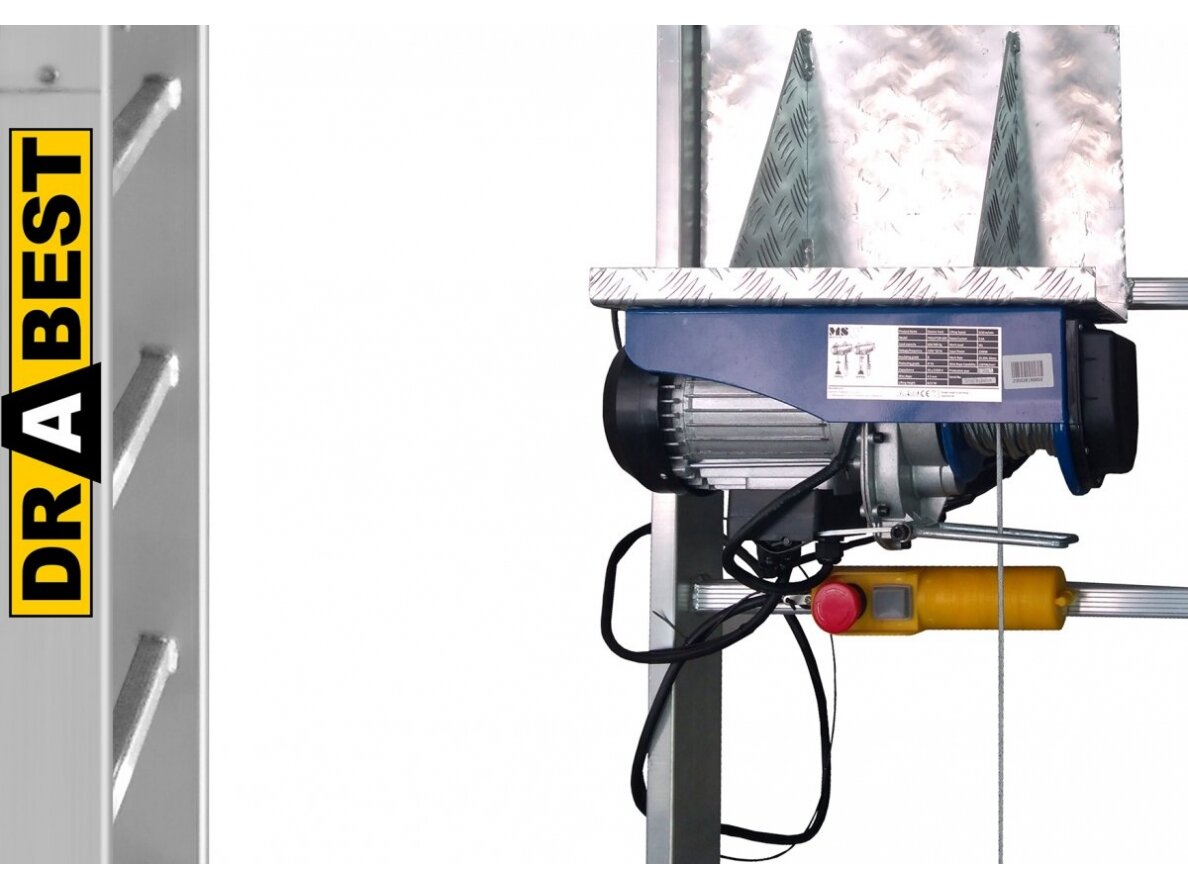

Winch 230V
Transport trolley with opening sides
Transport trolley dimensions - base: 760 mm x 720 mm, side boards: 230 mm x 720 mm
Scaffold lift dimensions when folded: 630 mm x 580 mm

Kit components:
1. Scaffold frame 1.85m (with stabilizer) - 1 pc.
2. Scaffold frame 1.85m - 3 pcs.
3. Scaffold frame 1.06m - 2 pcs.

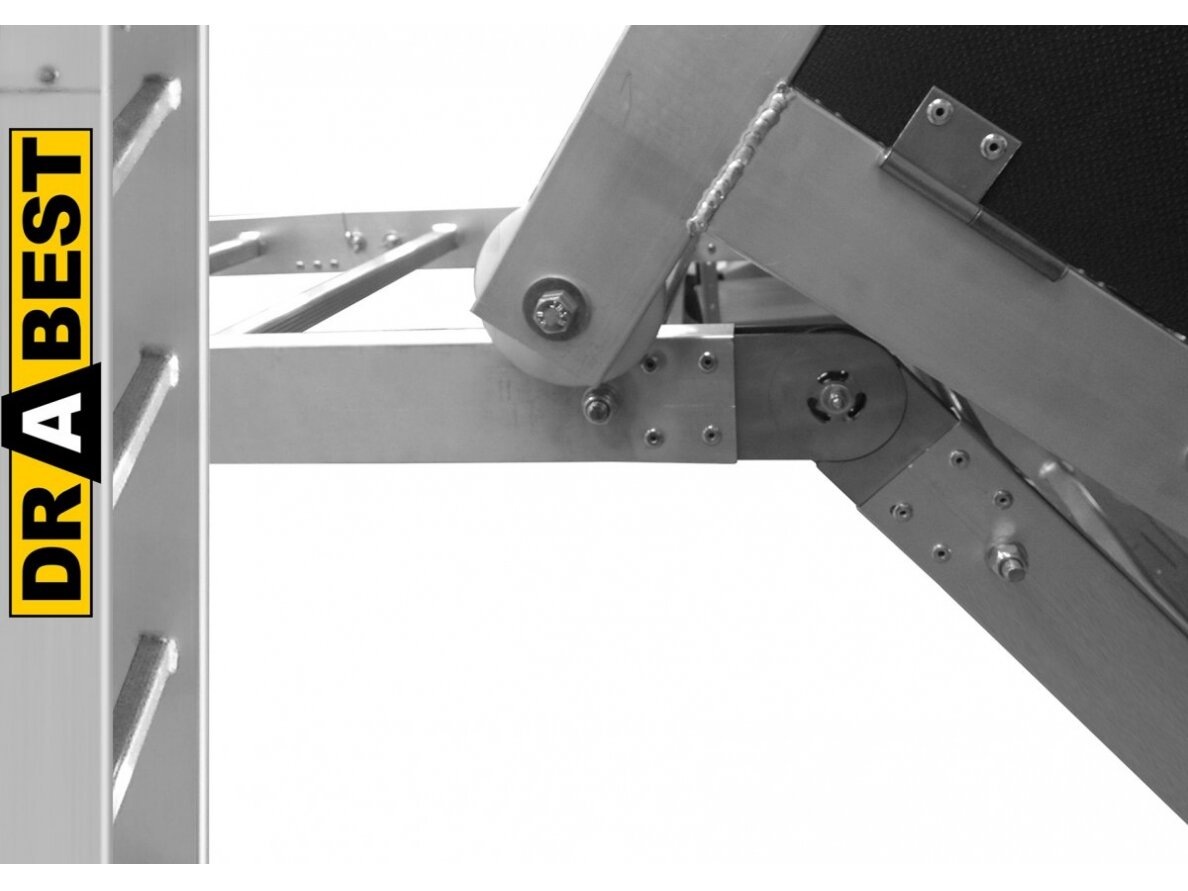

4. Hinge frame - 1 pc.
5. Drive frame - 1 pc.
6. Transport trolley - 1 pc.
7. Telescopic support - 1 pc.
8. Mounting bracket - 1 pc.
9. Maximum height to the start of the roof: 6.5 m.

Manufacturer DRABEST SPÓŁKA Z O.O., Poland www.drabest.pl
