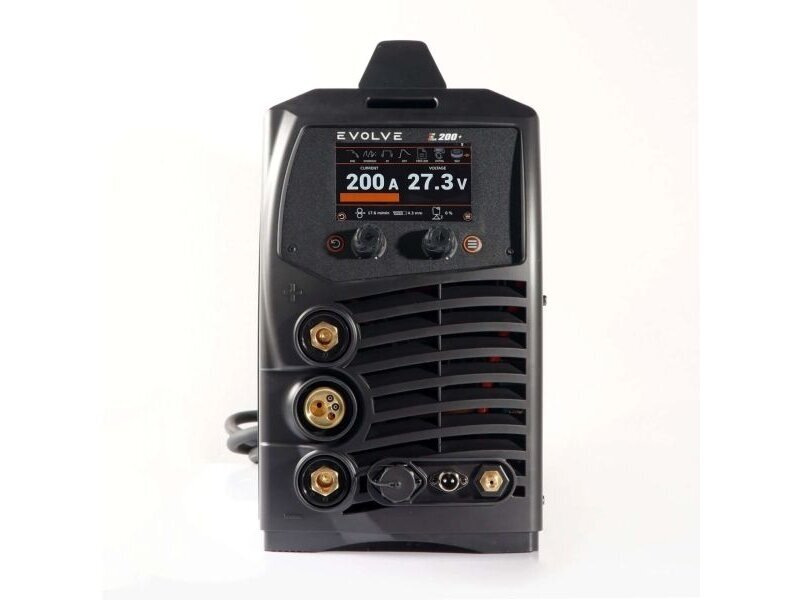

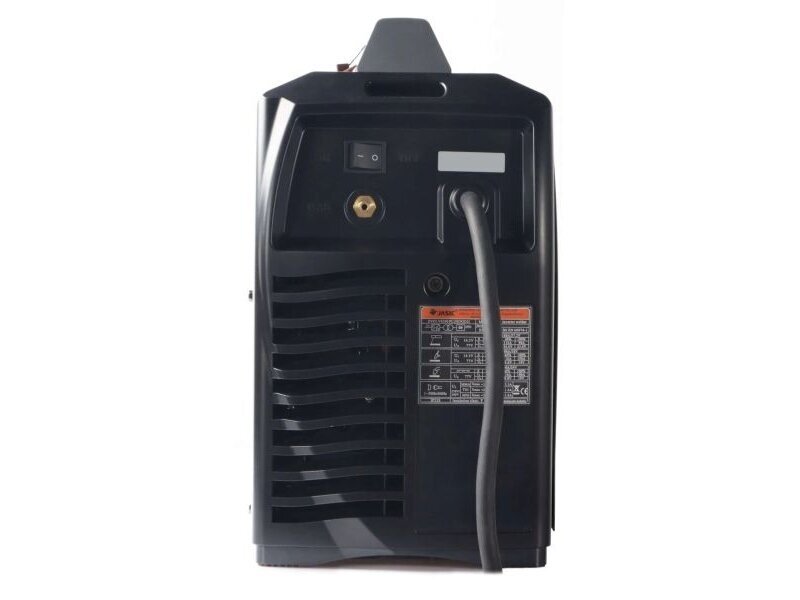

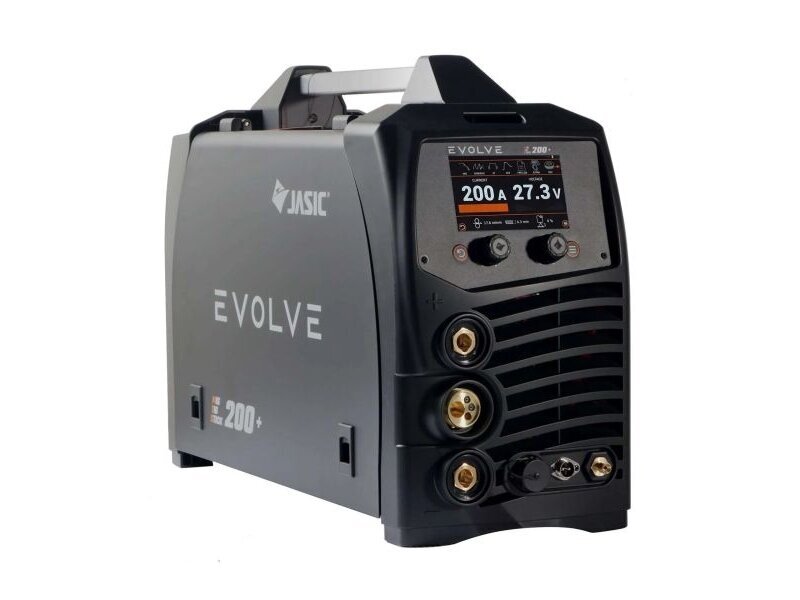

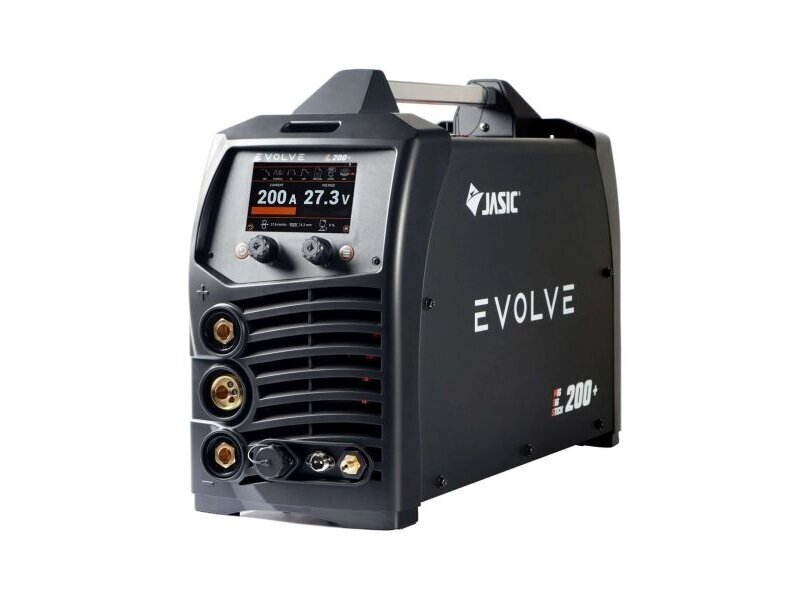

Jasic kit - MIG 200 PLUS EVOLVE N2D2 MIG/MAG welding machine, 200A, 230V

This new-generation Evolve series inverter welding power source is designed for professionals and demanding users. It is a multifunctional (MIG/MAG, TIG Lift, MMA), digitalized and extremely precisely controlled unit, featuring stable arc performance, smart synergic programs, and high energy efficiency.

JASIC MIG 200 PLUS EVOLVE N2D2 is built for professionals looking for a reliable, mobile, and versatile unit for light industry, service workshops, or individual fabrication tasks. It is perfectly suited for welding carbon and stainless steel, aluminum, and other alloys. This single machine is enough to perform MIG/MAG welding (with shielding gas or flux-cored self-shielded wire), LIFT TIG, and manual arc (MMA) welding with coated electrodes.

This MIG/MAG welding machine is intended for use in auto service centers and body repair, metal structure fabrication, farm and maintenance work, and mobile workshops.

Main advantages and functions:

• Synergic control (Synergic): Automatically adjusts welding parameters according to the selected wire diameter, gas type, and metal – simplifying work and ensuring a clean weld.
• Flexible manual adjustment: The ability to fine-tune voltage, wire feed speed, and inductance manually for experienced welders.
• Air-cooled system: Does not require an additional liquid cooler, so the unit is more compact, lighter, and needs less maintenance.
• Simple and intuitive operation: A clear digital display makes it easy to monitor and change welding modes even while wearing protective gloves.

EVOLVE series

Today’s welding challenges are complex and constantly changing. A welding machine that can update its processes and functions as needed is JASIC’s answer to these challenges. It is a continuously evolving (EVOLVEing) machine designed for the modern welding environment.

Evolve is a new JASIC product series featuring fully digital control, Internet of Things (IoT) technology, and cloud computing services.

Advanced DSP microprocessor and digital interface (HMI)

ARM Cortex-M4 with (FPU) is ideally suited for precise pulse control thanks to efficient signal processing. It supports advanced welding algorithms, improving the overall welding quality of the EVOLVE200+.

The EVOLVE digital interface ensures a smooth, intuitive user experience regardless of the welder’s distance from the power source.

Mobile app

• Ability to control multiple devices.
• Wireless connection via “Bluetooth” or “Wi-Fi”.
• Intuitive user interface.
• Detailed welding parameter configuration.

OTA (over-the-air) software update

Users can receive instant notifications on the EVOLVE200+ device as soon as a new software version becomes available. Once the user confirms, the device will automatically download the updated software and carry out the update process. Note: the device software can also be downgraded to an older version.

Fully synergic, controlled by “JTECloud”

EVOLVE200+ has 19 integrated synergic programs covering MMA, TIG, MIG/MAG, pulsed MIG, and double pulsed MIG. On the JTECloud platform, users can access an ever-expanding library of synergic programs. Users can download these cloud-based synergic programs to the EVOLVE200+ when the unit is connected to JTECloud.

• The device connects to the cloud via “Wi-Fi”.
• Welding data statistics and cost analysis are available in the cloud.
• Cloud data storage dedicated to each device.
• OTA software updates.

Inverter frequency modulation

This function increases the energy efficiency of the EVOLVE200+ by adjusting the inverter switching frequency (26K–40K) according to the output power. A higher frequency at low current settings improves arc control, while a lower frequency at high current reduces power loss and heat.

Glick function

The Trim function allows users to adjust the output current during welding in 4T MIG/TIG mode by pressing the torch trigger. This enables more precise heat control and more flexible weld bead shaping.

Double pulse MIG welding

In double pulse MIG welding, two current pulses are used per cycle. This mixes the weld pool more effectively than single pulse welding, resulting in a finer grain structure, better weld quality, and reduced heat input.

This MIG/MAG welding machine is available in different configurations; before purchasing, please select the appropriate one:

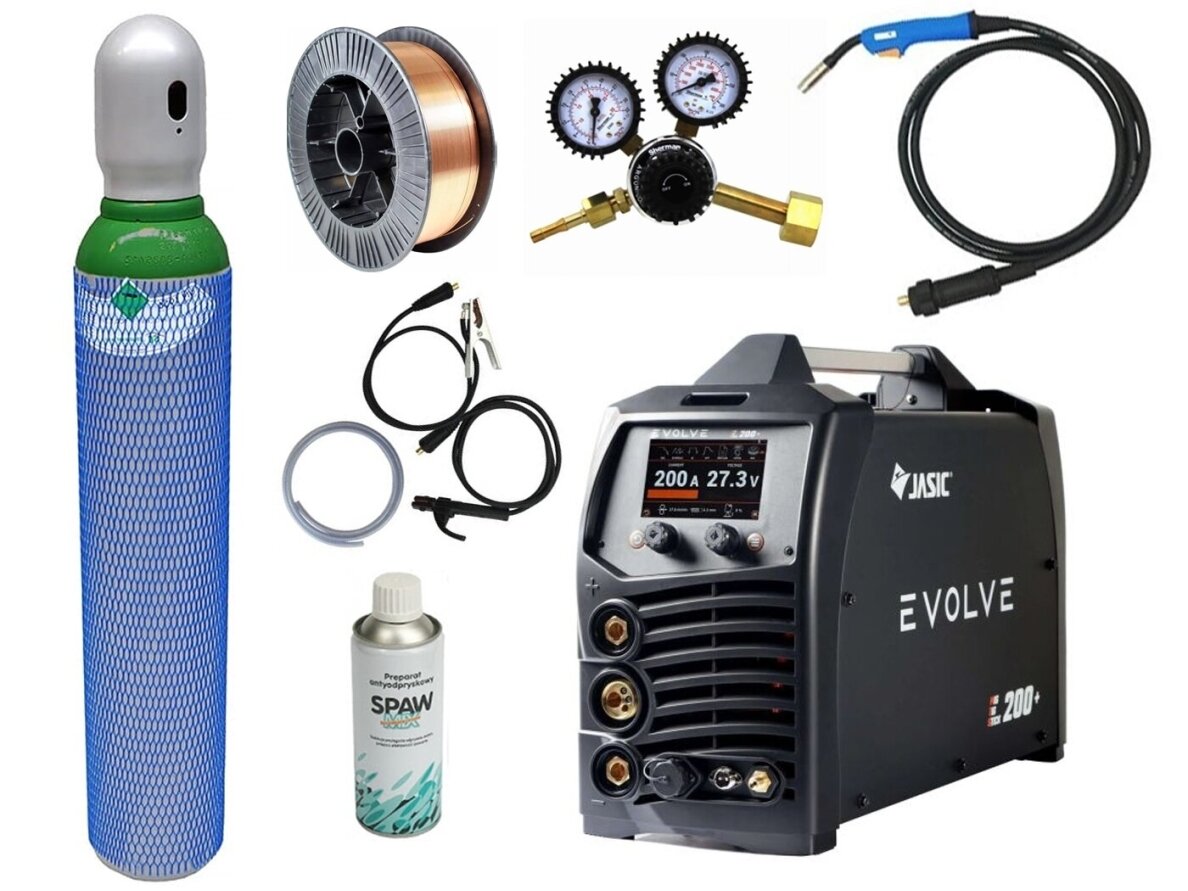

EASY:

• Welding power source
• Torch MB-24, 250A, 3 m
• Ground cable with clamp, 3m, 300A-25mm2
• MIX cylinder (Argon/CO2) full x1
• Argon/CO2 regulator Sherman MOUSE 21,8 x1
• Welding wire BMW 5KG 0.8mm x1
• Aerosol WYR0010 x1

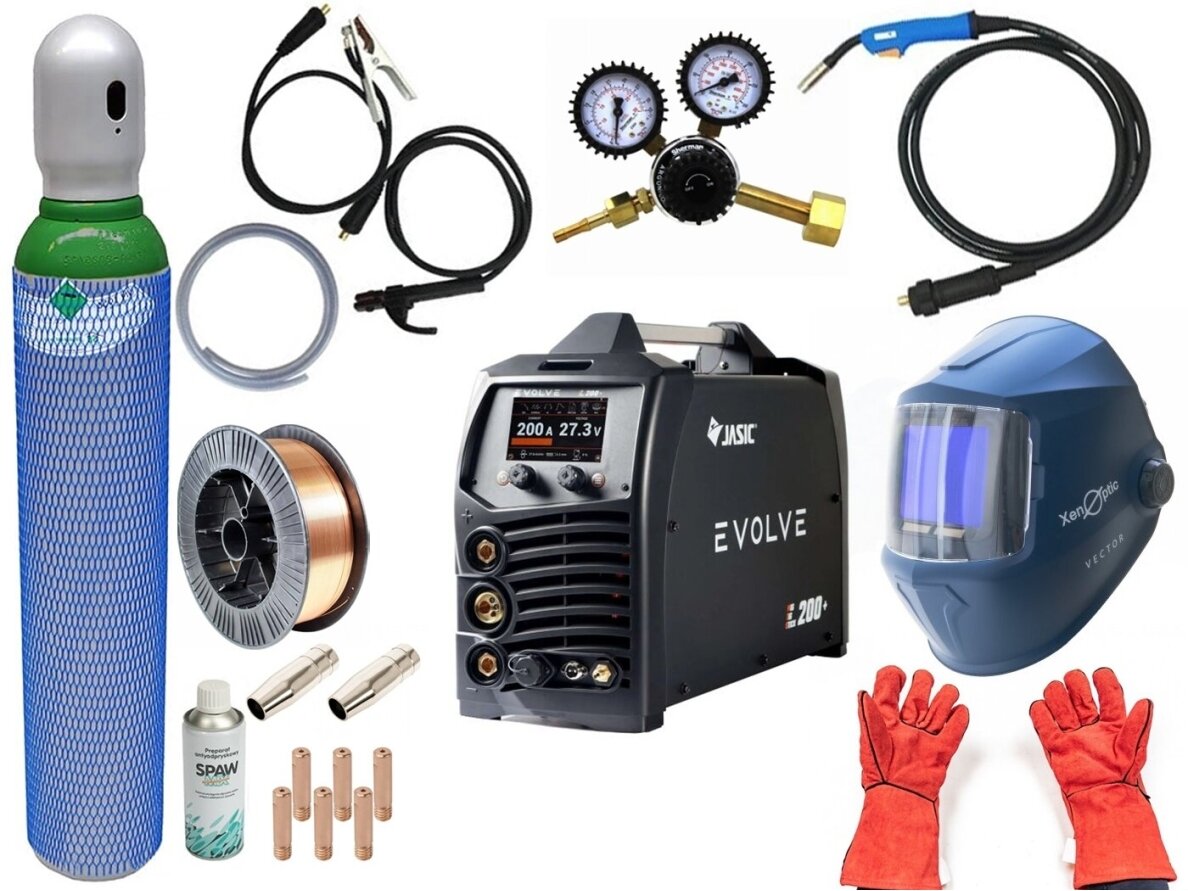

PRO:

• Welding power source
• Torch MB-24, 250A, 3 m
• Ground cable with clamp, 3m, 300A-25mm2
• MIX cylinder (Argon/CO2) full x1
• Argon/CO2 regulator Sherman MOUSE 21,8 x1
• Welding wire BMW 5KG 0.8mm x1
• Welding helmet Xenoptic ION x1
• Welding gloves x1
• Aerosol WYR0010 x1
• Copper contact tips 0.8mm x4
• Nozzle TW-15 x2

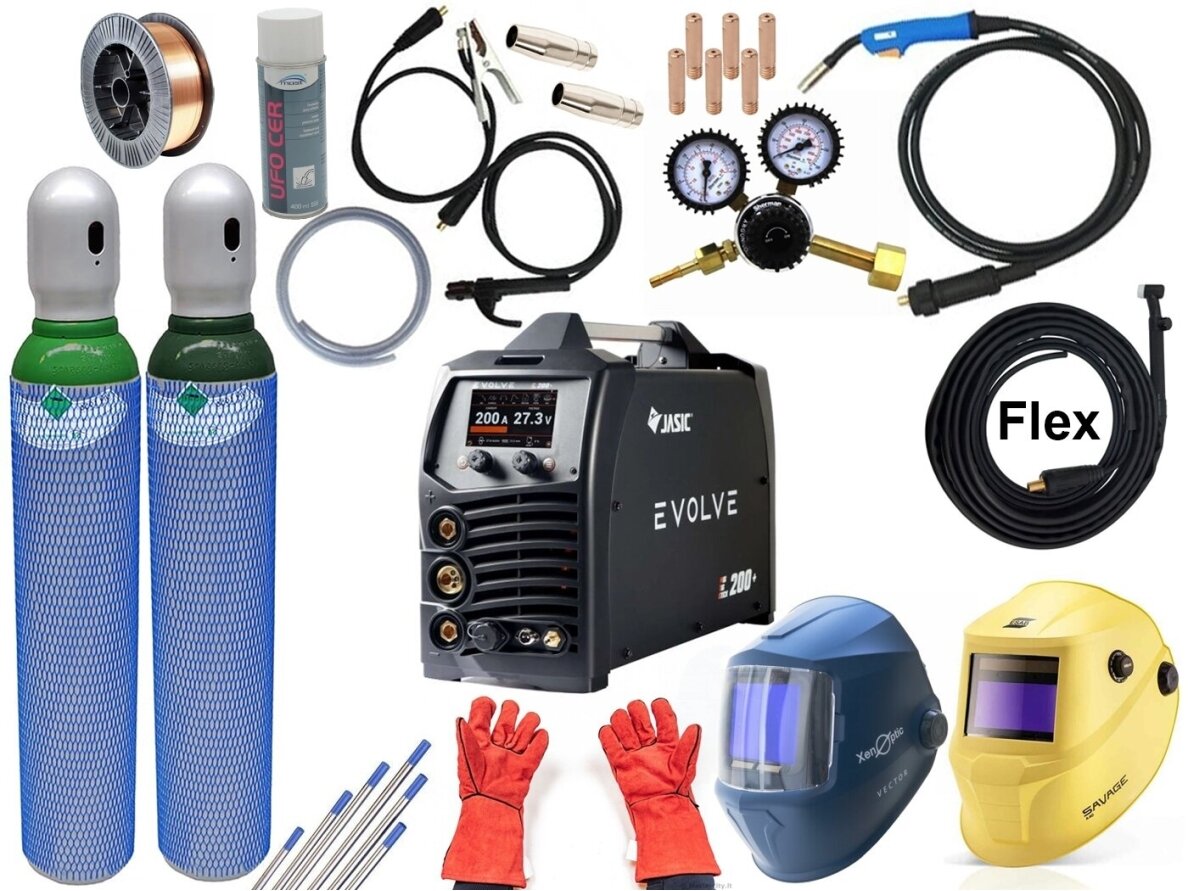

ADVANCED:

• Welding power source
• Torch MB-24, 250A, 3 m
• Ground cable with clamp, 3m, 300A-25mm2
• MIX cylinder (Argon/CO2) full x1
• Argon/CO2 regulator Sherman MOUSE 21,8 x1
• Welding wire BMW 5KG 0.8mm x1
• Welding helmet ESAB SAVAGE A40 or Xenoptic Vector (optional)^* x1
• ARGON cylinder x1
• TIG LIFT torch with flexible neck x1
• Tungsten electrode WL20 2.4mm x1
• Welding gloves x1
• Ceramic aerosol x1
• Quick gas connector x1
• Gas hose x3m
• Copper contact tips 0.8mm x4
• Nozzle TW-15 x2

---

^* regarding the selection of the desired helmet, a MasterCity.lt manager will contact you
