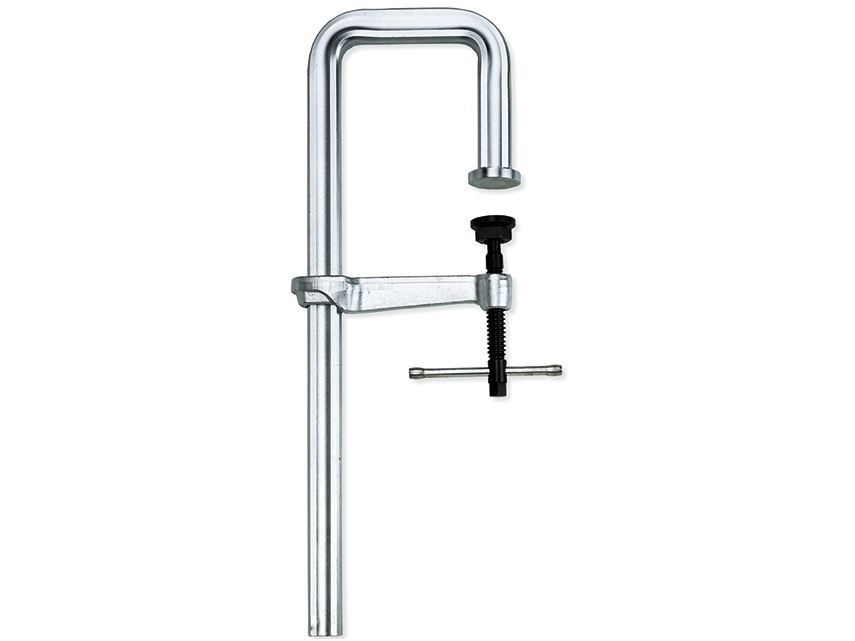

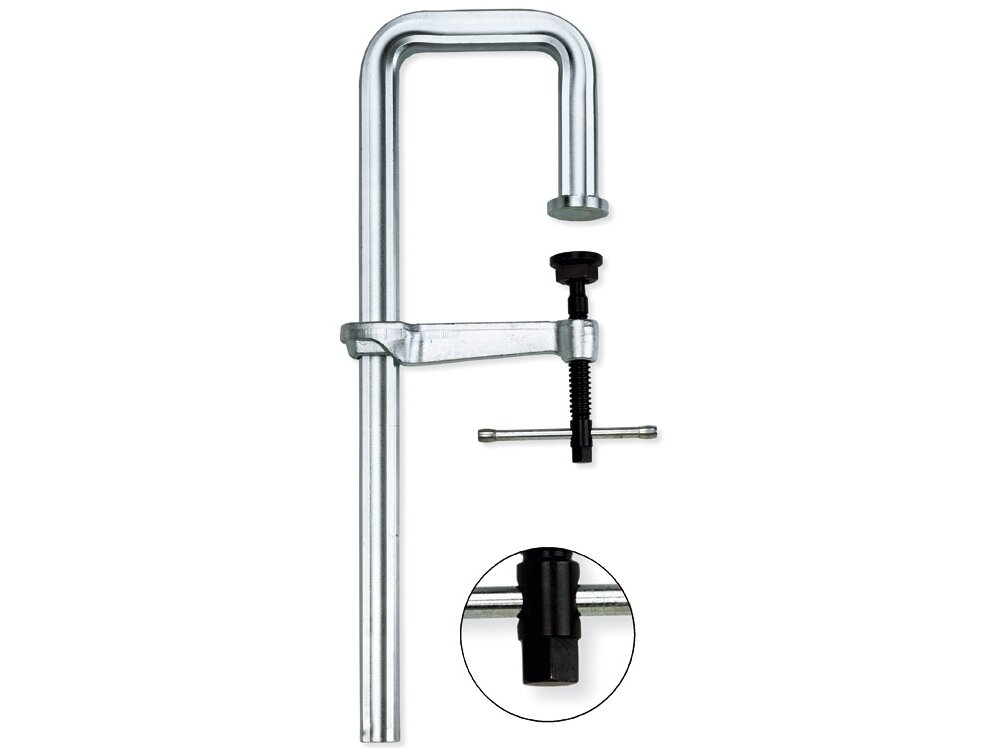

High Efficiency U-shaped Clamp Bessey STBU, 500mm, Heavy Duty

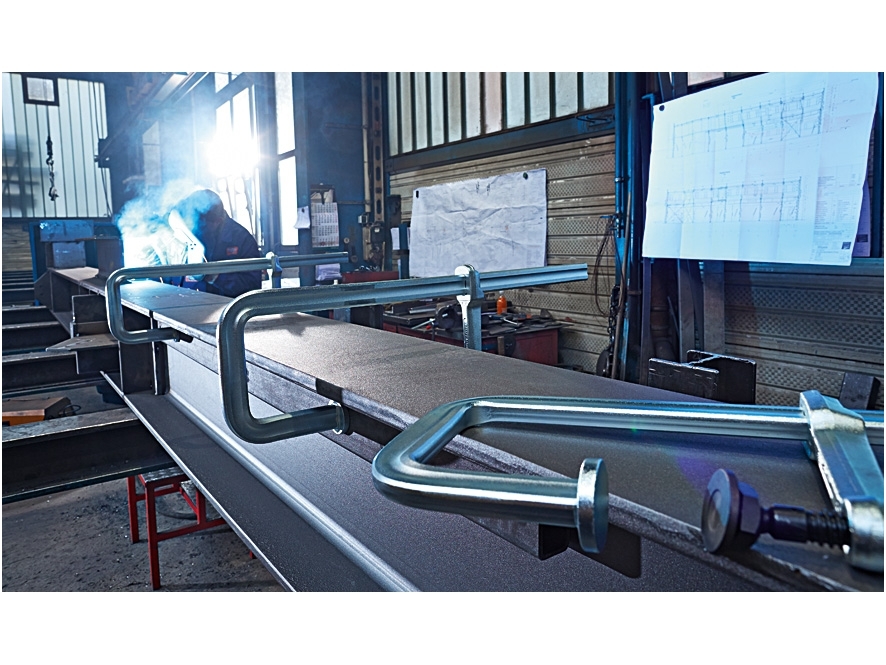

The U-shaped clamp ensures quick and reliable clamping, overcoming obstacles. Clamping force up to 22000N with a torque of 80 Nm. Clamps from two sides across the entire surface, especially suitable for T-shaped profiles. At the end of the spindle, there is a hexagon of 19 mm. The special fire-resistant clamping plate with a metal ceramic insert, which rotates up to 35° degrees, ensures a very long service life. The weight of the clamp is 7.96 kg.

Main advantages:

1. Maximum stability
The fixed U-shaped handle made from a single piece of enhanced steel billet increases resistance to torsional loads. This ensures maximum resistance to destruction and increases stability.

2. Special moving support plate
The high-efficiency heat-resistant support plate with a large spherical head tilts up to 35 degrees and is replaceable. It has a very long service life.

3. Forged moving jaw
The moving jaw made of enhanced forged steel can withstand high loads.

4. Enhanced quality spindle
The enhanced quality spindle is characterized by stability and wear resistance, significantly extending the service life.

5. Reliable T-shaped handle
A reliable T-shaped handle with rounded ends for strong, controlled tightening.

a: 500 mm
b: 175 mm
c: 150 mm
d: 110 mm
x: 40 x 20 mm
